Question overflow pipes, HD6 thermo carburetors


unwelcome spring

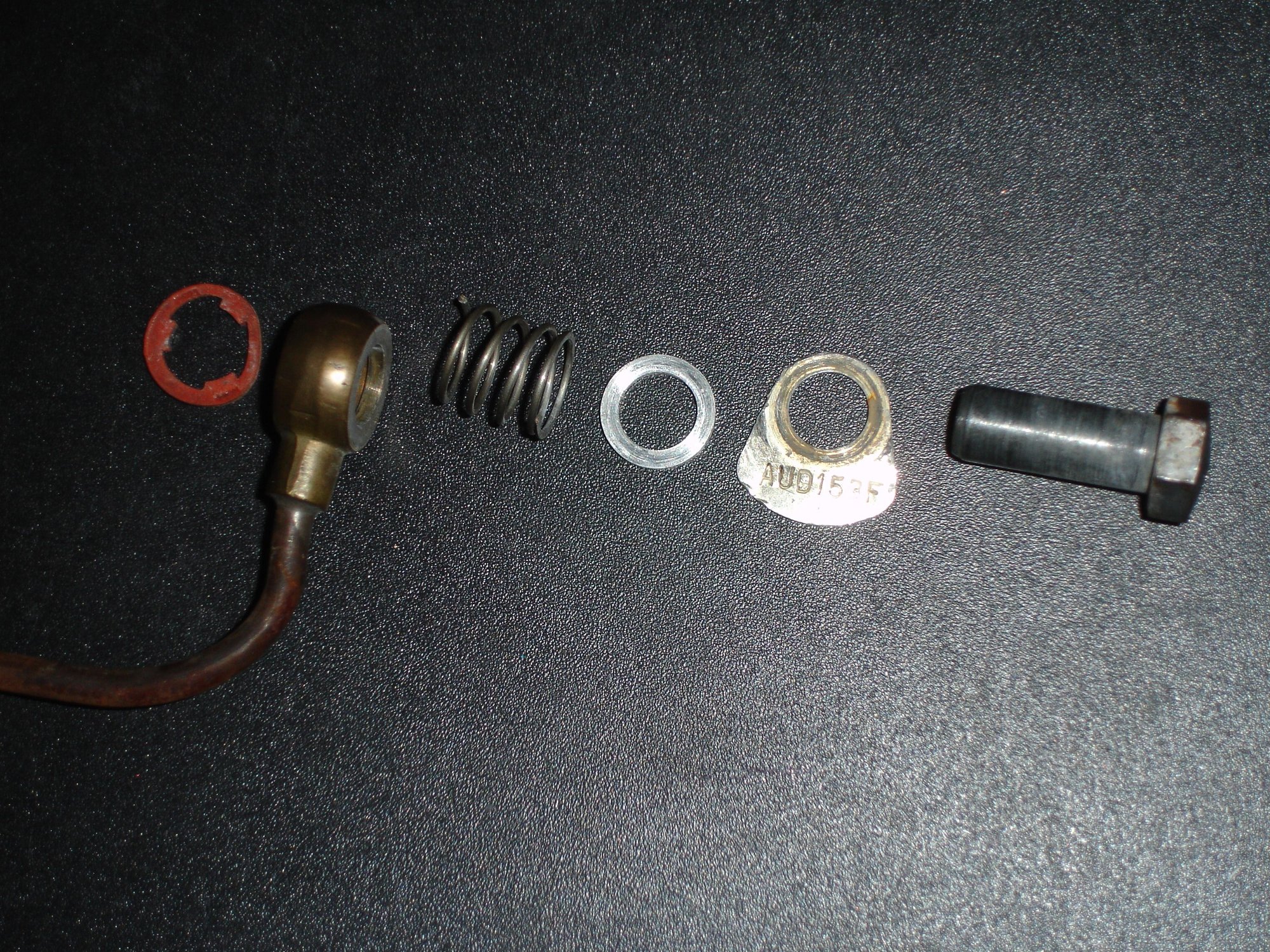

getting the fuel system up to at least starting and running in place. cleaned out lines with a lacquer thinner wash and soak. cleaning out tanks next week. so pulling off the float chamber caps, i found the bowls and floats to be pristine as well as the internal screens, unlike the pumps which were very ugly. the external glass bowled filter had a good 1/8" of varnish in a semi-solid state in it! pic shows the exploded order of overflow pipe parts as i found them on car. manual does not show this spring in the assembly of the overflow pipes. did PO get it wrong? it doesn't really fit over or inside any of the parts and seems all wrong to me.

  #2
Old 01-27-2019, 04:21 PM
Senior Member
Join Date: Aug 2013
Location: Lake Cowichan BC Canada
Posts: 806
Received 182 Likes on 165 Posts
Default

I've never seen a spring in that assembly, and any diagrams or kits from Burlen Carbs, don't show a spring.
The spring would defeat the purpose of the pipe, since if fuel did over flow, it would easily leak out all over around the spring rather then flowing through the pipe.

There is a spring that goes into the top of the float chamber lids that hold that filter in place, but the spring in your photo looks to big and heavy for that purpose.

In some filter arrangements in the glass bowl, a spring is used to hold the filter in place, that spring looks about the right size and tension for that, but still maybe a little big.


Last edited by JeffR1; 01-27-2019 at 04:28 PM.
  #3
Old 01-27-2019, 05:14 PM
jagstuart's Avatar
Senior Member
Thread Starter
Join Date: Dec 2016
Location: sahuarita az
Posts: 257
Received 19 Likes on 14 Posts
Default

the cone shaped float chamber filter screen is intacted with it's holding spring in place as well. just a little present from the dreaded PO i guess. arrrgh!

  #4
Old 01-27-2019, 05:20 PM
Glyn M Ruck's Avatar
Senior Member
Join Date: Jul 2012
Location: Llandudno, Cape Town, South Africa
Posts: 493
Received 85 Likes on 74 Posts
Default

No spring.




  #5
Old 01-27-2019, 07:29 PM
Senior Member
Join Date: Aug 2013
Location: Lake Cowichan BC Canada
Posts: 806
Received 182 Likes on 165 Posts
Default

As it should be Glyn, I can't imagine why someone stick a spring in that area.

  #6
Old 01-28-2019, 07:17 AM
Junior Member
Join Date: May 2015
Location: Atlanta Ga
Posts: 22
Received 3 Likes on 3 Posts
Default

That looks like the main jet spring. Pull the bottom off the carb body, and check to see there is a spring sitting under the metal part of the jet.

  #7
Old 01-30-2019, 11:16 AM
Veteran Member
Join Date: Jun 2016
Location: Bath UK
Posts: 1,633
Received 424 Likes on 355 Posts
Default

Too short for the main jet spring, it's also been cut down from what was original by the look of it, most springs have the last winding flattened together like one end of the spring in the picture, but not the other which looks like it has been cut off.

I would love to see how that was put together at any point, not a chance of it sealing, if the PO put it on there they never ran fuel through it !

  #8
Old 01-31-2019, 01:25 PM
rustfreemike's Avatar
Senior Member
Join Date: Jun 2012
Location: Tennessee
Posts: 106
Received 29 Likes on 22 Posts
Default

Hi - I've seen this spring nonsense before. A long time ago I had some clown rebuild a set of HD8's on a Mk 10 manifold for me because I didn't have a garage at the time and all my carb tools were in storage. He shipped me the carbs and manifold assembled with those springs in the position of where the overflow pipe banjo would be and shipped the overflow pipes separately to avoid damaging them. He did it to keep the bowl cover and everything from bouncing around during shipment since the banjo bolt bottoms out on the stud before it gets down to the cover so it all would be loose without that spring.

I'd bet you that the same guy that rebuilt my set did the PO's set on this car and the PO didn't realize those springs aren't supposed to be there and just assembled it like that. The re-builder didn't include any kind of note saying those springs were for shipping purposes so maybe the PO didn't know it and just re-installed it.


Last edited by rustfreemike; 01-31-2019 at 01:30 PM.
The following users liked this post:
TilleyJon (01-31-2019)
  #9
Old 01-31-2019, 02:20 PM
Veteran Member
Join Date: Jun 2016
Location: Bath UK
Posts: 1,633
Received 424 Likes on 355 Posts
Default

That is very likely precisely right Mike, would explain the cut spring too, I would never have considered that thought, also very practical for transport or storage, not so good in a running car

  #10
Old 01-31-2019, 08:07 PM
rustfreemike's Avatar
Senior Member
Join Date: Jun 2012
Location: Tennessee
Posts: 106
Received 29 Likes on 22 Posts
Default

Originally Posted by TilleyJon View Post
That is very likely precisely right Mike, would explain the cut spring too, I would never have considered that thought, also very practical for transport or storage, not so good in a running car
Yup TilleyJon , it was a good idea for shipping/storage purposes - although judging by the incompetence displayed with the actual rebuilding I'm sure this guy didn't think of it. Luckily I think he's out of business now... this was the perfect example of 'penny wise and pound foolish' on my part

  #11
Old 02-01-2019, 01:52 PM
Veteran Member
Join Date: Jun 2016
Location: Bath UK
Posts: 1,633
Received 424 Likes on 355 Posts
Default

Originally Posted by rustfreemike View Post
Yup TilleyJon , it was a good idea for shipping/storage purposes - although judging by the incompetence displayed with the actual rebuilding I'm sure this guy didn't think of it. Luckily I think he's out of business now... this was the perfect example of 'penny wise and pound foolish' on my part
Oh dear, hindsight is such a wonderful thing.
