Anyone have pics of the STR intercoolers off the car, mainly the lower side. Also any pics of the intake manifold would be appreciated. I searched but had no luck finding these.

Thanks Jim



Hope this helps:



Exactly what I was looking for! Big time thank you sir. I assume the last pic is looking at the front on the core AKA the side the coolant hoses hook to?

Any chance of a pic of the motor with these and the blower removed?



It was from the back actually. Sorry I have no pictures with just the Eaton removed.



How that??



That will work Vance thanks. Just wanted to get an idea of what kinda room and how much material was between the heads and runners.

Thanks guys big help!!



There is an adaptor plate between the intercoolers and the heads. I'm trying to find a pic of it. It raises the intercoolers up some.

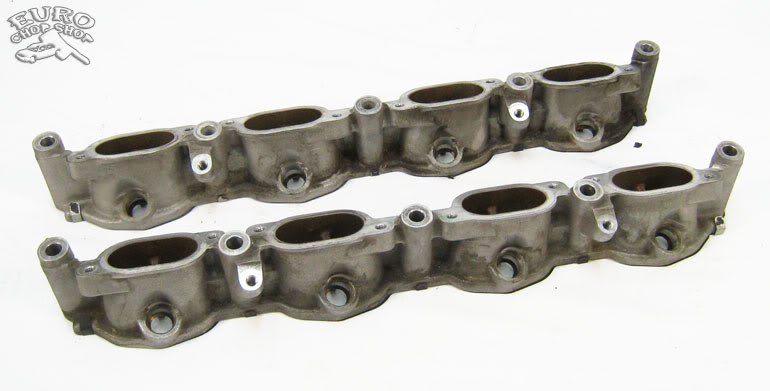

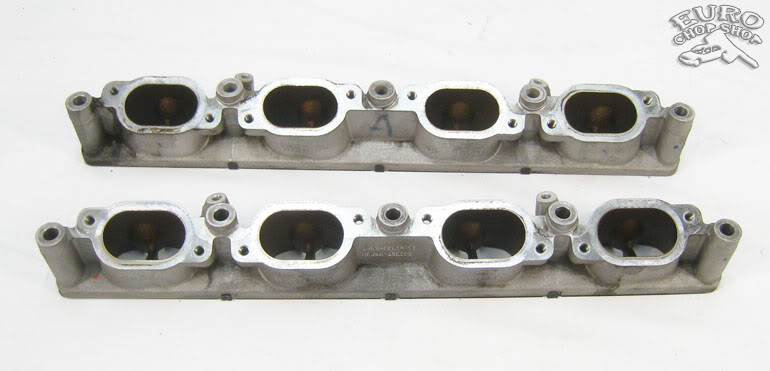

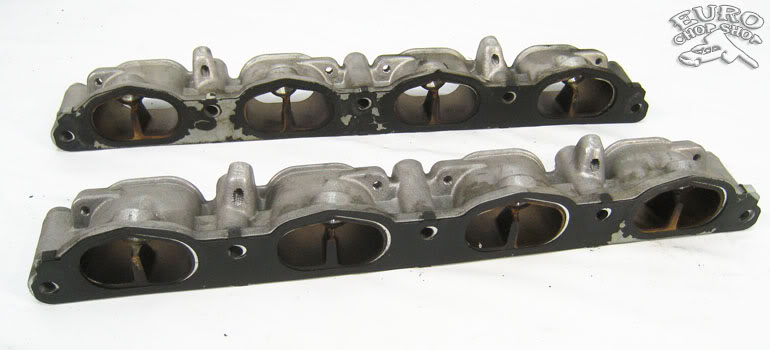

UPDATE: Found some here is the other piece that has the injector mounts and will lift the intercoolers up.



Thanks Vance for the added pics. That gives me a good idea what I am working with without pulling the car apart LOL.



I know what your up to!



I might know if its the same thing I've been looking at which was why I had those pics. I just dont have the money. In a few years though. I'm patient. I start my Solidworks class Monday so at least I will be able to draw pictures of stuff. LOL
