Location of JB155 Transmission Electrical Connector to test it? P0778
#1
Location of JB155 Transmission Electrical Connector to test it? P0778
Looking to find the actual location of the transmission electrical connector to test according to the Jaguar p0778 fault code.
Trying to go go through the steps but cannot find the connector or don't have an idea where to find it! Please help description or better find a picture or link to help asap please and thanks!!
See below at P1 it's says to disconnect transmission electrical connector jb155
[img]webkit-fake-url://1fb879a5-7ede-4949-b674-e751be0d6cc9/imagejpeg[/img]
Trying to go go through the steps but cannot find the connector or don't have an idea where to find it! Please help description or better find a picture or link to help asap please and thanks!!
See below at P1 it's says to disconnect transmission electrical connector jb155
[img]webkit-fake-url://1fb879a5-7ede-4949-b674-e751be0d6cc9/imagejpeg[/img]
#2
Need to test according to this for my fault p0778 and can't find the location of the transmission electrical connector it's talking about
Looking to find the actual location of the transmission electrical connector to test according to the Jaguar p0778 fault code.
Trying to go go through the steps but cannot find the connector or don't have an idea where to find it! Please help description or better find a picture or link to help asap please and thanks!!
See below at P1 it's says to disconnect transmission electrical connector jb155
[img]webkit-fake-url://1fb879a5-7ede-4949-b674-e751be0d6cc9/imagejpeg[/img]
Trying to go go through the steps but cannot find the connector or don't have an idea where to find it! Please help description or better find a picture or link to help asap please and thanks!!
See below at P1 it's says to disconnect transmission electrical connector jb155
[img]webkit-fake-url://1fb879a5-7ede-4949-b674-e751be0d6cc9/imagejpeg[/img]
#4
Thanks and am curious how to access it? Under the car or can it be accessed from the top? Also, what side or where should I ve looking for it? On driver side or on the passenger side? Near anything else as a close by marker?
Thanks a ton, really appreciate it
Thanks a ton, really appreciate it
#5
The connector is mounted on a metal bracket on the black transmission cover plate in the front. Its held in by 3 nuts (forgot what size).
If you remove the battery and tray you can pull the connector and bracket up to the top as seen in the photo.
Youll have to get underneath in the front of the trans either way to dissconnect the connector/bracket.
If you remove the battery and tray you can pull the connector and bracket up to the top as seen in the photo.
Youll have to get underneath in the front of the trans either way to dissconnect the connector/bracket.
#6
#7

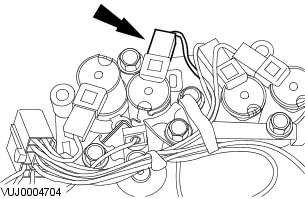

It will be inside the transmission. You'll need to take the black pan off that faces the front of the vehicle. Don't forget to drain the transmission fluid, otherwise you'll have a huge mess.
Removal
Installation
Removal
- Remove the main control valve body. For additional information, refer to Main Control Valve Body.
-
Disconnect the electrical connector. -

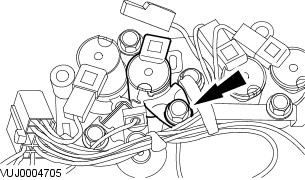

Remove the shift solenoid.
Installation
- NOTE:
Lubricate the shift solenoid O-ring seal with automatic transmission fluid WSS-M2C922-A1 or equivalent meeting Jaguar specification.
To install, reverse the removal procedure. -
Tighten to 8 Nm. - Install the main control valve body. For additional information, refer to Main Control Valve Body.
Trending Topics
#8
Hey
Quick update, I changed both brake dity solenoids and still have the gearbox fault message and the code p0778. Took off the tcm and inspected for water damage and no damn water. Now I'm frustrated because I've removed the transmission pan twice and still no luck. Now I'm clueless what it might be. Any help? Thanks a ton
Quick update, I changed both brake dity solenoids and still have the gearbox fault message and the code p0778. Took off the tcm and inspected for water damage and no damn water. Now I'm frustrated because I've removed the transmission pan twice and still no luck. Now I'm clueless what it might be. Any help? Thanks a ton
