Doing the big plastic replacement!
#1
07-11-2016, 05:31 PM
Doing the big plastic replacement!
I will be posting up what it takes to replace all the plastic in the cooling system on an XF. I am starting on my Gray 2011 XF, but I plan to do the same with my White XF.
Let's just say, this job could break the spirit of the most die-hard DIYer!
Replacing the heater crossover behind the engine was not easy, but if the front crossover fails, it's just a matter of more time before the rear one fails, so for me it had to be done.
And now I am seeing the effects of direct injection on dirty intake valves, so that will add another evening of work to the project at a minimum!
Let's just say, this job could break the spirit of the most die-hard DIYer!
Replacing the heater crossover behind the engine was not easy, but if the front crossover fails, it's just a matter of more time before the rear one fails, so for me it had to be done.
And now I am seeing the effects of direct injection on dirty intake valves, so that will add another evening of work to the project at a minimum!
The following 7 users liked this post by lotusespritse:
Bart Lenferink (02-12-2018),
Bigg Will (08-14-2017),
GeeVeeXF (12-02-2021),
karamayoko (10-25-2022),
nsl1 (07-18-2016),
and 2 others liked this post.
Top Answer
07-14-2016, 11:17 PM
Finished everything yesterday. It was quite a journey learning how to do it, but now that I know how to do it, it will be quick on my other Jag.
It all went together and worked first time. No fuel leaks. No coolant leaks. No starting or running issues. No issues with the belt driven accessories. No issues period.
I am pretty proud of that considering how many things I changed and how many things were disconnected and removed to do the work.
The car runs nice and smooth. It's quieter with a fresh set of idler and tension pulleys and a new belt. Has nice new air filters, cleaned MAFs, cleaned throttle body, cleaned intake valves. Nice fresh coolant running through all new plastic and hoses with a fresh thermostat.
Here are bunch of pics and some video logs I made to remind me of the work I was doing so I wouldn't have any issues putting back together the immense number of things attached to this engine! It's definitely not the simplicity of a 60's small block Chevy!
https://www.dropbox.com/sh/g8opmbw2q...2iGH3_Z8a?dl=0
Here's a short write up of my steps:
Disconnect battery
Lift car up
Take off both under panels
Loosen the radiator cap
Drain radiator from drain **** using nickle coin in vice grips
Remove the big 17mm allen nut from left side of engine to drain
Remove wiper arms
Remove main cowl
Remove the cross bar
Remove the secondary cowl
Remove the fuel line cross
Undo the connector for vacuum line on the right side of engine
Remove the fat hose above engine from the air filter box
Remove the air filter covers, remove the lower air filter box
Remove the elbow for the intake in the front of radiator
Remove the intake cross in the throttle body
Remove the throttle body but leave the hose
Remove the 10 screws for the intake manifold
Pull intake forward and remove the electrical connector, then remove from car
Remove the header tank
Remove the hose in the lower radiator
Remove the upper radiator hose
Disconnect the hose going to the right side metal
Remove the hose into the transmission cooler
Remove the 4 screws holding on the thermostat and crossover plastic
Remove everything else connected to the water lines
Pull out the thermostat and all the hoses
Remove the water pump
Remove the plastic crossover for water pump
Remove the rear crossover
Remove the electrical and both water hoses from crossover
Clean the intake valves
Clean the throttle body and the maf sensors
Remove and replace the idler, tensioner, and belt
Replace all the plastic and hoses and reassemble
It all went together and worked first time. No fuel leaks. No coolant leaks. No starting or running issues. No issues with the belt driven accessories. No issues period.
I am pretty proud of that considering how many things I changed and how many things were disconnected and removed to do the work.
The car runs nice and smooth. It's quieter with a fresh set of idler and tension pulleys and a new belt. Has nice new air filters, cleaned MAFs, cleaned throttle body, cleaned intake valves. Nice fresh coolant running through all new plastic and hoses with a fresh thermostat.
Here are bunch of pics and some video logs I made to remind me of the work I was doing so I wouldn't have any issues putting back together the immense number of things attached to this engine! It's definitely not the simplicity of a 60's small block Chevy!
https://www.dropbox.com/sh/g8opmbw2q...2iGH3_Z8a?dl=0
Here's a short write up of my steps:
Disconnect battery
Lift car up
Take off both under panels
Loosen the radiator cap
Drain radiator from drain **** using nickle coin in vice grips
Remove the big 17mm allen nut from left side of engine to drain
Remove wiper arms
Remove main cowl
Remove the cross bar
Remove the secondary cowl
Remove the fuel line cross
Undo the connector for vacuum line on the right side of engine
Remove the fat hose above engine from the air filter box
Remove the air filter covers, remove the lower air filter box
Remove the elbow for the intake in the front of radiator
Remove the intake cross in the throttle body
Remove the throttle body but leave the hose
Remove the 10 screws for the intake manifold
Pull intake forward and remove the electrical connector, then remove from car
Remove the header tank
Remove the hose in the lower radiator
Remove the upper radiator hose
Disconnect the hose going to the right side metal
Remove the hose into the transmission cooler
Remove the 4 screws holding on the thermostat and crossover plastic
Remove everything else connected to the water lines
Pull out the thermostat and all the hoses
Remove the water pump
Remove the plastic crossover for water pump
Remove the rear crossover
Remove the electrical and both water hoses from crossover
Clean the intake valves
Clean the throttle body and the maf sensors
Remove and replace the idler, tensioner, and belt
Replace all the plastic and hoses and reassemble
Last edited by lotusespritse; 07-14-2016 at 11:21 PM.
#4
07-11-2016, 11:51 PM
The valves are definitely gummed up, and there was a little puddling of oil in the intake manifold. It's just the way it is with these DI engines.

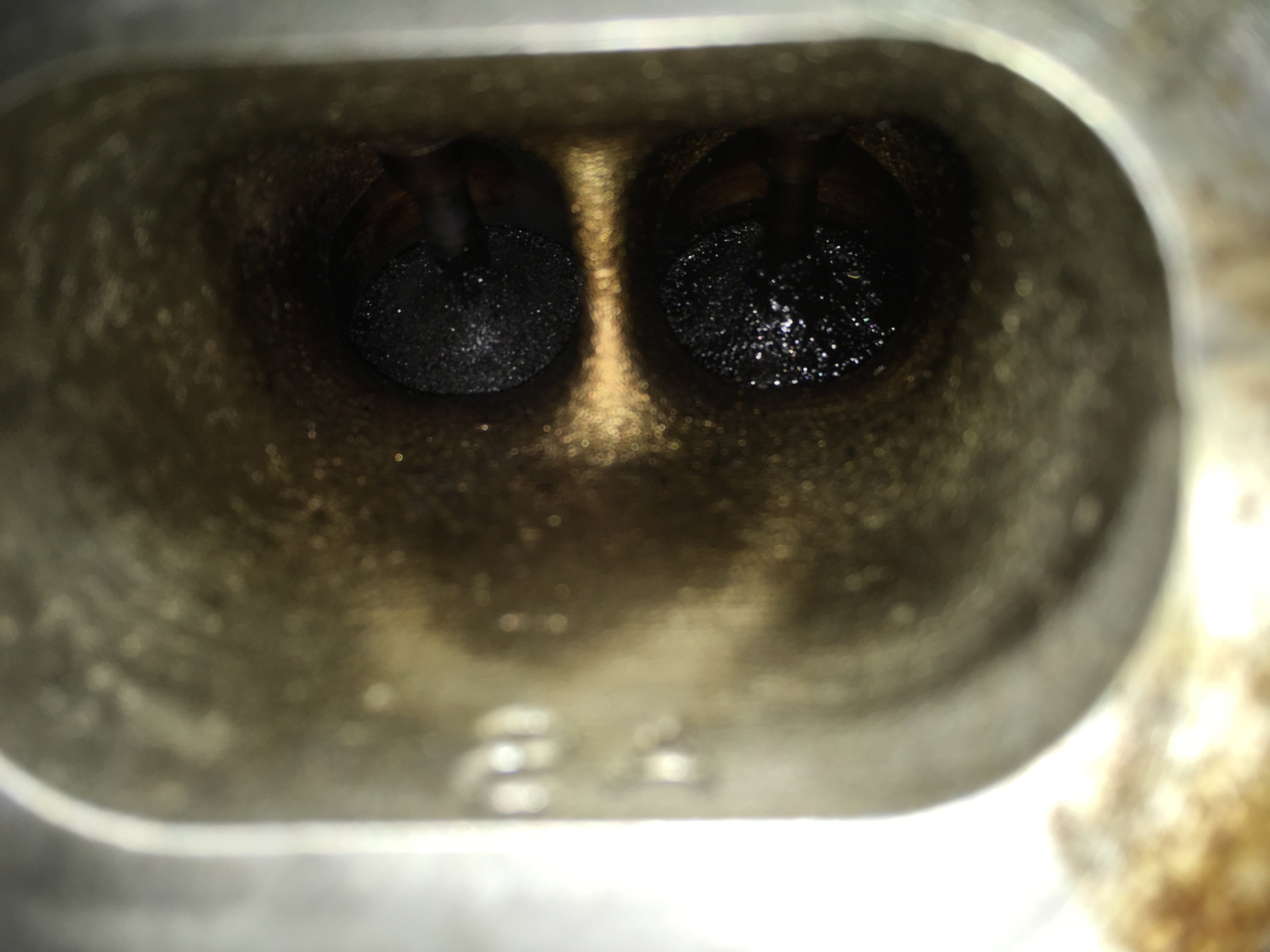

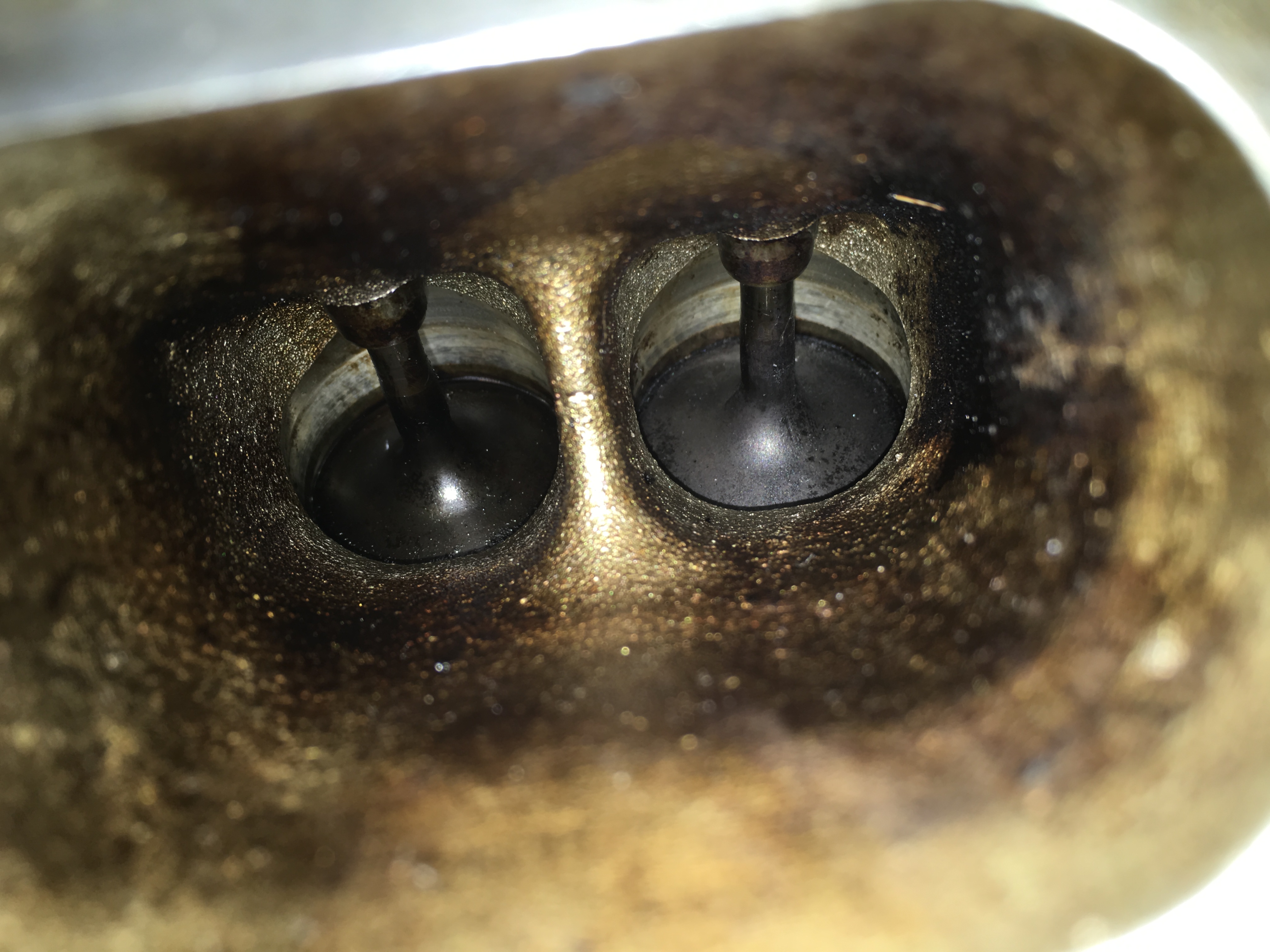

Here's a before pic and an after cleaning pic.
#5
07-12-2016, 02:04 AM
My XFR is nearing 80k, your pics just confirmed that I will be doing a valve cleaning ASAP! Thanks!
The following users liked this post:
The_Ikon (01-20-2022)
#6
07-12-2016, 08:23 PM
Senior Member
I came from a N54 car as well, that one was waaay worse than this at 50k miles!
#7
07-13-2016, 08:16 AM
When I was looking at buying my current XF I was also contemplating a Audi RS4 until I read up on the carbon issues they had. That DI 4.2L V8 motor was horrible due to carbon build up. They would loose 100hp in 20-30k miles due to carbon build up.
Run a search on Google for "Audi RS4 carbon build up" and look at the images that come up. It's crazy how bad it gets on that car.
Run a search on Google for "Audi RS4 carbon build up" and look at the images that come up. It's crazy how bad it gets on that car.
