All gauges inop
Thread Starter
|
Junior Member
Joined: Jan 2017
Posts: 10
Likes: 6
From: New England
All gauges inop

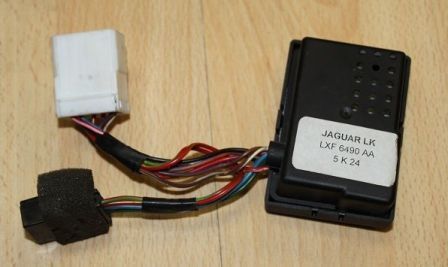

My latest problem, all gauges inop speedo, tach, and eng warning lights do not come on when ignition turned on. Background lighting works and car starts and runs fine.I looked at the instr cluster fuses under the lt rear seat and an airbag fuse in the truck,all intact. connectors on back side of cluster are seated. Two days ago I had an airbag fault light illum I assumed it was the clock spring due to the fact that I have had a clicking sound in the steering wheel when turning now no warnings at all. I don't have access to any wire prints till tues night so as far as chasing wires goes I am at a stand still. Any thoughts? Could the airbag module cause this. I also have a heater/ac error I guess because of the loss of input from the cluster. Thanks for looking.
Joined: Feb 2014
Posts: 20,503
Likes: 15,277
From: Crossroads of America
Hi family truckster,
For those who would like to help, it would be great if you would share the year and model of your Jaguar, perhaps by adding it to your signature line so others don't have to ask. That way we can review the correct schematics to try to give you accurate input.
Gus has many of the Electrical Guides posted at his website, jagrepair.com, that you can access by computer or smartphone.
Cheers,
Don
For those who would like to help, it would be great if you would share the year and model of your Jaguar, perhaps by adding it to your signature line so others don't have to ask. That way we can review the correct schematics to try to give you accurate input.
Gus has many of the Electrical Guides posted at his website, jagrepair.com, that you can access by computer or smartphone.
Cheers,
Don
Thread Starter
|
Junior Member
Joined: Jan 2017
Posts: 10
Likes: 6
From: New England
Hi family truckster,
For those who would like to help, it would be great if you would share the year and model of your Jaguar, perhaps by adding it to your signature line so others don't have to ask. That way we can review the correct schematics to try to give you accurate input.
Gus has many of the Electrical Guides posted at his website, jagrepair.com, that you can access by computer or smartphone.
Cheers,
Don
For those who would like to help, it would be great if you would share the year and model of your Jaguar, perhaps by adding it to your signature line so others don't have to ask. That way we can review the correct schematics to try to give you accurate input.
Gus has many of the Electrical Guides posted at his website, jagrepair.com, that you can access by computer or smartphone.
Cheers,
Don
Veteran Member
Joined: Oct 2014
Posts: 1,092
Likes: 539
From: Scotland
It sounds like one of the two connectors to the instrument pack may have come loose. The instrument pack is easy to remove, just four screws, so easy to check before pursuing more complex causes. There is a good photographic guide online.
Joined: Feb 2014
Posts: 20,503
Likes: 15,277
From: Crossroads of America
family truckster,
It sounds like you're going to have to do some detective work, since the inputs for vehicle speed, engine rpm and others come from different sources, and the most likely point where they come together is at the electrical connectors on the back of the Instrument Cluster or inside the IC itself. The Electrical Guide will be helpful, and you can download it at the link below, courtesy of Gus and his website, jagrepair.com:
1997 X300 Electrical Guide
Please keep us informed.
Cheers,
Don
It sounds like you're going to have to do some detective work, since the inputs for vehicle speed, engine rpm and others come from different sources, and the most likely point where they come together is at the electrical connectors on the back of the Instrument Cluster or inside the IC itself. The Electrical Guide will be helpful, and you can download it at the link below, courtesy of Gus and his website, jagrepair.com:
1997 X300 Electrical Guide
Please keep us informed.
Cheers,
Don
Trending Topics
Thread Starter
|
Junior Member
Joined: Jan 2017
Posts: 10
Likes: 6
From: New England
FIXED!! .Thank you all for your replies. Big thank you to Don B for telling me about jagrepairs and another big thank you to Gus for the site, I could not have gotten my car fixed today without those wire prints. I checked all the grounds and was certain that was the trouble nope grounds were good.I had already cked all the fuses and they were good.Now ckd power into the instr cluster found no powerin ignition position 1. pulled aux power relay in truck found to be faulty (sticking) gave it a few calibrated blows and now all operational.I will be replacing the relay as soon as I can source a new one but for now I am just happy to have found the fault, Thanks again, Steve Sullivan.
