XJ XJ6 / XJR6 ( X300 ) 1995-1997

Bulb Failure Warning Light


  #1
Old 03-19-2019, 05:27 AM
Junior Member
Thread Starter
Join Date: Mar 2019
Location: Kent, United Kingdom
Posts: 10
Received 0 Likes on 0 Posts
Default Bulb Failure Warning Light

Hi there,

I have a small issue with my 95’ XJR. It is showing a bulb failure warning light on the dashboard, so I checked around the car and could not find a single bulb out. After a drive last night I found that under braking, the warning light goes out and then comes back on when I take my foot off the brake.

Does anyone have any ideas about how to go about this issue or what it could be.

Thanks in advance!

  #2
Old 03-19-2019, 05:53 AM
AJ16er's Avatar
Senior Member
Join Date: Oct 2008
Location:
Posts: 682
Received 82 Likes on 70 Posts
Default

I would inspect both brake light bulbs.

The following users liked this post:
Don B (03-19-2019)
  #3
Old 03-19-2019, 06:04 AM
GGG's Avatar
GGG
GGG is offline
Join Date: Dec 2011
Location: Durham, UK
Posts: 108,875
Received 10,240 Likes on 8,420 Posts
Default

Originally Posted by Shinda’s XJR View Post
I have a small issue with my 95’ XJR. ....
Welcome to the forum Shinda’s XJR,

I recall both my XJ40 and X300 were sensitive to cheap replacement bulbs.

Please follow this link New Member Area - Intro a MUST - Jaguar Forums - Jaguar Enthusiasts Forum to the New Member Area - Intro a MUST forum and post some information about yourself and your vehicle for all members to see. In return you'll get a proper welcome and some useful advice about posting to the forum.

Graham

The following users liked this post:
Don B (03-19-2019)
  #4
Old 03-19-2019, 09:39 AM
Steve M's Avatar
Veteran Member
Join Date: Jul 2012
Location: Wiltshire, UK
Posts: 3,827
Received 1,228 Likes on 928 Posts
Default

My warning light comes on intermittently; it is probably just a case of removing bulbs and cleaning the contacts.
I'll get round to it one day.

  #5
Old 03-19-2019, 10:21 AM
GGG's Avatar
GGG
GGG is offline
Join Date: Dec 2011
Location: Durham, UK
Posts: 108,875
Received 10,240 Likes on 8,420 Posts
Default

Originally Posted by Steve M View Post
..... I'll get round to it one day.
Here you are:



Graham


  #6
Old 03-19-2019, 10:37 AM
Steve M's Avatar
Veteran Member
Join Date: Jul 2012
Location: Wiltshire, UK
Posts: 3,827
Received 1,228 Likes on 928 Posts
Default

Thanks, that's just what I need!
How do I make it fix my lights?
Can you supply by the hundred as I have a **** pile of stuff to do?

  #7
Old 03-26-2019, 06:06 AM
Junior Member
Thread Starter
Join Date: Mar 2019
Location: Kent, United Kingdom
Posts: 10
Received 0 Likes on 0 Posts
Default

Thanks for the advice and the kind welcome. I will introduce myself on the new member area now!
I spoke to a local headlight fitter and he said that the issue is electrical and recommended I replace the whole tail light unit.

  #8
Old 03-26-2019, 09:59 AM
Steve M's Avatar
Veteran Member
Join Date: Jul 2012
Location: Wiltshire, UK
Posts: 3,827
Received 1,228 Likes on 928 Posts
Default

Well, it's definitely electrical so he's not wrong there.
As he is a headlight fitter (is that a job?) he is bound to go for the most expensive option.
It could also be the warning light relay (I assume that it has one).
Have you pulled the bulbs and cleaned the contacts?
Don't forget the rear number plate lights.

  #9
Old 03-26-2019, 11:00 AM
Lady Penelope's Avatar
Veteran Member
Join Date: Apr 2017
Location: Kansas City USA
Posts: 3,775
Received 1,213 Likes on 965 Posts
Default

In the under corners of the car there are 4 black connectors that get corroded

corrosion limits the current flow and that's what the bulb warning is looking at

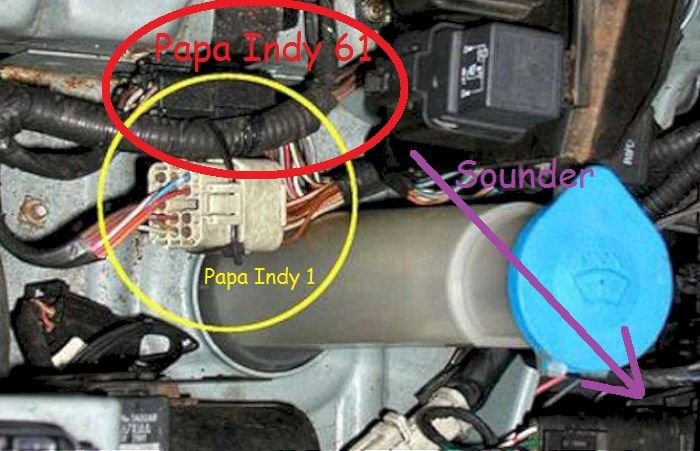

The connector part # EC13MK is the same as the Papa Indy 1 and 61 in the engine compartment just behind the washer fill cap

The bulb contact tabs can be pulled out slightly







Last edited by Lady Penelope; 03-26-2019 at 11:10 AM.
  #10
Old 03-27-2019, 06:18 PM
Junior Member
Thread Starter
Join Date: Mar 2019
Location: Kent, United Kingdom
Posts: 10
Received 0 Likes on 0 Posts
Default

Lol maybe fitter was a bad choice of words. He owns a vehicle modification shop and specialises in lighting. You've hit the nail on the head with the number plate light as one of those is out. Much appreciated! The cowboy told me a number plate light wouldn't trigger a warning on the dash. Will be paying him a visit on Friday with some choice words! Thanks again!

  #11
Old 03-28-2019, 10:18 AM
Junior Member
Thread Starter
Join Date: Mar 2019
Location: Kent, United Kingdom
Posts: 10
Received 0 Likes on 0 Posts
Default

So after finding out that the number plate light was out, I went to buy a new set of bulbs. When I went to fit them, I found out that the housing that the bulb fits into has rusted over time and needs replacing. At least I don’t need to replace the whole tail light like that cowboy advised! Thanks for all the advice guys. Much appreciated!

  #12
Old 03-30-2019, 02:47 PM
Junior Member
Join Date: Apr 2018
Location: Stockholm
Posts: 7
Likes: 0
Received 2 Likes on 2 Posts
Default

Hello all,

My connectors has a couple of wires cut. Any suggestion why that might be?

//Olle

  #13
Old 03-30-2019, 02:51 PM
Steve M's Avatar
Veteran Member
Join Date: Jul 2012
Location: Wiltshire, UK
Posts: 3,827
Received 1,228 Likes on 928 Posts
Default

Try and be a bit more specific!
What connectors?
If it is a different problem then start a new thread.
What car is it?

  #14
Old 03-31-2019, 12:19 AM
Junior Member
Join Date: Apr 2018
Location: Stockholm
Posts: 7
Likes: 0
Received 2 Likes on 2 Posts
Default

Oh sorry- the black and White connectors that Lady Penelope is mentioning. Mine is an X300 -95.

I will take a Picture later to show you!

Olle

The following users liked this post:
Lady Penelope (03-31-2019)
  #15
Old 03-31-2019, 03:50 AM
Steve M's Avatar
Veteran Member
Join Date: Jul 2012
Location: Wiltshire, UK
Posts: 3,827
Received 1,228 Likes on 928 Posts
Default

Ok!

  #16
Old 03-31-2019, 04:20 AM
Lady Penelope's Avatar
Veteran Member
Join Date: Apr 2017
Location: Kansas City USA
Posts: 3,775
Received 1,213 Likes on 965 Posts
Default

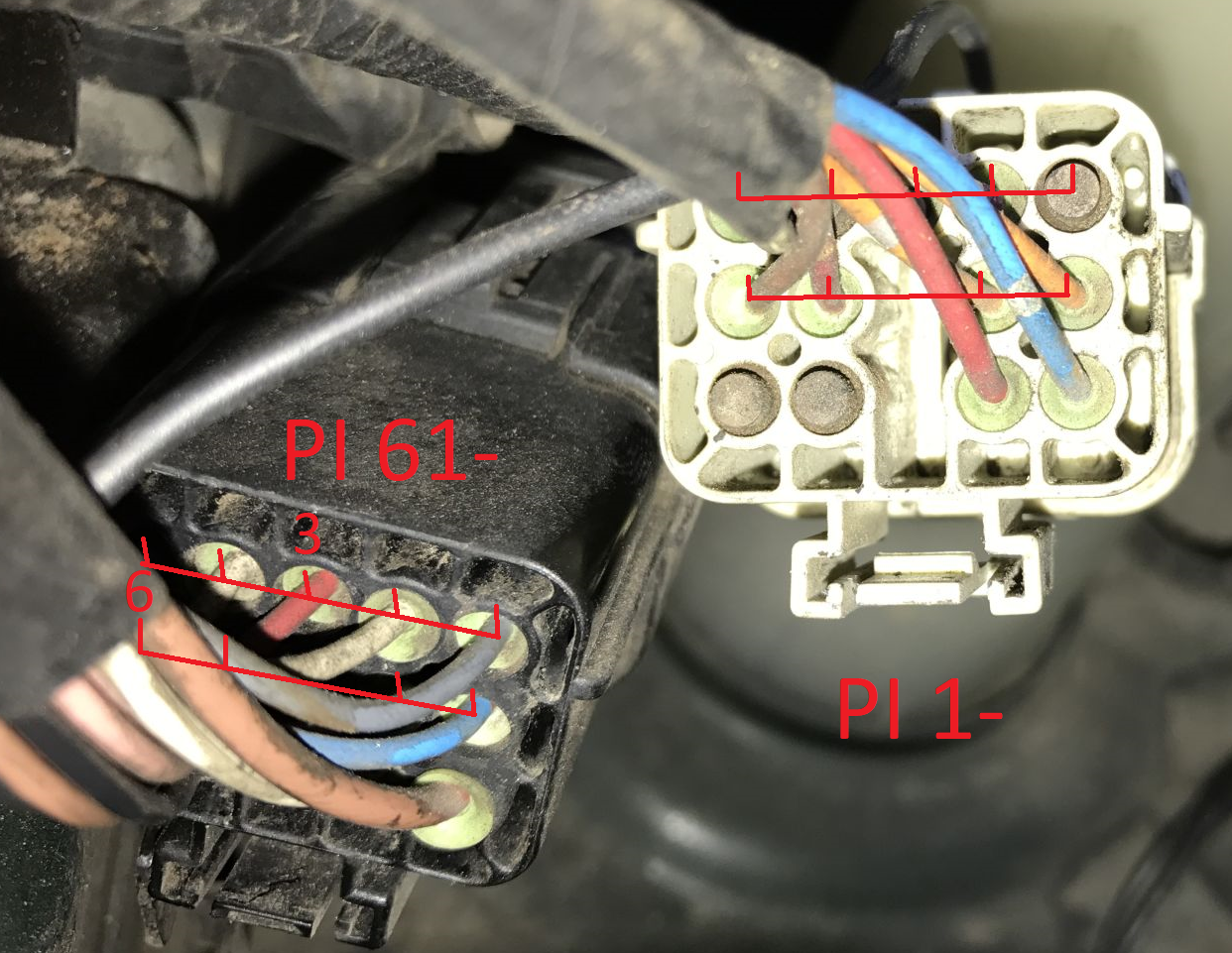

Those 2 connectors are very important as they contain some engine regulation wires
  • In a pinch the effected wires can be simply spliced to get you going and a connector can be ordered later
  • I have a wiring color code chart for both the connectors on my laptop somewhere to piece it together
  • The V12 has 2 extra wires in the same connector but the 2 wires only come into one side of the connector like I found on mine for the inline 6, this may be your issue


Last edited by Lady Penelope; 03-31-2019 at 05:14 AM.
  #17
Old 03-31-2019, 10:50 AM
Junior Member
Join Date: Apr 2018
Location: Stockholm
Posts: 7
Likes: 0
Received 2 Likes on 2 Posts
Default

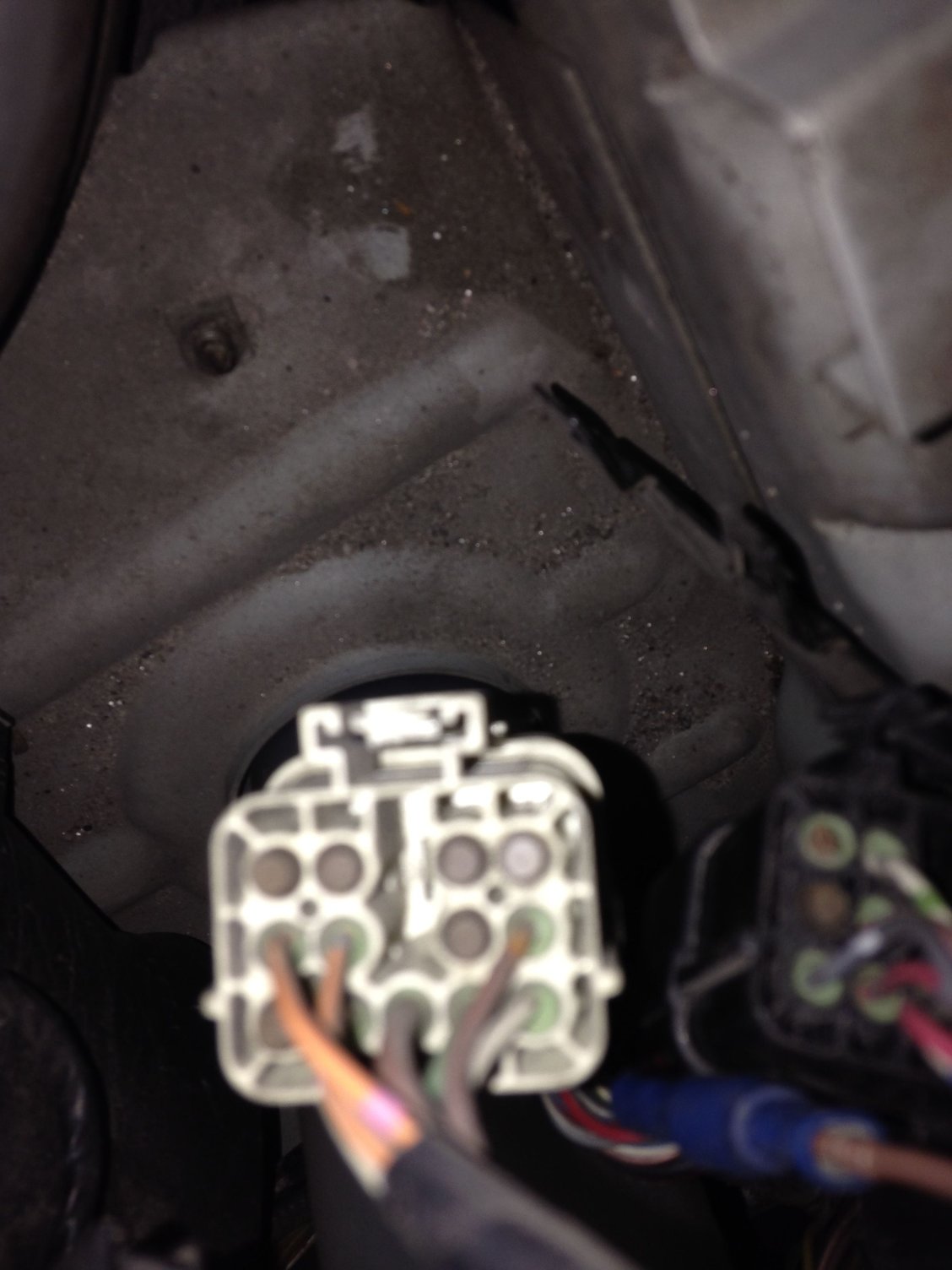

Ok, so I managed to a couple of blurry pics of my connectors.

What I thought was cut leads was actually plugged holes (it seams), so never mind that!

But- to get rid of the bulb failure warning:
Mine comes on when I put on the parking- and main beam and my right turn indicator flashes in double speed. I tried changing bulbs and a "hard reset" but it´s still there.

Do you Think I should replace the connectors you Point at on the Pictures? Maybe just some Electronic cleaner spray....?

Thanks for helping out!


/Olle

The following users liked this post:
Lady Penelope (03-31-2019)
  #18
Old 03-31-2019, 10:52 AM
Junior Member
Join Date: Apr 2018
Location: Stockholm
Posts: 7
Likes: 0
Received 2 Likes on 2 Posts
Default



  #19
Old 03-31-2019, 12:05 PM
Lady Penelope's Avatar
Veteran Member
Join Date: Apr 2017
Location: Kansas City USA
Posts: 3,775
Received 1,213 Likes on 965 Posts
Default

The double speed turn or direction flashing indicates a low current detected in the external lights control modual

On the 95 up to a certain production number there are 2 in the front , later they just have the one only in the trunk

You may have a wrong bulb in a socket not allowing enough current to flow , a bad socket , the contact ears on the bulb itself can be sprung out a little , or one of the connectors in the 4 under corners of the car can be corroded

See page 111 for above VIN 739427

page 101 for below VIN 739427

http://www.jagrepair.com/images/Auto.../jagxj1995.pdf

The repeaters behind the front wheels should also be flashing , you can remove the socket by pushing the socket fwd or backwards on then pushing or puling on the front or aft edge . The wires going into the EV - 1 type connector can be broken and can be swapped with the ones on the trunk dome lights

See page 115 for a 96 as its a clearer diagram then the 95

http://www.jagrepair.com/images/Auto.../jagxj1996.pdf

Notice the grounds for the bulb current to pass through are the BL1 - ( left ) and BR1 - ( right ) connectors under the car like and the same part # as the Papa Indy 1 and 61 you were looking at behind the washer fill cap

There have been problems noted in a wire disconnected on the turn signal switch that can easily resolderd back on , you will notice this if you get no turn lights on one or both directions

editing


Last edited by Lady Penelope; 03-31-2019 at 01:30 PM.
  #20
Old 03-31-2019, 01:08 PM
Junior Member
Join Date: Apr 2018
Location: Stockholm
Posts: 7
Likes: 0
Received 2 Likes on 2 Posts
Default

Thank you very much for these thorough instructions. You´re a jag-wizard!

/Olle
