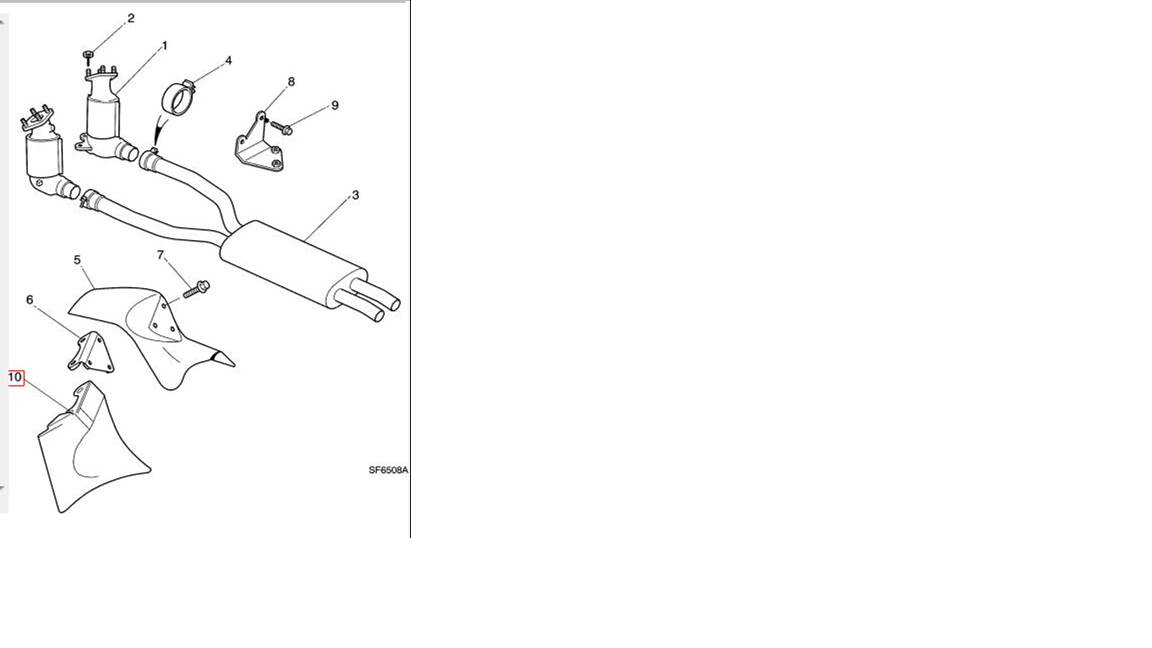

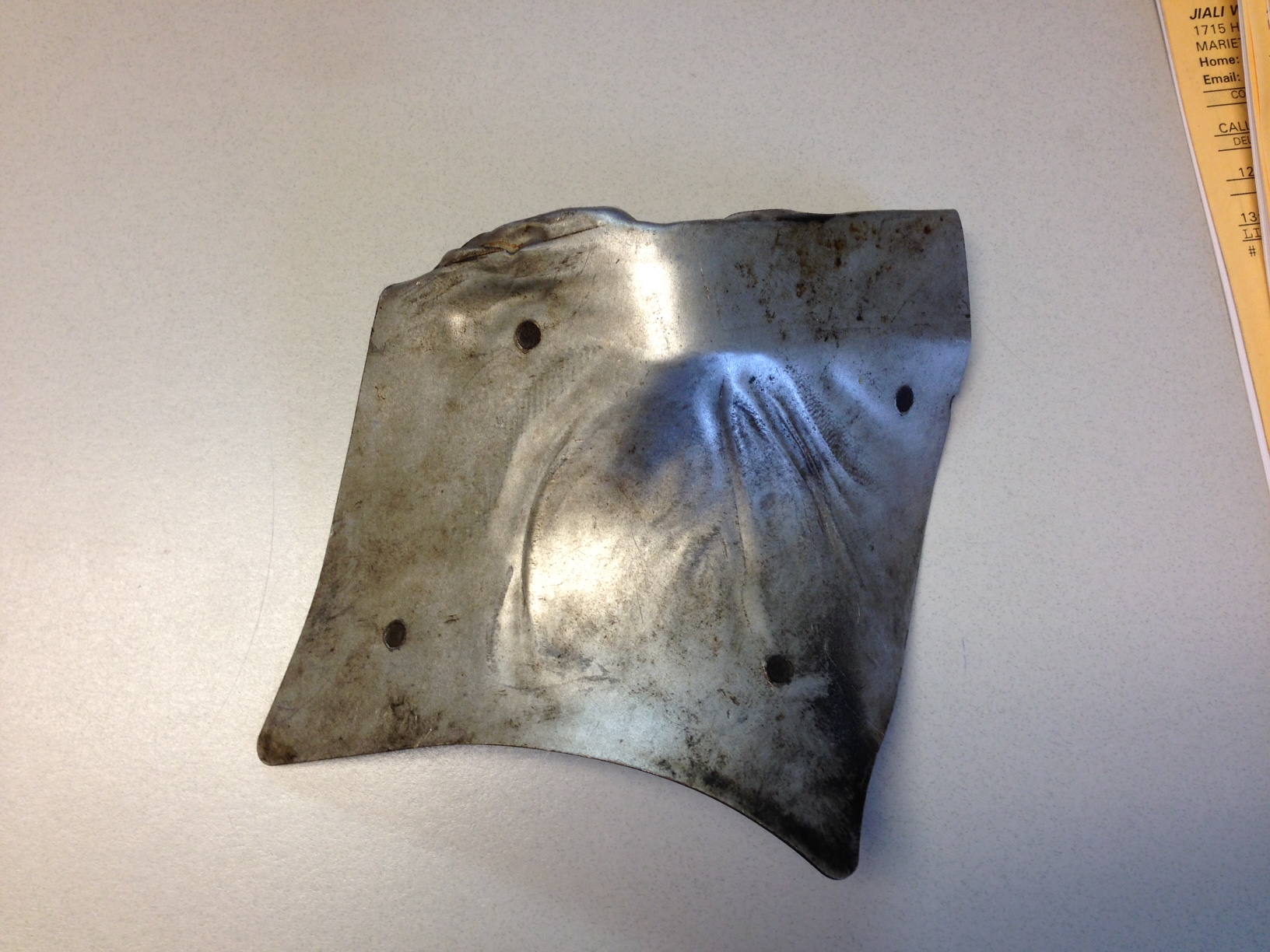

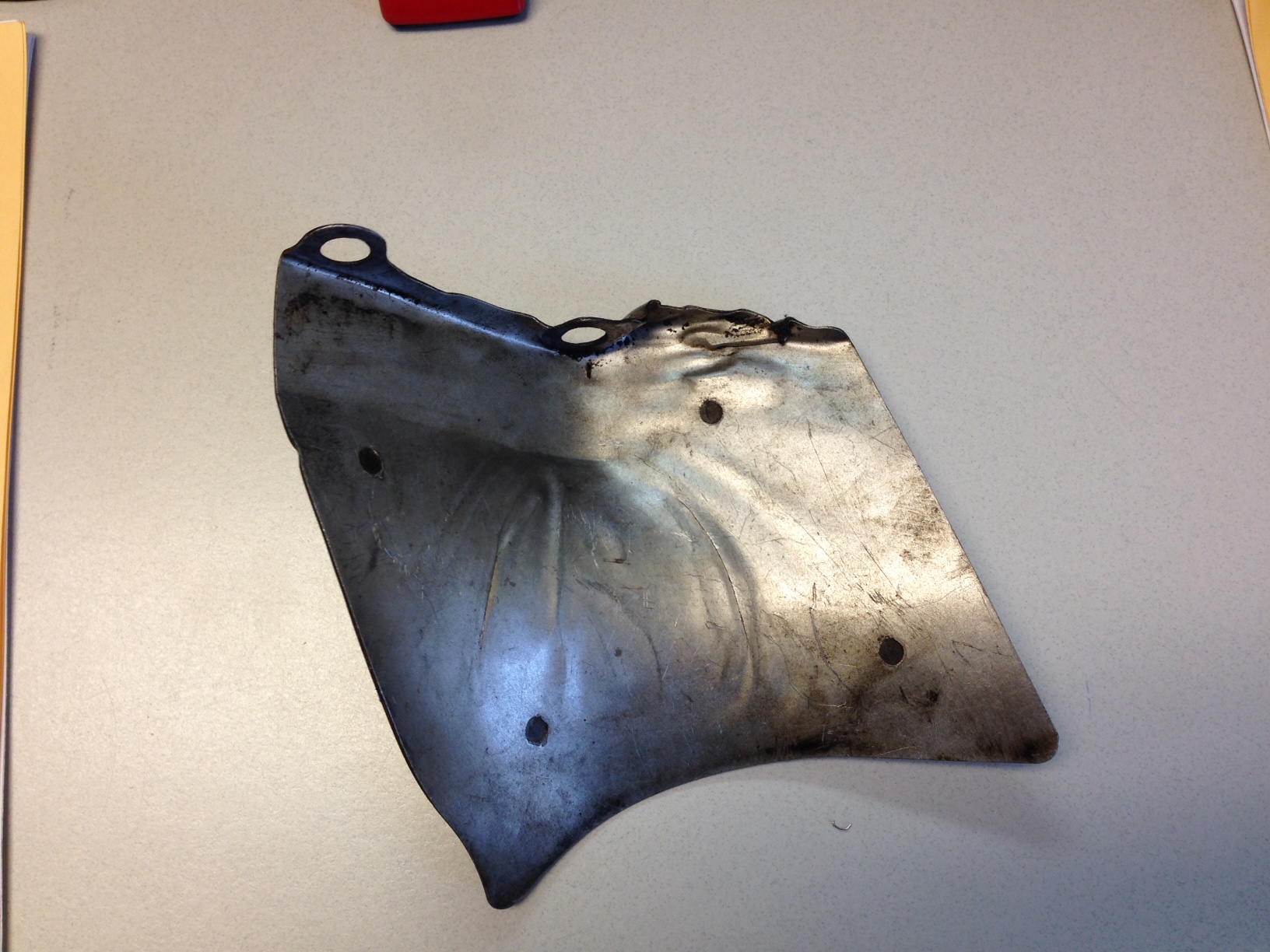

Hello All... I've got a random heat shield that goes on the driver side (LHD) cat that I can not for the life of me figure out how to install it back on. Can someone possibly help? I've attached files and someone at a dealer has already sent me the part diagram but no one can help me on installation.

Thanks in advance!

Corey



If you mean you can't get it back down where it belongs, I had a struggle when I did it. Getting it past the hoses and wiring looms takes a lot of maneuvering. I used hex head cap screws to attach it to the bracket, not enough clearance to tighten the torx head screws easily.



I got that one with the 3 torx screws installed no problem, but this one works in conjunction with that one and I can't figure out how.



What engine are you working on? My XK8 and a 2000 XKR have only one heatshield on the left cat.



2003 XJ8. AJ26 Its a odd combination of heatshields. Its right by where the steering column comes through the fire wall.



I don't think the 03 used the AJ26, but there is obviously a difference between the XJ8 and XK8, so I don't have a clue.



f



Sorry. AJ27 :-P
