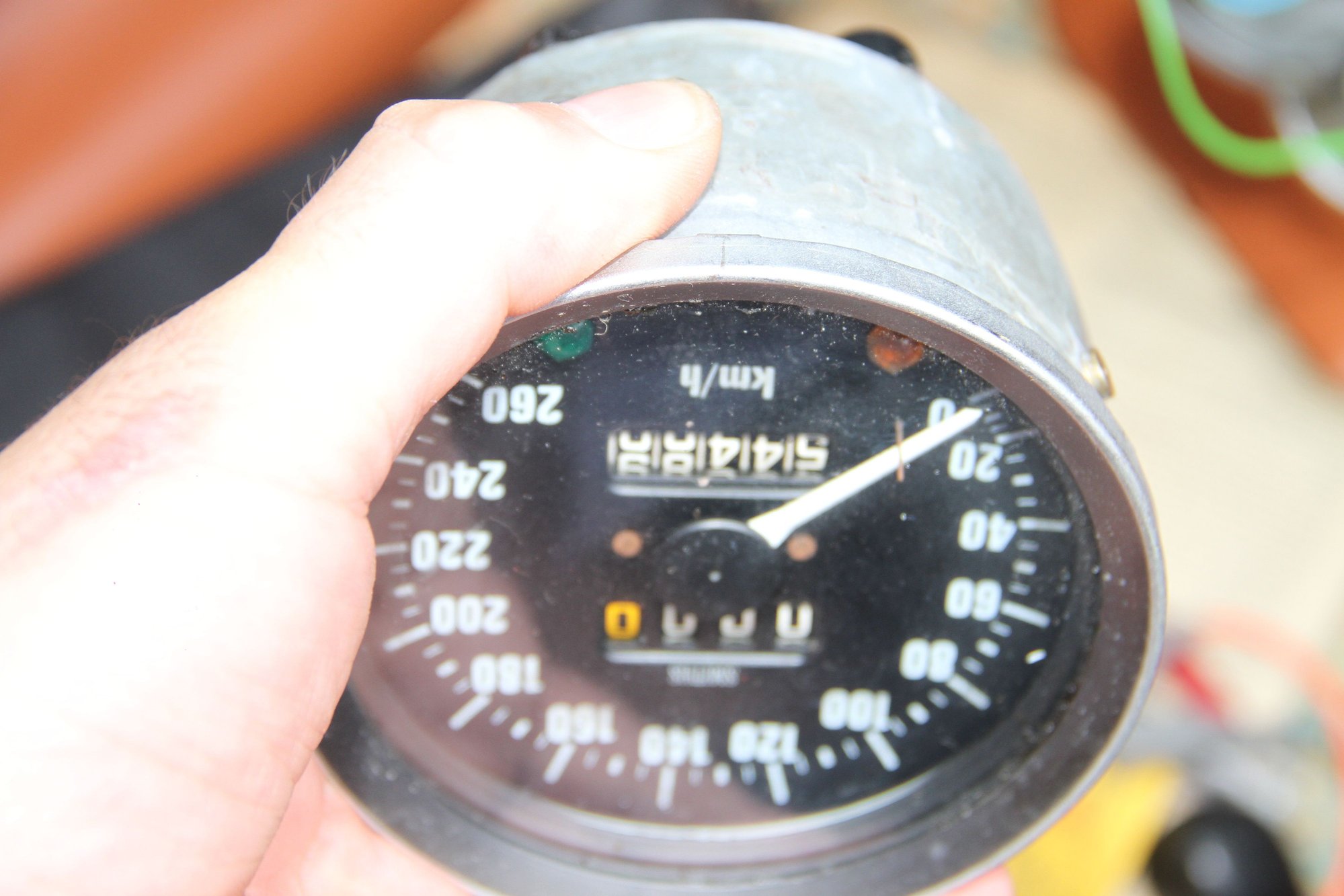

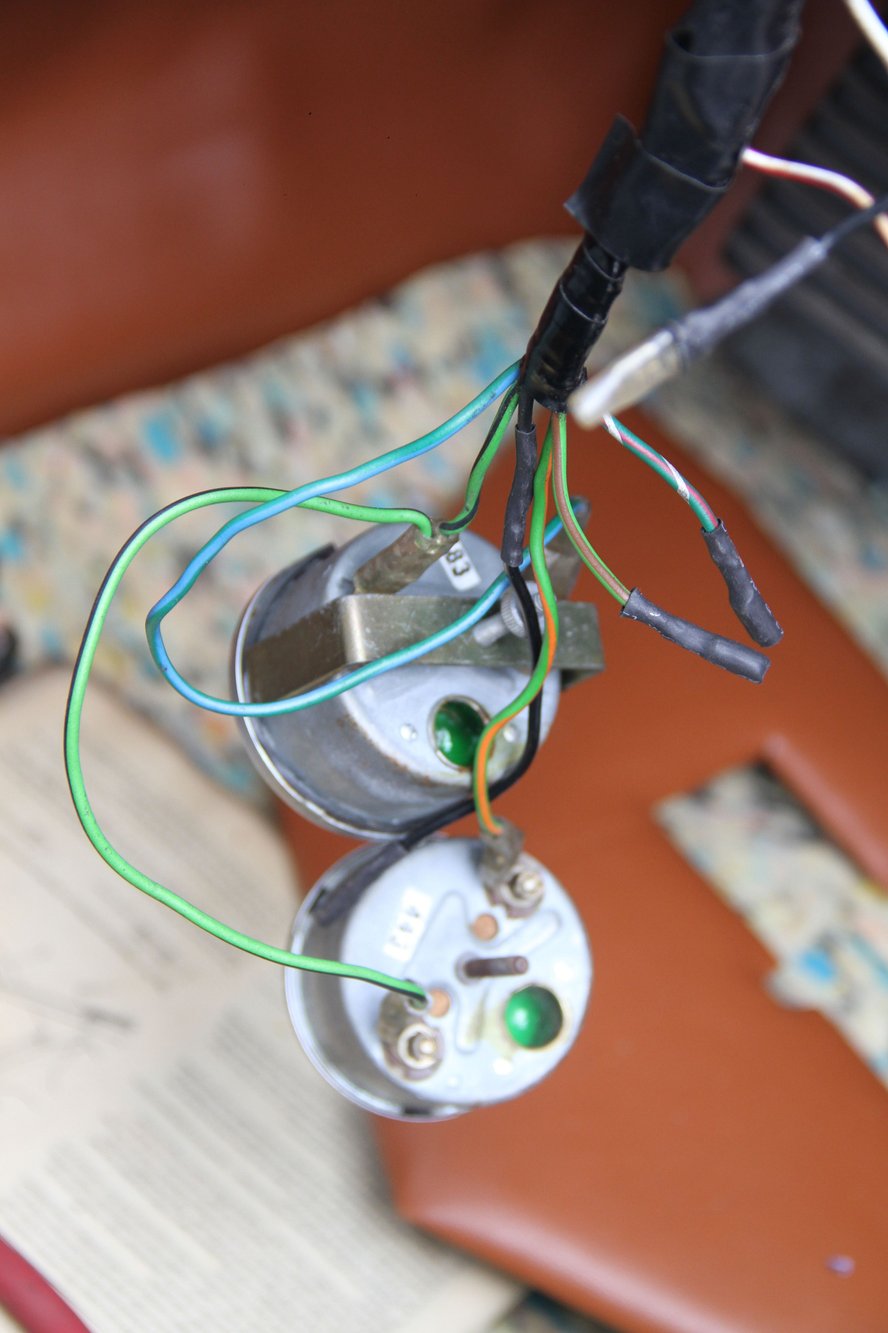

Most of these are connecting up logically, as per my notes (which require some translation in places) but a few oddities. Concerned with speedometre that something might be missing on top where it connects to the cable, on the reverse side of the connector. I'll add colourful pictures and see if it sparks anything .. so to speak.


fuel and water dangling

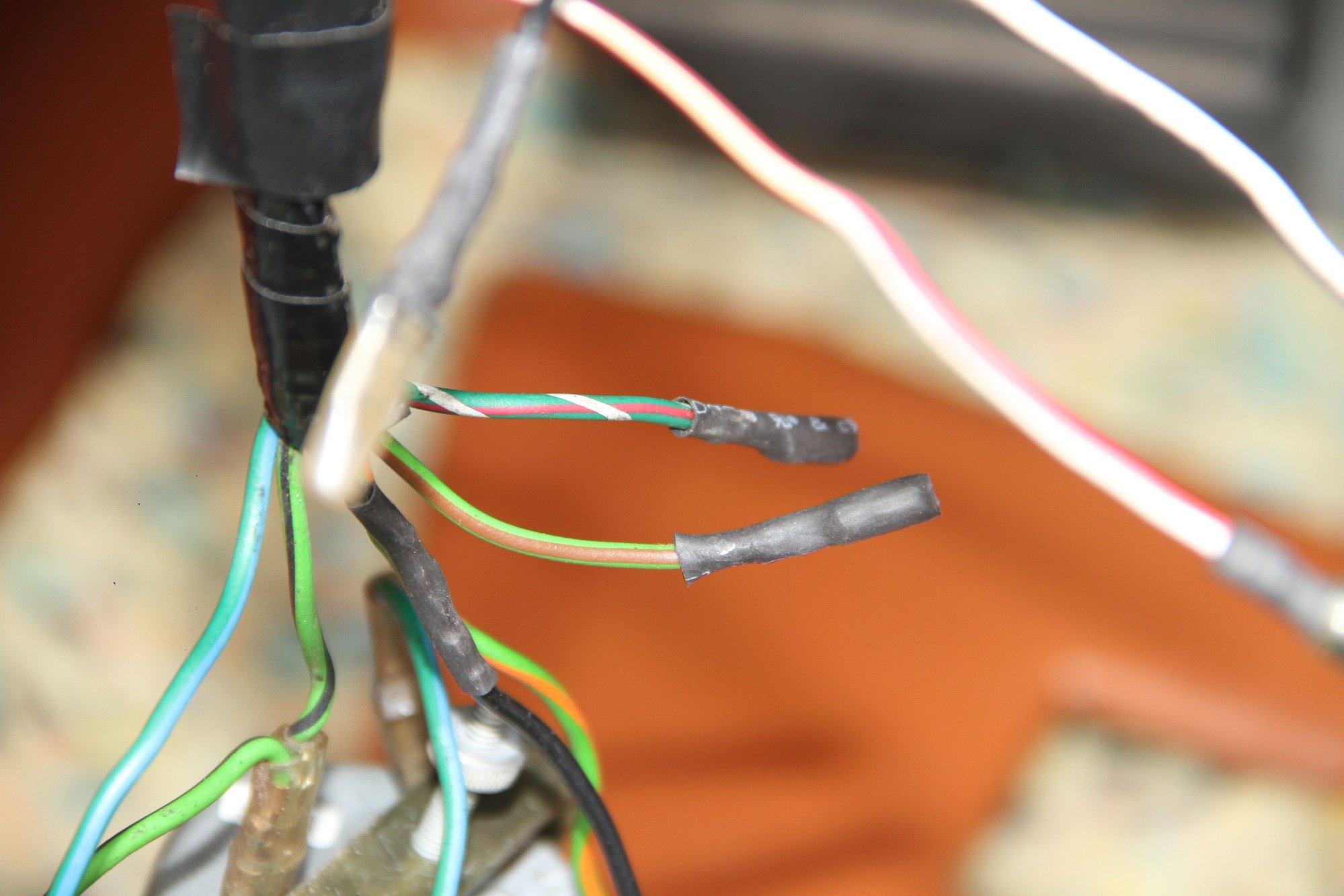

main colour and tracer normal but then swirls not covered in most lists here i have a green with red trace and white swirl

this guy is red with a pale blue tracer and most lists have it an unallocated

purple with black trace : horn relay?

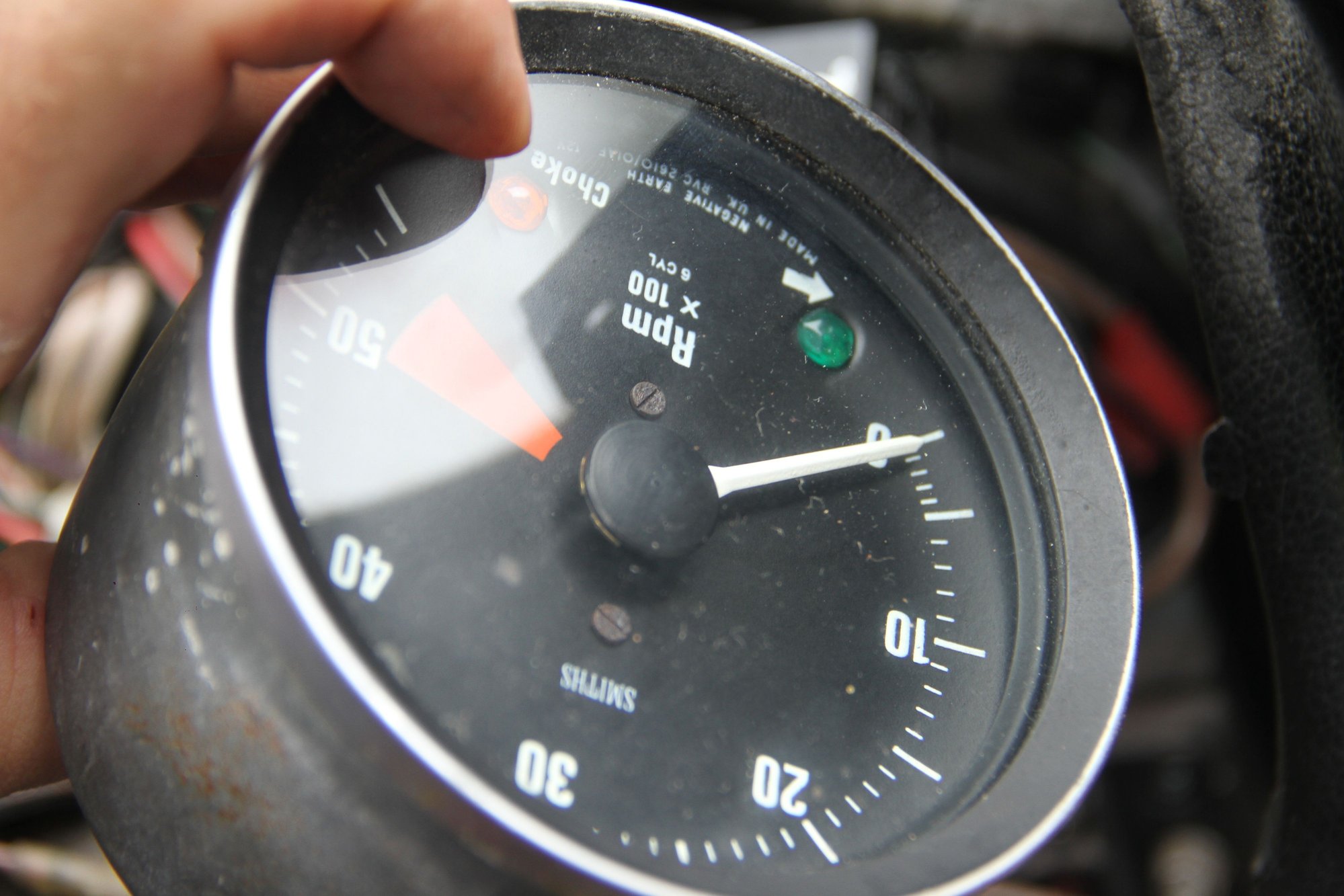

tach

363

where the orange circle thing is seems like there should be a cap or a stopper .. problem?

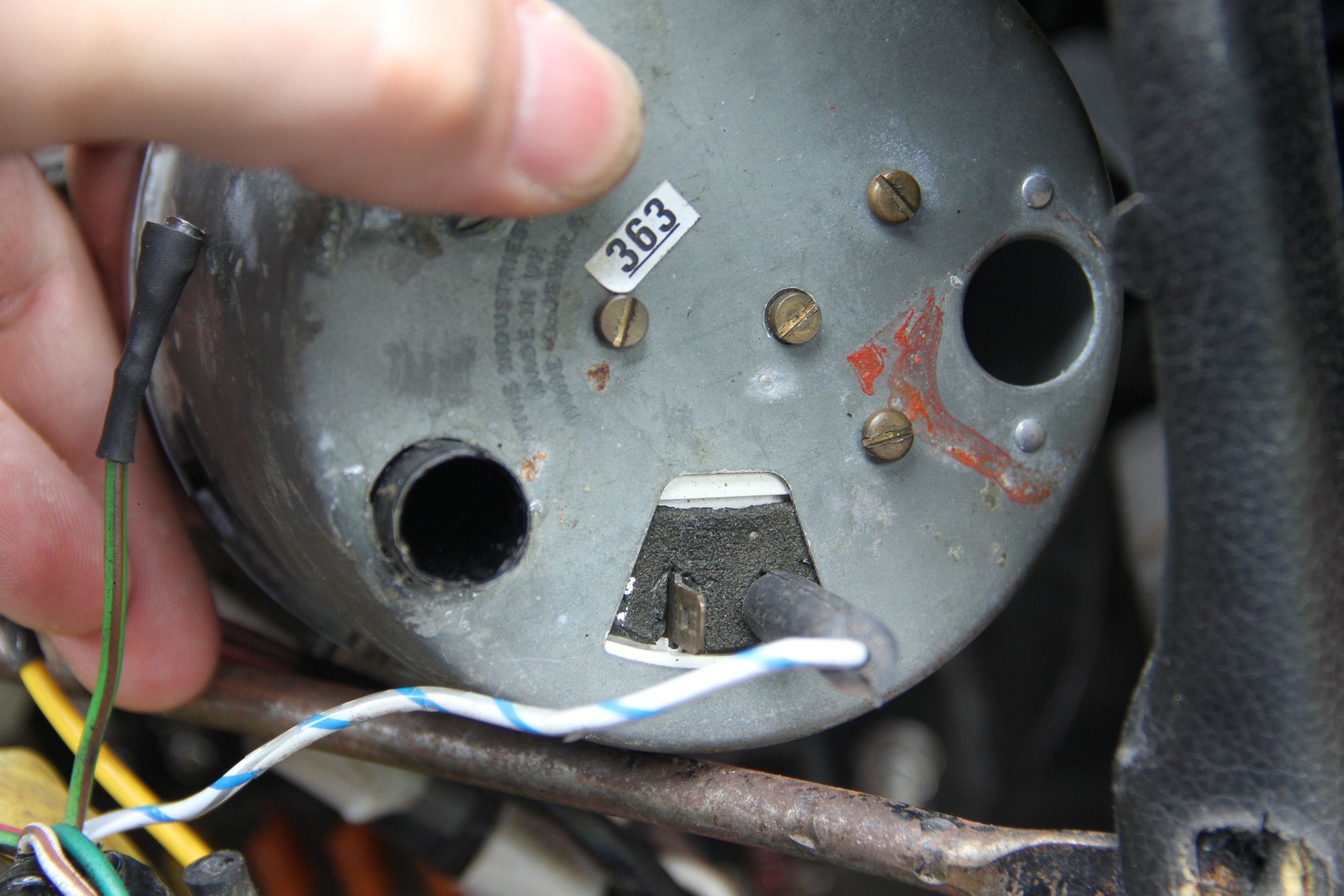

323

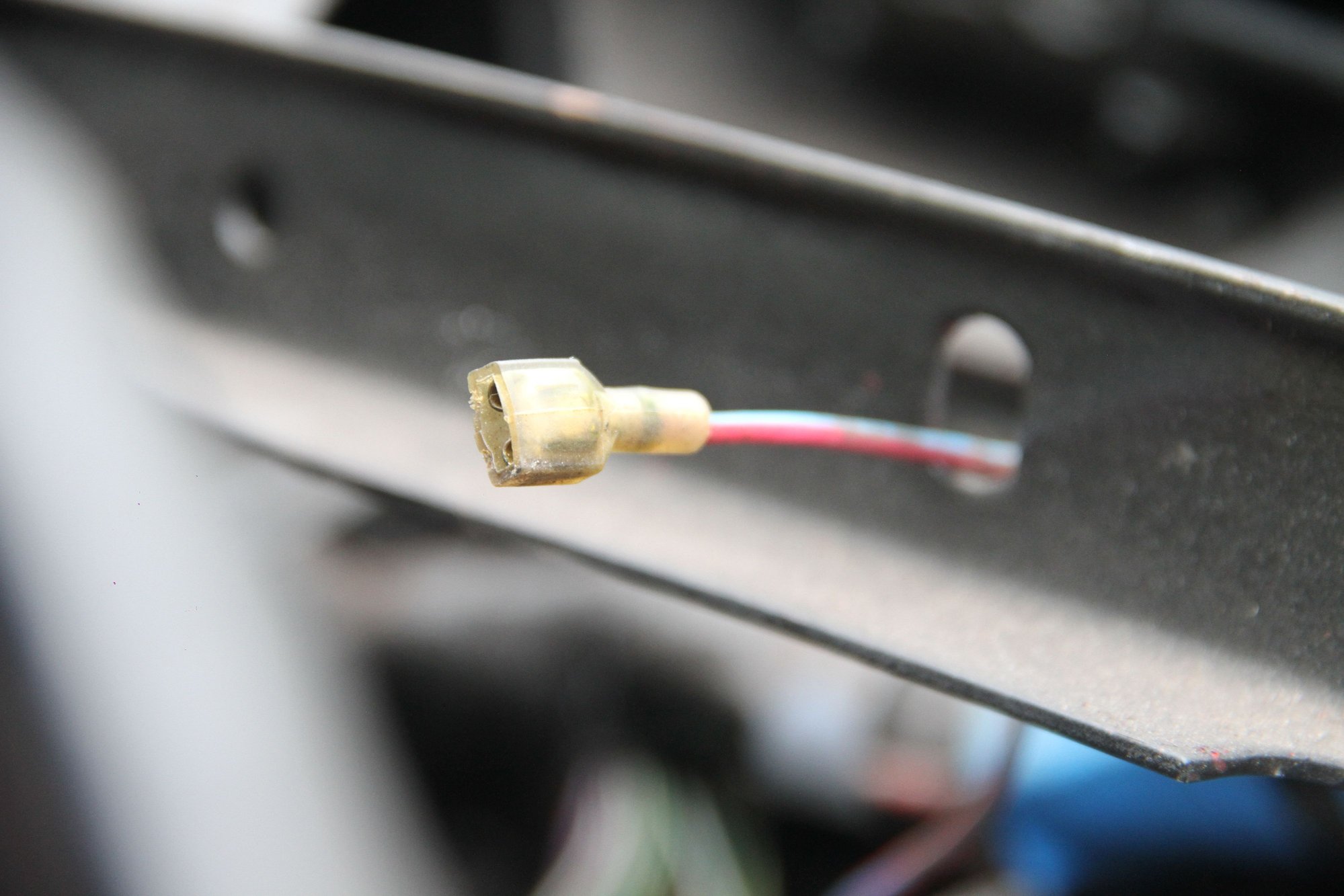

here's a white wire with a blue swirl ..! but connects here. the plug beside it don't have no plug, maybe green voltage stabliser but none free???

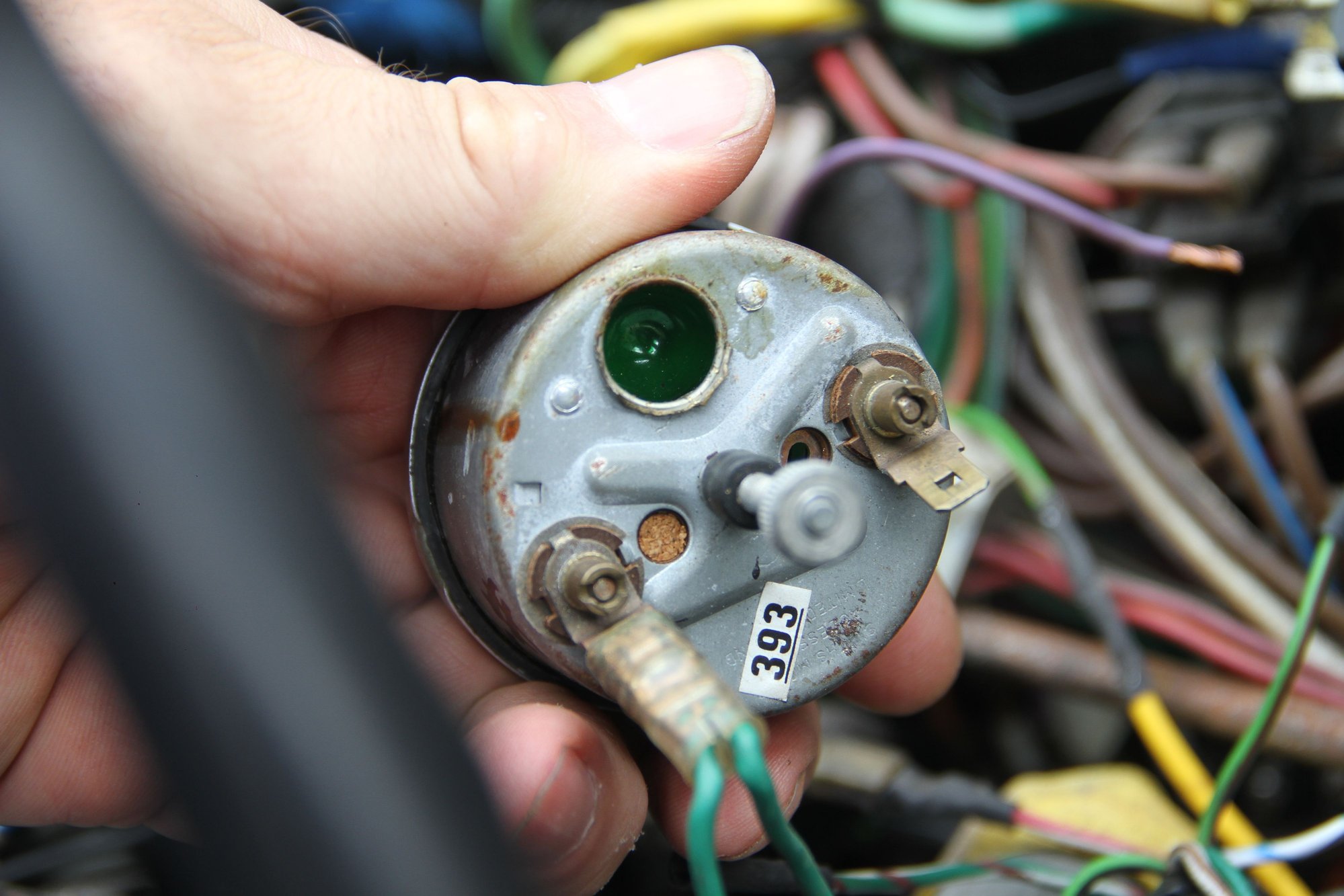

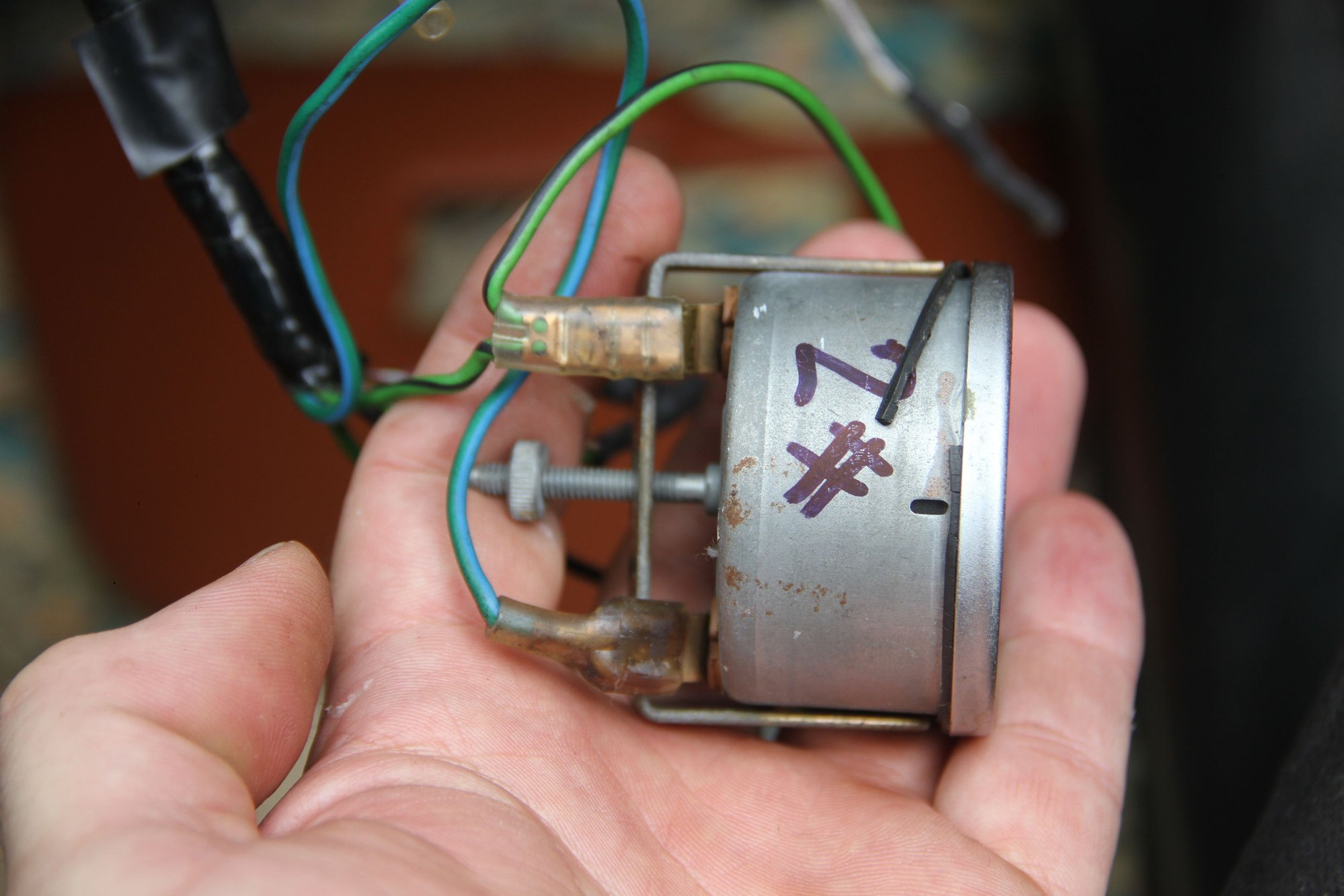

393 .. volt gauge

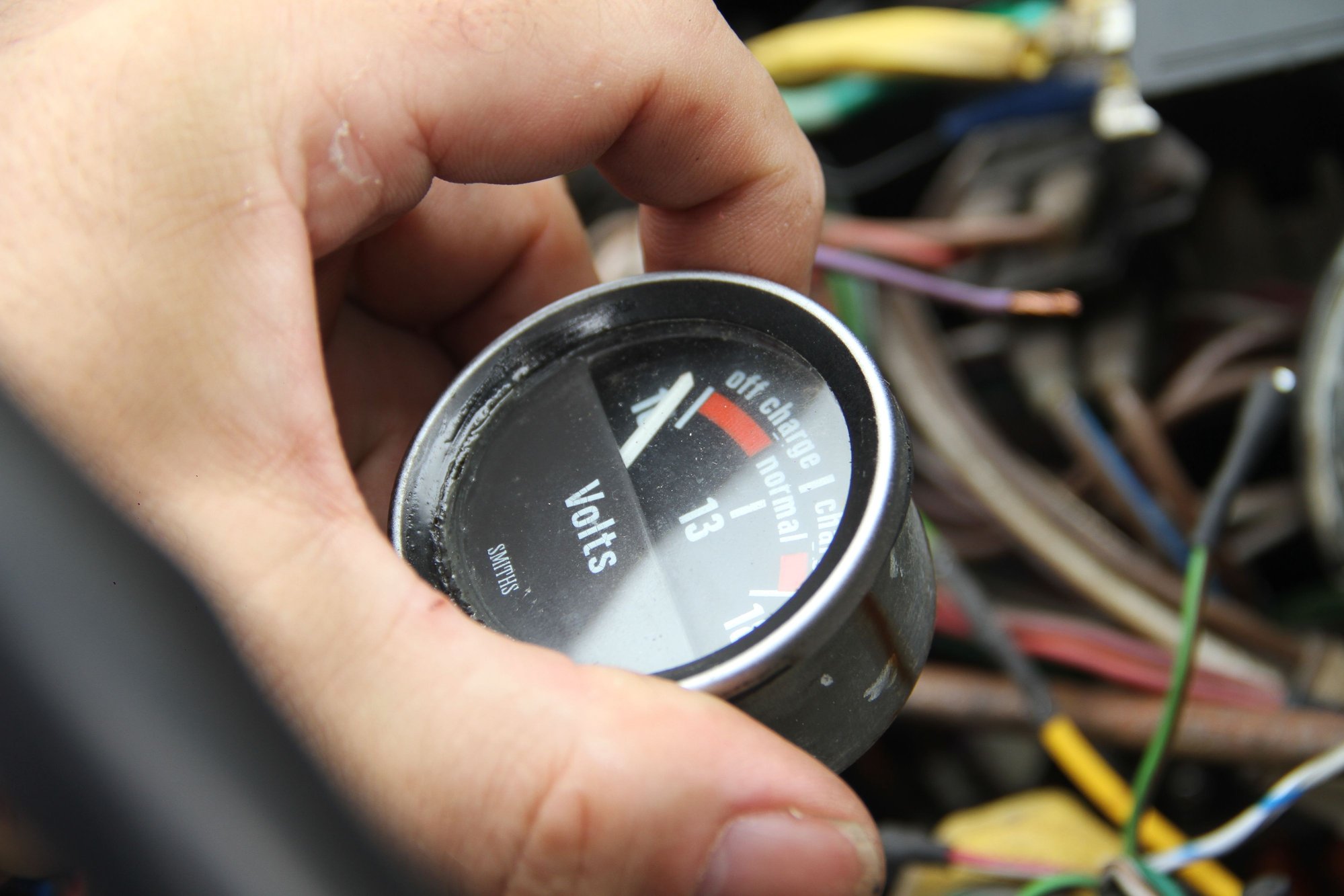

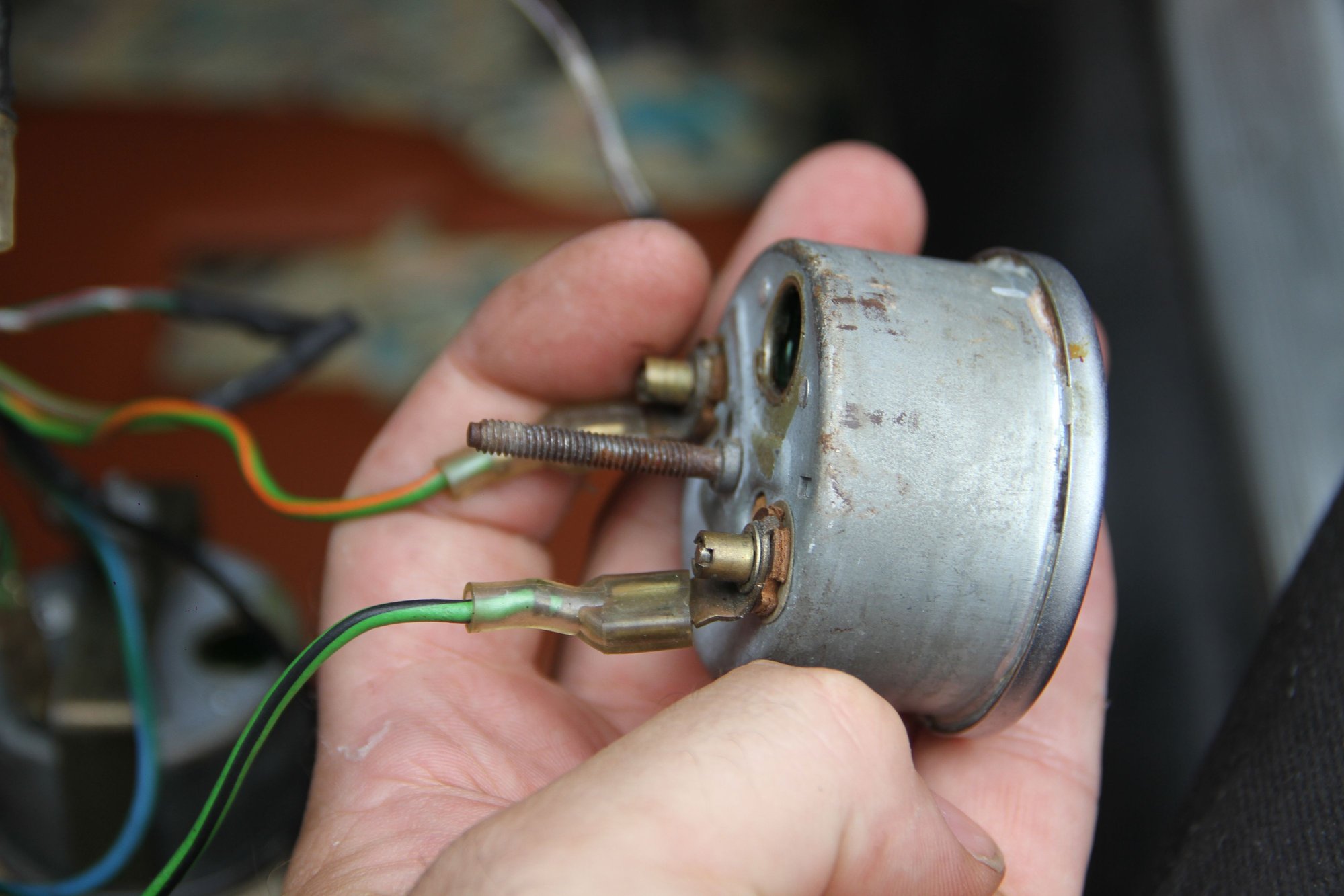

volt metre ... green stabliser one side but no battery lead?? what colour should this be.

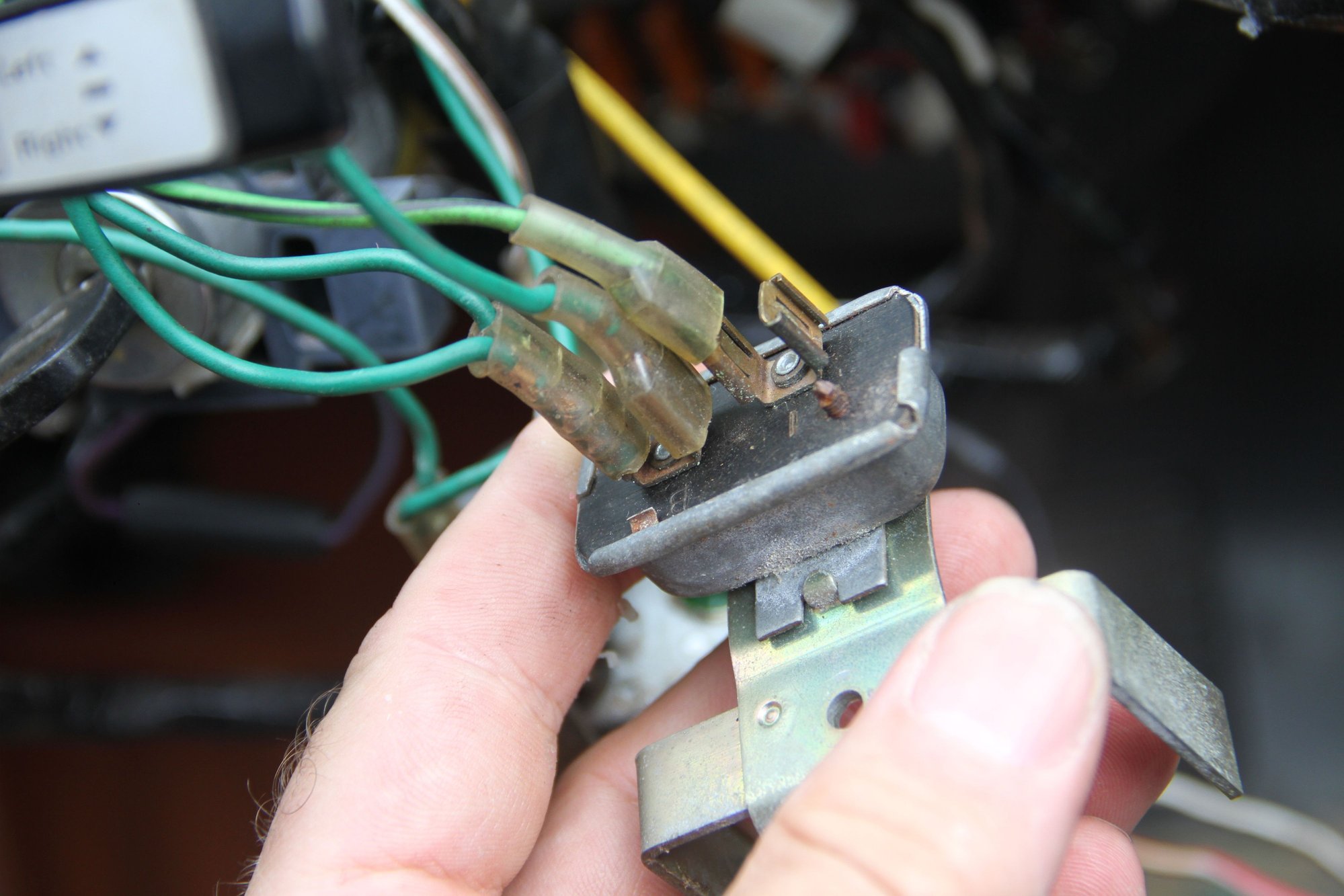

the stabiliser thing .. does it need one of those blue things atatched, i have seen on some web image.

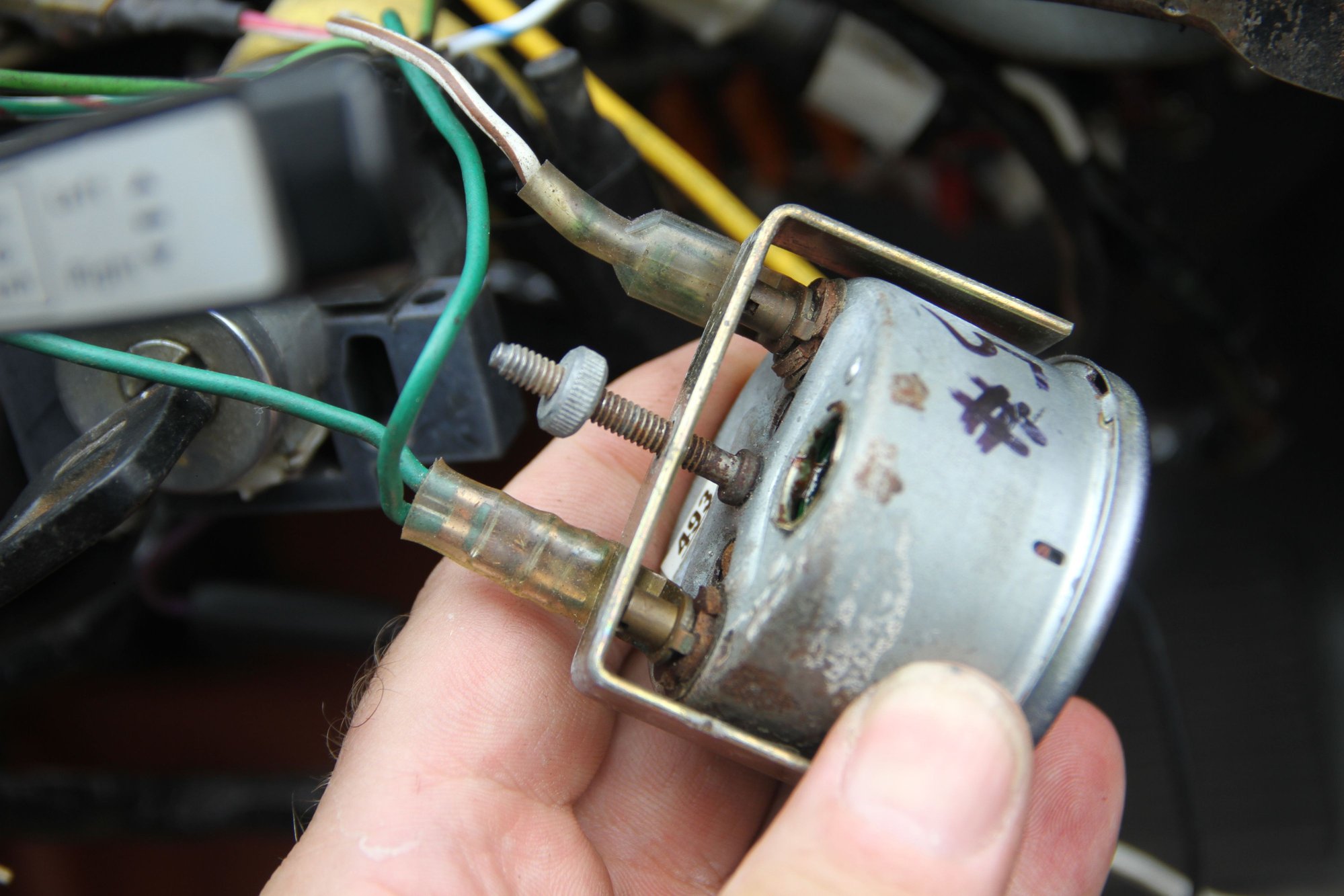

493 water gauge with brown/white wire and stabiliser green (sounds like a posh menu item)

483 .. fuel gauge green/black and light green/orange

443 .. water gauge .. pale green blue wire and green stabiliser wire with daisy chain out.

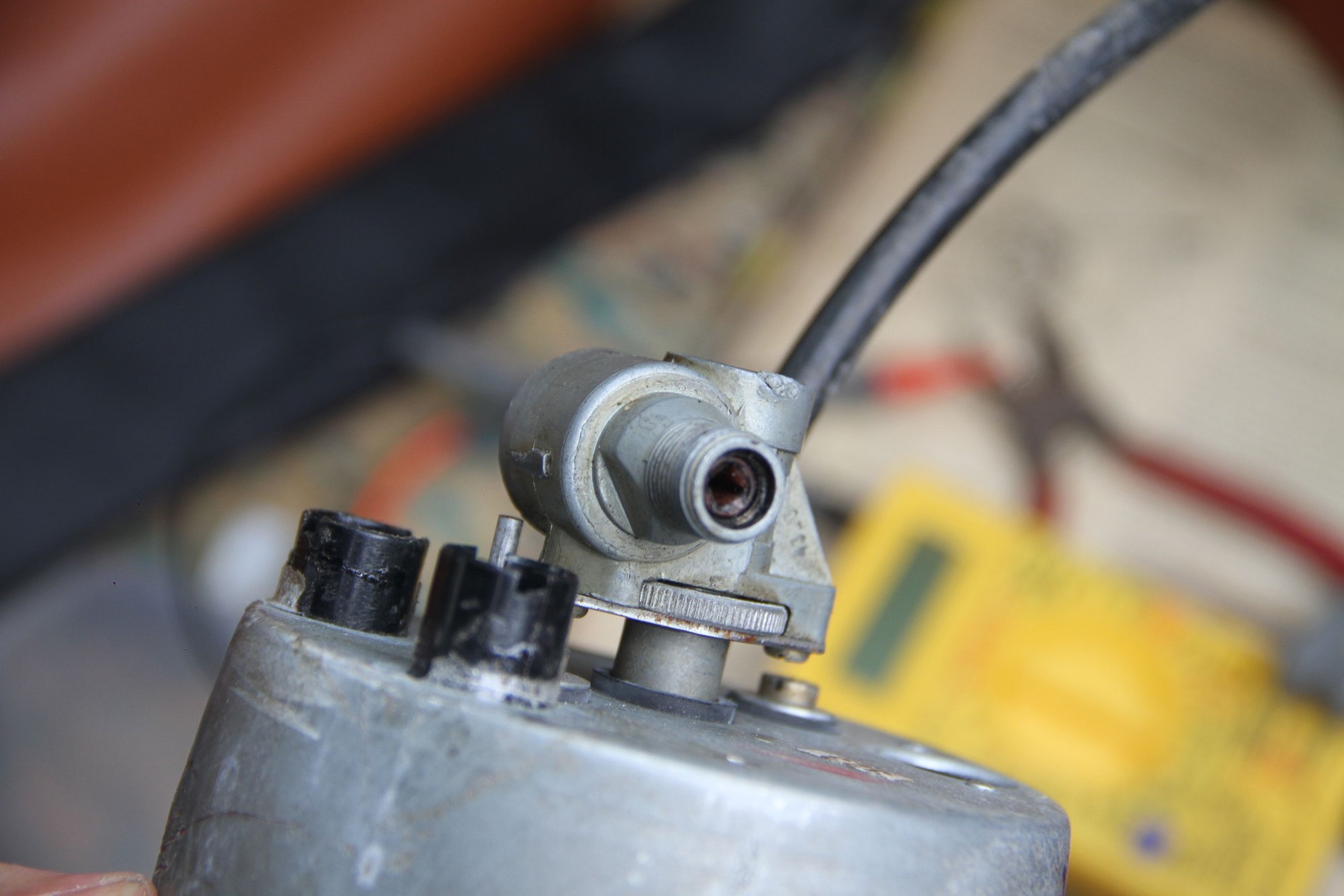

There should be a cap or plug on the speedometer cable adapter. Might be on the floor !





Cheers
DD



Oh dear
thanks. been in a storage boxes for a year or so, might be quite a hunt to locate.



i'll give you these colours, why not just a buy a colour schematic.........don't get lost with winding colours,
