sump removal series 3 xj6


  #1
Old 06-20-2016, 05:22 AM
Senior Member
Thread Starter
Join Date: Apr 2013
Posts: 167
Received 34 Likes on 30 Posts
Default sump removal series 3 xj6

Is it possible to remove the sump with the front end removed? im having difficulty getting the sump off and when looking at spare series 3 engine it appears that the rear main seal holder has two torx head bolts screwing into the back of the sump, if im correct i can not remove the sump pan?

  #2
Old 06-20-2016, 08:28 AM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 19,632
Received 5,826 Likes on 4,175 Posts
Default

Its been too long, and I will look at the spare 4.2 in the shed tomorrow.

The rear crank seal is held in 2 half moon castings, and the 2 castings are held together with 2 torx setscrews, the upper half is secured to teh block with 3? setscrews, and have nothing to do with the sump attachment.

The lower half of that seal "housing" has a groove in it that a section of the actual sump gaskets sits into, lower half moon following the contour of that lowersection, and the cut out in the sump, thats it.

To get that sump off, and back on without leakage, the suspension needs lowering, or the engine out.

The following users liked this post:
hooter (06-21-2016)
  #3
Old 06-20-2016, 08:44 AM
Senior Member
Join Date: Jan 2007
Location: North Carolina, USA
Posts: 641
Received 183 Likes on 99 Posts
Default

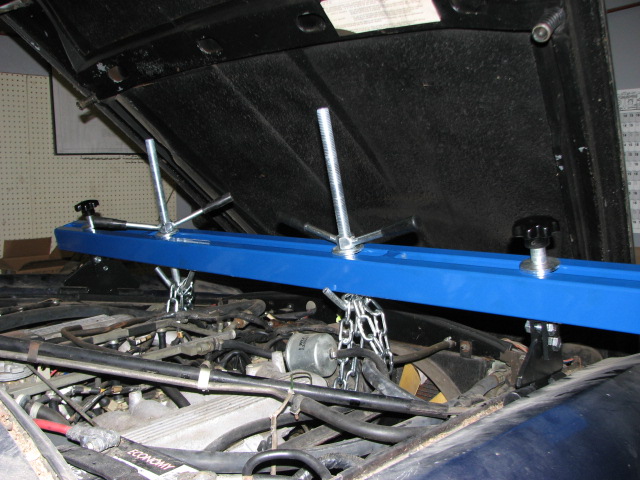

A friend (Bill Cooper) used an engine support purchased from Harbor Freight to support the engine while lowering the front subframe.
The he disconnected the shocks, rear mounts, etc, and let the front end swing down on the front mounts. By doing it that way, he didn't have to drop the entire front end.
(In the photos you'll see it's a XJ12, but the 6 is the same idea)..

You shouldn't have any problems removing the sump..

David
shop.everydayxj.com

Attached Thumbnails sump removal series 3 xj6-2-1229578611.jpg   sump removal series 3 xj6-4-1229578611.jpg   sump removal series 3 xj6-5-1229578611.jpg   sump removal series 3 xj6-1-1229578611.jpg
The following users liked this post:
hooter (06-21-2016)
  #4
Old 06-20-2016, 08:54 AM
Join Date: Dec 2009
Location: Decatur,TX
Posts: 7,922
Received 4,183 Likes on 2,731 Posts
Default

It's easier if the car is on a 'lift' so the front subframe can pivot on the front mounts and swing vertical. The pan bolts can be removed and then lowered.

I haven't done one in about 2 decades but I remember it is a greasy, messy job and your shirt will likely get stained.

bob

The following 2 users liked this post by motorcarman:
Grant Francis (06-20-2016), hooter (06-21-2016)
  #5
Old 06-20-2016, 03:16 PM
Senior Member
Thread Starter
Join Date: Apr 2013
Posts: 167
Received 34 Likes on 30 Posts
Default

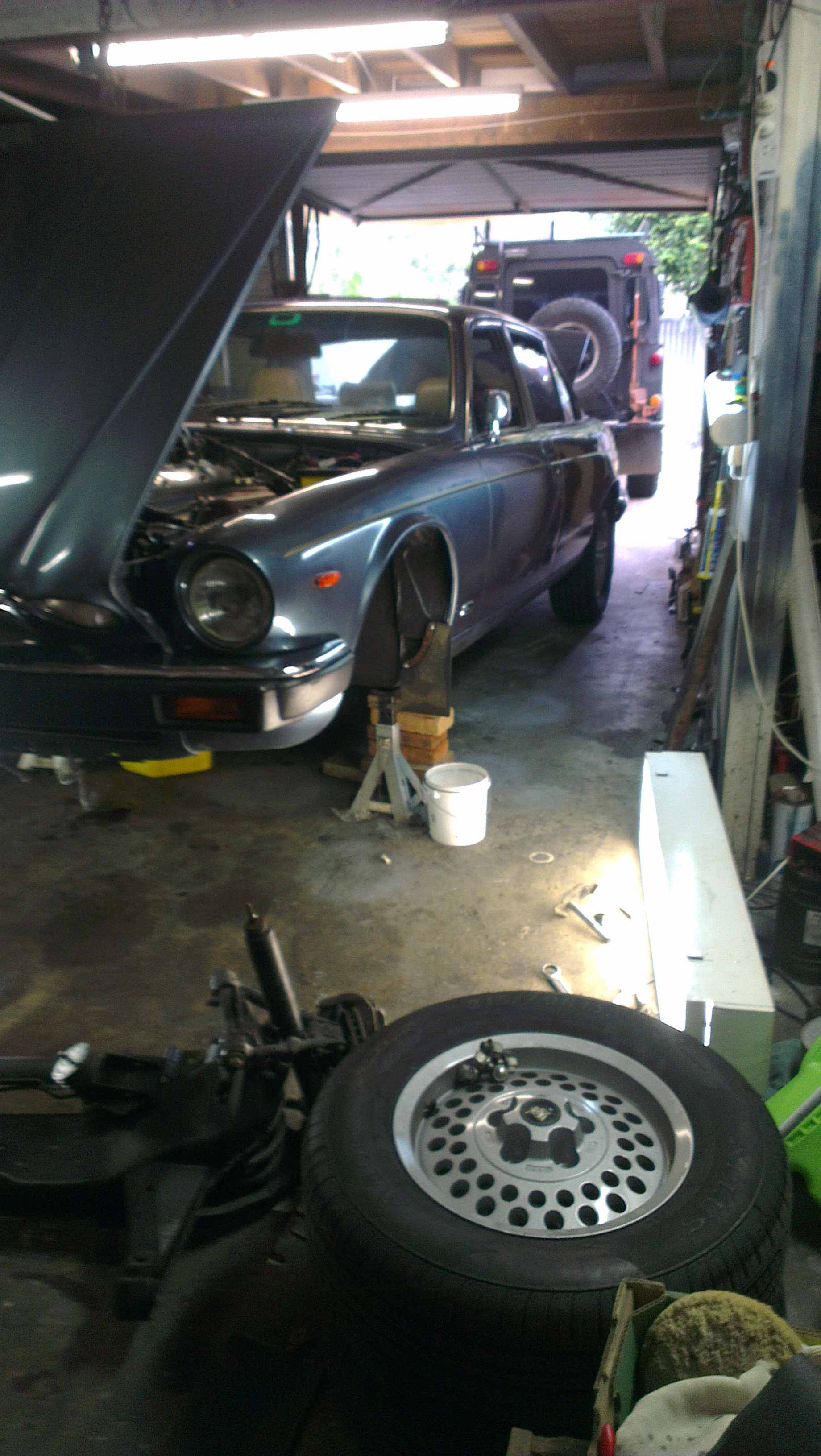

sub frame removed

Attached Thumbnails sump removal series 3 xj6-imag0900.jpg   sump removal series 3 xj6-imag0901.jpg
  #6
Old 06-20-2016, 09:29 PM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 19,632
Received 5,826 Likes on 4,175 Posts
Default

Yep, the memory is preserved, HA.

The sump "simply" lifts off and the rear seal "housing unit" stays in place.

Fraser is spot on, dirty is NOT the word, you will enjoy this task for sure.

A decent hose down with degreaser and a garden hose usually cleans up the situation, and I mean YOU, not the car.

The following users liked this post:
hooter (06-21-2016)
