XJ6 Series 1 Water/Washer bottle Square Type
#1
#2
Join Date: Jan 2014
Location: Delaneys Creek,Qld. Australia
Posts: 28,379
Received 6,317 Likes
on
4,367 Posts
Hi John, I can't help you but I have added a couple of pics so if anyone can they know exactly what you are after.
Is the bottle like the one on the red car in the first pic?
The second car(silver) is my series 1 and the bottle is right down the front near the radiator.
Not sure which is correct for a series 1.

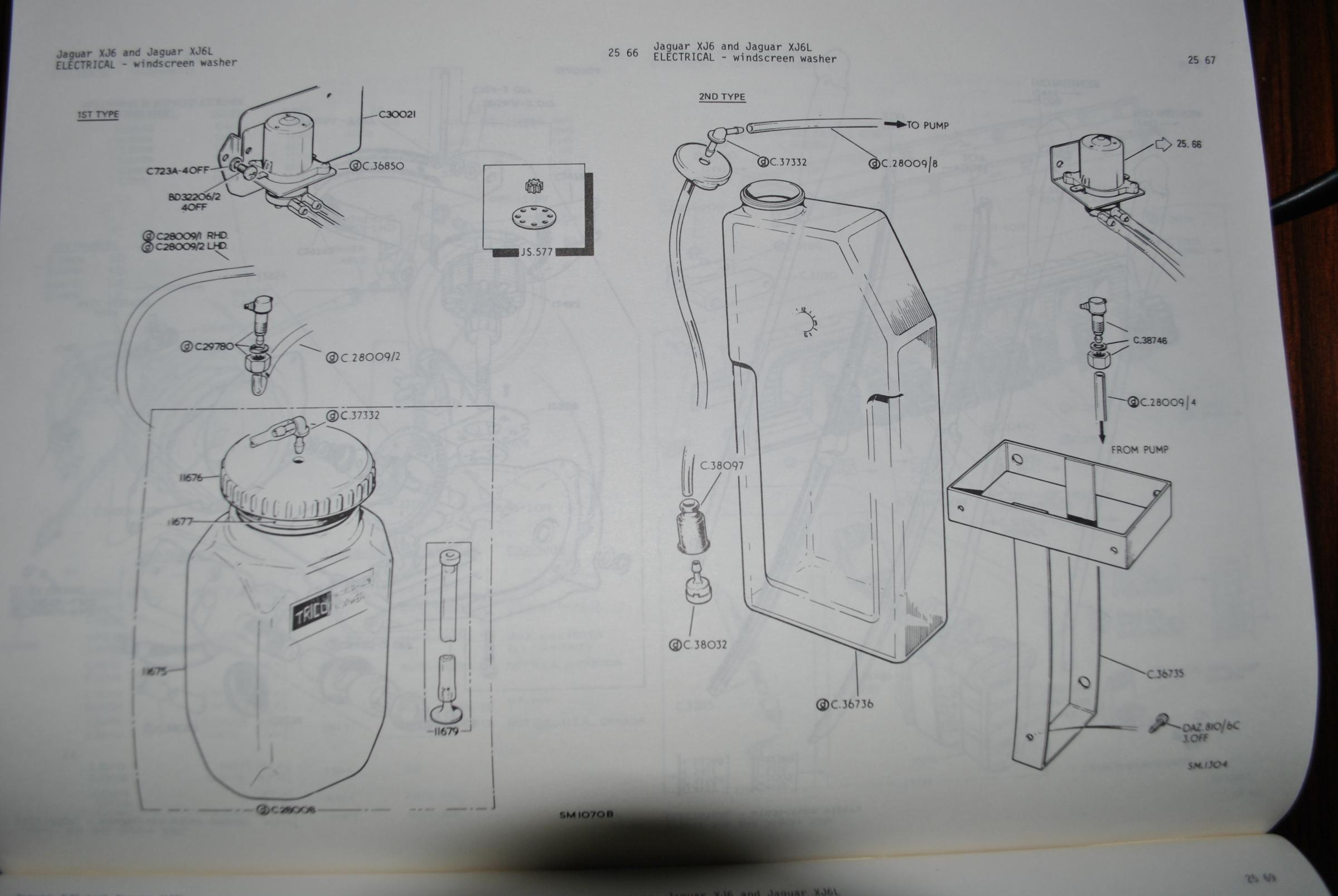

EDIT, just looking at my parts book there is a 1st type and 2nd type of washer bottle so your car must be an earlier one. Your expansion tank will be further forward than mine. I assume on the later series 1 cars the expansion tank was moveved further back so it is higher and a smaller washer bottle and bracket fitted between the expansion tank and the radiator.

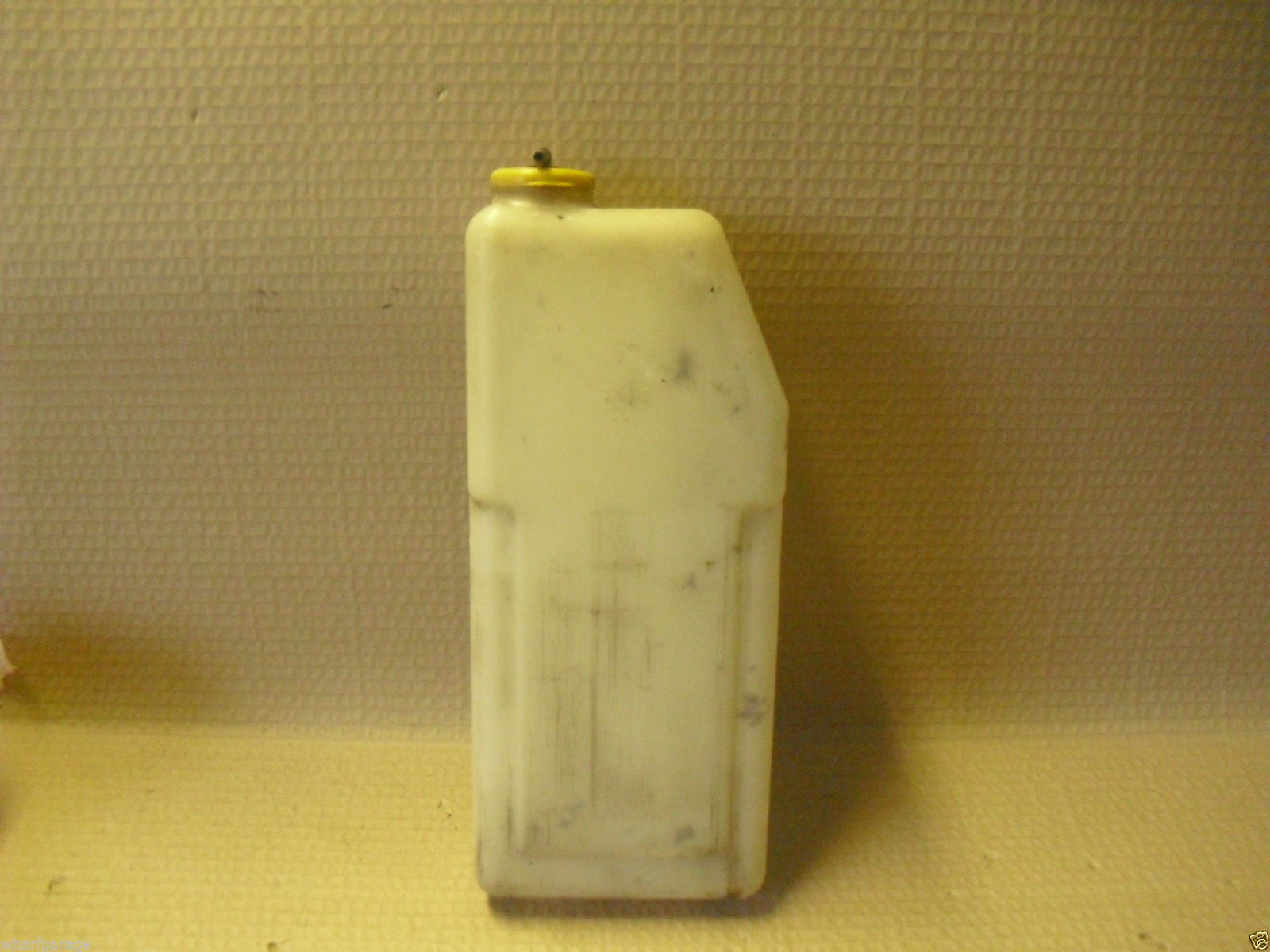

Both bottles and the later bracket are available on ebay.
1st type part no C28008
2nd type Part no C36736
Bracket Part no C36735
Jaguar Daimler Washer Bottle XJ6 XJ12 SER 1 2 Early SER3 Part NO C36736 | eBay
Jaguar Daimler Windscreen Washer Bottle Bracket Fits XJ6 XJ12 C36735 | eBay
You could call Gary at Jagayre in Melbourne, he was wrecking 2 x S1's last time I was speaking to him
Jagayre - Auto Parts Recyclers - Clayton, VIC - Yellow Pages®
Or Doug at Jagdaim,
Jaguar Spare Parts Supplier - Jagdaim - Australia's Largest Independant
Some S1 parts on Gumtree:
http://www.gumtree.com.au/s-ad/balla...rts/1052414540
http://www.gumtree.com.au/s-ad/pelic...ket/1075306128
Is the bottle like the one on the red car in the first pic?
The second car(silver) is my series 1 and the bottle is right down the front near the radiator.
Not sure which is correct for a series 1.
EDIT, just looking at my parts book there is a 1st type and 2nd type of washer bottle so your car must be an earlier one. Your expansion tank will be further forward than mine. I assume on the later series 1 cars the expansion tank was moveved further back so it is higher and a smaller washer bottle and bracket fitted between the expansion tank and the radiator.
Both bottles and the later bracket are available on ebay.
1st type part no C28008
2nd type Part no C36736
Bracket Part no C36735
Jaguar Daimler Washer Bottle XJ6 XJ12 SER 1 2 Early SER3 Part NO C36736 | eBay
Jaguar Daimler Windscreen Washer Bottle Bracket Fits XJ6 XJ12 C36735 | eBay
You could call Gary at Jagayre in Melbourne, he was wrecking 2 x S1's last time I was speaking to him
Jagayre - Auto Parts Recyclers - Clayton, VIC - Yellow Pages®
Or Doug at Jagdaim,
Jaguar Spare Parts Supplier - Jagdaim - Australia's Largest Independant
Some S1 parts on Gumtree:
http://www.gumtree.com.au/s-ad/balla...rts/1052414540
http://www.gumtree.com.au/s-ad/pelic...ket/1075306128
Last edited by o1xjr; 05-25-2015 at 06:49 AM.
#3
XJ6 Series 1 Water/Washer bottle Square Type
Brilliant work guys,
Thank you both for the quick responses.
I can confirm its the same location as the one in the "red" photo, however the difference is that mine has the large screw type lid instead of a cap, as shown in the drawing below.
I'll try those leads and see how I go.
John
Thank you both for the quick responses.
I can confirm its the same location as the one in the "red" photo, however the difference is that mine has the large screw type lid instead of a cap, as shown in the drawing below.
I'll try those leads and see how I go.
John
