1988 Fuel pump replacement
#2
Which model do you have?
Assuming the V12, it is basically as follows:
Assuming the V12, it is basically as follows:
- It is best to have very little fuel in the tank
- Remove battery cover and disconnect battery
- Remove spare wheel cover and remove spare wheel
- Remove boot (trunk) carpet from floor
- unbolt/screw the metal covers below the battery and to its side
- This reveals the small tank under the battery and the fuel pump to its left held by a round bracket with a foam anti-noise cover inside the bracket
- Under the boot floor (outside) under the small tank is a rubber bung in the floor, prise this out and you see a drain plug on the bottom of the small tank. Undo the plug and drain the fuel out. It will all come out, main tank as well, unless you block the feed from the main tank to the small tank
- Once drained, undo the fuel pump electrical and pipe connectors and replace with new pump and reconnect pipes and electrics
- Change the fuel filter (located behind where the spare wheel was)
- Change the small tank sock filter. You will see the outlet from the small tank to the pump is held by a locking ring. carefully knock the locking ring anticlockwise to undo it and remove the outlet. You will see a filter on the inner end of this pipe. This should be chnaged and the small tank cleaned out if it is full of grot.
- Refit all bits, drain plug, etc. Clean boot floor. refill tank and off you go!
Last edited by Greg in France; 02-07-2014 at 05:47 AM.
The following users liked this post:
jomia092306 (02-09-2014)
#4
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
The small sump tank provides an uninterupted slosh-proof fuel supply to the pump.
Most manufacturers accomplish the same thing by internal baffles in the fuel tank but Jaguar is, well.....you know. Different.
It's one of those things where you're tempted to say "What the *^*^ ?" but, instead, we just say "Now there's an interesting design feature"
Cheers
DD
Most manufacturers accomplish the same thing by internal baffles in the fuel tank but Jaguar is, well.....you know. Different.
It's one of those things where you're tempted to say "What the *^*^ ?" but, instead, we just say "Now there's an interesting design feature"
Cheers
DD
The following users liked this post:
jomia092306 (02-09-2014)
#5
The following users liked this post:
jomia092306 (02-10-2014)
#6
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
The following users liked this post:
jomia092306 (02-10-2014)
#7
In aircraft it's known as a "surge" box, keeps a head of fuel on the pump at all times during maneuvering, climbs, descents etc when the tank is less then full. My MG Midget had plenty of baffles in the stock tank but the aftermarket one I put in did not....one long, sweeping turn with a quarter tank let me find out how valuable those baffles were as she sputtered and almost died by the end of the turn as all the fuel ended up on the left side of the tank and the pump pickup was on the right!
The following users liked this post:
jomia092306 (02-10-2014)
Trending Topics
#8
thank you all. i removed the fuel pump. i tried testing it by attaching positive and negative cable at one end and connected it to the car battery. it did not work at all. is that the proper way to test it ? Also how can i replace the the fuel pump "screen filter"(not the fuel filter). is it inside the surge tank ? how can i replace it ? what would be the best replacement pump for a 1988 xjs ?
#9
i found a pump...not cheap and not expensive. will this work ?

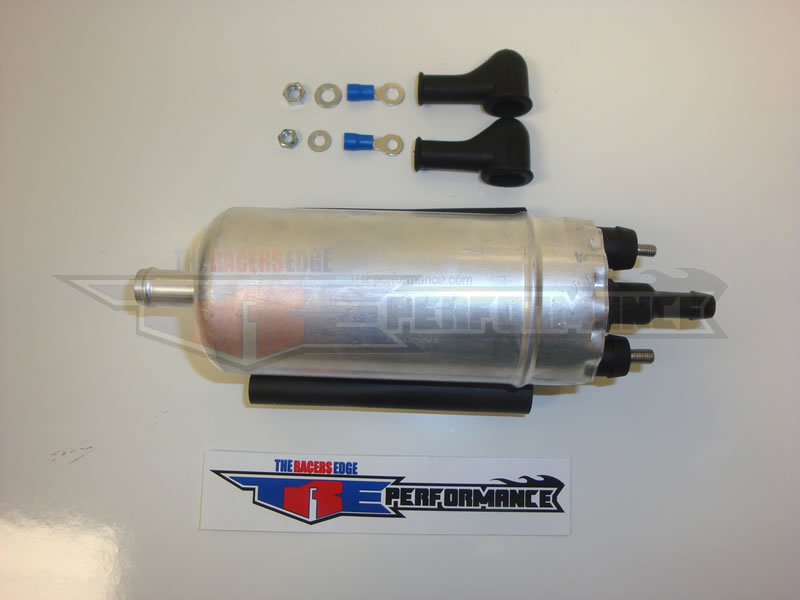

TREperformance Fuel Pump Specs:
