Auxiliary Air Valve
#21
If you want simple you could could just go with a toggle switch. Run it when you need it.
Last edited by JigJag; 09-01-2018 at 10:59 AM.
#22
I have disabled the moving part of the AAV and now it is just an idle speed adjuster. For cold starts I have incorporated a Jaguar part as used on the 3.6 inline 6 cars. This is the part:
https://www.jaguarclassicparts.com/u...alve-3-6-litre

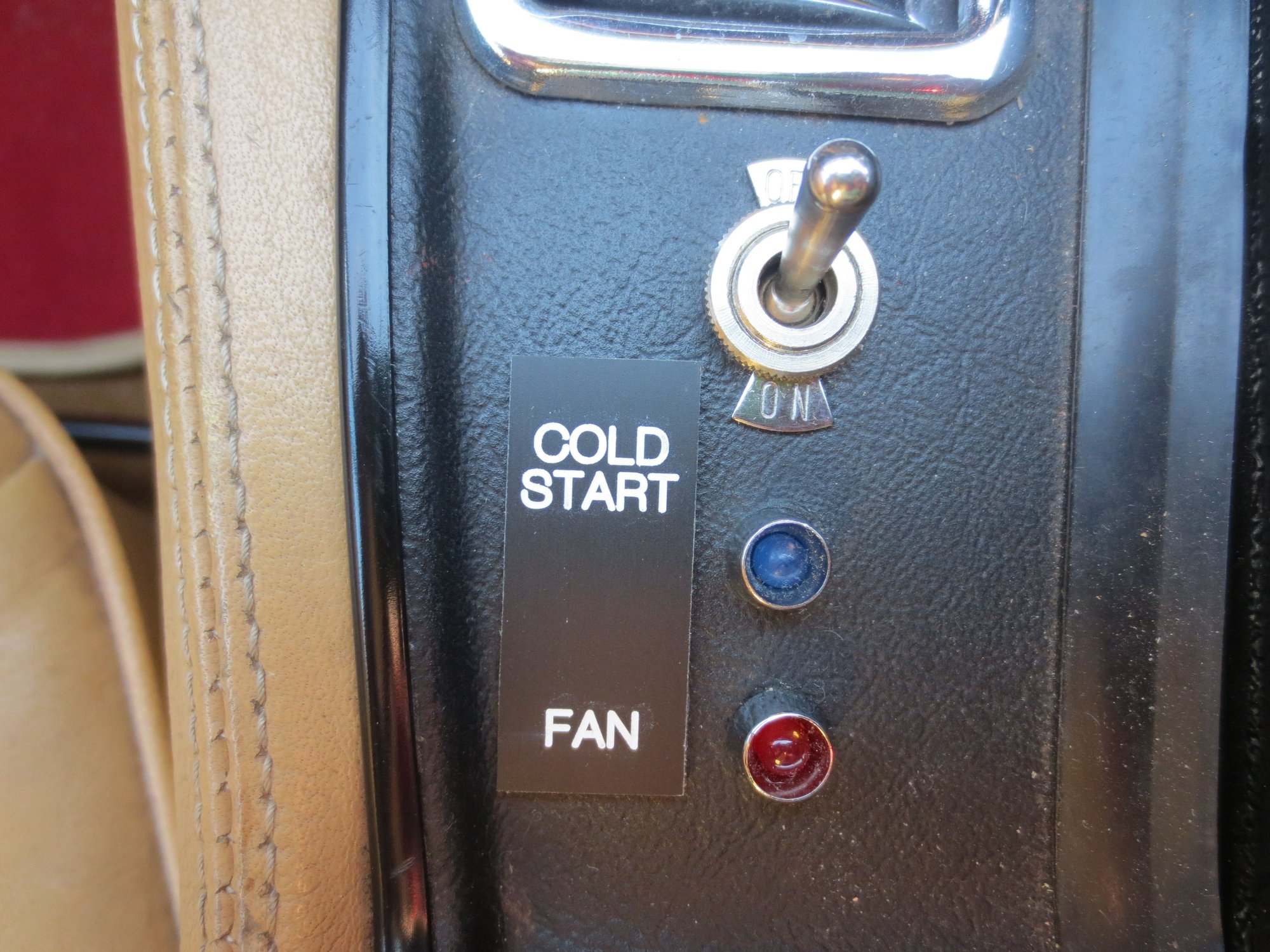

Number 8 in the illustration. It is a solenoid valve just activated by an on or off switch, which I have cabin mounted. The intake/outflow pipe is about 13mm diameter.
What I did was to buy a T piece of hose 1 inch ID with a 1/2 inch ID leg of the T, and incorporate it in place of the LHS balance pipe manifold to balance pipe hose, and place the solenoid valve on the leg of the T, using a dinky little filter on the intake. Works fine, simple and manually controlled, gives about 900 RPM in cold weather starts.
https://www.jaguarclassicparts.com/u...alve-3-6-litre
Number 8 in the illustration. It is a solenoid valve just activated by an on or off switch, which I have cabin mounted. The intake/outflow pipe is about 13mm diameter.
What I did was to buy a T piece of hose 1 inch ID with a 1/2 inch ID leg of the T, and incorporate it in place of the LHS balance pipe manifold to balance pipe hose, and place the solenoid valve on the leg of the T, using a dinky little filter on the intake. Works fine, simple and manually controlled, gives about 900 RPM in cold weather starts.
The following 4 users liked this post by Greg in France:
#23
This is also documented in the "XJ6 Series III / XJ-S 1987 1988 Electrical Guide" (how relevant that would be to an earlier car I don't know), except for the exact numbers concerning temperature vs. resistance and voltage, which is in the "XJ-S Engine Performance" document. Per the document, it applies to "all H.E. and later models with P type fuel injection".
Both are available for download somewhere on this site.
Thanks,
John
Both are available for download somewhere on this site.
Thanks,
John
#24
Cold enrichment is dictated by the CTS---Coolant Temp Sensor. It gives a temp reading to the ECU. On a cold engine, as reported by the CTS, the ECU will hold the injectors open longer to give a richer mixture for cold starting and cold running. These sensors often go wonky. In fact, mine is on the blink and I'll be replacing it soon.
(Until 1984 or so the V12s had a cold start injector system. This stand-alone system, using two separate, dedicated injectors to squirt raw fuel into the intake, was problematic. Many were intentionally disabled; Jaguar stopped installing them)
Cheers
DD
(Until 1984 or so the V12s had a cold start injector system. This stand-alone system, using two separate, dedicated injectors to squirt raw fuel into the intake, was problematic. Many were intentionally disabled; Jaguar stopped installing them)
Cheers
DD
or is the temp guge send the smaller unit behind the RH thermostat housing?
cheers
#25
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
#26
My exhaust looks fine, but boy does she chew the fuel. I reckon I'm getting about 220 - 250 miles per tank!
12 or 13 miles per gallon and I live rural so most of my speed sits at 60-70 MPH
Last edited by Crackerbuzz; 09-02-2018 at 04:53 PM.
#27
I have done similartto Greg, but deleted the balance pipe etc all together.
The write up is 12mb, and way too big to attach, and my laptop is having a female moment and will not allow me to save it as a PDF. so if you want that PM me your direct email and I can do the deed.
I will be OFF the air from AM tomorrow, until Sept 24, so get in quick if you want anything.
Economy, oh boy, many items at play here.
Ignition timing (NOT factory settings)
Mechanical advance (inside the distributor),
CTS, as mention,
ATS, not mentioned yet,
Oil viscosity,
Fuel quality,
Your Right boot angle.
Engine Temp.
Spark plug condition
Trans fluid integrity
Exhaust flow, its OLD now, maybe restricted a tad.
Etc, etc, etc.
Mine averaged 11.2L/100kms on Interstate runs, and around 20+ in the Burbs.
,
The write up is 12mb, and way too big to attach, and my laptop is having a female moment and will not allow me to save it as a PDF. so if you want that PM me your direct email and I can do the deed.
I will be OFF the air from AM tomorrow, until Sept 24, so get in quick if you want anything.
Economy, oh boy, many items at play here.
Ignition timing (NOT factory settings)
Mechanical advance (inside the distributor),
CTS, as mention,
ATS, not mentioned yet,
Oil viscosity,
Fuel quality,
Your Right boot angle.
Engine Temp.
Spark plug condition
Trans fluid integrity
Exhaust flow, its OLD now, maybe restricted a tad.
Etc, etc, etc.
Mine averaged 11.2L/100kms on Interstate runs, and around 20+ in the Burbs.
,
Last edited by Grant Francis; 09-03-2018 at 01:07 AM.
#28
Ive had my dinner and drinks. Time for a little brag. Recently replaced my vacuum advance, reset vac hosing a bit and tweaked the timing. Trip compy told me 27 MPG for mixed 40% city 60% Highway. That’s 8.7 liters per 100 kilometers!
But I had enough of that. So I started pushing harder!
The resistance values at various engine temperatures shown below should be within 10%.
0 degrees C (32F) 5.9 kohms
10 degrees C (50F) 3.7 kohms
30 degrees C (86F) 1.7 kohms
50 degrees C (122F) 840 ohms
70 degrees C (158F) 435 ohms
90 degrees C (194F) 250 ohms
You can jumper either the CTS or ATS harnesses to eliminate any potential enrichment from them.
But I had enough of that. So I started pushing harder!
The resistance values at various engine temperatures shown below should be within 10%.
0 degrees C (32F) 5.9 kohms
10 degrees C (50F) 3.7 kohms
30 degrees C (86F) 1.7 kohms
50 degrees C (122F) 840 ohms
70 degrees C (158F) 435 ohms
90 degrees C (194F) 250 ohms
You can jumper either the CTS or ATS harnesses to eliminate any potential enrichment from them.
Last edited by JigJag; 09-02-2018 at 10:21 PM.
The following 2 users liked this post by JigJag:
Doug (09-02-2018),
Grant Francis (09-03-2018)
#29
Ive had my dinner and drinks. Time for a little brag. Recently replaced my vacuum advance, reset vac hosing a bit and tweaked the timing. Trip compy told me 27 MPG for mixed 40% city 60% Highway. That’s 8.7 liters per 100 kilometers!
But I had enough of that. So I started pushing harder!
The resistance values at various engine temperatures shown below should be within 10%.
0 degrees C (32F) 5.9 kohms
10 degrees C (50F) 3.7 kohms
30 degrees C (86F) 1.7 kohms
50 degrees C (122F) 840 ohms
70 degrees C (158F) 435 ohms
90 degrees C (194F) 250 ohms
You can jumper either the CTS or ATS harnesses to eliminate any potential enrichment from them.
But I had enough of that. So I started pushing harder!
The resistance values at various engine temperatures shown below should be within 10%.
0 degrees C (32F) 5.9 kohms
10 degrees C (50F) 3.7 kohms
30 degrees C (86F) 1.7 kohms
50 degrees C (122F) 840 ohms
70 degrees C (158F) 435 ohms
90 degrees C (194F) 250 ohms
You can jumper either the CTS or ATS harnesses to eliminate any potential enrichment from them.
Ok, so are you saying that by closed circuiting the CTS and the ATS (Air temp sender on the LH aircleaner?) then the ECU will cease to enrich the fuel?
Are you also saying they are variable sensors or are the CTS or the ATS normally open or closed or variable when cold?
Cheers
Last edited by Crackerbuzz; 09-03-2018 at 12:21 AM.
#30
Yes, and variable.
The CTS is a PRIME fueling signal, Example, running V12, unplug teh CTS< Dead V12, its taht simple.
The ATS is a trimmer, and has no huge affect.
Bridging the CTS will inform the ECU that engine is HOT, so lean off the fuel map in its brain to that spec. Mongrel to start Cold when bridged.
There is also another enrichment switch. Called a Vac Full Load Switch, and usually hanging around near the 5A intake ram. It has a vac line to the rear of the RH Inlet manifold, and either 1 wire, or 2 wires, depending on Jaguar stock on the day your beast came along.
It requires VAC to keep the internal contacts OPEN, and thus the ECU stays in closed loop. Vac drops, as you accelerate, and the contacts CLOSE, which effectively earths that ECU circuit, and the fuel is about 15% richer. This all works in conjunction with the TPS firing ALL 12 Injectors as you stand on the Gas, and the beast leaps forward rather quickly, WITHOUT coughing back. Much like the old school accelerator pump in a carby. SIMPLE really.
Synchronisation is paramount for all this to flow.
Read teh attached a few times.
The CTS is a PRIME fueling signal, Example, running V12, unplug teh CTS< Dead V12, its taht simple.
The ATS is a trimmer, and has no huge affect.
Bridging the CTS will inform the ECU that engine is HOT, so lean off the fuel map in its brain to that spec. Mongrel to start Cold when bridged.
There is also another enrichment switch. Called a Vac Full Load Switch, and usually hanging around near the 5A intake ram. It has a vac line to the rear of the RH Inlet manifold, and either 1 wire, or 2 wires, depending on Jaguar stock on the day your beast came along.
It requires VAC to keep the internal contacts OPEN, and thus the ECU stays in closed loop. Vac drops, as you accelerate, and the contacts CLOSE, which effectively earths that ECU circuit, and the fuel is about 15% richer. This all works in conjunction with the TPS firing ALL 12 Injectors as you stand on the Gas, and the beast leaps forward rather quickly, WITHOUT coughing back. Much like the old school accelerator pump in a carby. SIMPLE really.
Synchronisation is paramount for all this to flow.
Read teh attached a few times.
The following 2 users liked this post by Grant Francis:
Crackerbuzz (09-03-2018),
Fla Steve (09-18-2018)
#31
#32
The Great XJS Prophet (bows to the Southern Cross) is on holiday, but I am sure he will forgive this impertinence:
https://www.jaguarforums.com/forum/x...ebuild-119510/
Greg
https://www.jaguarforums.com/forum/x...ebuild-119510/
Greg
The following users liked this post:
Fla Steve (09-15-2018)
#33
#34
Well,
I received my new AAV and CTS last week and just finished the installation of both.
To my amazement there was no change and she fired up from cold the same horrible old way.
I cleaned up the existing AAV and trialed it in a cup of boiling water to see if it was jammed or not. Nope! The old AAV was perfect.
In hindsight I should have removed first and tested it, however I thought I would destroy the gasket and decided to just buy a whole new unit with new gasket and hose.
So.... annoyed as I was I sat there with my beer thinking and imagining what the hell was happening and what I had missed.
I decided to fire her up and remove the AAV idle adjustment bolt to see if it would pull a little more air and as soon as I pulled the bolt out the AAV suked a huge amount of air and the engine jumped up to about 2500 rpm!
This confused me somewhat and after another beer thought ok the air cleaner must have been pop riveted shut at the AAV port. Nope... Thats not it
Ok so another beer and decided to remove the small air hose running from the air cleaner body to the AAV in case it had a blockage which I thought would be impossible.
BUT... Some ******** before me had stuffed a rag up it!!!
Problem solved and engine is away laughing now and a good $400 wasted money for something I didn't need.
I received my new AAV and CTS last week and just finished the installation of both.
To my amazement there was no change and she fired up from cold the same horrible old way.

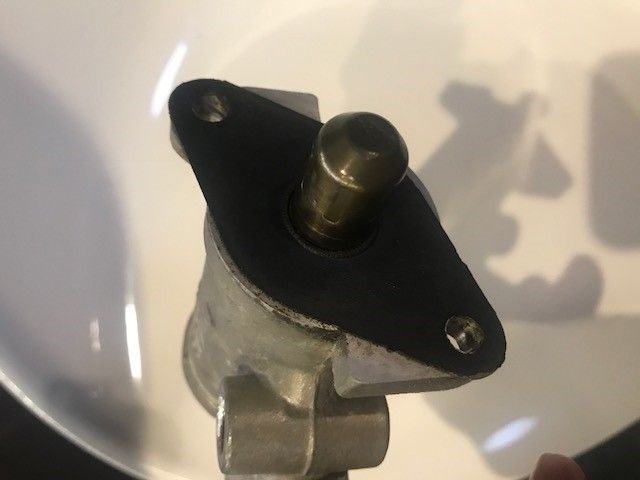

I cleaned up the existing AAV and trialed it in a cup of boiling water to see if it was jammed or not. Nope! The old AAV was perfect.
In hindsight I should have removed first and tested it, however I thought I would destroy the gasket and decided to just buy a whole new unit with new gasket and hose.
So.... annoyed as I was I sat there with my beer thinking and imagining what the hell was happening and what I had missed.
I decided to fire her up and remove the AAV idle adjustment bolt to see if it would pull a little more air and as soon as I pulled the bolt out the AAV suked a huge amount of air and the engine jumped up to about 2500 rpm!
This confused me somewhat and after another beer thought ok the air cleaner must have been pop riveted shut at the AAV port. Nope... Thats not it
Ok so another beer and decided to remove the small air hose running from the air cleaner body to the AAV in case it had a blockage which I thought would be impossible.
BUT... Some ******** before me had stuffed a rag up it!!!
Problem solved and engine is away laughing now and a good $400 wasted money for something I didn't need.
#36
The following users liked this post:
Crackerbuzz (10-01-2018)
#37
Well for the first time when cold the Ol' girl fires up with no foot throttle needed and idles beautifully straight off the cuff.
I have adjjsted the warm idle with the AAV bolt and good as gold.
I lot of work for a sabotaged air hose!
I am at a loss as to why there was a paper towel stuffed up the guts of the air hose connecting the air cleaner to the AAV body.
Any ideas why someone would do that?
I have adjjsted the warm idle with the AAV bolt and good as gold.
I lot of work for a sabotaged air hose!
I am at a loss as to why there was a paper towel stuffed up the guts of the air hose connecting the air cleaner to the AAV body.
Any ideas why someone would do that?
#38
To mask other issues.
I have had them with a rag actually AT the air cleaner end, simple find and fix.
Usual culprit is high idle that cannot be tamed, so plug the intake, and sell the car.
The list would be loooooong, and not worth the effort in my opinion.
There are mechanics, and then there are "mechanics" and sadly the V12 seems to gravitate to the latter.
I have had them with a rag actually AT the air cleaner end, simple find and fix.
Usual culprit is high idle that cannot be tamed, so plug the intake, and sell the car.
The list would be loooooong, and not worth the effort in my opinion.
There are mechanics, and then there are "mechanics" and sadly the V12 seems to gravitate to the latter.
