My 1988 XJSC V-12 Cabriolet (Mfg. 11-1987)

Just got it a couple weeks ago and it's become obvious that some people were not meant to own Jaguars.

I started off with a cooling problem that was fixed now it's back again. I think I'm getting a false read, but that's for another thread ...

I purchased a series of repair manuals on ebay but the wiring diagram section sucks, can't make out color codes or lettering. Vacuum diagram is the same way. Anybody got any good copies of them?

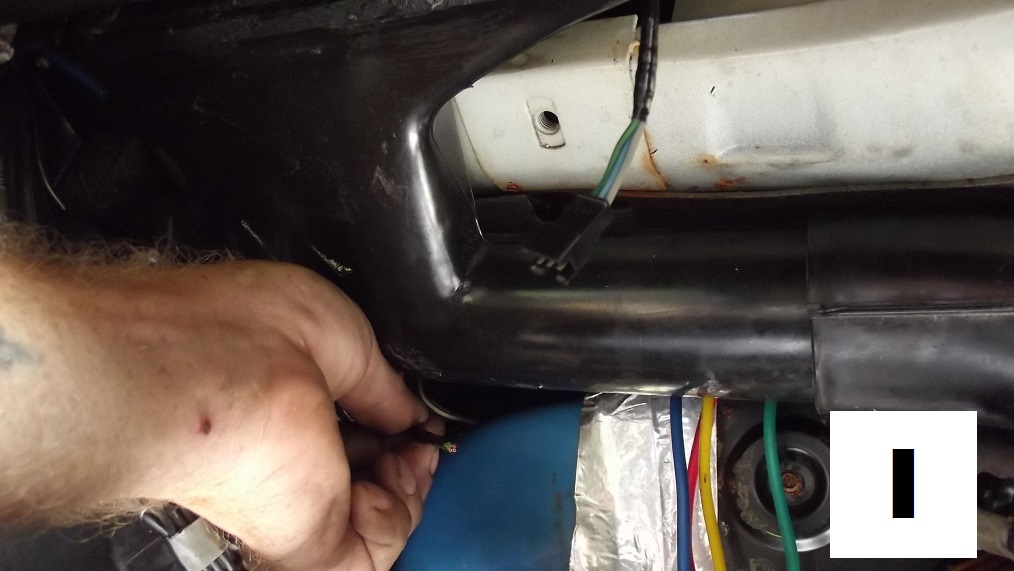

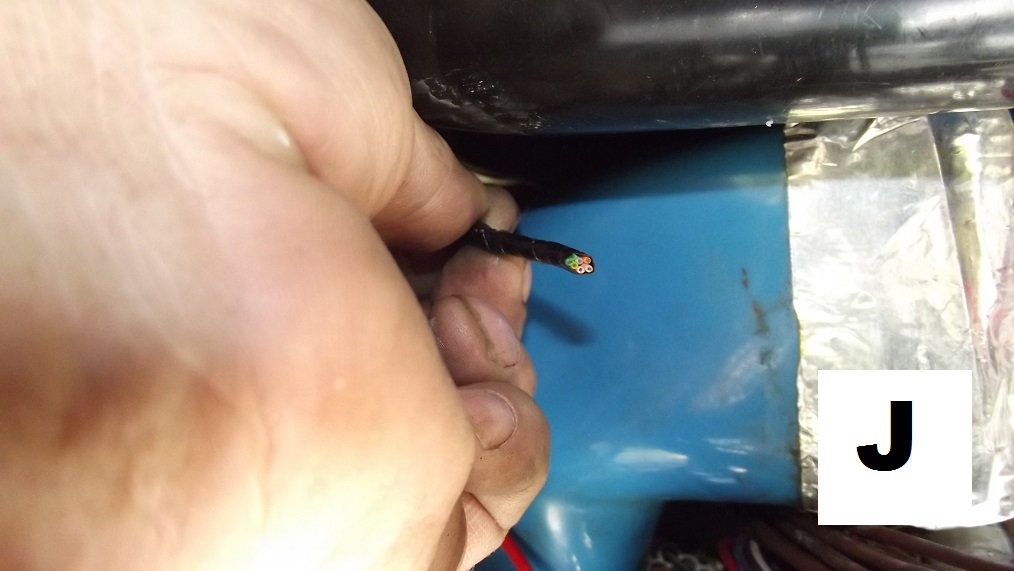

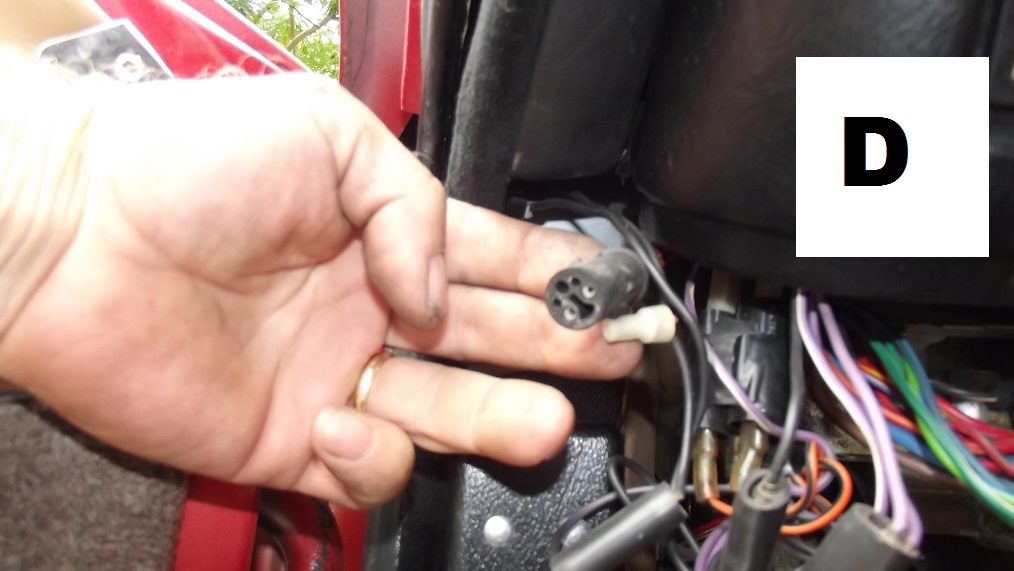

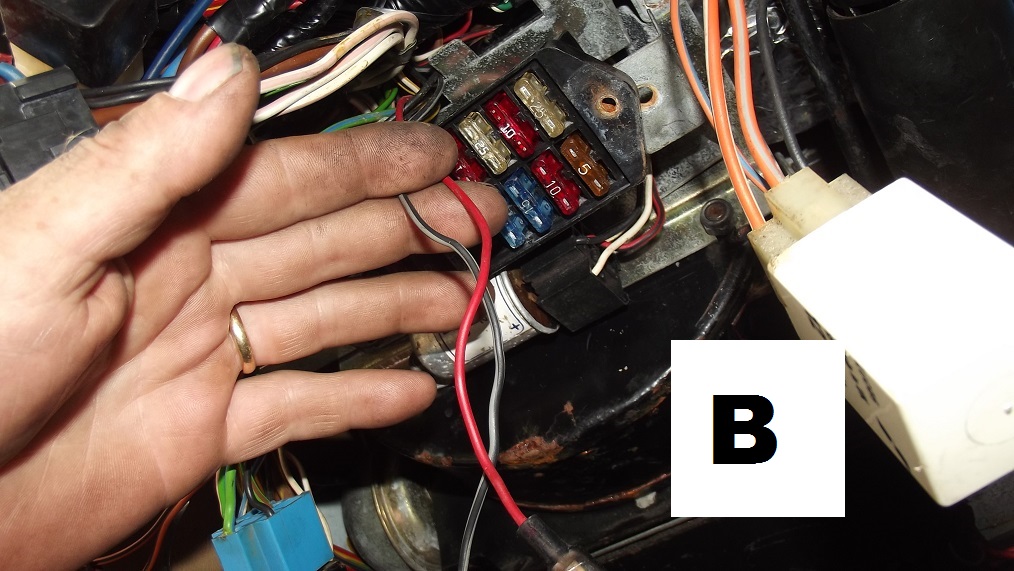

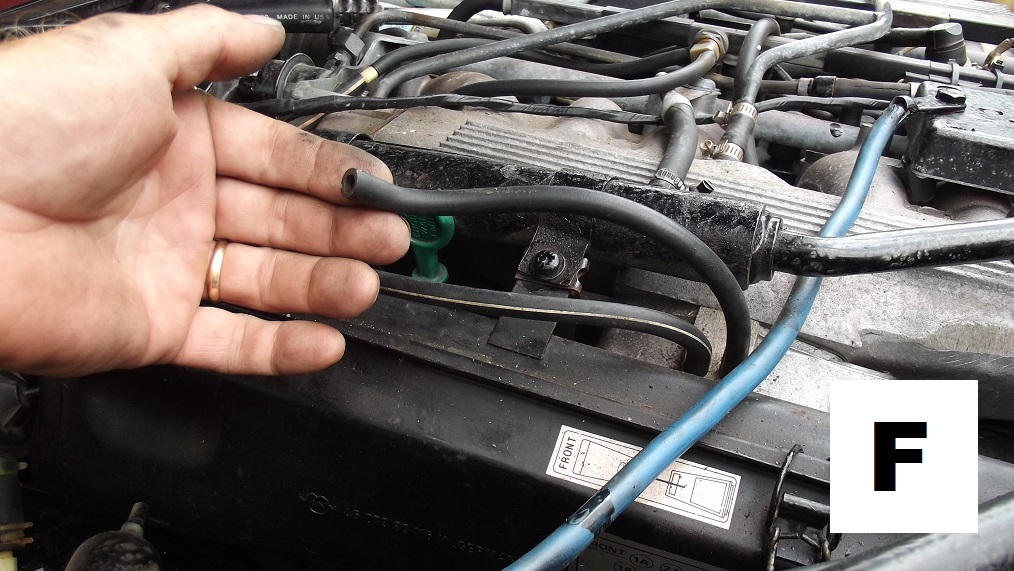

attached are pics of things I've found disconnected and cannot figure out where they go. Any help would be greatly appreciated.

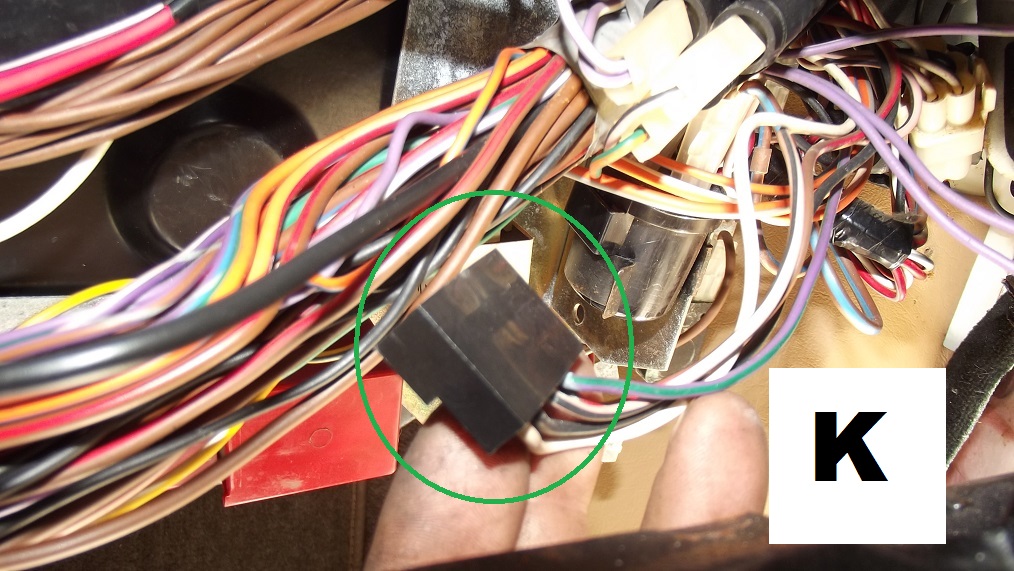

A and K are for a standard "ISO" radio... They are the connectors.



Pretty sure that 'G' is an air filter on the end of a air vent hose that connects to the distributor. I would just ensure the hose is not linked and maybe blow into it to ensure it's got a clear pathway to the distributor. Other than that just tie the air filter out of the way.



Indeed, the air filter to the distributor (Marelli system). Make sure it is clean... The engine sucks from that too!
