Good evening everyone!! I hope you are having a great start to 2020!

Headlights on my 1985 XJS are having trouble. I am looking to see the condition of the relay but cannot find it! I only find a little blue square, is on the LH before the fuses. Is that it? Also, I have read about a Headlight Module. Is that the same thing? Where is that located? Can you send me images? Thanks so much!!



Hello Jacinto

Under the bonnet, left hand side front under the fuse box - there is 3 relays as per below


Left hand corner, near the radiator, under the fuse box (remove 2 or 3 screws to remove the plastic cover)

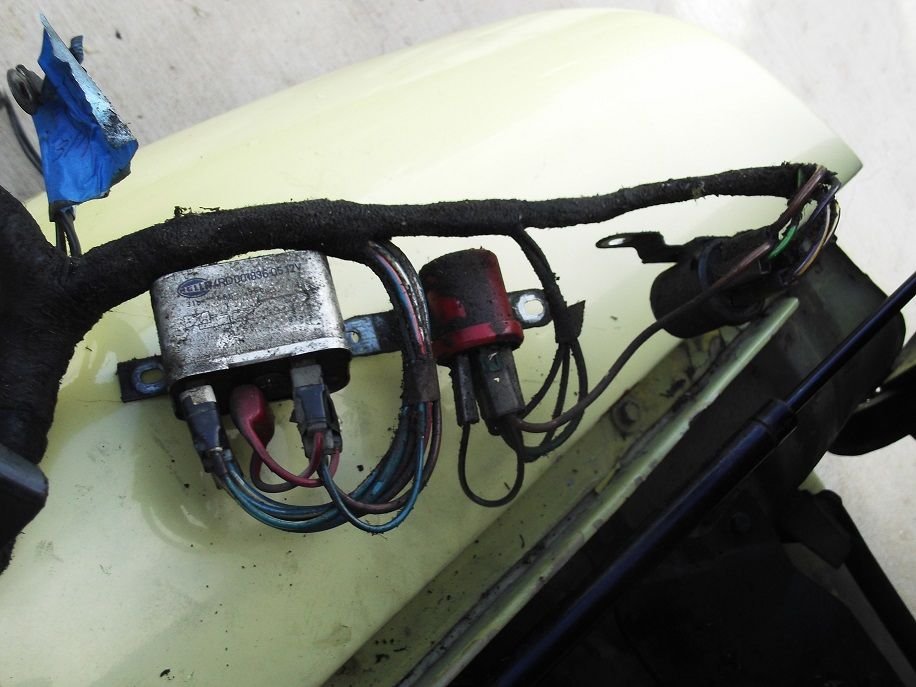

Exposes the 3 relays - headlight, horn and fan

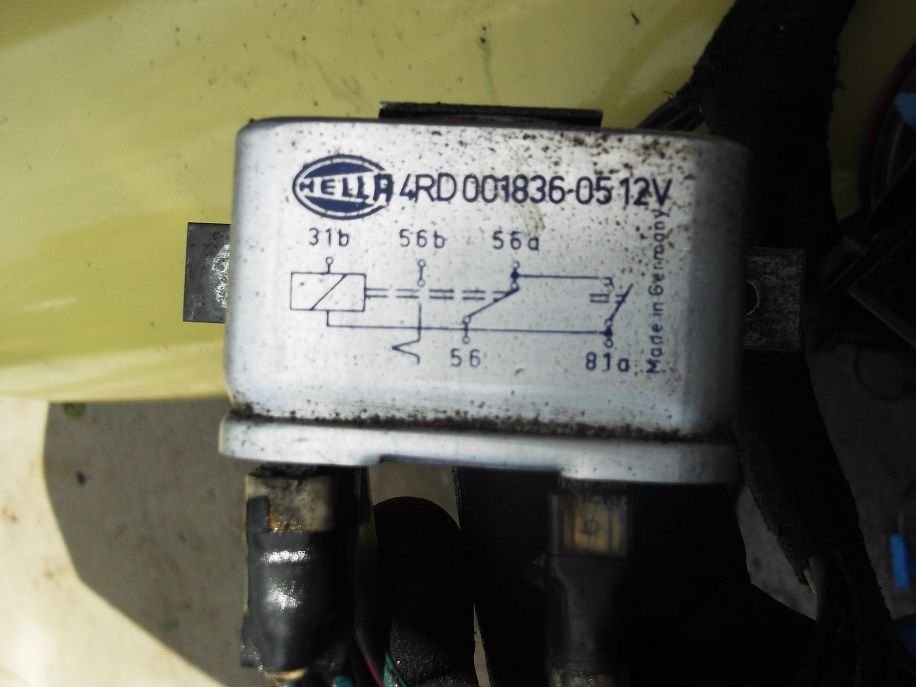

This is my headlight relay

Cheers
Steve



Wonderful! Thank you for such a detailed explanation!!



Is that the same thing as a module? Also, what is the red one? Thanks!!



The round red relay is the auxiliary electric fan relay. The black one is the horn relay.
