My english is not good. Tech support TCI do not understand what I need.

Anybody conect to TCI and ask what I need.
I have problems with connecting wires.
As the different connector Jaguar with U.S. 4L80E.

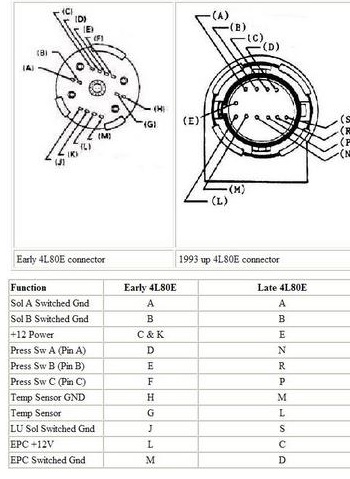

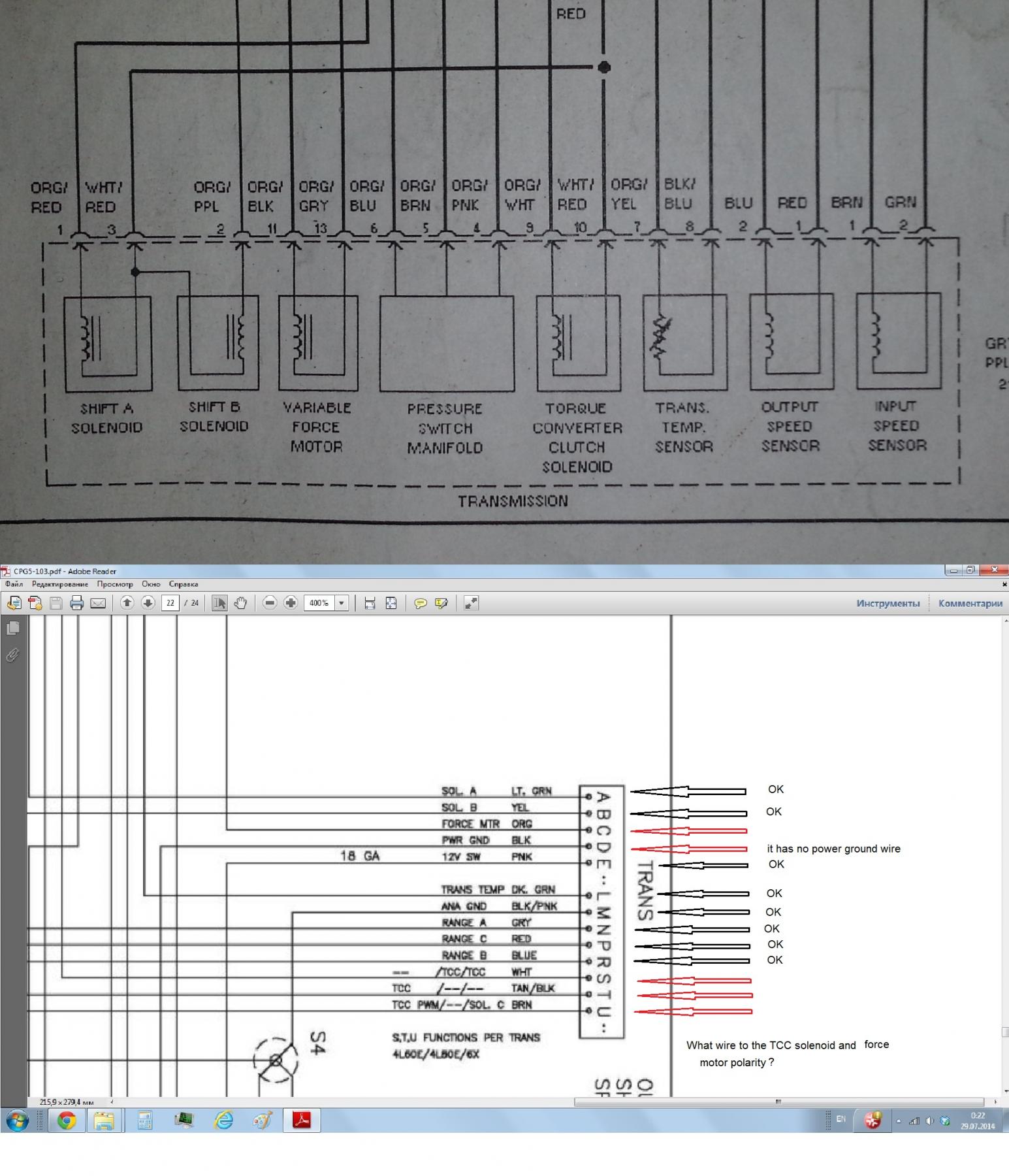

In the picture with a scheme to understanding what I need



I dont complete understand the issue and what you are working with.? You have TCI controller and USA 4L80e?


To me it seem like

A = 1
B = 2
C = 11
D = 18GA ground
E = 3 & 10 and 12V switched 18GA
L = 7
M = chassis ground
N = ?
P = ?
R =?

T is the TCC Ground. SU depends on transmission type. U for PWM TCC and use S for the On/off 12V Some 4L60E use a solenoid for TCC on/off. Some use a PWM solenoid to control the TCC oil curcuit on and off. I depends on what specific version of the trans you have. However 4L80E is always PWM

"PWR ground" just means ground for the power circuit so it has to be same gauge as the +12 wire. (18GA)

M seems to be the ana ground for the sensors and can be a thinner ground wire.



I'm a fool. Not asked google. it's simple.
