Need help identifying some electric parts.


Old Dec 6, 2012 | 10:13 PM
Share
  #1
Mish_Mish's Avatar
Thread Starter
|
Senior Member
Joined: Jan 2011
Posts: 883
Likes: 172
From: Columbus, OH
Default Need help identifying some electric parts.
So the mighty electric system of my XJS is upon me. Some parts have been rigged by the weak minded in the past, some I do not recognize.

Can someone please help me with naming some of the part on my pics?

Thanks!!!

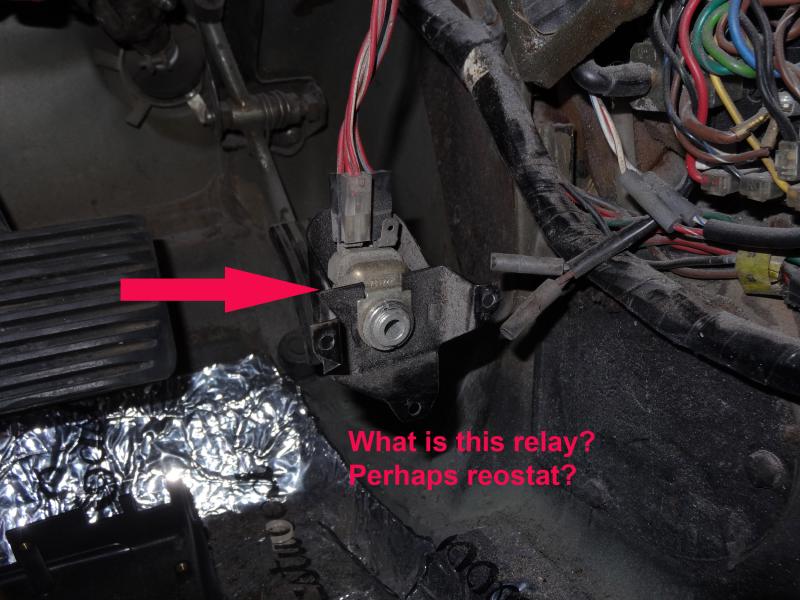

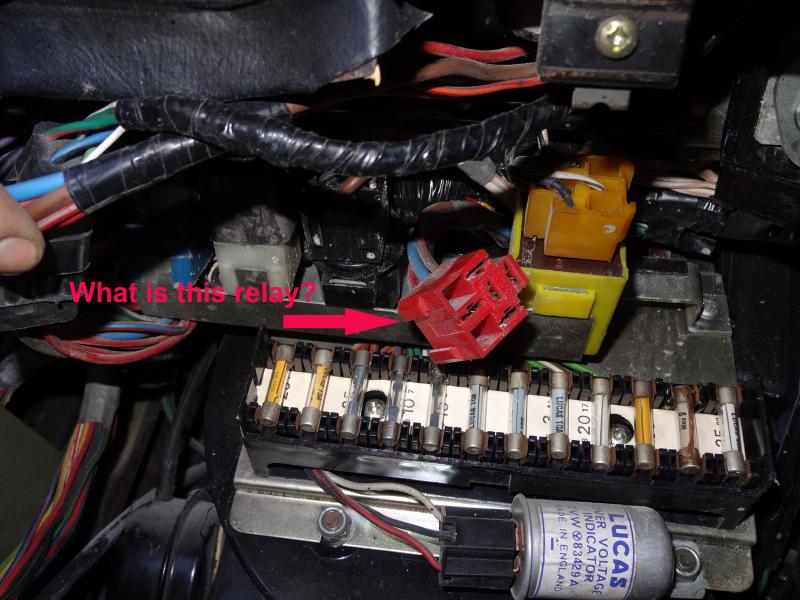

Attached Thumbnails Need help identifying some electric parts.-dsc00085-copy.jpg   Need help identifying some electric parts.-dsc00084-copy.jpg   Need help identifying some electric parts.-dsc00083-copy.jpg   Need help identifying some electric parts.-dsc00082-copy.jpg
Reply
0
Old Dec 6, 2012 | 10:52 PM
Share
  #2
Doug's Avatar
Veteran Member
Liked
Loved
Community Favorite
Joined: Mar 2008
Posts: 25,519
Likes: 11,711
From: Pacific Northwest USA
Default
#4 is the panel light dimmer/rheostat

#1 don't know. Where in the car is this? I can't orient. RH side under dash area?
#2 and #3 don't know. What are the wiring colors? That might help

Cheers
DD

Reply
0
Old Dec 7, 2012 | 06:55 AM
Share
  #3
Mish_Mish's Avatar
Thread Starter
|
Senior Member
Joined: Jan 2011
Posts: 883
Likes: 172
From: Columbus, OH
Default
Where is this dash light adjuster mounted? Am I missing adjuster axle in the middle of it?
Yes, number 1 is under passenger side dash, to the right.

Thanks!

Reply
0
Old Dec 9, 2012 | 09:37 AM
Share
  #4
Greg Edge's Avatar
Senior Member
Joined: Aug 2010
Posts: 388
Likes: 50
From: Connecticut
Default
#1 45 sec timer I think.

It has been a while since I was under the dash.

Reply
0
Old Dec 9, 2012 | 01:48 PM
Share
  #5
Steve M's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Jul 2012
Posts: 6,215
Likes: 3,739
From: Wiltshire, UK
Default
The dash light adjuster should be on the panel just under the steering wheel.

Reply
0
