Throttle linkage bush
#1
Throttle linkage bush
Moin (a Northern German word meaning "Good morning, good day, hello, hi, good evening, how are you?, ..." pronouced "M-oi-n")!
I've got a little question regarding the bushes of the V12 throttle linkage.
The spindle on which the butterfly valve sits and is turned, runs from the throttle body housing to the rear corner into a bracket. The spindle is held in place by a rubber bush (at least in my case). this bush though is VERY loose. I know I bought some new ones and fitted them but I can't remember them being so loose. They can move AT LEAST 2-3 mm in the bracket (around the hole).

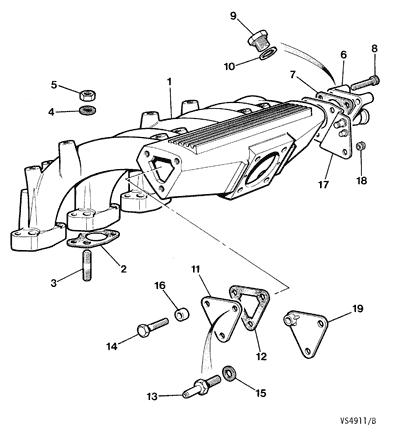

That can't be right or at least I assume that can't be right, as that would cause a tolerance in the linkage resulting in a possible imbalance between both throttle bodies... I am talking about part number 18. That is C34388
Meaning one of three things:
1. the hole in my brackets (part 17) has been widend (most doubtful)
2. the rubber bushes are/were too small (even though the shaft sat well)
3. the rubber bushes are supposed to be that size (dunno)
May I ask someone to check on their car, if the rubber bush is so loose or if it is nice and tight?
Cheers
Damien
PS: anyone got any tips on how to get yellow-zinc-plated materials nice and shiney again without them changing colour again within a few days?
I've got a little question regarding the bushes of the V12 throttle linkage.
The spindle on which the butterfly valve sits and is turned, runs from the throttle body housing to the rear corner into a bracket. The spindle is held in place by a rubber bush (at least in my case). this bush though is VERY loose. I know I bought some new ones and fitted them but I can't remember them being so loose. They can move AT LEAST 2-3 mm in the bracket (around the hole).
That can't be right or at least I assume that can't be right, as that would cause a tolerance in the linkage resulting in a possible imbalance between both throttle bodies... I am talking about part number 18. That is C34388
Meaning one of three things:
1. the hole in my brackets (part 17) has been widend (most doubtful)
2. the rubber bushes are/were too small (even though the shaft sat well)
3. the rubber bushes are supposed to be that size (dunno)
May I ask someone to check on their car, if the rubber bush is so loose or if it is nice and tight?
Cheers
Damien
PS: anyone got any tips on how to get yellow-zinc-plated materials nice and shiney again without them changing colour again within a few days?
Last edited by Daim; 12-02-2016 at 02:33 AM.
#2
The bushes should be a tight fit into the metal bracket and a nice non-binding fit onto the throttle spindle shaft. If anything can flap about by 2 or 3 mm then an incorrect part, or poor quality or a failing part is in there. JCP still have them, I feel sure. Lots of guys fabricate bronze ones, to last for ever, or special plastics-like synthetic materials (? Delrin whatever that is!). Maybe a friendly machine shop would do some for you?
Greg
Greg
The following users liked this post:
Daim (12-01-2016)
#3
The bushes should be a tight fit into the metal bracket and a nice non-binding fit onto the throttle spindle shaft. If anything can flap about by 2 or 3 mm then an incorrect part, or poor quality or a failing part is in there. JCP still have them, I feel sure. Lots of guys fabricate bronze ones, to last for ever, or special plastics-like synthetic materials (? Delrin whatever that is!). Maybe a friendly machine shop would do some for you?
Greg
Greg
The spindles really do need a solid guide... I noticed an imbalance between the left and right sides as I got the car (and then the bushes were loose too). At least that will go now!
Again, cheers Greg!
#4
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 6,796
Received 2,399 Likes
on
1,880 Posts
Guten Tag? Lost Or should it be Guten Morgen. And, possibly a local contraction of Morgen.
English version of Good Morning. Mornin...
I forgot shy, but I made a pair. From brass coupling. Drill press. Inner and outer dimensions drilled and filed to fit. Oh, I remember. The well worn throttle shaft in the carb for my turbo Corvair. I think a ruined a few before I got a pair that would work.
Carl
English version of Good Morning. Mornin...
I forgot shy, but I made a pair. From brass coupling. Drill press. Inner and outer dimensions drilled and filed to fit. Oh, I remember. The well worn throttle shaft in the carb for my turbo Corvair. I think a ruined a few before I got a pair that would work.
Carl
The following users liked this post:
Daim (12-01-2016)
The following users liked this post:
Daim (12-01-2016)
#6
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,739
Received 10,749 Likes
on
7,100 Posts
My experience is that, besides the bushings, wear in the entire mechanism can create a stack-up free play.
Easy to fix....or easy to get around, I should say.
Just adjust your throttle rods so they exert a tiny amount of tension against the bell crank. This will take up any slack down the line.
Funnily enough I just went thru this yesterday. Now that my V12 is up-and-running I have to sort a hundred small details...one of which was a slight hesitation on opening the throttle. A few minutes snugging and synchronizing the throttles eliminated the problem entirely. Everything should be so easy.
Cheers
DD
Easy to fix....or easy to get around, I should say.
Just adjust your throttle rods so they exert a tiny amount of tension against the bell crank. This will take up any slack down the line.
Funnily enough I just went thru this yesterday. Now that my V12 is up-and-running I have to sort a hundred small details...one of which was a slight hesitation on opening the throttle. A few minutes snugging and synchronizing the throttles eliminated the problem entirely. Everything should be so easy.
Cheers
DD
#7
Guten Tag? Lost Or should it be Guten Morgen. And, possibly a local contraction of Morgen.
English version of Good Morning. Mornin...
I forgot shy, but I made a pair. From brass coupling. Drill press. Inner and outer dimensions drilled and filed to fit. Oh, I remember. The well worn throttle shaft in the carb for my turbo Corvair. I think a ruined a few before I got a pair that would work.
Carl
English version of Good Morning. Mornin...
I forgot shy, but I made a pair. From brass coupling. Drill press. Inner and outer dimensions drilled and filed to fit. Oh, I remember. The well worn throttle shaft in the carb for my turbo Corvair. I think a ruined a few before I got a pair that would work.
Carl
I'll see what works best for me
My experience is that, besides the bushings, wear in the entire mechanism can create a stack-up free play.
Easy to fix....or easy to get around, I should say.
Just adjust your throttle rods so they exert a tiny amount of tension against the bell crank. This will take up any slack down the line.
Funnily enough I just went thru this yesterday. Now that my V12 is up-and-running I have to sort a hundred small details...one of which was a slight hesitation on opening the throttle. A few minutes snugging and synchronizing the throttles eliminated the problem entirely. Everything should be so easy.
Cheers
DD
Easy to fix....or easy to get around, I should say.
Just adjust your throttle rods so they exert a tiny amount of tension against the bell crank. This will take up any slack down the line.
Funnily enough I just went thru this yesterday. Now that my V12 is up-and-running I have to sort a hundred small details...one of which was a slight hesitation on opening the throttle. A few minutes snugging and synchronizing the throttles eliminated the problem entirely. Everything should be so easy.
Cheers
DD
Hence I want it all to open perfectly. Nothing niggles me more than when something doesn't work properly as it should!
The following users liked this post:
warrjon (12-01-2016)
Trending Topics
#8
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 6,796
Received 2,399 Likes
on
1,880 Posts
Or:
Part of my service in Germany was served in a unit equipped with Half Tracks that had seen service in North Africa. Well worn. The one equipped with a 37 MM automatic gun flanked by 50 Cal Mg's used a unique qimi8ng system involving a parallelogram that had a flex joint at each corner. Very sloppy from much use.
GI ingenuity. A bucket full of condoms on the top kicks desk for soldiers going out on pass and hoping to get lucky.
Perfect. Place a couple on the linkage to take up the slack....
Survive in the V12 valleys inherent heat? Who knows....
Carl
Part of my service in Germany was served in a unit equipped with Half Tracks that had seen service in North Africa. Well worn. The one equipped with a 37 MM automatic gun flanked by 50 Cal Mg's used a unique qimi8ng system involving a parallelogram that had a flex joint at each corner. Very sloppy from much use.
GI ingenuity. A bucket full of condoms on the top kicks desk for soldiers going out on pass and hoping to get lucky.
Perfect. Place a couple on the linkage to take up the slack....
Survive in the V12 valleys inherent heat? Who knows....
Carl
The following 2 users liked this post by JagCad:
Grant Francis (12-02-2016),
ronbros (12-03-2016)
#9
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,739
Received 10,749 Likes
on
7,100 Posts
On mine the sloppiness is mostly in the fit of item #11 below....
Throttle Linkage-5.3 Litre - Parts For Series III Saloon | Jaguar Classic Parts UK
....as the holes have apparently become a bit elongated
Cheers
DD
Throttle Linkage-5.3 Litre - Parts For Series III Saloon | Jaguar Classic Parts UK
....as the holes have apparently become a bit elongated
Cheers
DD
The following users liked this post:
Daim (12-02-2016)
#10
I did the same as you in taking up the slack with the connecting rod. I'll turn up some bushes when I get my new engine back.
Damien, If I were you I'd just buy the bushes from Jaguar, unless the bracket is worn they should fit.
The following users liked this post:
Daim (12-02-2016)
#11
#12
The following users liked this post:
Daim (12-02-2016)
#13
#15
I did the same. Kirby Palm tells how and what bushing to use in "The Book". Easy and cheap, no special tools required.
#17
I'm anything but a parts replacer... But then there are some things, where some advice is handy. I could replace the entire throttle linkage assembly, but I just this one bush... That is the only thing that was getting on my nerves...
#18
I replaced these with bronze bushings from an Oops! box from an autostore. The are usually sold for door hinges.
They fit perfectly and will obviously last a lonnnngg time. They are "hat" shaped, so they can't back out once they are in.
I realize you are not in the US, so it doesn't do you much good in terms of having something you can run to the store to get. But perhaps you can measure the diameter of your linkage and order some online?
The sizes in the package were:
Bushing Height: .370, .375, .305, .250
Outside Diameter: .490, .490, .420, .495 in
but idk which i used. Idk how much good this does you either, since you will likely be buying in metric.
They fit perfectly and will obviously last a lonnnngg time. They are "hat" shaped, so they can't back out once they are in.
I realize you are not in the US, so it doesn't do you much good in terms of having something you can run to the store to get. But perhaps you can measure the diameter of your linkage and order some online?
The sizes in the package were:
Bushing Height: .370, .375, .305, .250
Outside Diameter: .490, .490, .420, .495 in
but idk which i used. Idk how much good this does you either, since you will likely be buying in metric.
The following users liked this post:
ronbros (12-08-2016)
#19
I could have used aluminum, but the nylon fit really well right out of the box, and I thought it would be good for reducing friction, though if I'd made it of metal it would have probably been brass. Really anything would have been better than what I had before, which was nothing! the original bushings were both completely gone!
Eric
Eric
