A/C water in Passenger foot well
#101
I couldn't find a parts catalog online to see the part number, or if it shows 'from VIN ....'.
My guess would be it was part of the extensive changes for MY2010 (the 5.0 engine).
Most of the problems seem to be with MY2007 or earlier (in the US, the X150 was launched as a 2007, but elsewhere they were MY2006). My 2008 (built Nov 2007) has just developed this problem.
I haven't heard of any problems with 2009 models, but they just might not be old enough yet ! I hope you're spared, but I'd keep an eye on it.
(In my case , it was a "yelp" from the wife when I went around a left-hand corner that alerted me)
The following users liked this post:
bobdr1 (09-03-2014)
#102
#103
#105
#106

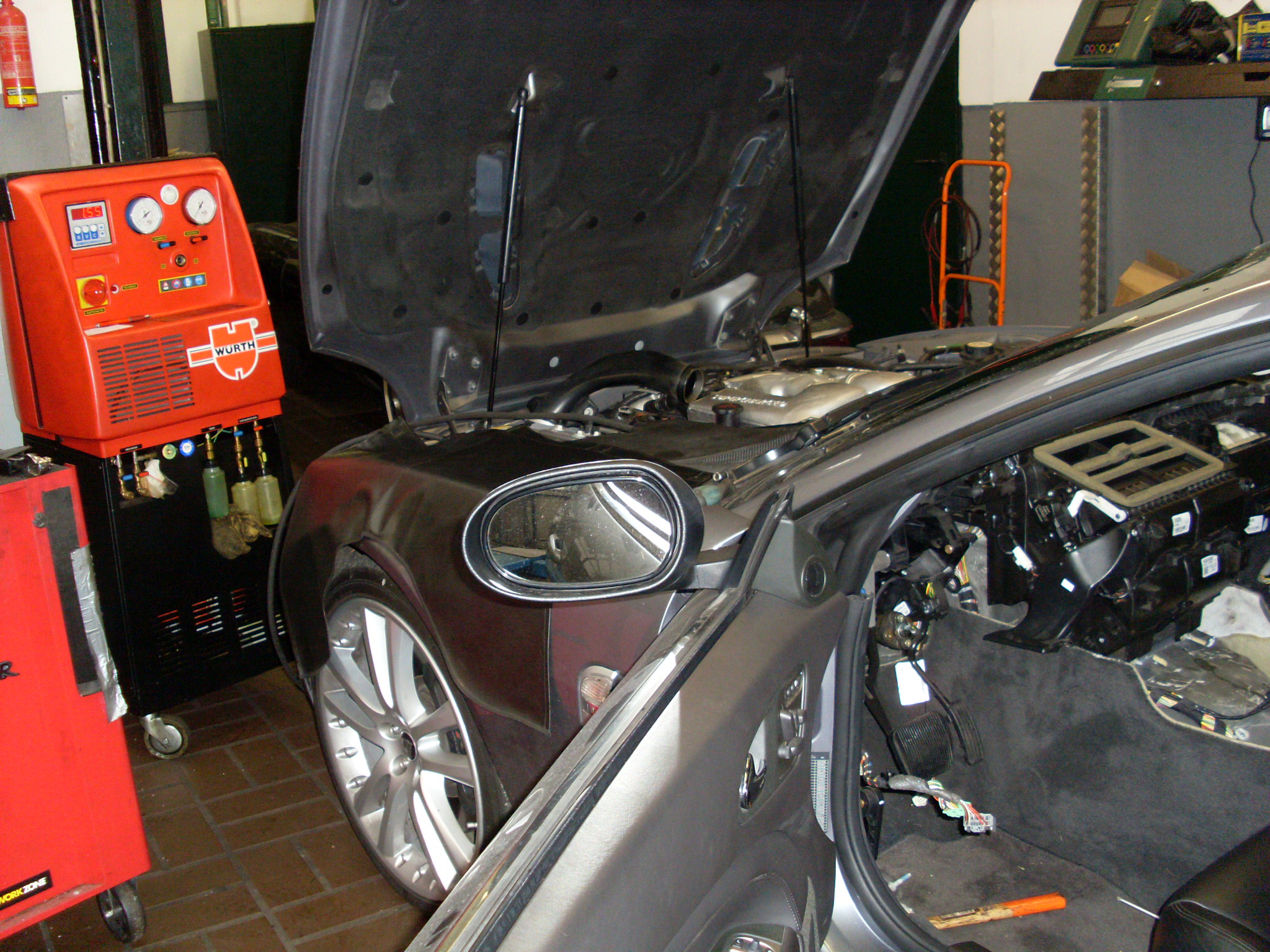

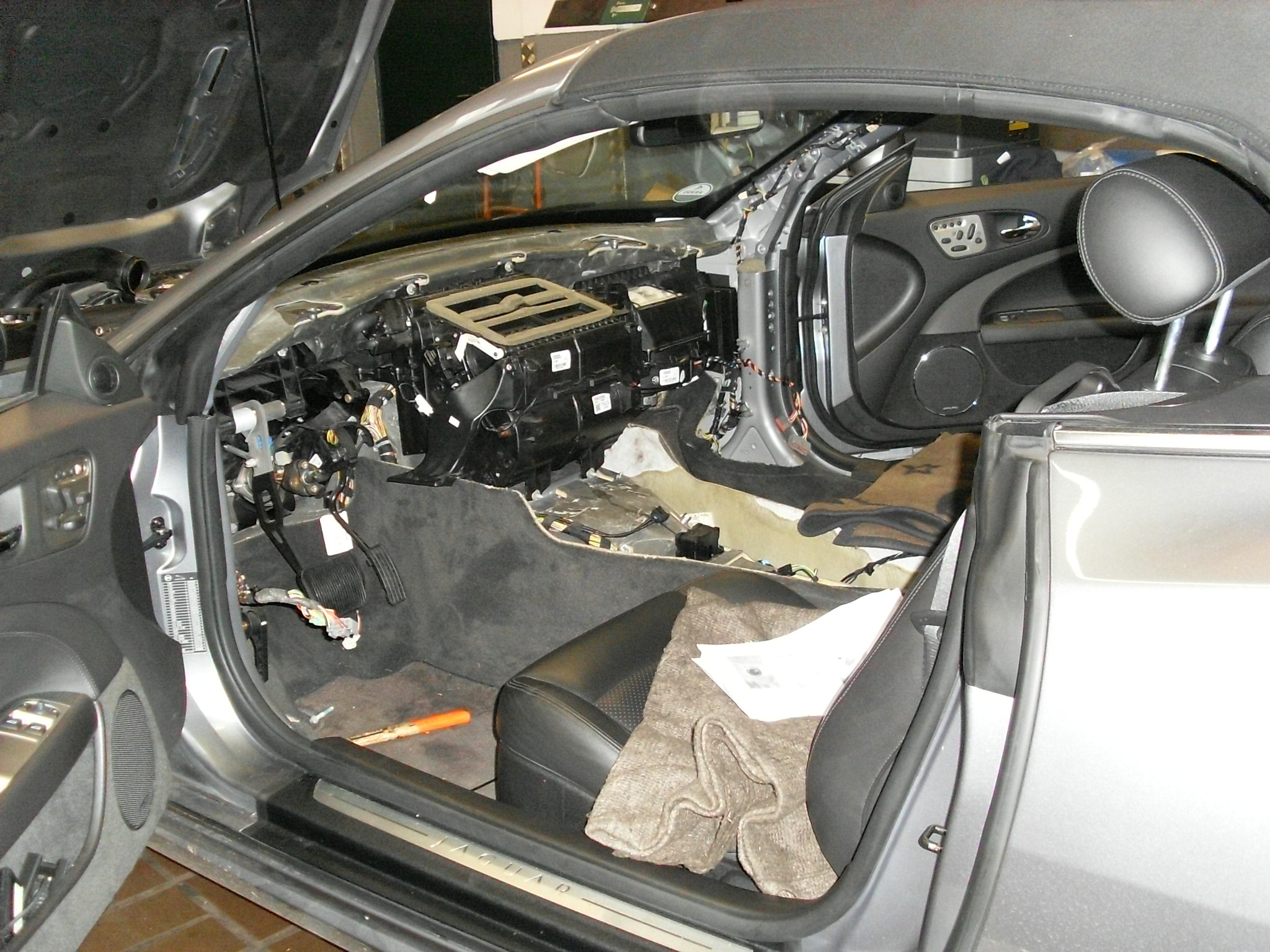

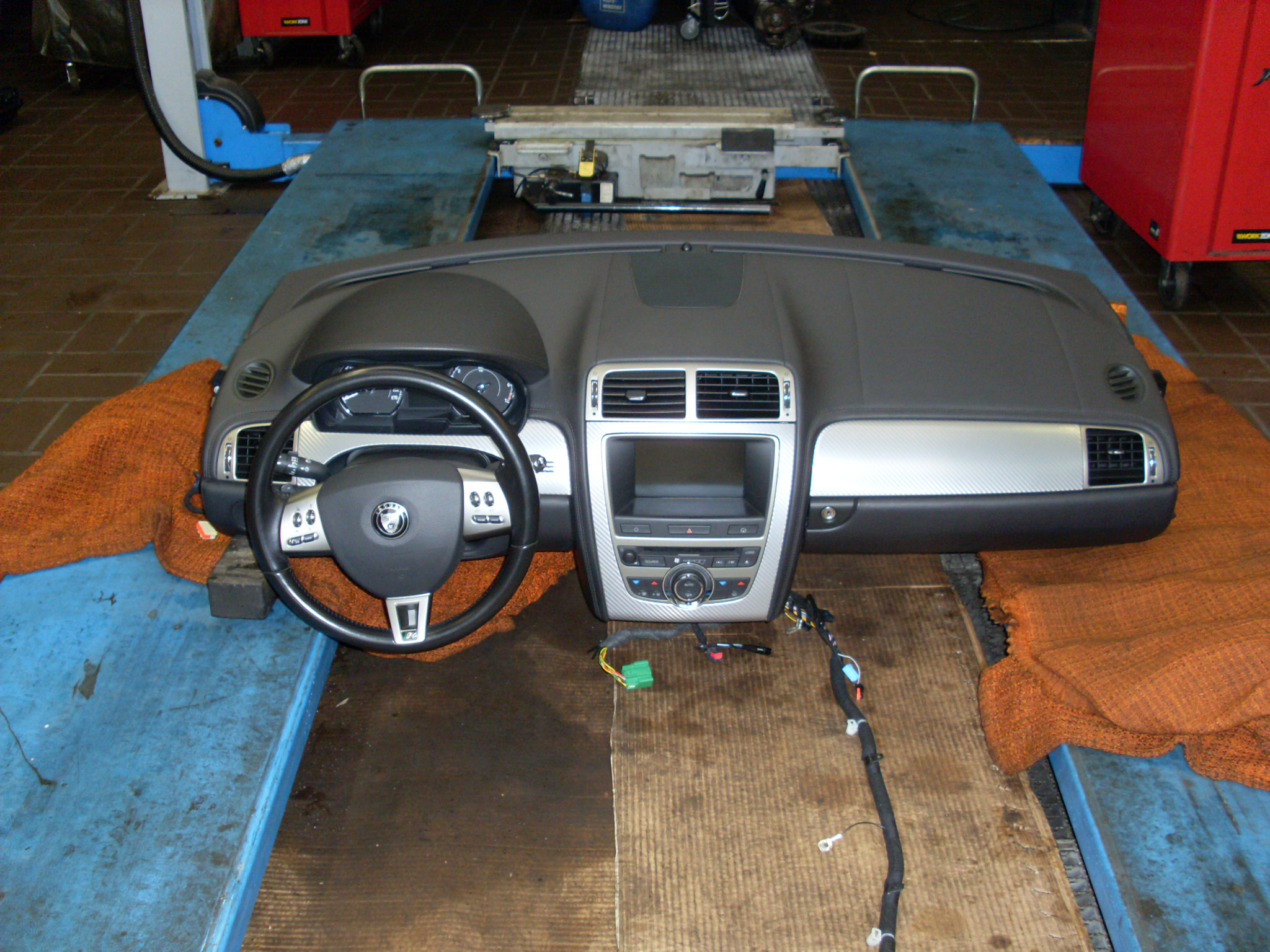

Looks scary, you're right, but since then no water problems anymore. Only cold air.
The duckbill design was meant to keep out spiders or ants to enter the airco-parts.
The flaps probably become less elastic in due time and harden up. Next probable cause is deposits building up at the narrow slit.
In my case, both were the cause for water flooding in the passenger foot space.
My wife was surprised by a cold water bath during a drive on the stelvio pass on a hot summer day with the top down. suddenly it gushed out of the lower outlets (approx. 1 litre) whilst driving through a hairpin.
It spoiled her leather bag as well as her shoes (bad day for a woman), a good reason for a shopping day in Merano
The duckbill design was meant to keep out spiders or ants to enter the airco-parts.
The flaps probably become less elastic in due time and harden up. Next probable cause is deposits building up at the narrow slit.
In my case, both were the cause for water flooding in the passenger foot space.
My wife was surprised by a cold water bath during a drive on the stelvio pass on a hot summer day with the top down. suddenly it gushed out of the lower outlets (approx. 1 litre) whilst driving through a hairpin.
It spoiled her leather bag as well as her shoes (bad day for a woman), a good reason for a shopping day in Merano
#107
Bad News
I'm back on this thread after reading SYNSTR's idea with the scope. I am fortunate to have a lift in my shop and consider my mechanical skills to be above average. And as Jeremy commented I am a "Doctor of Dental Surgery" so I have pretty good hand skills working in tight spaces. After 1 1/2 hrs I was able to drain the infamous duckbill and drained a lot of water. The big question is will it drain by itself now? I wish I could get some type of tool in there and cut the "bill" off.
Here are a few pics to help others. Maybe someone has other ideas.
As mentioned the access is on the drivers side. If you aim the scope just in front of the transmission shifter linkage( with black boot) you will be on target.
Using the standard tip on the scope you will see this opening. Up inside this hole is where the duckbill is located.
I was unable to peer up inside the opening so I added the angled mirror tip which comes with the scope.
It is hard to get a good picture of this but here is the duckbill with a drop of water on the bill. It is oriented sideways. The larger base of the duckbill on the left and the tip on the right with a drop of water

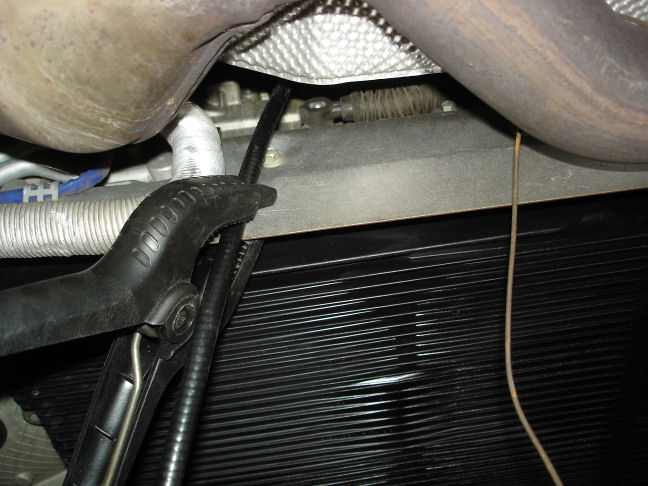

I fabricated a tool out of copper ground wire about 3/16" in diameter. I sharpened the tip. It needs to be rigid to open the duckbill
I had to revert back to the standard scope tip as the angled mirror tip and my tool conflicted with each other. Using the standard scope tip I was able to hit the opening and blindly poked around until a flood of water came out.
Any ideas would be appreciated. Maybe SYNSTR is more skilled than I, but I found it very difficult to aim the camera and use the tool at the same time!
Here are a few pics to help others. Maybe someone has other ideas.
As mentioned the access is on the drivers side. If you aim the scope just in front of the transmission shifter linkage( with black boot) you will be on target.
Using the standard tip on the scope you will see this opening. Up inside this hole is where the duckbill is located.
I was unable to peer up inside the opening so I added the angled mirror tip which comes with the scope.
It is hard to get a good picture of this but here is the duckbill with a drop of water on the bill. It is oriented sideways. The larger base of the duckbill on the left and the tip on the right with a drop of water
I fabricated a tool out of copper ground wire about 3/16" in diameter. I sharpened the tip. It needs to be rigid to open the duckbill
I had to revert back to the standard scope tip as the angled mirror tip and my tool conflicted with each other. Using the standard scope tip I was able to hit the opening and blindly poked around until a flood of water came out.
Any ideas would be appreciated. Maybe SYNSTR is more skilled than I, but I found it very difficult to aim the camera and use the tool at the same time!
The following 5 users liked this post by DenverDDS:
amcdonal86 (09-07-2014),
JeremyB (09-04-2014),
Ngarara (09-12-2014),
Stu72 (09-04-2014),
SynySTR (09-05-2014)
#108
My skills are amazingly average LOL!
WOW! That is a great tutorial.
I think I got lucky finding mine after a few minutes. I did have the advantage of the parts reference picture of the evaporator case from the dealer. I had a good idea of where it was before I dove in.
I think now that the "crusties" are knocked out, that earlier post about turning the blower on high and closing all the vents might be a good preventative practice.
WOW! That is a great tutorial.
I think I got lucky finding mine after a few minutes. I did have the advantage of the parts reference picture of the evaporator case from the dealer. I had a good idea of where it was before I dove in.
I think now that the "crusties" are knocked out, that earlier post about turning the blower on high and closing all the vents might be a good preventative practice.
#109
Yeah SynySTR, I was thinking the same thing. I originally used a "tool" discribed on another thread made of steel brake line and that only worked for a few months! Now that I have installed the additional drain tube I was thinking I should cork it up so the air blast is directed to the duckbill . I am frustrated because I LOVE this car and hate to give in and have the dealer tear it apart! Thanks for your help.
#110
Another solution to this problem is to place the HVAC in the recirculating position, fix the system so it blows only through the top vents, close all vents except one. Blow compressed air through this open vent - temporarily sealing the vent around the compressed air hose with duct tape. It does not take much pressure to blow the duck bill valve open. It worked for me.
This trick seems to work for now.
One question ray, did you use cold or hot air to recirculate?
I did both.
#111
Perhaps if all forum members who have had this problem, or anticipate having this problem, were to file a complaint on the National Highway Traffic Safety Administration Jaguar might be forced to remedy this issue.
You can file a complaint using this link:
NHSTA Complaint Form
I think if we are specific and do a good job defining the water coming into the cabin and ruining items on the floor, or scaring your date causing her to breakup with you or using your real life examples we might have a chance getting reimbursed and/or having the repair made through a recall. I think we could embellish the complaint to indicate the incident created a real safety issue due to the sudden gush of water from the glovebox.
Worth a shot. important that we all use similar terminology describing the issue like Sudden A/C water gush in the passenger foot well caused by faulty duck bill hose. Maybe someone else has a better description or ideas on the wording we should consider.
You can file a complaint using this link:
NHSTA Complaint Form
I think if we are specific and do a good job defining the water coming into the cabin and ruining items on the floor, or scaring your date causing her to breakup with you or using your real life examples we might have a chance getting reimbursed and/or having the repair made through a recall. I think we could embellish the complaint to indicate the incident created a real safety issue due to the sudden gush of water from the glovebox.
Worth a shot. important that we all use similar terminology describing the issue like Sudden A/C water gush in the passenger foot well caused by faulty duck bill hose. Maybe someone else has a better description or ideas on the wording we should consider.
#112
Perhaps if all forum members who have had this problem, or anticipate having this problem, were to file a complaint on the National Highway Traffic Safety Administration Jaguar might be forced to remedy this issue.
You can file a complaint using this link:
NHSTA Complaint Form
I think if we are specific and do a good job defining the water coming into the cabin and ruining items on the floor, or scaring your date causing her to breakup with you or using your real life examples we might have a chance getting reimbursed and/or having the repair made through a recall. I think we could embellish the complaint to indicate the incident created a real safety issue due to the sudden gush of water from the glovebox.
Worth a shot. important that we all use similar terminology describing the issue like Sudden A/C water gush in the passenger foot well caused by faulty duck bill hose. Maybe someone else has a better description or ideas on the wording we should consider.
You can file a complaint using this link:
NHSTA Complaint Form
I think if we are specific and do a good job defining the water coming into the cabin and ruining items on the floor, or scaring your date causing her to breakup with you or using your real life examples we might have a chance getting reimbursed and/or having the repair made through a recall. I think we could embellish the complaint to indicate the incident created a real safety issue due to the sudden gush of water from the glovebox.
Worth a shot. important that we all use similar terminology describing the issue like Sudden A/C water gush in the passenger foot well caused by faulty duck bill hose. Maybe someone else has a better description or ideas on the wording we should consider.
I will most definitely file a complaint!
The following users liked this post:
amcdonal86 (09-07-2014)
#113
Another solution to this problem is to place the HVAC in the recirculating position, fix the system so it blows only through the top vents, close all vents except one. Blow compressed air through this open vent - temporarily sealing the vent around the compressed air hose with duct tape. It does not take much pressure to blow the duck bill valve open. It worked for me.
I wish we could come up with a reasonable DIY fix. I' m still working on one!
#114
@DenverDDS,
perhaps you can mount an aquarium water pump between airco and your alternative duct. If you use a water sensor it will automatically pump the water away.
This was not serious. I would have my car repaired with the proper alternative. Since that was done with my car, I never had any problems anymore. It is a big job because of all the things that have to be removed and my car was in the shop for two days but it was worth the money spent.
It is just ridiculous that it was necessary to do the job because of such a small part that was constructed like a duckbill to keep away insects and spiders from the airco.
The new part is just an open tunnel with the diameter of the original duckbill without the duck design. Just a straight pipe of silicon rubber.
perhaps you can mount an aquarium water pump between airco and your alternative duct. If you use a water sensor it will automatically pump the water away.
This was not serious. I would have my car repaired with the proper alternative. Since that was done with my car, I never had any problems anymore. It is a big job because of all the things that have to be removed and my car was in the shop for two days but it was worth the money spent.
It is just ridiculous that it was necessary to do the job because of such a small part that was constructed like a duckbill to keep away insects and spiders from the airco.
The new part is just an open tunnel with the diameter of the original duckbill without the duck design. Just a straight pipe of silicon rubber.
#115
Yeah SynySTR, I was thinking the same thing. I originally used a "tool" discribed on another thread made of steel brake line and that only worked for a few months! Now that I have installed the additional drain tube I was thinking I should cork it up so the air blast is directed to the duckbill . I am frustrated because I LOVE this car and hate to give in and have the dealer tear it apart! Thanks for your help.
Like you I did the secondary drain, only to find it did not do what we hoped. The jag mechanic was good enough to provide me with AC tape to plug the hole I drilled into the plastic. I tried your technique with the jack stands I have, but was unable to contort beneath my car to make that approach work. So instead I used the flags that came with my dogs invisible fence. That wire was just just right to attack from above after removing the plastic engine cover. Then using the famous closed vent system, it finally worked for me to see a real stream of water flowing under my car.
#116
#117
Denver DDS,
Like you I did the secondary drain, only to find it did not do what we hoped. The jag mechanic was good enough to provide me with AC tape to plug the hole I drilled into the plastic. I tried your technique with the jack stands I have, but was unable to contort beneath my car to make that approach work. So instead I used the flags that came with my dogs invisible fence. That wire was just just right to attack from above after removing the plastic engine cover. Then using the famous closed vent system, it finally worked for me to see a real stream of water flowing under my car.
Like you I did the secondary drain, only to find it did not do what we hoped. The jag mechanic was good enough to provide me with AC tape to plug the hole I drilled into the plastic. I tried your technique with the jack stands I have, but was unable to contort beneath my car to make that approach work. So instead I used the flags that came with my dogs invisible fence. That wire was just just right to attack from above after removing the plastic engine cover. Then using the famous closed vent system, it finally worked for me to see a real stream of water flowing under my car.
I'm glad that worked for you! I also took that approach the first time. The question is will that allow it to drain correctly now? Unfortunately, in my case, the answer was NO. So do we do that after each drive?
#118
Even as a repair to allow the water to escape is pursued, isn't there still a possibility of damage to the fan motor due to the water contamination?
So do we do that after each drive?
#119
I think one of the causes is the location of the infamous duckbill just inches above the transmission. If you have tried to reach in there from the engine side after you drive you realize that the transmission is HOT! The heat may contribute to the "crusties" forming and sealing off the duckbill. It also makes it hard to determine if the duckbill is functioning properly as the water drops on a hot transmission and most of it probably evaporates. I have yet to see a puddle under my car regardless of trying these ideas. I do see one when I opened the bill and she dumped a pint!
Just my thoughts....still working on this!
Just my thoughts....still working on this!
