Best Route?
#1
Best Route?
Ok.... I have found an ideal heavy duty solar charger designed for big cars, 4x4s etc - together with a charge controller / minder. I am pretty resigned to the fact that I wont be able to use the cigar lighter socket since it is not live when the car is switched off. So this means I need to run the cable to the battery directly and then up to the dashboard where I will be able to plug in and unplig the charger to my hearts content.
My question is, does anyone have any ideas as to the best route for the cable (before I start dismantling)? I would prefer to hide as much cable as possible. My other option is that I am speaking to DesignXKR in a couple of weeks and they do a lot with electrics and are looking at my Nav, Ice upgrade and pole ariel replacement solution - maybe they could run the cable at the same time.
Any thoughts guys?
My question is, does anyone have any ideas as to the best route for the cable (before I start dismantling)? I would prefer to hide as much cable as possible. My other option is that I am speaking to DesignXKR in a couple of weeks and they do a lot with electrics and are looking at my Nav, Ice upgrade and pole ariel replacement solution - maybe they could run the cable at the same time.
Any thoughts guys?
#2
To get the cable from the Battery into the Cabin, 'sharing' an existing grommet is probably the best way.
Alternatively, there's a few taped up holes in the bulkhead available. Working around the fuel tank is the issue.
With the Rear Seat and Centre Console out, the cable can then be fed under the transmission tunnel carpet and along the tunnel next to the gear selector to get behind the Radio and up to the Fascia.
It may sound like a lot of work if you haven't done this before but the Rear Seat and Console are both easy to remove.
Graham
Alternatively, there's a few taped up holes in the bulkhead available. Working around the fuel tank is the issue.
With the Rear Seat and Centre Console out, the cable can then be fed under the transmission tunnel carpet and along the tunnel next to the gear selector to get behind the Radio and up to the Fascia.
It may sound like a lot of work if you haven't done this before but the Rear Seat and Console are both easy to remove.
Graham
#3
To get the cable from the Battery into the Cabin, 'sharing' an existing grommet is probably the best way.

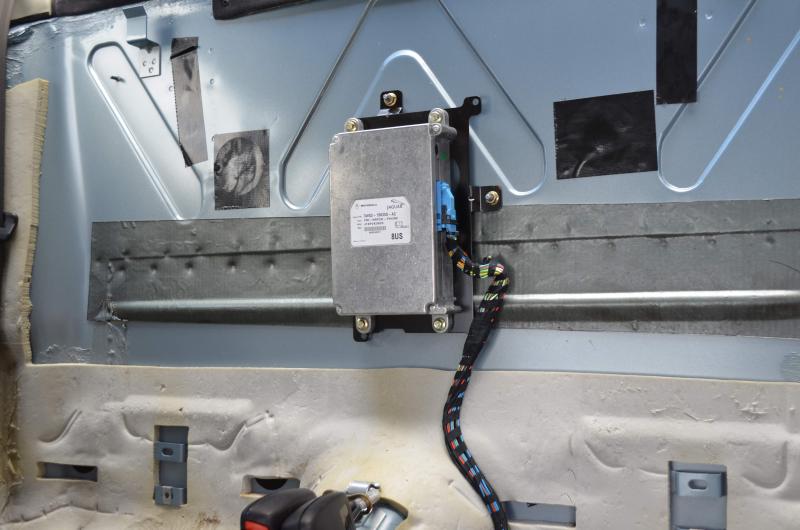

Attachment 30637
Alternatively, there's a few taped up holes in the bulkhead available. Working around the fuel tank is the issue.
With the Rear Seat and Centre Console out, the cable can then be fed under the transmission tunnel carpet and along the tunnel next to the gear selector to get behind the Radio and up to the Fascia.

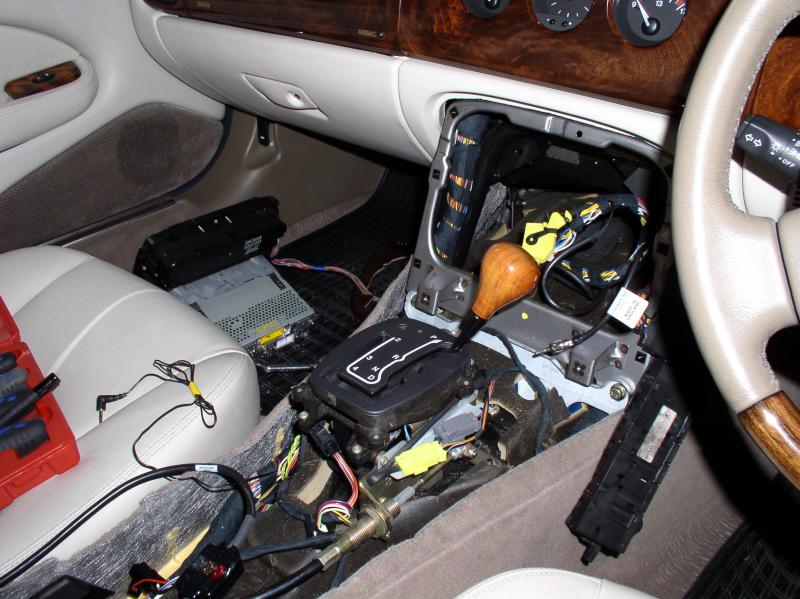

Attachment 30638
It may sound like a lot of work if you haven't done this before but the Rear Seat and Console are both easy to remove.
Graham
Attachment 30637
Alternatively, there's a few taped up holes in the bulkhead available. Working around the fuel tank is the issue.
With the Rear Seat and Centre Console out, the cable can then be fed under the transmission tunnel carpet and along the tunnel next to the gear selector to get behind the Radio and up to the Fascia.
Attachment 30638
It may sound like a lot of work if you haven't done this before but the Rear Seat and Console are both easy to remove.
Graham
Many thanks for this comprehensive reply. Wow yeah - it does look like a lot of work - not that I'm work shy, I just dont wanna do more harm than good. I may well take the lot to DesignXKR and get them to do it when they do the rest of my work.
#4

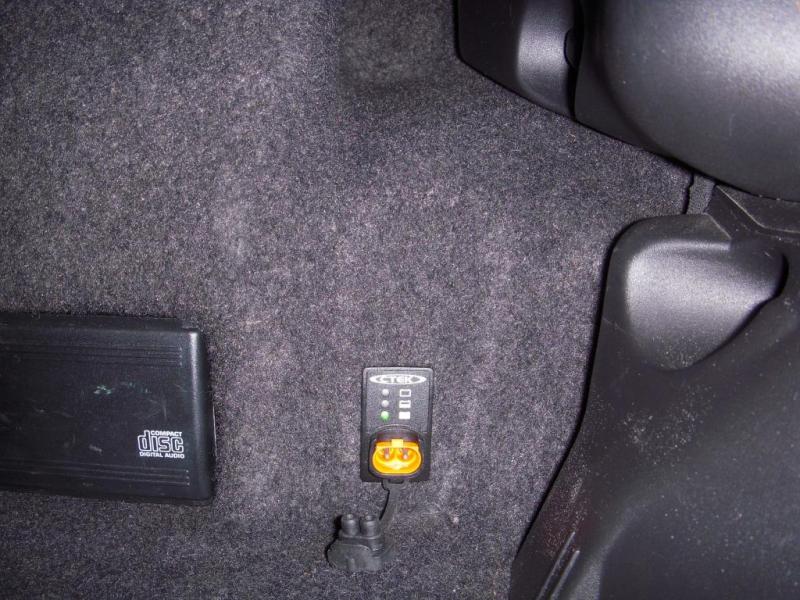

#5
I was thinking about that but I seem to remember that it's controlled by a (missing) relay in the boot.
HOWEVER if OP can see the socket or leads then he could perhaps jumper the relay.
Found this
HOWEVER if OP can see the socket or leads then he could perhaps jumper the relay.
Found this
Last edited by steveinfrance; 01-19-2013 at 05:31 AM.
#6
I use a solar charger on my XKR and found the easiest solution, around the power connector, was to use the always live OBD connector - down by the accelerator pedal (RHD), by the bonnet/hood release (LHD).
I bought one of these connectors and wired the solar panel to pins 4/5 ground and 16 positive.
Universal Male OBD2 16 Pin Connector OBDII EOBD OBD #k | eBay
Pin diagram:
OBD II (VAG) vehicle diagnostic interface pinout and connections @ pinoutsguide.com
If you want to power anything from this socket it is supplied via a 5A fuse!
I bought one of these connectors and wired the solar panel to pins 4/5 ground and 16 positive.
Universal Male OBD2 16 Pin Connector OBDII EOBD OBD #k | eBay
Pin diagram:
OBD II (VAG) vehicle diagnostic interface pinout and connections @ pinoutsguide.com
If you want to power anything from this socket it is supplied via a 5A fuse!
Last edited by Stumpy; 01-19-2013 at 07:47 AM.
The following users liked this post:
steveinfrance (01-19-2013)
#7
Trending Topics
#9
I'm pretty sure all of these solutions are good. I'm not much good with electrics and stuff so modifying connections as a thought sends me into fits of despair. I need the solar charger on the dashboard right inside my windscreen where it will get loads of light. But I need also to ensure the car is locked and shut down. If the cigar lighter was live BOOM - no such luck though. And I also HAVE to make sure I use the charge controller because the solar charger is heavy duty 15amp. Dont wanna toast the battery - which is brand new! From what I can see the controller / minder is connected to the battery and the charger plugs into the controller, soooooooooo.
I'll talk to DesignXKR and see if they can fit it into the rest of the work they are going to do for me. Interesting seeing all these solutions though.... ha so many ways to skin a cat.
I'll talk to DesignXKR and see if they can fit it into the rest of the work they are going to do for me. Interesting seeing all these solutions though.... ha so many ways to skin a cat.
#10
You seem to have gone a bit into overkill!
A bit late, but you should have asked here or talked to Kevin at DesignXKR first!
The XKR only draws 0.03 of an amp when locked (this will be slightly higher if you have a tracker fitted). With a fully charged 95Ah AGM battery ( fitted to mine new last April) I wouldn't worry about leaving it for 30 days.
I left the XKR for 3 weeks last winter, due to snow, without any starting problems and that was with the original 2003 battery! I quite often leave the XJS for 2-3 weeks without any problems.
I only installed my solar chargers because they were cheap, I use 1.5 Watt units I bought from Maplins, £15 the pair. During last summer they were able to hold the batteries at over 12.7 volts.
Last edited by Stumpy; 01-19-2013 at 01:10 PM.
#11
#13
You seem to have gone a bit into overkill!
A bit late, but you should have asked here or talked to Kevin at DesignXKR first!
The XKR only draws 0.03 of an amp when locked (this will be slightly higher if you have a tracker fitted). With a fully charged 95Ah AGM battery ( fitted to mine new last April) I wouldn't worry about leaving it for 30 days.
I left the XKR for 3 weeks last winter, due to snow, without any starting problems and that was with the original 2003 battery! I quite often leave the XJS for 2-3 weeks without any problems.
I only installed my solar chargers because they were cheap, I use 1.5 Watt units I bought from Maplins, £15 the pair. During last summer they were able to hold the batteries at over 12.7 volts.
Oh and I havent actually bought the chager, charge minder yet but the one I've sourced looks good to me. And I am yet to go to DesignXKR.. that is happening beginning of Feb.
