Fuse Chart 2002 XK8/R FAQ
Member
Joined: Sep 2015
Posts: 89
Likes: 6
From: San Diego, CA
I looked at the photo I took of my 2004 xkr drivers fascia fuse box and the amperages are different from those in the 2001 and 2002 XK8. If you scroll down from the top LH side of the fuse box, the amps on my 2004 are: 20,10,5,10,25,5,10,10. then on the RH sdie of the fuse box they are: 20,10,30,5,15,5,15,10.
Senior Member
Joined: Oct 2010
Posts: 747
Likes: 307
From: Near Charlotte, NC
Although some of us need a flashlight and magnifying glass to see them, each fuse # is molded into the black plastic fuse box beside each fuse for all the fuse blocks.
Member
Joined: Nov 2024
Posts: 37
Likes: 1
From: Cincinnati
Fuse box diagram in the trunk
After answering a question on fuse location I realized that we have not posted a fuse chart on our FAQ Sticky.

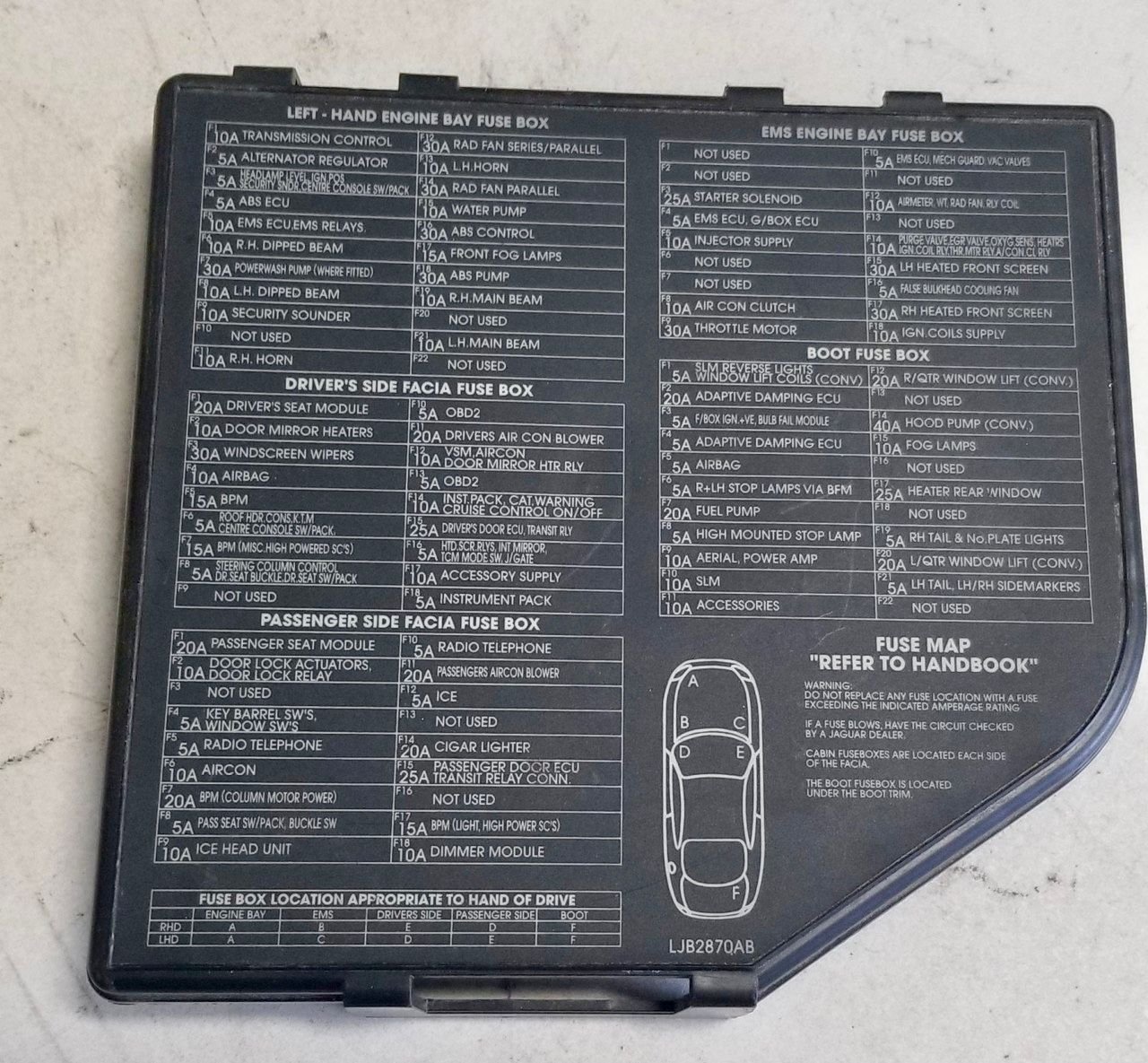

Here is the one for my 2002 XK8. Other years may be slightly different but generally these should apply to all years through 2002 and perhaps beyond. I suspect that they may also largely apply to the XJ8/R series.
Here is the one for my 2002 XK8. Other years may be slightly different but generally these should apply to all years through 2002 and perhaps beyond. I suspect that they may also largely apply to the XJ8/R series.
Mine is not present.
Senior Member
Joined: Jun 2024
Posts: 155
Likes: 106
From: PNW - Washington
Member
Joined: Nov 2024
Posts: 37
Likes: 1
From: Cincinnati
Fuse box diagram
for some reason mine doesn’t have that on the main fuse box in the trunk is there anywhere I can get that cover ?
