So, my EM light came on a couple of weeks ago, plugged in my mates Delphi laptop. P1646 error, Bank 1 Upper, short or open circuit. That's the right hand side as you sit in the car, upper O2 sensor before the CAT. Went cheap online and got a sensor for half the price of a Denso sensor, it worked for 2 days then same error code. Grrrr! Plugged in the laptop and it was giving some real bogus readings totally different from Bank 2.
Today I bit the bullet and purchased a proper Denso 02 sensor, Q-E608 from Euro Car Spares as recommended. Hey presto all is now fine again, the moral of this story is don't mess about with cheap aftermarket O2 sensors, they may not work so good.
Anyway, I still have a few questions if there are any tech guys out there who can read the photos attached?

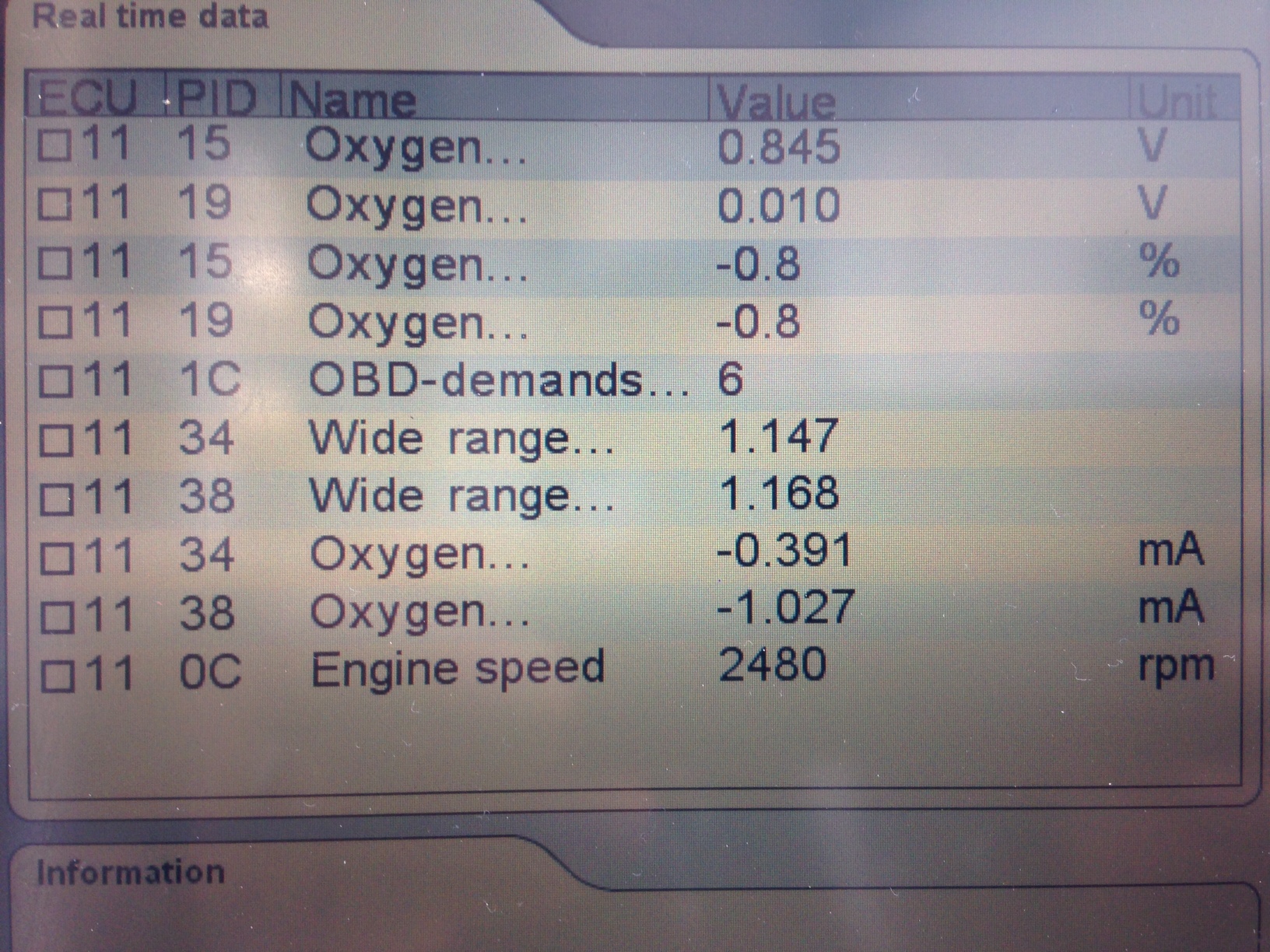

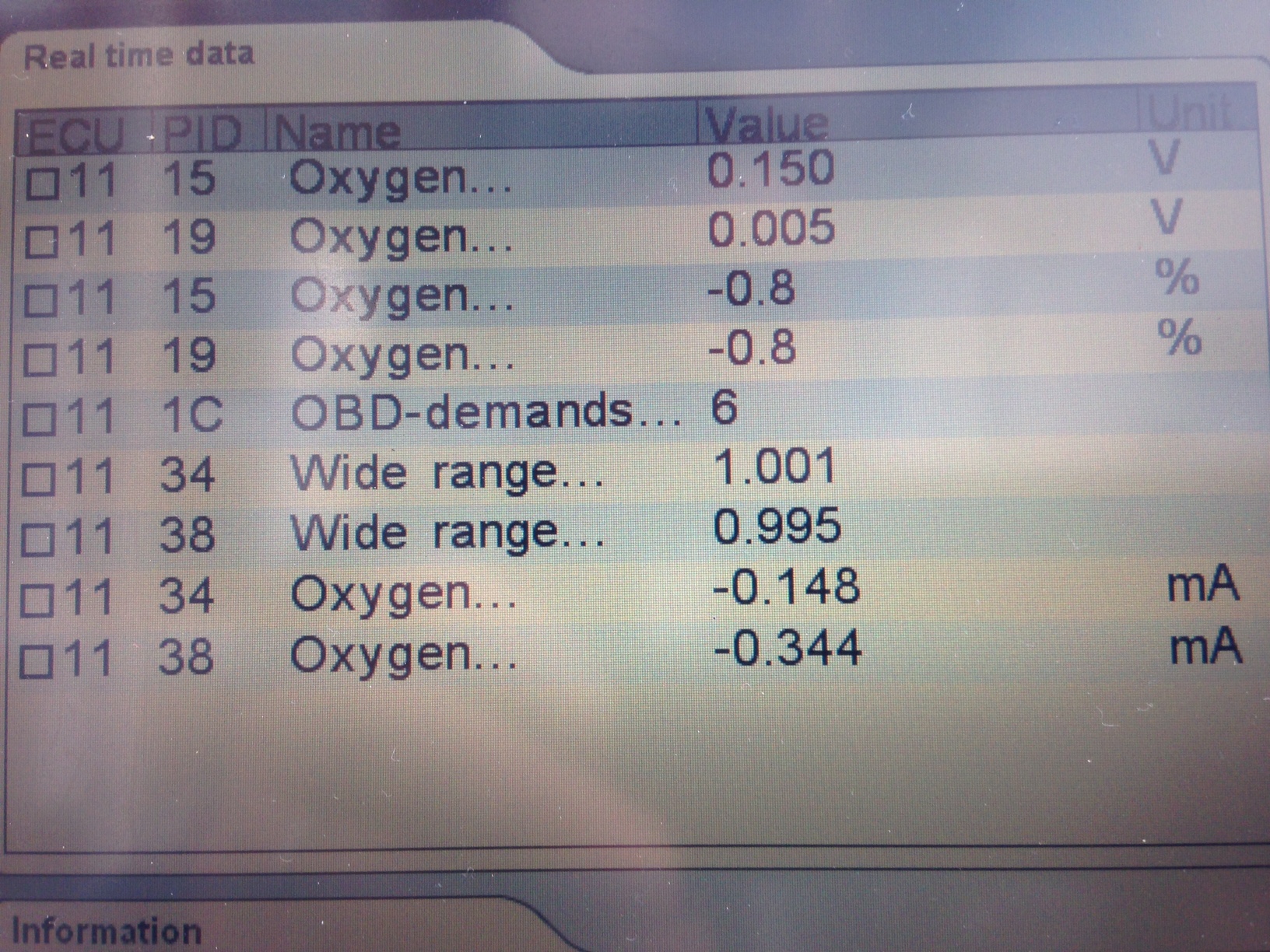

Ignition on photo, all readings are the same for both banks, so this looks encouraging, but Idle, 1500rpm & 2400rpm has some differences so;-
1. Are these readings OK?
2. Should I have purchased 2 new upper sensors to balance it better?
2. Or do I have other tuning issues that need addressing as the readings are a bit unbalanced by the look of this?
This is getting on for a 2 year love affair, I have loads of other issues to sort before this car is spot on, so any help on this one would be greatly appreciated as these cars are just so beautiful.
Cheers Pete
