The refurb begins.
#21
That's a really clean engine. How many miles and what oil have you been using?
For positioning the engine, I usually just "blip" the key after removing the fuel injection fuse. The tension of the valve springs tends to encourage the engine to stop at the point of least resistance and that is exactly where you want it. It usually only takes a couple of tries.
For positioning the engine, I usually just "blip" the key after removing the fuel injection fuse. The tension of the valve springs tends to encourage the engine to stop at the point of least resistance and that is exactly where you want it. It usually only takes a couple of tries.
All the stamps are from Jaguar dealers in the London area so I can only think they put the correct spec oil in him at the required time.
The issue with service though ( for the purists ), is the 4 year gap during P.O and virtually no distance covered, to be honest though I would not have had services done at a dealer or indy myself so its not a problem for me.
In case the autobox was not just in need of a service I got a replacement with 37k miles on it as a spare.
Cheers for all the comments and the encouragement to take the tasks on.
Arty
#22
The zip ties should be both at the exhaust cam sprocket as well as the intake so the alignment is maintained throughout all junction points of the cam drive.
#23
Each side needs to be at a different point of rotation. So, treat the job as two 4 cylinder engines. Do one side completely before moving to the other.
The zip ties should be both at the exhaust cam sprocket as well as the intake so the alignment is maintained throughout all junction points of the cam drive.
The zip ties should be both at the exhaust cam sprocket as well as the intake so the alignment is maintained throughout all junction points of the cam drive.
It was to wet and windy today to make any progress so hope tomorrow improves.
Arty
#24
Looks like a decent day up here in the North, so on with the job.
Just a couple of quick questions ( confirmation really ), I did not get new bolts with my new tensioners, so I read that the old bolts can be cut back to 35mm and reused, but re torqued to 10Nm on fitting, is this correct?
I will remove the fuses for the fuel pump in the boot #'s 3 & 7 so I can turn the cam to a better position and relieve a bit of pressure ( thanks again for this tip plums ).
Oh well its eggs or young'uns so they say, time to start.
Arty
Just a couple of quick questions ( confirmation really ), I did not get new bolts with my new tensioners, so I read that the old bolts can be cut back to 35mm and reused, but re torqued to 10Nm on fitting, is this correct?
I will remove the fuses for the fuel pump in the boot #'s 3 & 7 so I can turn the cam to a better position and relieve a bit of pressure ( thanks again for this tip plums ).
Oh well its eggs or young'uns so they say, time to start.
Arty
#25
Off to a bad start. My double hex Gordon 8mm 1/2" drive socket has rounded one of the cam cap bolt heads. I am hopeful to be able to get it out with a newly purchased single hex 3/8th drive socket, had to buy a 3/8th drive torque wrench from ebay also as I do not think my 1/2" one will fit in with an adapter. Anyway ordered now so hopefully will get it early next week, good job I'm not in a hurry. I live very rural so not much choice here.

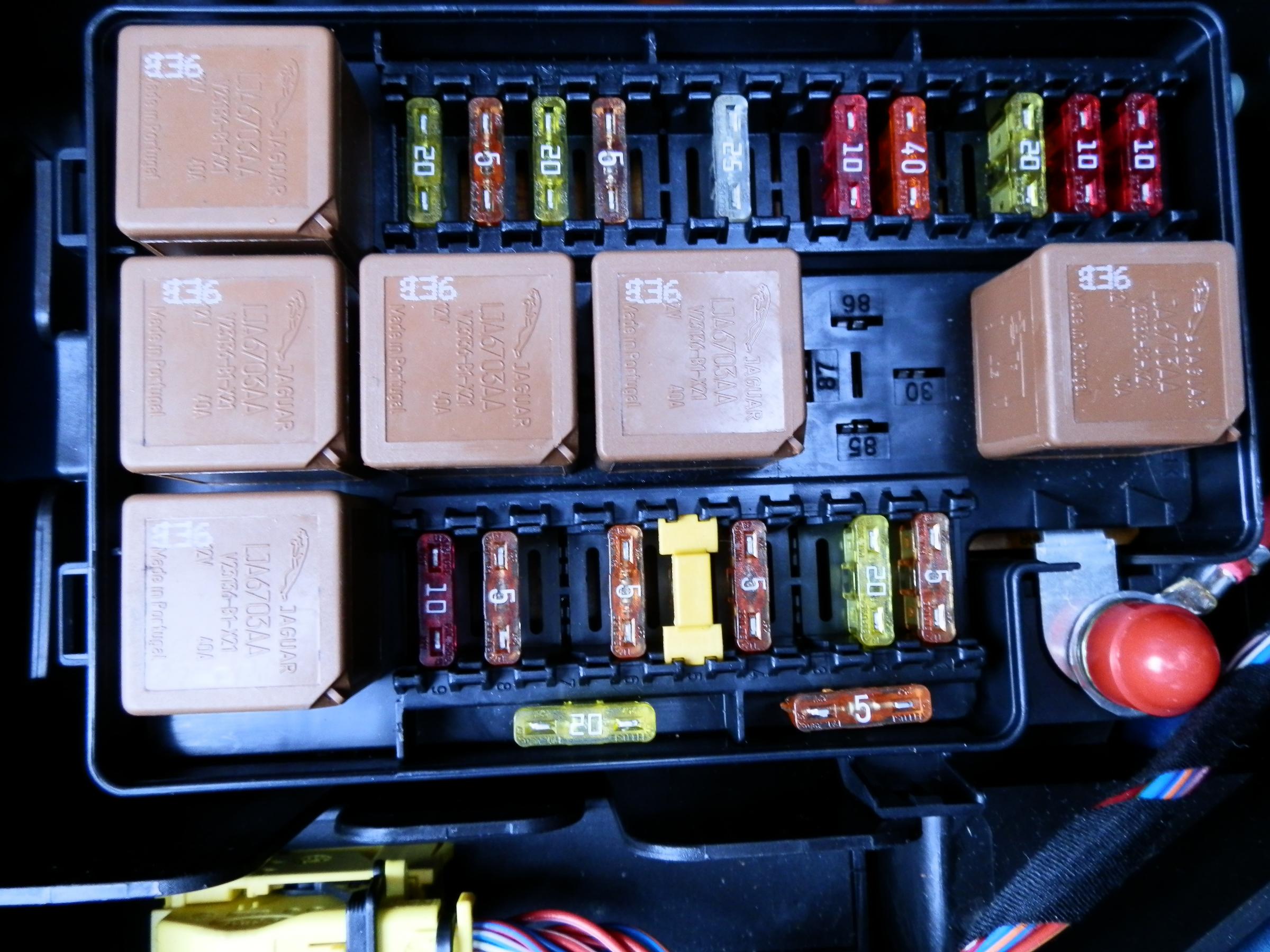

I managed to successfully remove the fuses 3 & 7 and just for good measure removed the fuel pump rely, turned the motor over and it moved the camshaft but went on to show restricted performance and would only turn a couple of mm when ignition switch was turned. Is this normal, or have I just added to my already bad day?
Cheers,
Arty
I managed to successfully remove the fuses 3 & 7 and just for good measure removed the fuel pump rely, turned the motor over and it moved the camshaft but went on to show restricted performance and would only turn a couple of mm when ignition switch was turned. Is this normal, or have I just added to my already bad day?
Cheers,
Arty
#26
3rd post of the day- success!
Hi guys, just a quick update with some good news from my point of view.
Used the new 3/8th drive socket to remove all the can cap bolts, just a half a turn on each one until they were all out. Then I was quite surprised at how easily the exhaust cam sprocket came out with respect to how much tension appeared to be on the chain. Installed the R.B tensioner with the pin to the bottom facing the front on the drivers side of the vehicle, this puts the machined face of the tensioner against the machined face of the engine. Put the newly cut original bolts back in after cutting back to 35mm and cleaning up the cut edge. Test fit and all in order.
Was going to torque up the bolts but my wrench is in Ft/lbs and some other metric measurement so I will have to wait for the new 3/8th drive wrench to arrive next week before I can finish.
Took some pics of the " operation ", not the best lighting conditions as outside and a bit windy at times.
If anyone would like pics of anything specific, just let me know.

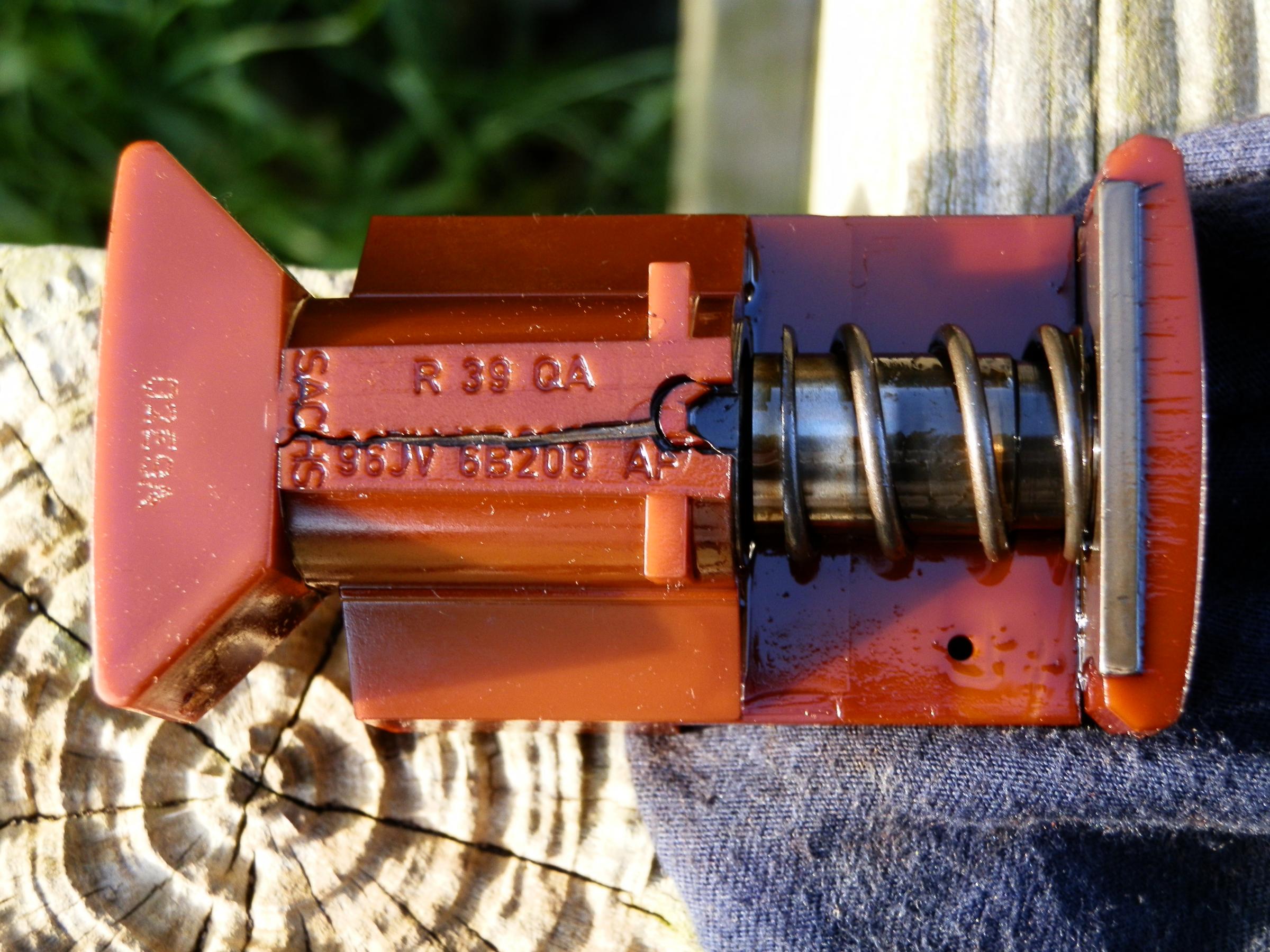

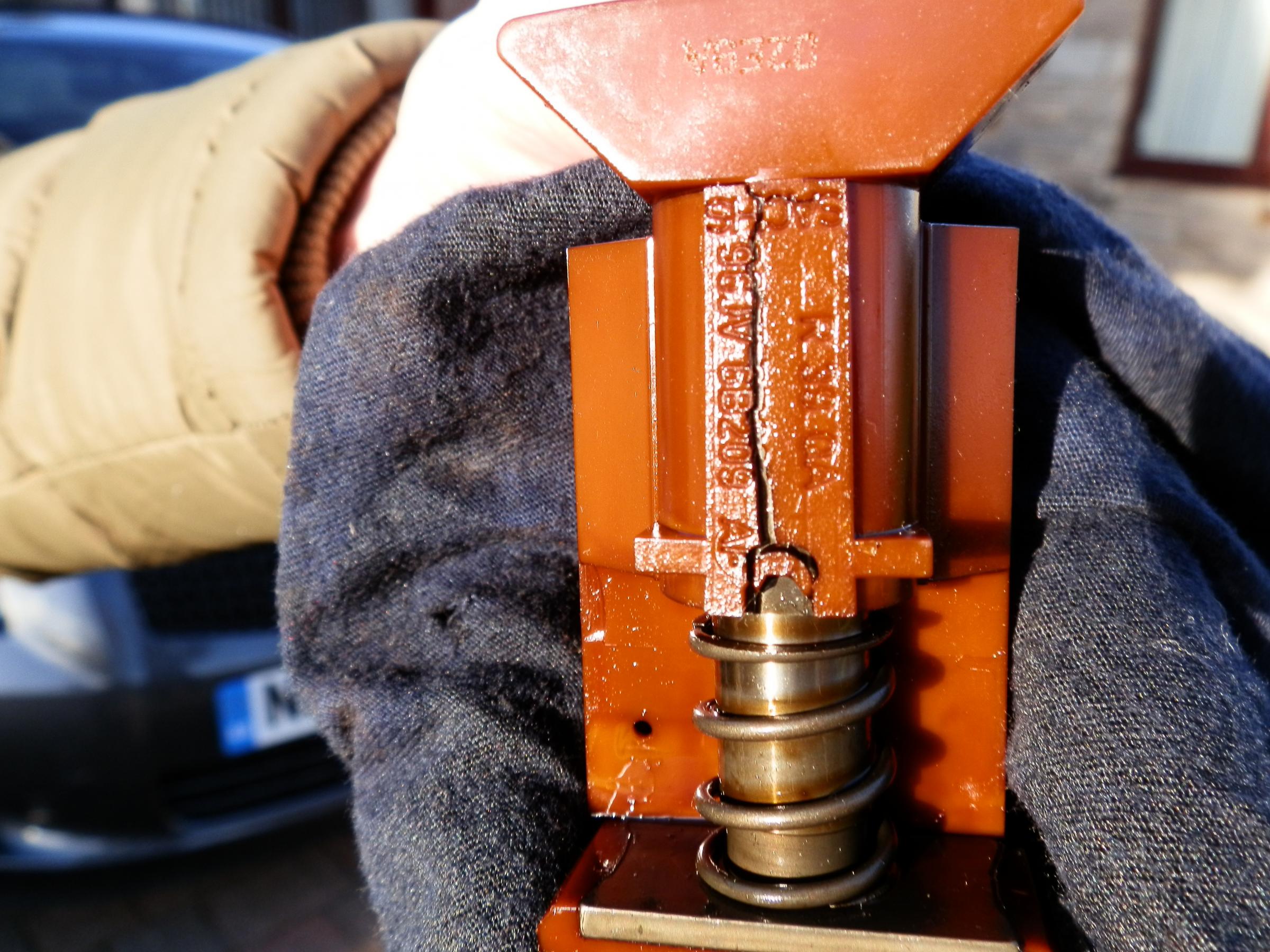

Looks like I dodged the bullet with the old tensioner, split from top to bottom, needless to say the L.B will be tackled before starting the motor up as if its the same it could go at any time!
I think the battery must be going flat ( at least I hope that is the case ) as when I put the key in the ignition and turned to the check systems there were about 4 or 5 different faults showing from restricted performance to rear bulbs out.
Thanks again for all who have taken an interest.
Cheers
Arty
Used the new 3/8th drive socket to remove all the can cap bolts, just a half a turn on each one until they were all out. Then I was quite surprised at how easily the exhaust cam sprocket came out with respect to how much tension appeared to be on the chain. Installed the R.B tensioner with the pin to the bottom facing the front on the drivers side of the vehicle, this puts the machined face of the tensioner against the machined face of the engine. Put the newly cut original bolts back in after cutting back to 35mm and cleaning up the cut edge. Test fit and all in order.
Was going to torque up the bolts but my wrench is in Ft/lbs and some other metric measurement so I will have to wait for the new 3/8th drive wrench to arrive next week before I can finish.
Took some pics of the " operation ", not the best lighting conditions as outside and a bit windy at times.
If anyone would like pics of anything specific, just let me know.
Looks like I dodged the bullet with the old tensioner, split from top to bottom, needless to say the L.B will be tackled before starting the motor up as if its the same it could go at any time!
I think the battery must be going flat ( at least I hope that is the case ) as when I put the key in the ignition and turned to the check systems there were about 4 or 5 different faults showing from restricted performance to rear bulbs out.
Thanks again for all who have taken an interest.
Cheers
Arty
#27
Join Date: Oct 2007
Location: PHX some of the time
Posts: 116,890
Received 6,274 Likes
on
5,470 Posts
#29
In a way it's good to see the tensioner definitely is on its last legs. Makes all the work worthwhile.
Graham
#30
Ill try and do the other side tomorrow if the weather is O.K. Have to say when the cap bolts were loosened each one did so with a resounding crack which was quite frightening considering the steel bolt in an aluminium head. I just hope when the left hand cam cover is removed that the tensioner is still in one piece. Fingers crossed......
Maybe in a few weeks Graham, when its on the road
Arty
Maybe in a few weeks Graham, when its on the road
Arty
#31
Minimal progress today as it was raining this morning. Improved in the afternoon so got all the bolts out of the cam cover one except for the dipstick holder one. Tried and failed to pull it out of the housing, just going to cut the securing plate with a dremel or junior hacksaw blade. My old socket gave up the ghost so I ran over to Halfords and bought one of their professional small 3/8th drive sets, will complement the torque wrench I am getting this week. Its nice to have new good sockets for the job, binned the others so hopefully no more rounded nuts or bolts
Main problem today was separating the cam breather pipe from the body of the cam cover, it just would not come off. Its only a squeeze the side action to remove but took me about 2 hours, thankfully it did come off in one piece. Plastic must be getting hard and brittle, thats why I took so much time over it.
So, Sunday I am going to hopefully remove the cam cover and clean both left and right sides and fit the new gaskets to the covers, and clean the faces of the motor ready for torquing the bolts up when the wrench arrives. I will initially clean with a de-greaser, I have some gunk, that usually works well. Then I might steam clean them and finish off with some Armorall for a nice black covering.
Cheers,
Arty
Main problem today was separating the cam breather pipe from the body of the cam cover, it just would not come off. Its only a squeeze the side action to remove but took me about 2 hours, thankfully it did come off in one piece. Plastic must be getting hard and brittle, thats why I took so much time over it.
So, Sunday I am going to hopefully remove the cam cover and clean both left and right sides and fit the new gaskets to the covers, and clean the faces of the motor ready for torquing the bolts up when the wrench arrives. I will initially clean with a de-greaser, I have some gunk, that usually works well. Then I might steam clean them and finish off with some Armorall for a nice black covering.
Cheers,
Arty
#32
This is a post to update others who are doing the same job.
Top tip from plums
" BTW, for all you readers ...
it is never mentioned, but the reason that the dipstick can be hard to pull up is that
there is a bracket at the bottom end that attaches to the power steering pump bracket.
it is another one of those plastic fir tree affairs.
found it in the TSB dealing with power steering pump misalignment causing belt squeal. posted by MotorcarMan.
Many thanks to plums for posting and Motorcarman for finding this out!
Top tip from plums
" BTW, for all you readers ...
it is never mentioned, but the reason that the dipstick can be hard to pull up is that
there is a bracket at the bottom end that attaches to the power steering pump bracket.
it is another one of those plastic fir tree affairs.
found it in the TSB dealing with power steering pump misalignment causing belt squeal. posted by MotorcarMan.
Many thanks to plums for posting and Motorcarman for finding this out!
The following users liked this post:
sklimii (03-23-2014)
#34
#35
Thanks for that comment RaceDiagnostics, nice to be noticed it was a labour of love really.

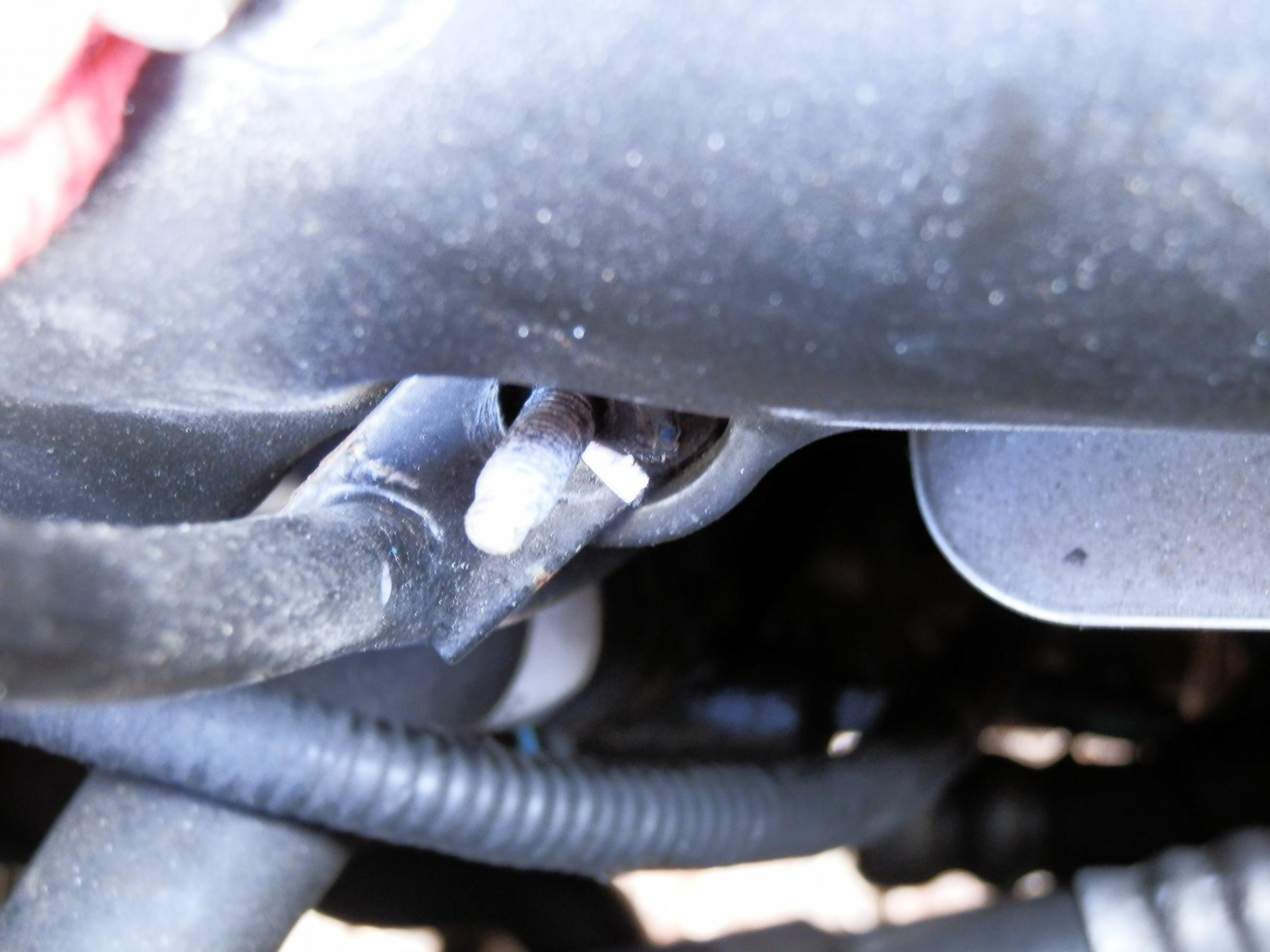

Here are some pics I took yesterday, note the first two pics which are a different way to release the dipstick holder. I chose this method as I was unsure if I could get the bottom of the tube back into the housing, so cam up with this idea. The holder was cut using a dremel, I would hope most peeps own one or could borrow one if they wanted to try this solution. Once cut the top part of the " clip " is bent up to release it from around the thread of the bolt, then tied at the side to keep it out of the way.
