Heater Core pics for 1997 XJ6?

Reply



LinkBack Thread Tools Search this Thread
  #1
Old 02-12-2014, 07:55 AM
Senior Member

Join Date: Feb 2014
Location: Conroe,Texas
Posts: 125
Thanked 17 Times in 13 Posts
Default Heater Core pics for 1997 XJ6?

I was reading about the heater problems and heater core issues with the XJ6? Does anybody have any pics of the heater core to flush? I only saw 2 post on heater cores in the X300 section. I can flush it this weekend but i would like some experienced people to give me some advise. So that it goes smooth....
Thanks so much
jake
__________________
Jake 1997 XJ6
Reply With Quote
  #2
Old 02-12-2014, 08:15 AM
aholbro1's Avatar
Veteran Member

Join Date: Aug 2010
Location: Decatur, TX
Posts: 3,150
Thanked 737 Times in 545 Posts
@ZaneHolbrook
Send a message via Skype™ to aholbro1
Default

Worked for me: http://www.jaguarforums.com/forum/xj...winter-102192/
__________________

1995 XJ-6 VDP 4.0L Black/Nimbus Gray K&N, Andy Brkt
1996 XJ-6 VDP 4.0L Black/Cream K&N, Andy Brkt
1996 XJ-6 VDP 4.0L Spruce/Coffee
2003 S-Type 3.0L White/Oatmeal K&N MKI-9200
2005 S-Type 3.0L Red/Barley K&N
2000 Excursion 7.3L PSD AFE Stage 2 w/Pro Dry S
2003 F150 4X4 5.4L Supercab FX4 AFE Pro Dry S
2007 F150 4X4 5.4L Crewcab Lariat
1979 Jeep CJ-7 360-4V Project-dormant
Reply With Quote
  #3
Old 02-12-2014, 08:33 AM
AllanG's Avatar
Veteran Member

Join Date: May 2013
Location: Hickory, NC
Posts: 1,147
Thanked 343 Times in 290 Posts
Default

Follow the hoses that come out of the heater solenoid valve and the heater coolant pump. You will see two hoses that connect to two metal tubes that go through the firewall. To back flush the matrix, disconnect the two hoses and hook up a garden hose to the one that goes to the heater valve and a discharge hose to the other. Increase flow slowly, if no flow the core is blocked and not much you can do except remove it which is a pain
__________________
Cheers,

Allan


1994 XJS 2+2 Conv 4.0L Factory 5 speed with SportsPack
1995 XJ6 Vanden Plas
Reply With Quote
The Following User Says Thank You to AllanG For This Useful Post:
jakeperigo (02-13-2014)
  #4
Old 02-12-2014, 02:14 PM
Senior Member

Join Date: Feb 2012
Location: Manchester UK
Posts: 426
Thanked 270 Times in 171 Posts
Default

As Allan described. Note this is RHD.

Click the image to open in full size.
Attached Thumbnails
Heater Core pics for 1997 XJ6?-heaterhose.jpg
__________________
Brendan
1995 Daimler Six
2009 X Type 2.2 D
2004 Volvo V70 T5
Reply With Quote
  #5
Old 02-12-2014, 02:30 PM
Senior Member

Join Date: Feb 2012
Location: Manchester UK
Posts: 426
Thanked 270 Times in 171 Posts
Default

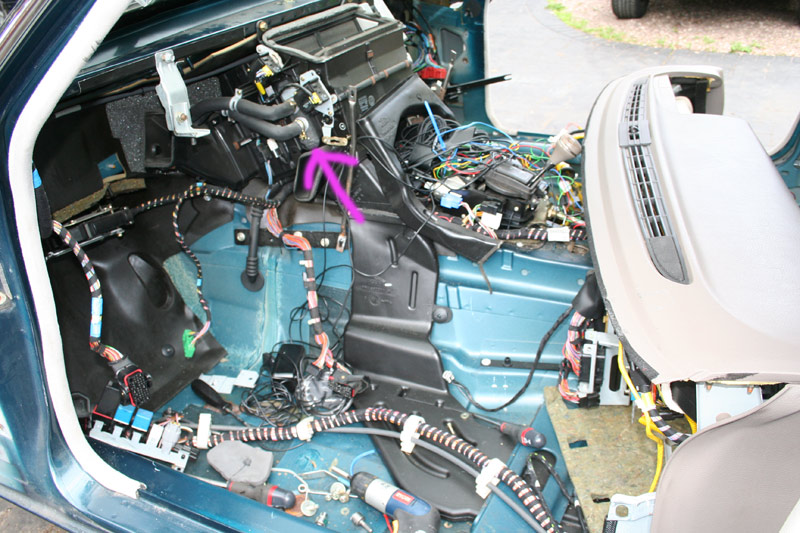

This is the actual matrix where those two pipes end up.

Click the image to open in full size.
Attached Thumbnails
Heater Core pics for 1997 XJ6?-heaterhose2.jpg
__________________
Brendan
1995 Daimler Six
2009 X Type 2.2 D
2004 Volvo V70 T5
Reply With Quote
  #6
Old 02-13-2014, 02:20 AM
Veteran Member

Join Date: Nov 2007
Location: atlanta ga
Posts: 4,495
Thanked 1,024 Times in 844 Posts
Default

And there is almost tha much dissambly required on a LHD car to get to it!

Actually, you "only" need to lower the steering column, remove some modules and the brake pedal assembly, as I recall. The manuals were not modified for the LHD car, so none of that was in there!
__________________
Ross
MY 89 V12 convertible
MY 99 XJR
MY 02 XJ8
MY 12 XF R
Reply With Quote
  #7
Old 02-13-2014, 07:31 AM
Senior Member

Join Date: Feb 2014
Location: Conroe,Texas
Posts: 125
Thanked 17 Times in 13 Posts
Default

Thanks guys.... will get it done today....
__________________
Jake 1997 XJ6
Reply With Quote
  #8
Old 02-13-2014, 07:33 AM
Senior Member

Join Date: Feb 2014
Location: Conroe,Texas
Posts: 125
Thanked 17 Times in 13 Posts
Default

Thanks guys... will do it today.. with the great weather here in Texas
__________________
Jake 1997 XJ6
Reply With Quote
