5.0 Supercharger elec. bypass controll and MAP


  #1
Old 11-08-2016, 04:39 AM
Member
Thread Starter
Join Date: Nov 2015
Location: Helsinki
Posts: 41
Received 11 Likes on 7 Posts
Default 5.0 Supercharger elec. bypass controll and MAP

Hi

does anybody have types, datasheets, wiring diagrams (also connector pin information) and vacuum diagram for the "new" type 5.0L supercharger available? This supercharger has electrical bypass as seen in the attached photo

background; I was not paying too much attention (as usual ) and got newer than expected version, might be able to figure out something for the control ...

thanks in advance

Antti

Attached Thumbnails 5.0 Supercharger elec. bypass controll and MAP-img-20161108-wa0003.jpeg
  #2
Old 11-08-2016, 05:30 PM
Veteran Member
Join Date: Jul 2010
Location: Austin tx and Daytona FL.
Posts: 6,551
Received 888 Likes on 683 Posts
Default

just lock it shut!!

drive carefully,LOL,LOL

  #3
Old 11-08-2016, 05:37 PM
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,307
Received 3,694 Likes on 2,189 Posts
Default

Which car are you putting this supercharger in?

Your signature says you have an XJR6 so are you trying to put this TVS on that? It's not clear what you are trying to do...

  #4
Old 11-09-2016, 12:31 AM
Member
Thread Starter
Join Date: Nov 2015
Location: Helsinki
Posts: 41
Received 11 Likes on 7 Posts
Default

indeed i am planning to put the charger in the x300 xjr. like done in Australia already some years ago.

still in beginning of the planning / part sourcing phase, progress speed depends heavily from the wife-work-house renovation trinity....

for the bypass control : most likely the control is PWM controlled stepper, inputs from ECU. Best case scenario is that I can remove the stepper and convert it to conventional vacuum control or make / find some electrical vacuum measurement sensor that can then be used as input for stepper

or then i need to invest in MS which has boost control function via pwm control already that could be adapted for the bypass, IIRC.

The following users liked this post:
ronbros (11-11-2016)
  #5
Old 11-17-2016, 08:35 AM
Tijoe's Avatar
Senior Member
Join Date: Feb 2010
Location: Kalispell, Montana
Posts: 888
Received 222 Likes on 160 Posts
Default

On the 5.0 Superchargers, the first couple of years were vacuum controlled.
I have in my possession one of each variant. The valve bodies appear to be interchangeable being that the housings are the same.

  #6
Old 11-18-2016, 10:28 PM
Tijoe's Avatar
Senior Member
Join Date: Feb 2010
Location: Kalispell, Montana
Posts: 888
Received 222 Likes on 160 Posts
Default

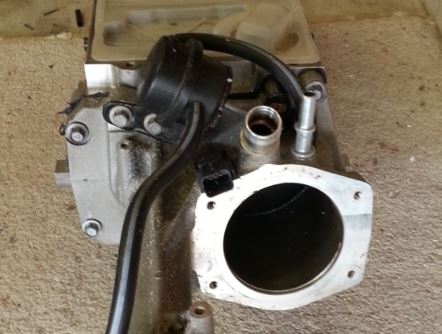

FYI: vacuum version image attached

Attached Thumbnails 5.0 Supercharger elec. bypass controll and MAP-vacuum-version.jpg

Last edited by Tijoe; 11-18-2016 at 10:30 PM. Reason: posted wrong image
