What level are you topping up to ? There is no expansion tank on these cars, so room has to be left at the top of the radiator to allow for coolant expansion. The original handbooks told you what the level was. Certainly if you top it up right to the top, you'll lose some of that coolant. For cars with an expansion tank, one normally fills the radiator full, (like with my 1977 MG Midget 1500), and the expansion tank is where the coolant expands into.
#5
expansion tank versus recovery tank.
That is the question.
you are probably thinking recovery tank, where the coolant flows to when the pressure cap's valve opens and coolant flows out of the radiator, so it doesn't end up in the ground.
an expansion tank requires a sealed radiator, and any filling is done at the expansion tank, such is the system in the Series 3 XJ-6. In other words, the "Radiator Cap" at the expansion tank does not have a pressure spring valve which opens when the pressure inside the radiator exceeds the pressure capacity of the radiator CAP.
What CAP do you have? 7 lb., 12 lb. or higher? You should have a 7 lb. with a recovery tank. Any tank, plastic, metal, it does not matter as long as it fits somewhere near the radiator and the bottom nipple or "hose port" of the tank is lower than the hose at the neck of the radiator.
The theory is to create a vacuum by always having one third of the recovery tank full of coolant, so that when the temperature of the coolant goes down, the coolant that was expelled from the radiator will be sucked back into the radiator. That is the THEORY.
Whether it works in practice, I'm not sure.
That is the question.
you are probably thinking recovery tank, where the coolant flows to when the pressure cap's valve opens and coolant flows out of the radiator, so it doesn't end up in the ground.
an expansion tank requires a sealed radiator, and any filling is done at the expansion tank, such is the system in the Series 3 XJ-6. In other words, the "Radiator Cap" at the expansion tank does not have a pressure spring valve which opens when the pressure inside the radiator exceeds the pressure capacity of the radiator CAP.
What CAP do you have? 7 lb., 12 lb. or higher? You should have a 7 lb. with a recovery tank. Any tank, plastic, metal, it does not matter as long as it fits somewhere near the radiator and the bottom nipple or "hose port" of the tank is lower than the hose at the neck of the radiator.
The theory is to create a vacuum by always having one third of the recovery tank full of coolant, so that when the temperature of the coolant goes down, the coolant that was expelled from the radiator will be sucked back into the radiator. That is the THEORY.
Whether it works in practice, I'm not sure.
The following users liked this post:
wearlej (01-24-2018)
#6
Actually I think it might be indicative of a larger problem It is chewing through coolant now, I drove it yesterday and it was running rather badly and began to overheat very quickly. I cannot see any oil in the coolant and (although Ive not been able to check since yesterday) I have not found any coolant in the oil. But there is something clearly not right, one of the core plugs (I think that's what they are called here) looks a bit doubtful.
There was a fair bit of smoke coming out the back, although it doesn't appear to be oil smoke. Could coolant be getting into a cylinder??
There was a fair bit of smoke coming out the back, although it doesn't appear to be oil smoke. Could coolant be getting into a cylinder??
Last edited by wearlej; 01-24-2018 at 03:00 AM. Reason: spelling
#8
I think George is right, sounds like head gasket, smoke will be white with water vapor and more than when just cold, also the pressure from the cylinder can over pressurize the radiator and blow the water out of the overflow, this can happen before the engine warms up.
Oil smoke is blue/grey rather than white which is water vapor, quite normal to get some white smoke when the exhaust is cold as water is a by product of the combustion, but it should go quite quickly any longer and water is getting into the cylinders.
Try to diagnose it as quickly as possible so you don't do any further damage, a pressure test can show the leak, if the pressure rises when you start the car, you definitely have a head gasket problem.
Oil smoke is blue/grey rather than white which is water vapor, quite normal to get some white smoke when the exhaust is cold as water is a by product of the combustion, but it should go quite quickly any longer and water is getting into the cylinders.
Try to diagnose it as quickly as possible so you don't do any further damage, a pressure test can show the leak, if the pressure rises when you start the car, you definitely have a head gasket problem.
The following users liked this post:
wearlej (01-24-2018)
#9
Does this smoke happen when you use the Heater?
take a very close look at your Heater Valve (Heater Servo), with engine warmed up and running;

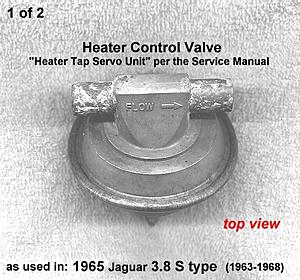

If your Heater Valve is the ORIGINAL, or ORIGINAL TYPE, look to see if coolant is coming out of the "weep hole" on the left side of the valve. This means the inner diaphragm of the valve is torn and this could account for the loss of coolant, it comes out in droplets.
In my S type, a huge cloud of white smoke would come out the exhaust pipes and this happened whenever I used the Heater. As soon as I turned the heater OFF, no more smoke. I was also having the coolant loss issue. I can only guess that coolant was getting into the intake and being burned in the combustion WHENEVER the Heater Valve was in the OPEN position. (i.e., the Heater was being used).
Unfortunately the original Heater Tap / Valve / Servo is no longer available, but you can use any aftermarket Heater Valve that is NORMALLY CLOSED and Opens With Vacuum.
also any replacement Heater Valve must have 5/8" ports and 3/16" vacuum nipple.

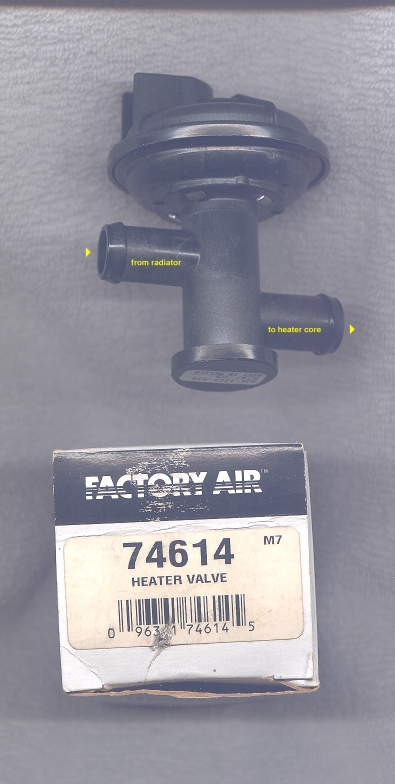

I got a replacement Heater Valve for a 1965 Ford Galaxie which works perfectly if not better. The Made in China variety. It is NORMALLY CLOSED, with 5/8" ports and 1/8" vacuum nipple, so I had to get a stepped adaptor for the vacuum hose. No big deal.
take a very close look at your Heater Valve (Heater Servo), with engine warmed up and running;
If your Heater Valve is the ORIGINAL, or ORIGINAL TYPE, look to see if coolant is coming out of the "weep hole" on the left side of the valve. This means the inner diaphragm of the valve is torn and this could account for the loss of coolant, it comes out in droplets.
In my S type, a huge cloud of white smoke would come out the exhaust pipes and this happened whenever I used the Heater. As soon as I turned the heater OFF, no more smoke. I was also having the coolant loss issue. I can only guess that coolant was getting into the intake and being burned in the combustion WHENEVER the Heater Valve was in the OPEN position. (i.e., the Heater was being used).
Unfortunately the original Heater Tap / Valve / Servo is no longer available, but you can use any aftermarket Heater Valve that is NORMALLY CLOSED and Opens With Vacuum.
also any replacement Heater Valve must have 5/8" ports and 3/16" vacuum nipple.
I got a replacement Heater Valve for a 1965 Ford Galaxie which works perfectly if not better. The Made in China variety. It is NORMALLY CLOSED, with 5/8" ports and 1/8" vacuum nipple, so I had to get a stepped adaptor for the vacuum hose. No big deal.
#12
TilleyJon,
the S type's Heater "Tap" (as the Service Manual calls it), is or was a wonderful and beautifully made part. But they wear out inside and kaput!
I have purchased 6 of them (used), and they all were dead on arrival. I even separated one of them into its two halves to study it, and there is a large Bell-shaped rubber diaphragm inside which I assume shrinks and expands upon applying vacuum and this diaphragm ruptures after 30 years. Enter the weep hole to let you know it's dead.
But the symptoms of a ruptured diaphragm are exactly as he describes, which understandably can be interpreted as a blown head gasket. But no, in my car it was the Heater Tap causing the cloud of white smoke as I described.
And he says there is no oil mixed with coolant, so it must be the Heater Valve / Tap / Servo causing the coolant loss and cloud of smoke.
How does a ruptured Heater Tap diaphragm cause coolanmt to enter the intake? That's a question for George, not me.
the S type's Heater "Tap" (as the Service Manual calls it), is or was a wonderful and beautifully made part. But they wear out inside and kaput!
I have purchased 6 of them (used), and they all were dead on arrival. I even separated one of them into its two halves to study it, and there is a large Bell-shaped rubber diaphragm inside which I assume shrinks and expands upon applying vacuum and this diaphragm ruptures after 30 years. Enter the weep hole to let you know it's dead.
But the symptoms of a ruptured diaphragm are exactly as he describes, which understandably can be interpreted as a blown head gasket. But no, in my car it was the Heater Tap causing the cloud of white smoke as I described.
And he says there is no oil mixed with coolant, so it must be the Heater Valve / Tap / Servo causing the coolant loss and cloud of smoke.
How does a ruptured Heater Tap diaphragm cause coolanmt to enter the intake? That's a question for George, not me.
#13
I'm not sure where to find a pressure tester, to be honest though since the car is fairly new to me I had been planning on reconditioning the engine, I'd hoped to be able to drive it around a bit a little more first but I think it might be time to pull the head off and have a look.
Any recommendations as to where to send it to be reconditioned? I'm in London.
#14
#15
#16
#17
#18
If you want to trailer it up here I will happily help, I have a fantastic machine shop just up the road, if you want someone in London, a friend of mine had a garage in Wembley, he may have some good contacts up there, PM me and I will see what I can do.
The following users liked this post:
wearlej (01-25-2018)
#19
TilleyJon,
the S type's Heater "Tap" (as the Service Manual calls it), is or was a wonderful and beautifully made part. But they wear out inside and kaput!
I have purchased 6 of them (used), and they all were dead on arrival. I even separated one of them into its two halves to study it, and there is a large Bell-shaped rubber diaphragm inside which I assume shrinks and expands upon applying vacuum and this diaphragm ruptures after 30 years. Enter the weep hole to let you know it's dead.
But the symptoms of a ruptured diaphragm are exactly as he describes, which understandably can be interpreted as a blown head gasket. But no, in my car it was the Heater Tap causing the cloud of white smoke as I described.
And he says there is no oil mixed with coolant, so it must be the Heater Valve / Tap / Servo causing the coolant loss and cloud of smoke.
How does a ruptured Heater Tap diaphragm cause coolanmt to enter the intake? That's a question for George, not me.
the S type's Heater "Tap" (as the Service Manual calls it), is or was a wonderful and beautifully made part. But they wear out inside and kaput!
I have purchased 6 of them (used), and they all were dead on arrival. I even separated one of them into its two halves to study it, and there is a large Bell-shaped rubber diaphragm inside which I assume shrinks and expands upon applying vacuum and this diaphragm ruptures after 30 years. Enter the weep hole to let you know it's dead.
But the symptoms of a ruptured diaphragm are exactly as he describes, which understandably can be interpreted as a blown head gasket. But no, in my car it was the Heater Tap causing the cloud of white smoke as I described.
And he says there is no oil mixed with coolant, so it must be the Heater Valve / Tap / Servo causing the coolant loss and cloud of smoke.
How does a ruptured Heater Tap diaphragm cause coolanmt to enter the intake? That's a question for George, not me.
#20
cheers
