I'm new to this forum, though I have been active in other Jaguar forums since 2001.
I'm the third owner (since May 2001) of the following 1975 XJ 4.2 L Series 2 with a 3-speed Borg-Warner automatic transmission:

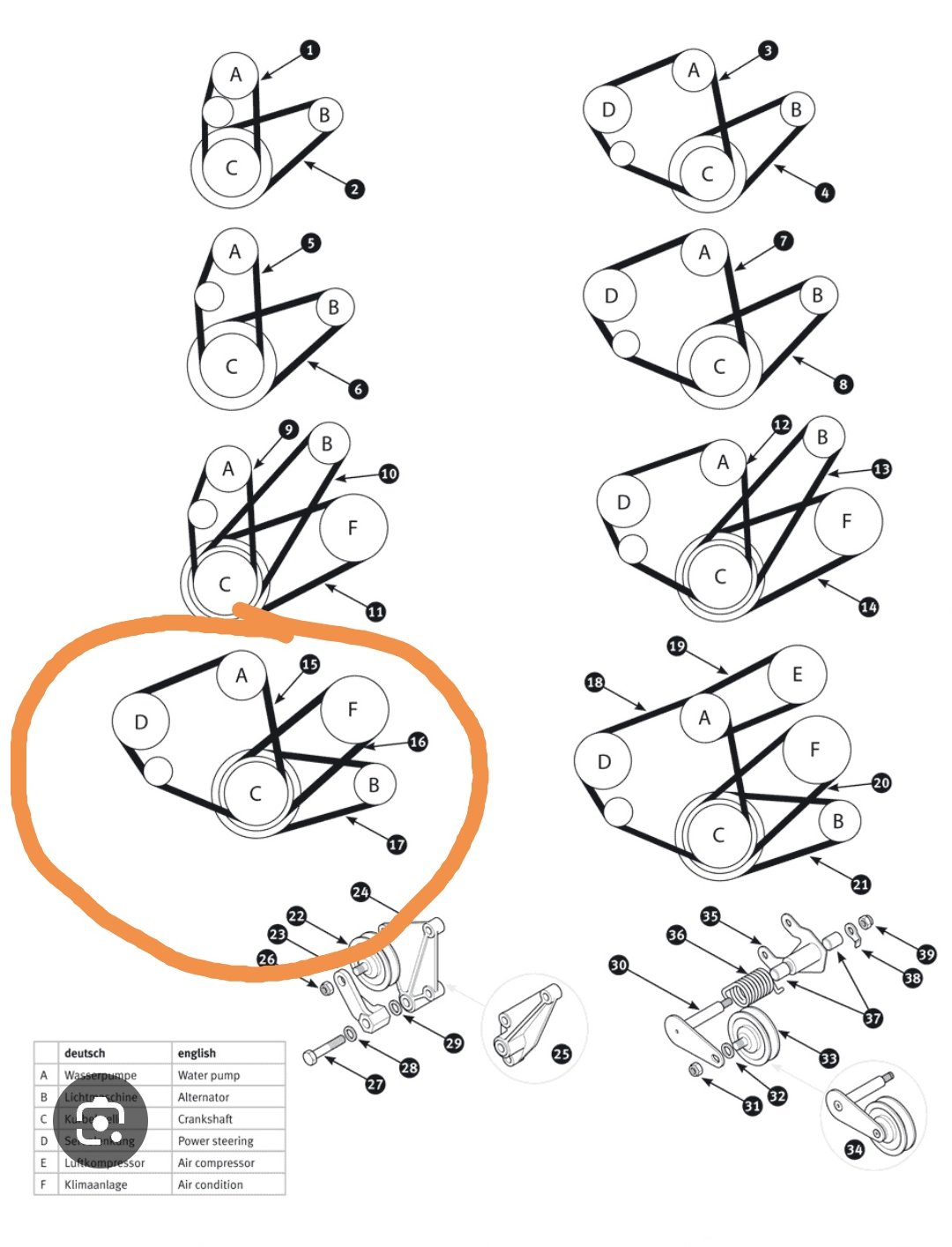

My fan-drive belt recently slid off its pulleys, shredding itself in the process. It's the type that drives the fan as well as the water pump and the PAS pump (see below, circled in orange):

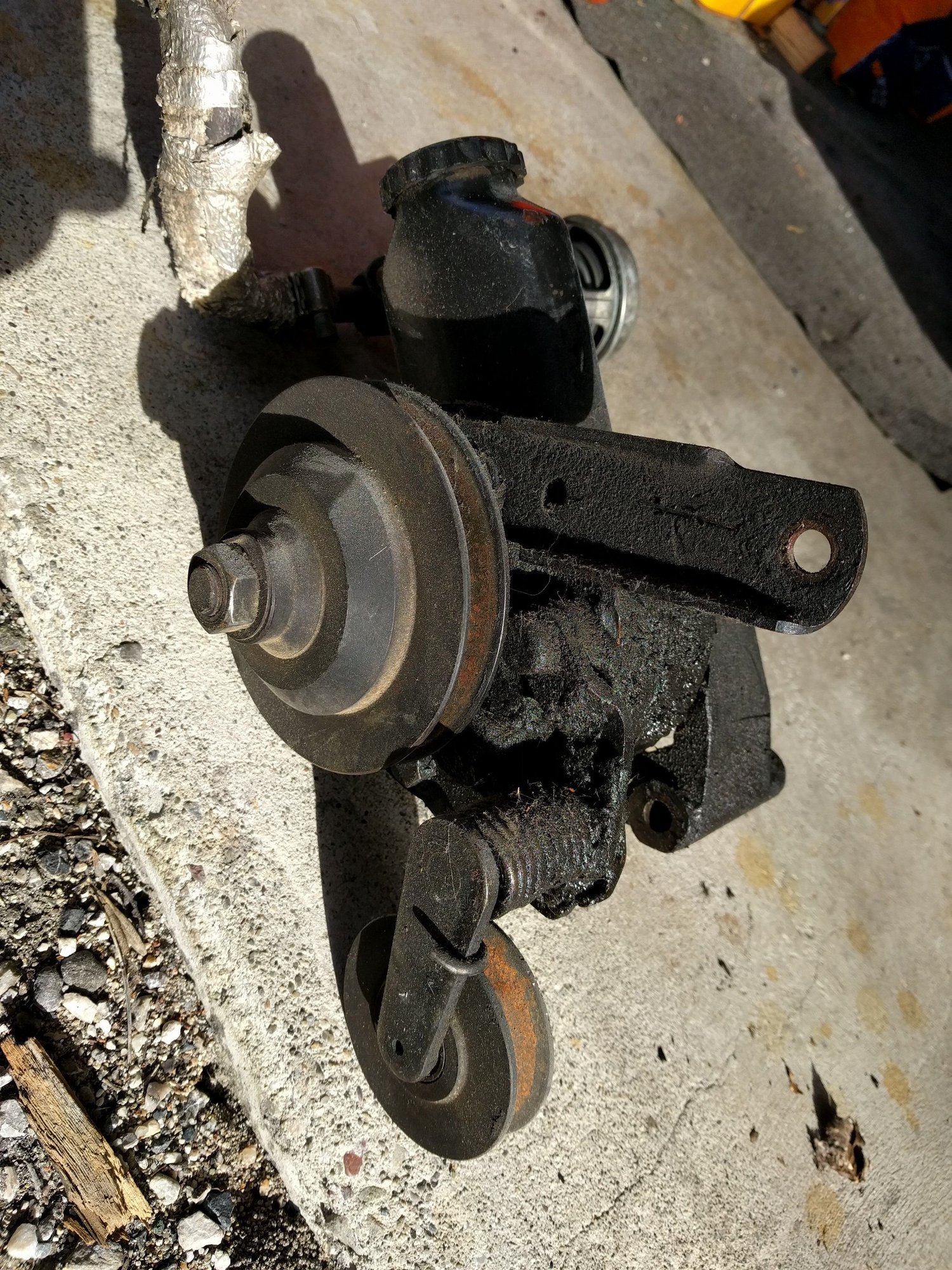

The tensioner spring is fine, all the pulleys run ok, with no wobbling and no sticky spots; there are as well no leaks in either pump. This is what the pump + tensioner assembly looks like when taken off the engine (photo by Eric Feron of jag-lovers.com); mine is still in the car:

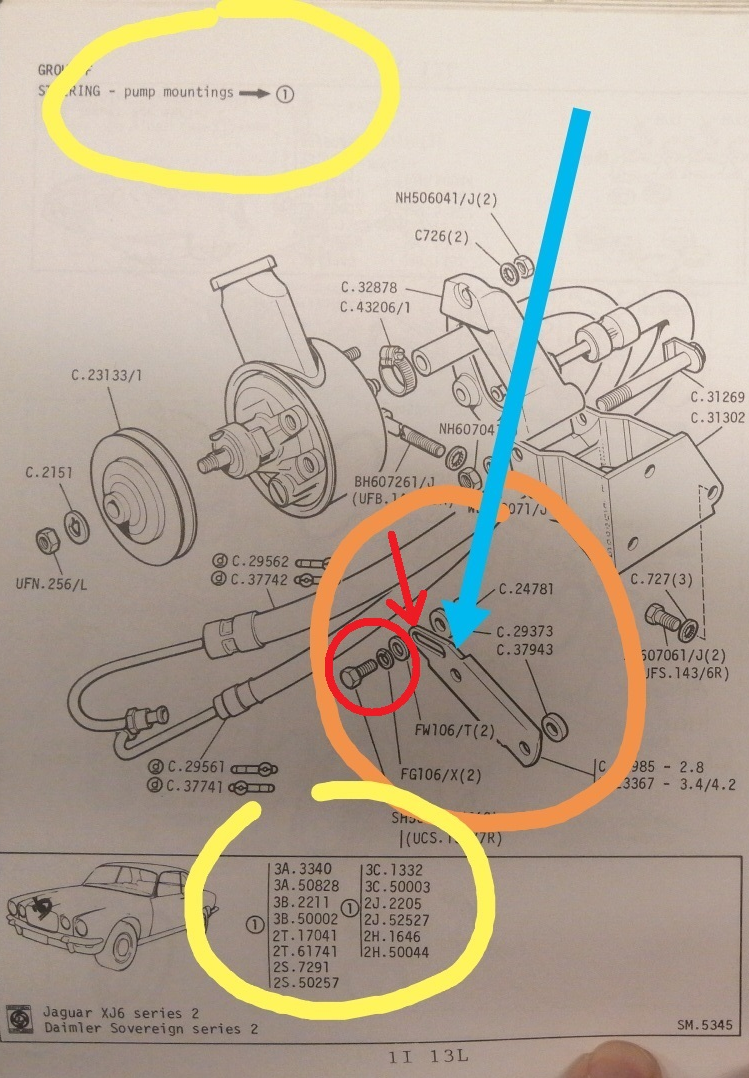

I cannot pull the new belt over the four pulleys (crankshaft, water and PAS pumps, and tensioner idler) even with the tensioner pushed all the way up to its stop (the point where it'd provide the least possible amount of belt tension). There is a nut I've slackened (circled in red below; page 1I 13L from the official Jaguar Parts Catalogue–RTC9883CA, of Jan. 1987) that fits through a slit (the one the small red arrow points to) in the mounting bracket (pointed to by the large blue arrow):
Once that bolt is loosened, I should be able to swing the entire pump + tensioner assembly towards the fan (ie, towards the right of the picture in the drawing above). The mounting bracket (part number C.32878 in the drawing) to which the pump + tensioner assembly is attached pivots about the threaded rod shown above as part number C.31269.
I've tried using a long piece of timber as a lever (the fulcrum end pressing against the body of the car) to push against the pump, but to no avail. A hammer (used with caution and only hitting directly on a wooden block sitting on bubble wrap on the side of the pump) wasn't of much use, either.
What am I missing here? It's as though the mounting bracket (part no. C.32878) were welded to the attachment (C.31302) that is fixed to the engine block, both forming one solid piece–when the bracket should in fact easily revolve about the attachment using the aforementioned threaded rod (C.31269) as a hinge bolt.
