ACM - Audio Connectivity Module, Instructions
I finished my upgrade this past weekend, finally. I added the Jaguar ACM. My 2005 STR.
I have the standard stereo, non-Navigation.
The sound quality is equal to the CD player, but is dependant on the source; USB, RCA, or IPod direct.
Interesting note: you must shut the car off to switch betweem ACM use and CDC.
I've taken both pictures of the manual and the install.
Notes:

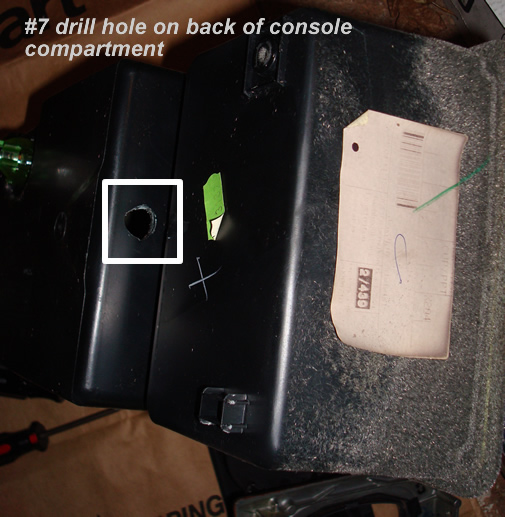

- When I bored the hole (#7) I used a half inch drill bit, then used my dremel to route out the remaining diameter needed for the wires plug.
- Hardest part was routing the wires to the front of the console. The manual doesn't talk about that at all. I first tried to wrap all three wires together but found running them one at a time was easier with a wire from a clothes hanger.
- Time was about 3 hours.
Installation

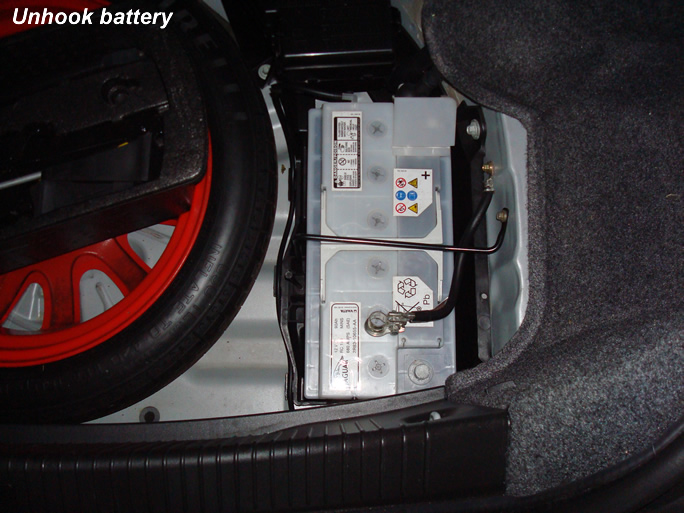

http://www.manageware.net/STR_ACM/acm0.jpg Install ACM Step 0

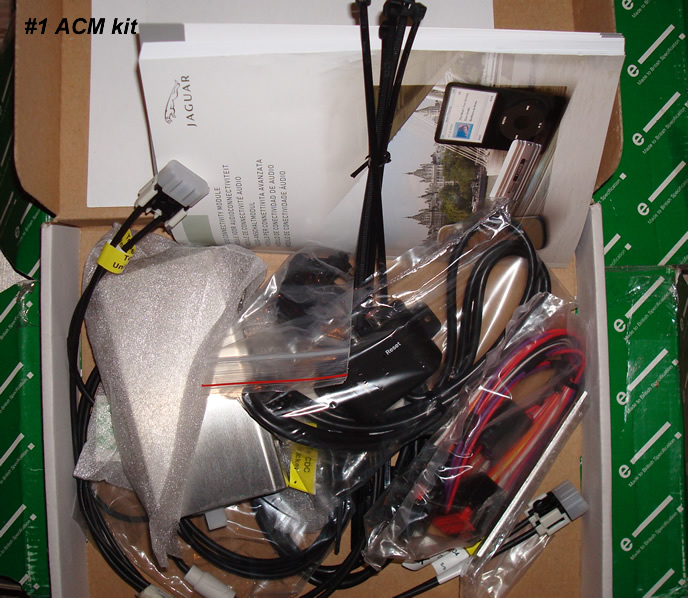

http://www.manageware.net/STR_ACM/acm1.jpg Install ACM Step 1

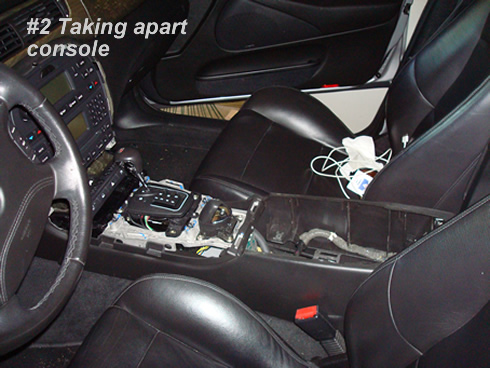

http://www.manageware.net/STR_ACM/acm2.jpg Install ACM Step 2

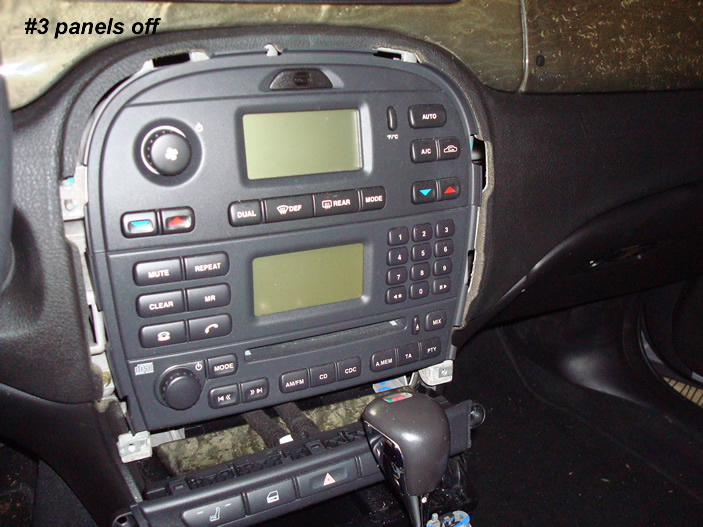

http://www.manageware.net/STR_ACM/acm3.jpg Install ACM Step 3

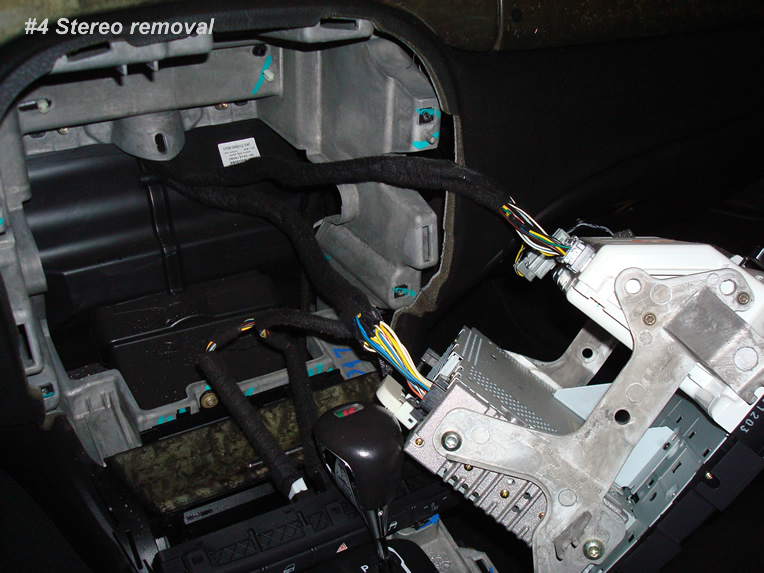

http://www.manageware.net/STR_ACM/acm4.jpg Install ACM Step 4

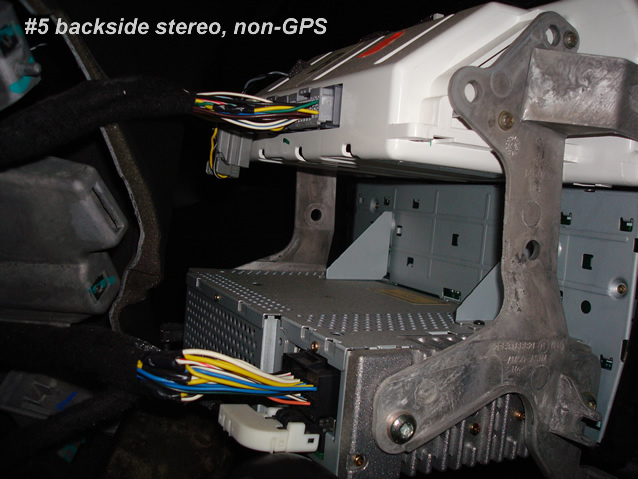

http://www.manageware.net/STR_ACM/acm5.jpg Install ACM Step 5

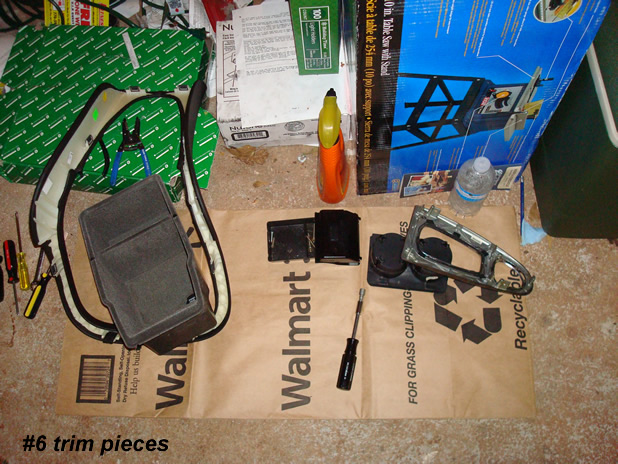

http://www.manageware.net/STR_ACM/acm6.jpg Install ACM Step 6
http://www.manageware.net/STR_ACM/acm7.jpg Install ACM Step 7

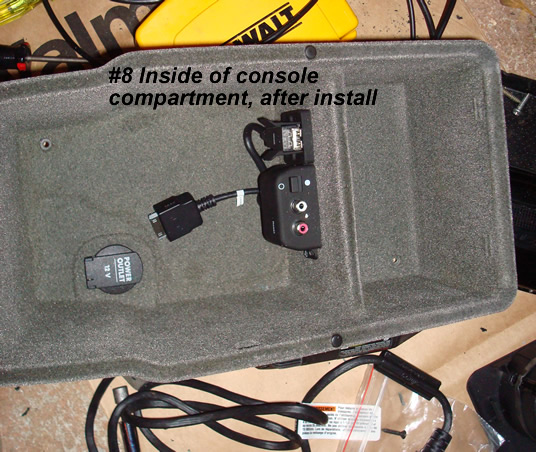

http://www.manageware.net/STR_ACM/acm8.jpg Install ACM Step 8

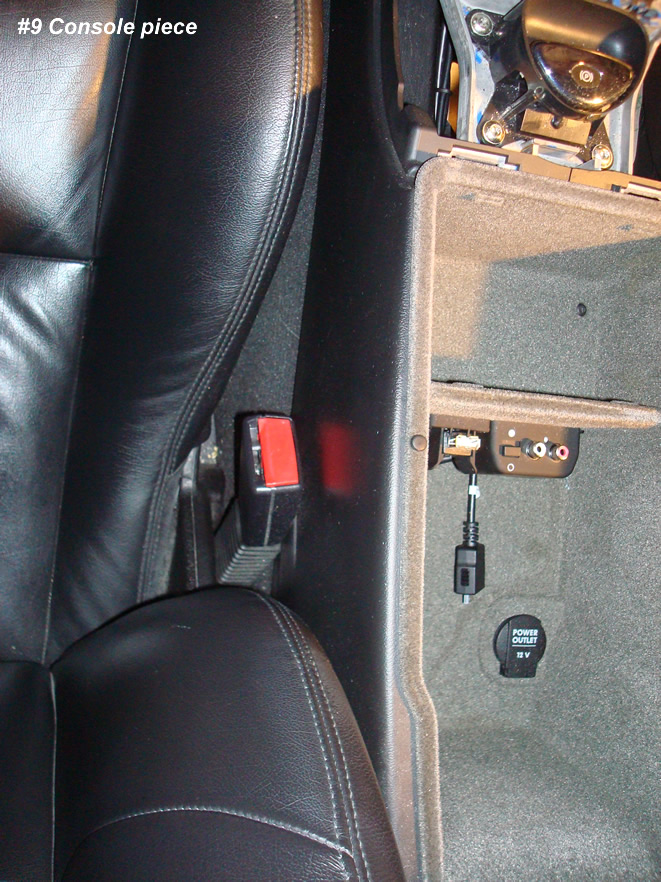

http://www.manageware.net/STR_ACM/acm9.jpg Install ACM Step 9

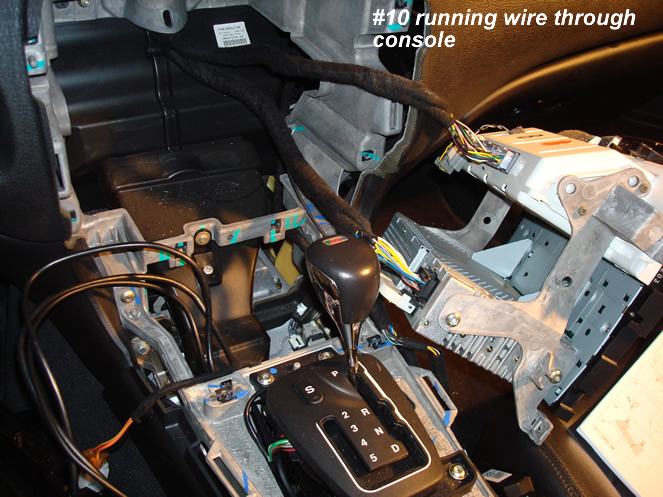

http://www.manageware.net/STR_ACM/acm10.jpg Install ACM Step 10
http://www.manageware.net/STR_ACM/acm11.jpg Install ACM Step 11
http://www.manageware.net/STR_ACM/acm12.jpg Install ACM Step 12

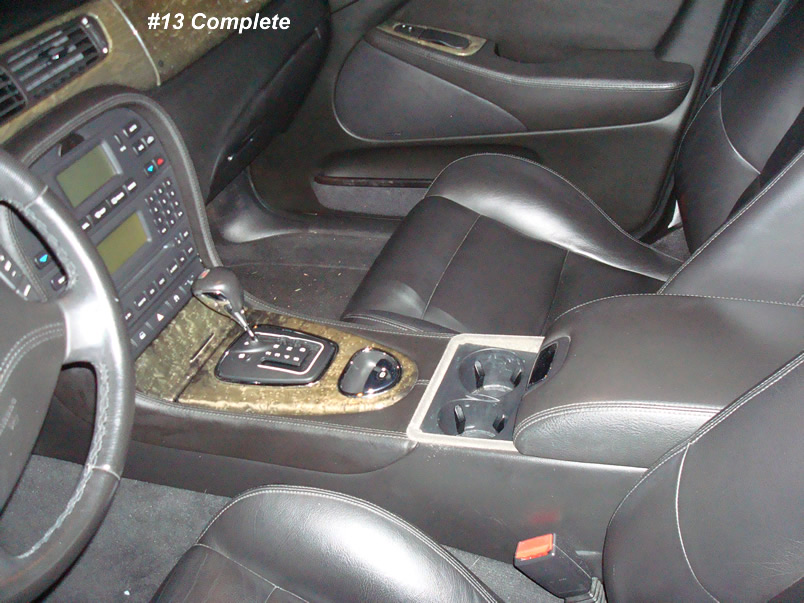

http://www.manageware.net/STR_ACM/acm13.jpg Install ACM Step 13
Manuals

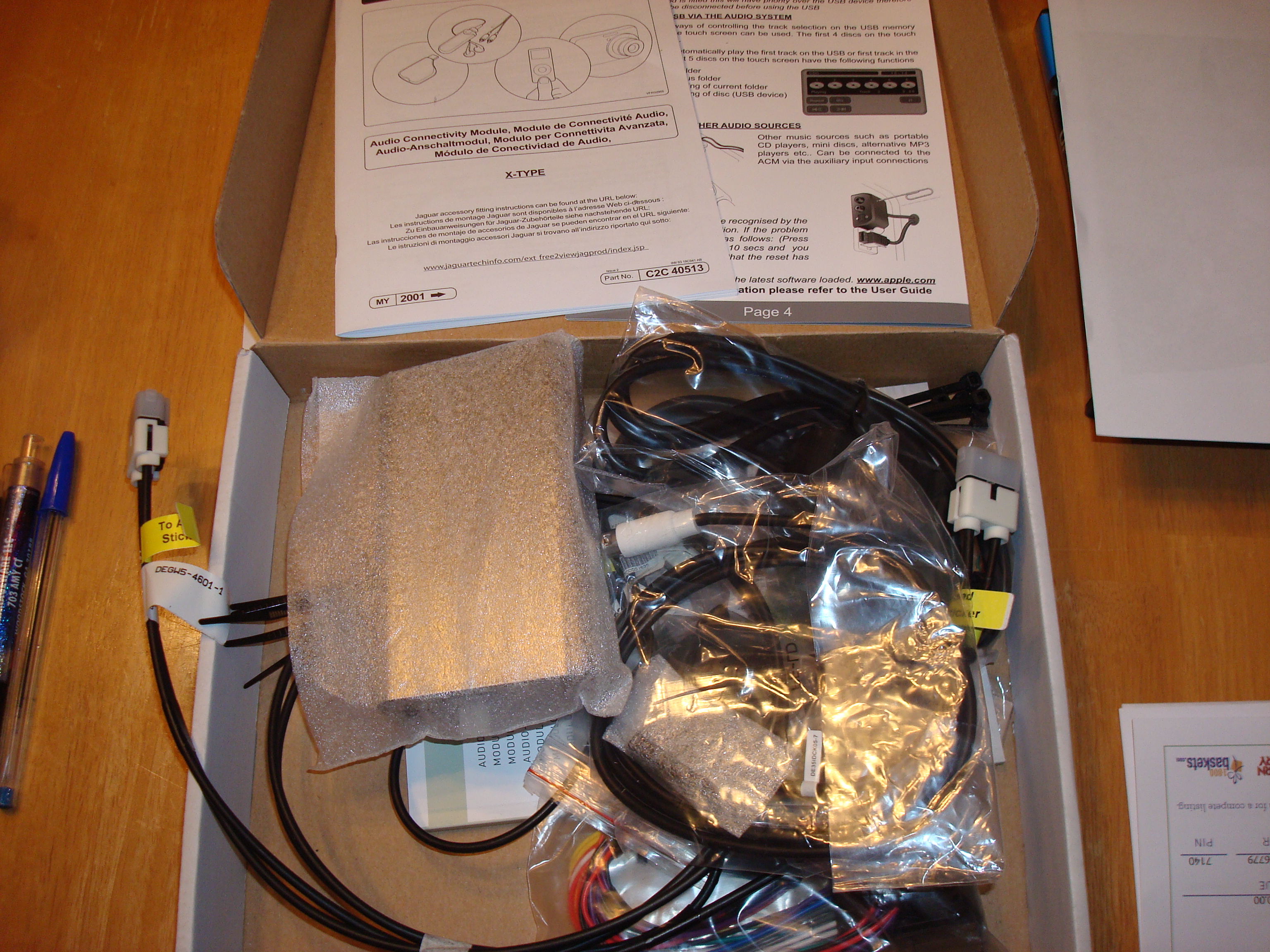

http://www.manageware.net/STR_ACM/str002.jpg Manual page 1
http://www.manageware.net/STR_ACM/str003.jpg Manual page 2
http://www.manageware.net/STR_ACM/str004.jpg Manual page 3
http://www.manageware.net/STR_ACM/str005.jpg Manual page 4
http://www.manageware.net/STR_ACM/str006.jpg Manual page 5

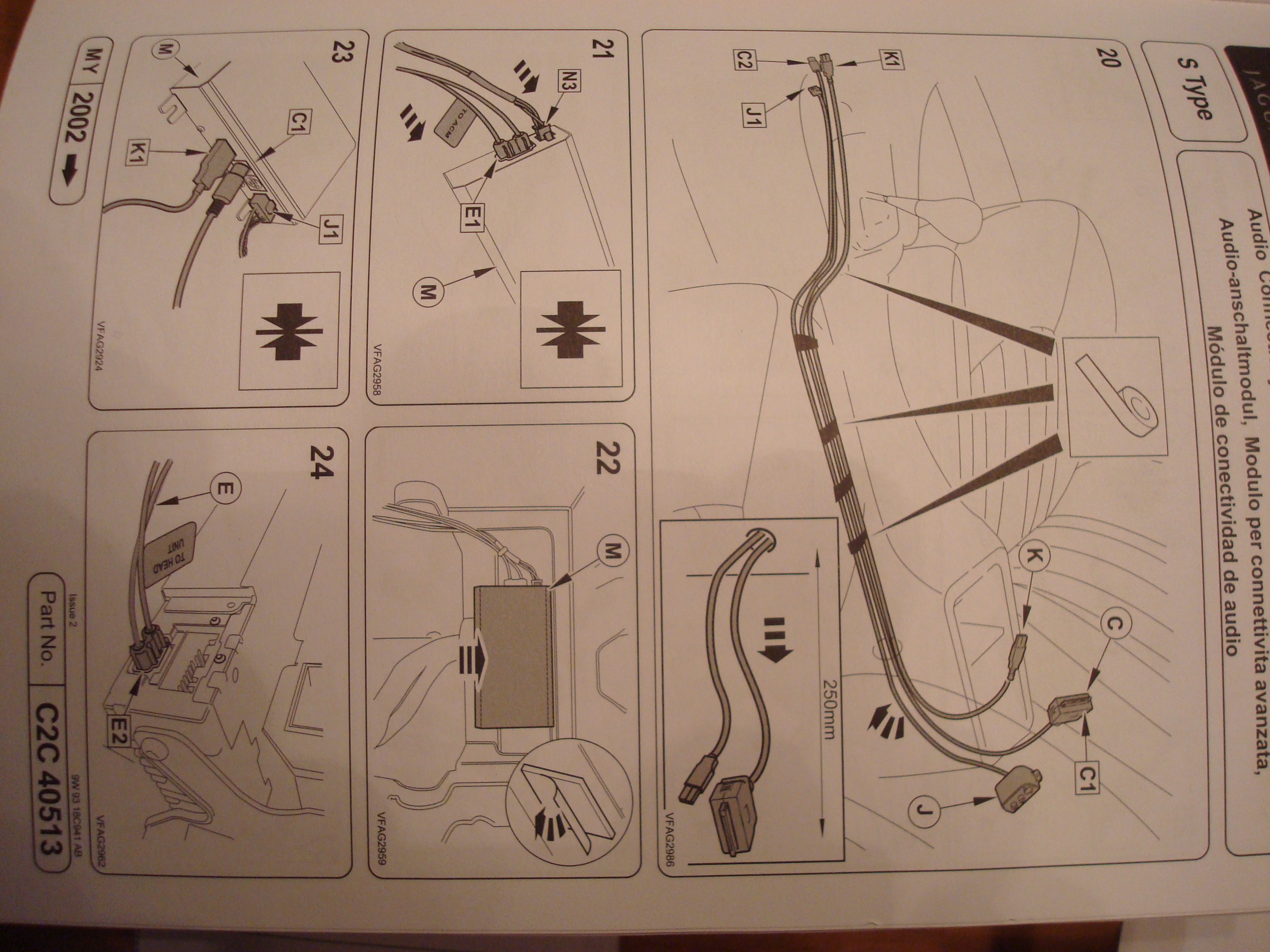

http://www.manageware.net/STR_ACM/str007.jpg Manual page 6

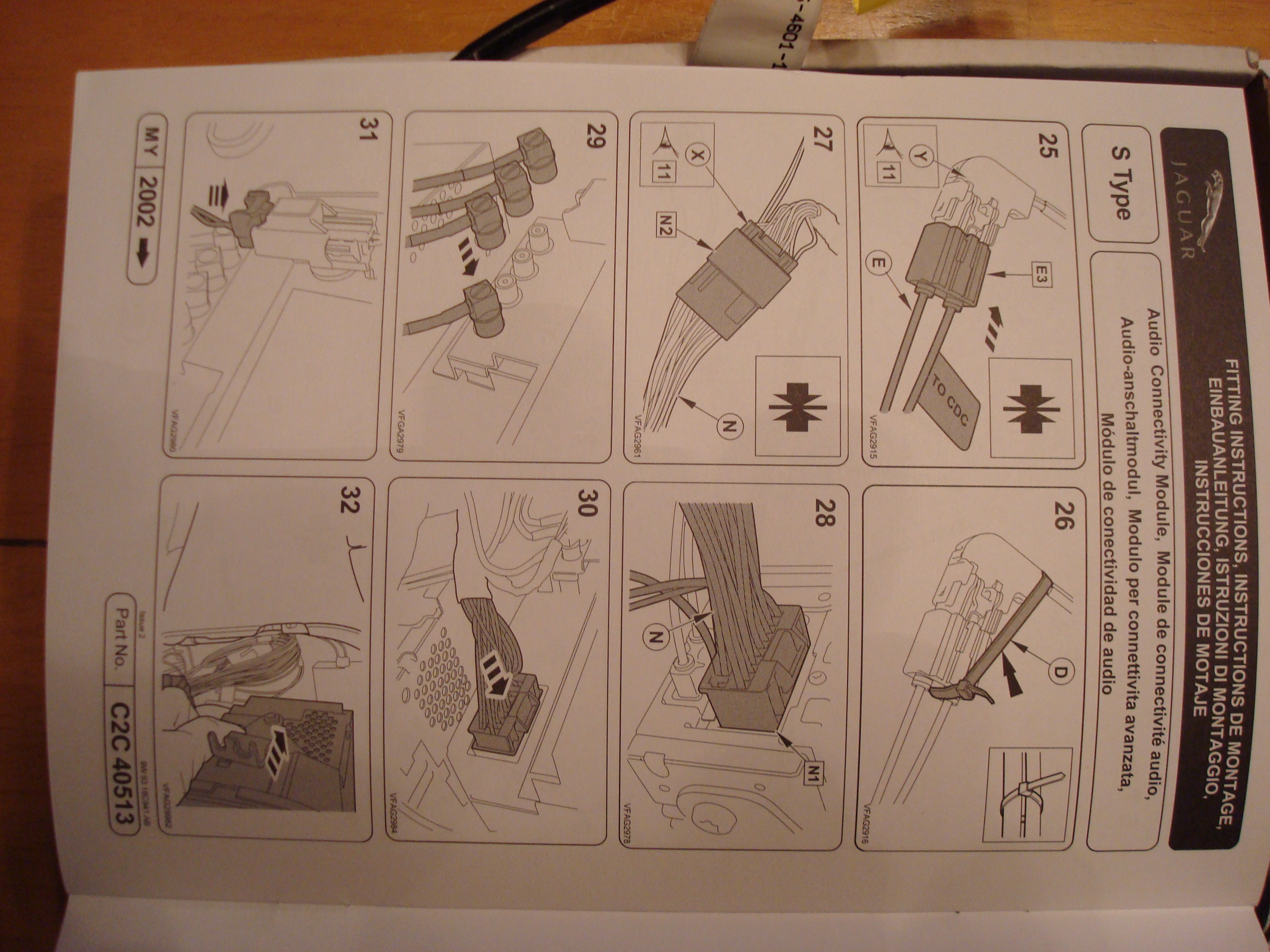

http://www.manageware.net/STR_ACM/str008.jpg Manual page 7

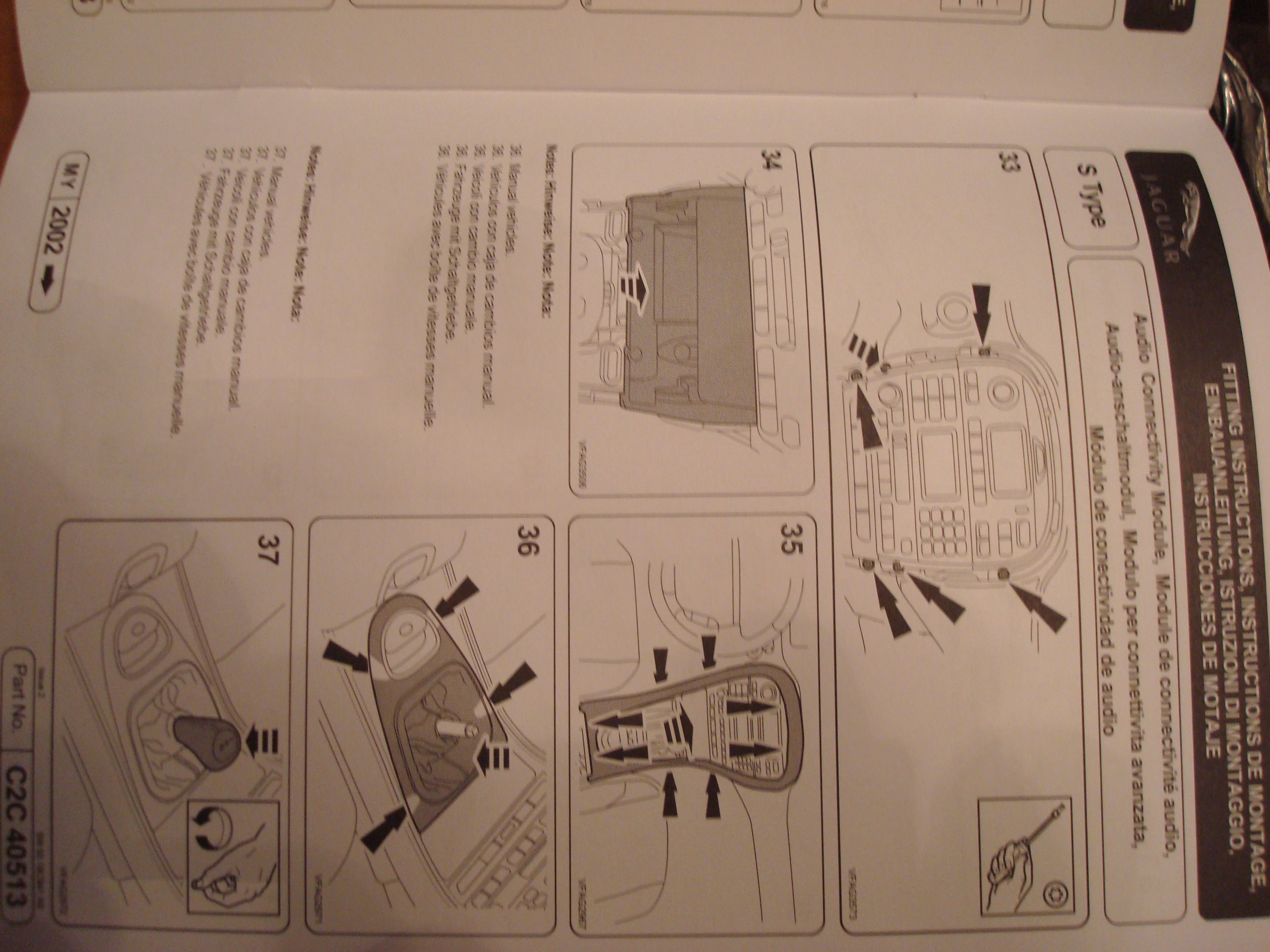

http://www.manageware.net/STR_ACM/str009.jpg Manual page 8

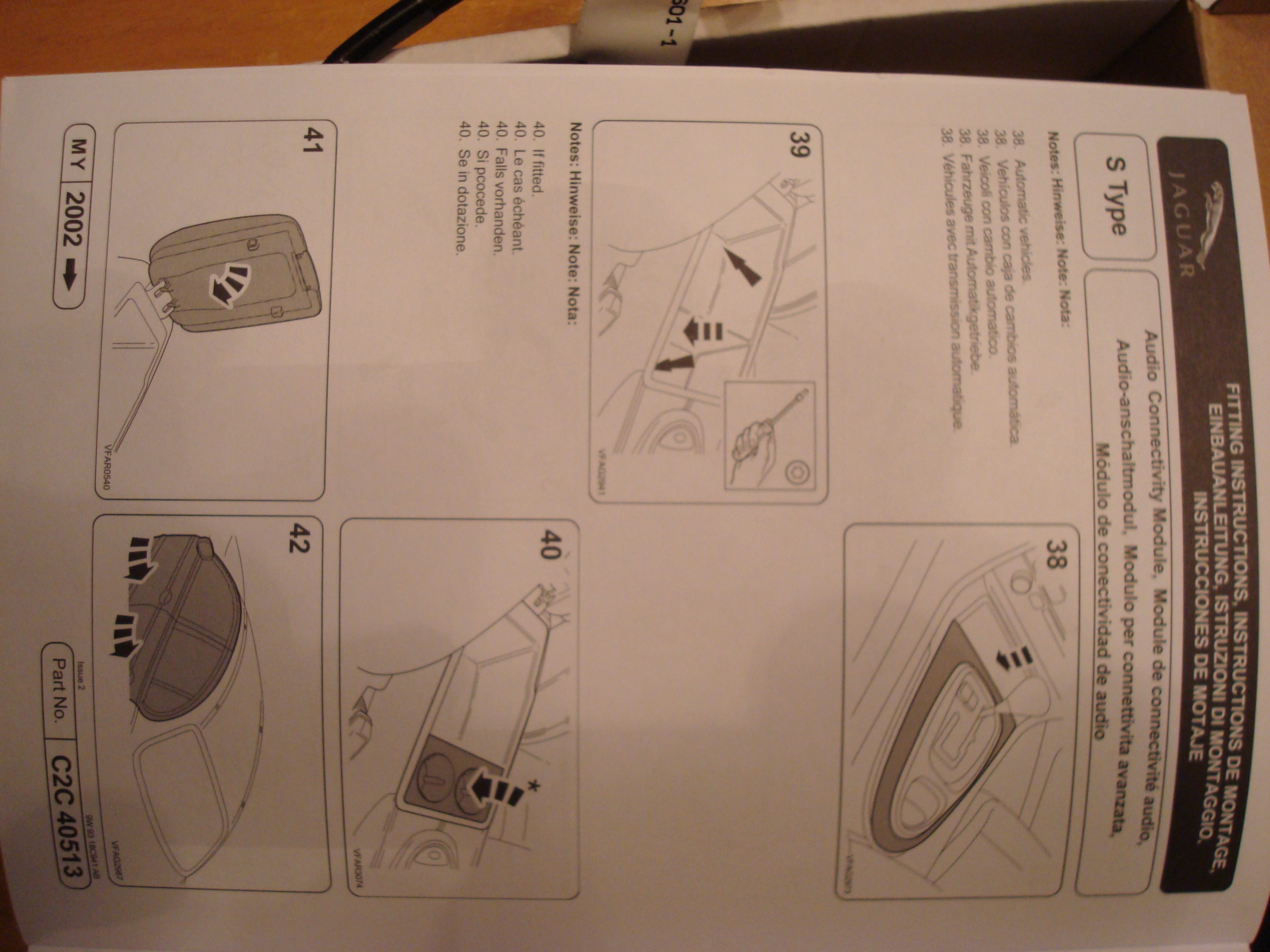

http://www.manageware.net/STR_ACM/str010.jpg Manual page 9
I have the standard stereo, non-Navigation.
The sound quality is equal to the CD player, but is dependant on the source; USB, RCA, or IPod direct.
Interesting note: you must shut the car off to switch betweem ACM use and CDC.
I've taken both pictures of the manual and the install.
Notes:
- When I bored the hole (#7) I used a half inch drill bit, then used my dremel to route out the remaining diameter needed for the wires plug.
- Hardest part was routing the wires to the front of the console. The manual doesn't talk about that at all. I first tried to wrap all three wires together but found running them one at a time was easier with a wire from a clothes hanger.
- Time was about 3 hours.
Installation
http://www.manageware.net/STR_ACM/acm0.jpg Install ACM Step 0
http://www.manageware.net/STR_ACM/acm1.jpg Install ACM Step 1
http://www.manageware.net/STR_ACM/acm2.jpg Install ACM Step 2
http://www.manageware.net/STR_ACM/acm3.jpg Install ACM Step 3
http://www.manageware.net/STR_ACM/acm4.jpg Install ACM Step 4
http://www.manageware.net/STR_ACM/acm5.jpg Install ACM Step 5
http://www.manageware.net/STR_ACM/acm6.jpg Install ACM Step 6
http://www.manageware.net/STR_ACM/acm7.jpg Install ACM Step 7
http://www.manageware.net/STR_ACM/acm8.jpg Install ACM Step 8
http://www.manageware.net/STR_ACM/acm9.jpg Install ACM Step 9
http://www.manageware.net/STR_ACM/acm10.jpg Install ACM Step 10
http://www.manageware.net/STR_ACM/acm11.jpg Install ACM Step 11
http://www.manageware.net/STR_ACM/acm12.jpg Install ACM Step 12
http://www.manageware.net/STR_ACM/acm13.jpg Install ACM Step 13
Manuals
http://www.manageware.net/STR_ACM/str002.jpg Manual page 1
http://www.manageware.net/STR_ACM/str003.jpg Manual page 2
http://www.manageware.net/STR_ACM/str004.jpg Manual page 3
http://www.manageware.net/STR_ACM/str005.jpg Manual page 4
http://www.manageware.net/STR_ACM/str006.jpg Manual page 5
http://www.manageware.net/STR_ACM/str007.jpg Manual page 6
http://www.manageware.net/STR_ACM/str008.jpg Manual page 7
http://www.manageware.net/STR_ACM/str009.jpg Manual page 8
http://www.manageware.net/STR_ACM/str010.jpg Manual page 9
