Hi all,
Anyone using the Torque Pro App on an Android device paired with an ELM327 to monitor the above sensors? I'd like to monitor them as I will be seeking to improve cooling after fitting an even smaller SC pulley next week.
I have paired them and can read many different sensors, but not these two unfortunately as they just say 'No data'. Anyone know the PIDs for these sensors?
Would appreciate a steer before I buy an expensive scangauge or equivalent,
Thanks!
Anyone using the Torque Pro App on an Android device paired with an ELM327 to monitor the above sensors? I'd like to monitor them as I will be seeking to improve cooling after fitting an even smaller SC pulley next week.
I have paired them and can read many different sensors, but not these two unfortunately as they just say 'No data'. Anyone know the PIDs for these sensors?
Would appreciate a steer before I buy an expensive scangauge or equivalent,
Thanks!
#2
2nd's proper name is ECT - why measure it? (The car will aim for the range in JTIS)
IAT2 is not an OBD item so you'd need its scaling etc or transfer curve etc as well as PID
Ford vaguely publish some of those, Jaguar don't seem to.
If you get a (clone) Mongoose you should be able read IAT2.
With the Eaton it rapidly gets too hot. That's why avos goes to the TS...
If you want more HP then avos is your best bet.
IAT2 is not an OBD item so you'd need its scaling etc or transfer curve etc as well as PID
Ford vaguely publish some of those, Jaguar don't seem to.
If you get a (clone) Mongoose you should be able read IAT2.
With the Eaton it rapidly gets too hot. That's why avos goes to the TS...
If you want more HP then avos is your best bet.
#3
Thanks JagV8,
I have the ECT and IAT2 gauges showing on my Torque app and have just downloaded a plug-in called PID Scanner which I will try later, supposedly lets you see all sensors available to view through OBD and edit PID accordingly to display them - will let you know if it works.
I know that another member, 34by151, was able to view these sensors via Torque on his X350 XJR so I assume I am just just missing something obvious. I'll have to look into a clone mongoose, although I like the practicality of using the mini bluetooth adapter with my smart phone.
I agree, the roots system on a STR is already inefficient at stock boost when driven hard. As I already have a smaller pulley, I wouldn't bother installing an even smaller one on the M112 but appreciate the advice nonetheless! My reason for wanting to monitor coolant temps is that I'll be installing water/meth injection with a larger IC pump on my new set-up and want to monitor the effects.
Thanks
I have the ECT and IAT2 gauges showing on my Torque app and have just downloaded a plug-in called PID Scanner which I will try later, supposedly lets you see all sensors available to view through OBD and edit PID accordingly to display them - will let you know if it works.
I know that another member, 34by151, was able to view these sensors via Torque on his X350 XJR so I assume I am just just missing something obvious. I'll have to look into a clone mongoose, although I like the practicality of using the mini bluetooth adapter with my smart phone.
I agree, the roots system on a STR is already inefficient at stock boost when driven hard. As I already have a smaller pulley, I wouldn't bother installing an even smaller one on the M112 but appreciate the advice nonetheless! My reason for wanting to monitor coolant temps is that I'll be installing water/meth injection with a larger IC pump on my new set-up and want to monitor the effects.
Thanks
#4
The following users liked this post:
JagSTR2004 (01-18-2016)
#6
#7
No luck, even with the manual PID entered for IAT2 no data is received from the sensor without a formula entered and I have no idea what that is.
On the plus side, I've found we can monitor ECT via Engineering Test Mode, but unfortunately IAT2 isn't on there which I would most like to see.
I guess I will be buying a Scangauge unless anyone else has a method of monitoring this live with a handheld device...
On the plus side, I've found we can monitor ECT via Engineering Test Mode, but unfortunately IAT2 isn't on there which I would most like to see.
I guess I will be buying a Scangauge unless anyone else has a method of monitoring this live with a handheld device...
Trending Topics
#8
#9
#10
Maybe I just have a faulty adapter then, it's a cheap eBay clone from China so more than likely. Or perhaps a faulty ECT sensor? Only code is a P1000 and all of the emissions tests are completed except Component (which apparently doesn't exist according to JTIS!) No CEL and the car drives perfectly.
#11
#12
I probably do as I just started playing with it without reading any of the docs. From talking with 34by151, I've concluded I won't be able to get IAT2 via torque so he's suggested some alternative methods I'm going to explore.
Thanks, I will update here with what I eventually (hopefully) use to monitor this live without having to carry around a laptop everywhere.
Thanks, I will update here with what I eventually (hopefully) use to monitor this live without having to carry around a laptop everywhere.
#13
When I look in the SDD, it tells me PID 123B: Intercooler air temperature after intercooler.
Min. 0V
Max. 5V

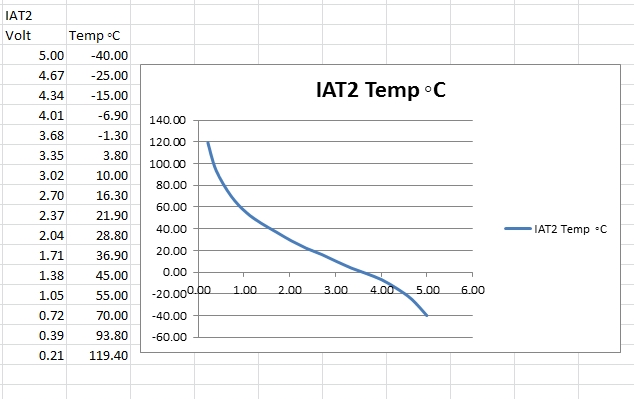

Our man pulled the IAT2 range out of the factory tune.
This is for the AJ33S, AJ34S and AJ40 (X150 XKR), might be the same for the AJ26S and AJ27S, still waiting to crack that tune file open.
Yup, it's not linear, it's not logical either. This is probably why the IDS/SDD only shows volts, not an actual temperature, because there's no way to make a formula for this non-linear, non-logical curve...
Min. 0V
Max. 5V
Our man pulled the IAT2 range out of the factory tune.
This is for the AJ33S, AJ34S and AJ40 (X150 XKR), might be the same for the AJ26S and AJ27S, still waiting to crack that tune file open.
Yup, it's not linear, it's not logical either. This is probably why the IDS/SDD only shows volts, not an actual temperature, because there's no way to make a formula for this non-linear, non-logical curve...
The following 2 users liked this post by Cambo:
JagSTR2004 (10-18-2016),
Panthro (10-26-2016)
#14
#15
IAT

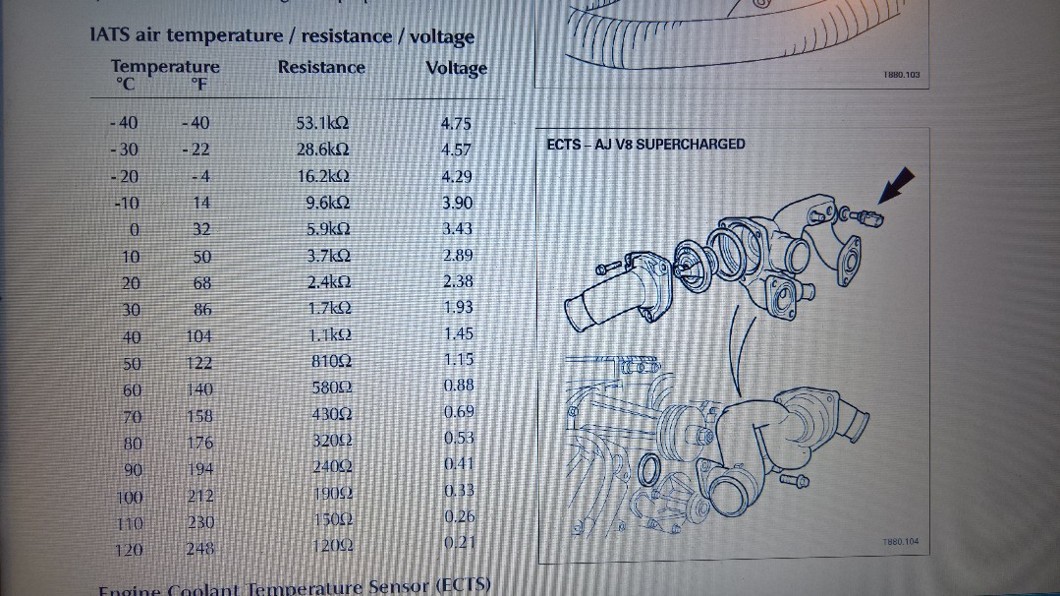

IATS for AJ26/AJ27 . ECU manual page 129/264.
"Intake Air Temperature Sensor 2 (IATS 2)
A separate intake air temperature sensor (IATS 2), located
on the A bank charge air cooler outlet, provides the
ECM with a “charge air” temperature signal.
As with previous air temperature sensors, the IATS 2 is a
negative temperature coefficient (NTC) thermistor.
Charge air temperature is determined by the ECM by a
change in sensor resistance. The ECM applies 5 volts to
the sensor and monitors the voltage across the pins to
detect the varying resistance.
The IATS located within the MAFS remains active in the
system and is used for diagnostic purposes."
"Intake Air Temperature Sensor 2 (IATS 2)
A separate intake air temperature sensor (IATS 2), located
on the A bank charge air cooler outlet, provides the
ECM with a “charge air” temperature signal.
As with previous air temperature sensors, the IATS 2 is a
negative temperature coefficient (NTC) thermistor.
Charge air temperature is determined by the ECM by a
change in sensor resistance. The ECM applies 5 volts to
the sensor and monitors the voltage across the pins to
detect the varying resistance.
The IATS located within the MAFS remains active in the
system and is used for diagnostic purposes."
Last edited by XJR-99; 10-21-2016 at 01:27 AM.
#16
#17
Code is not the issue the connection is the issue
To read IAT2 you would need to be using a mongoose cable not and ELM
Its just not present for generic OBD devices
If you monitor/log the OBD port list of for a few minutes it will give you the pids available. IAT2 is not among them
Cheers
34by151
To read IAT2 you would need to be using a mongoose cable not and ELM
Its just not present for generic OBD devices
If you monitor/log the OBD port list of for a few minutes it will give you the pids available. IAT2 is not among them
Cheers
34by151
The following users liked this post:
JagSTR2004 (10-21-2016)
#18
#19
As I suggested earlier if you monitor/log the port this will give you the available pids that you can then decode. If the pid is not present you cant decode it regardless of what your elm manual says.
Some pids are only present to a mongoose as it uses extra pins on the obd port
If you have done it why not share that info?
Cheers
34by151
Some pids are only present to a mongoose as it uses extra pins on the obd port
If you have done it why not share that info?
Cheers
34by151
#20
Just follow the manual. Use mode 22, pid 123b. Back comes the value.
Why do you claim that this does not work when you haven't got a clue and apparently can't be bothered to try it?
No extra pins are needed or indeed for most of the cars present. E.g. no extra pins on an S-Type (the forum we're in).
If you want to see how easy it is to use an elm from C, see https://www.scantool.net/scantool/do..._net121src.zip
For python, see http://www.obdtester.com/pyobd-download
Of course as the Elm doc say you can drive it direct but the commands are a bit terse.
Why do you claim that this does not work when you haven't got a clue and apparently can't be bothered to try it?
No extra pins are needed or indeed for most of the cars present. E.g. no extra pins on an S-Type (the forum we're in).
If you want to see how easy it is to use an elm from C, see https://www.scantool.net/scantool/do..._net121src.zip
For python, see http://www.obdtester.com/pyobd-download
Of course as the Elm doc say you can drive it direct but the commands are a bit terse.
Last edited by JagV8; 10-22-2016 at 05:03 AM.
