Hello, I've been looking at the different part diagrams for the Jaguar 2006 X-Type, and I cannot figure out what the part numbers are for the following bolts. I was hoping someone with more car knowledge would be able to point me in the right direction. Thanks.



And they go to what?



I don't know the parts they're connected to, but I can tell you the location of the missing bolts.

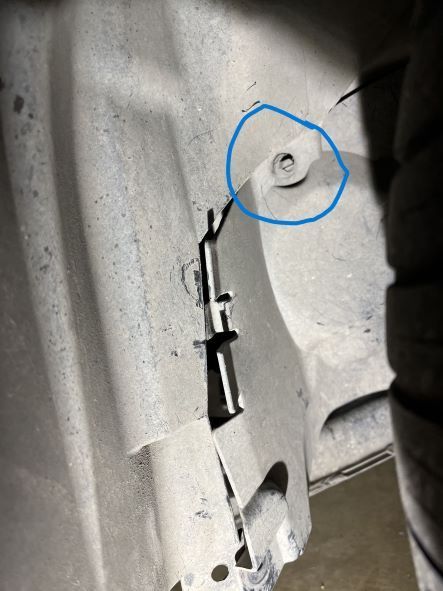

The first image is of the driver-side wheel well, you can see the tire tread on the right side. The bolt screws towards the inner part of the car.

The second image is facing the car head-on, under the headlight, and next to the radiator Here you can also see the tread of the driver's side tire. This picture was taken with the bumper off.



First image should be M6 x 18mm C2S45016010
Second image is radiator support, bolt is M8 x 21mm C2P2766



Awesome! Thanks Luka.



Welcome to the forum. I think Dell was pointing out it helps locate diagrams if you include model year, engine size, sedan or wagon, etc when looking for parts.

I get part diagrams here:
https://parts.jaguarlandroverclassic.../brand/jaguar/
https://www.sngbarratt.com/English/#...e/19/X-Type/50

I'd recommend you also keep this url handy: JagRepair.com - Jaguar Repair Information Resource



I see, I misread the question. Thanks for the links.



No harm, no foul. I maybe misread his question too and it wasn't what he meant so I may be speaking out of line. We do get into some confusion here on the forum with 2.5L, 2.1L FWD, 2.2L diesel, whether the hood release is on the Left or Right and so forth because the X-type was sold all over the world in a lot of different configurations.

If you go to https://www.jaguarforums.com/forum/p...do=editprofile
and put your model year and "3.0L auto trans" or something similar in the "signature" you will save yourself answering questions in future posts. Just passing on info that was was sent to me when I was new here.
