Throttle body wiring plug

Thread Tools

Search this Thread

Old Mar 6, 2015 | 08:59 PM
Share
  #1
wr51's Avatar
Thread Starter
|
Junior Member
Joined: Mar 2015
Posts: 7
Likes: 0
From: Canada
Default Throttle body wiring plug
2003 X-Type

I pulled the wires out of the left side plug while taking of the intake manifold of to change plugs and don't know which one goes where.
There are four wires to this plug. Can anybody tell me which one goes where?

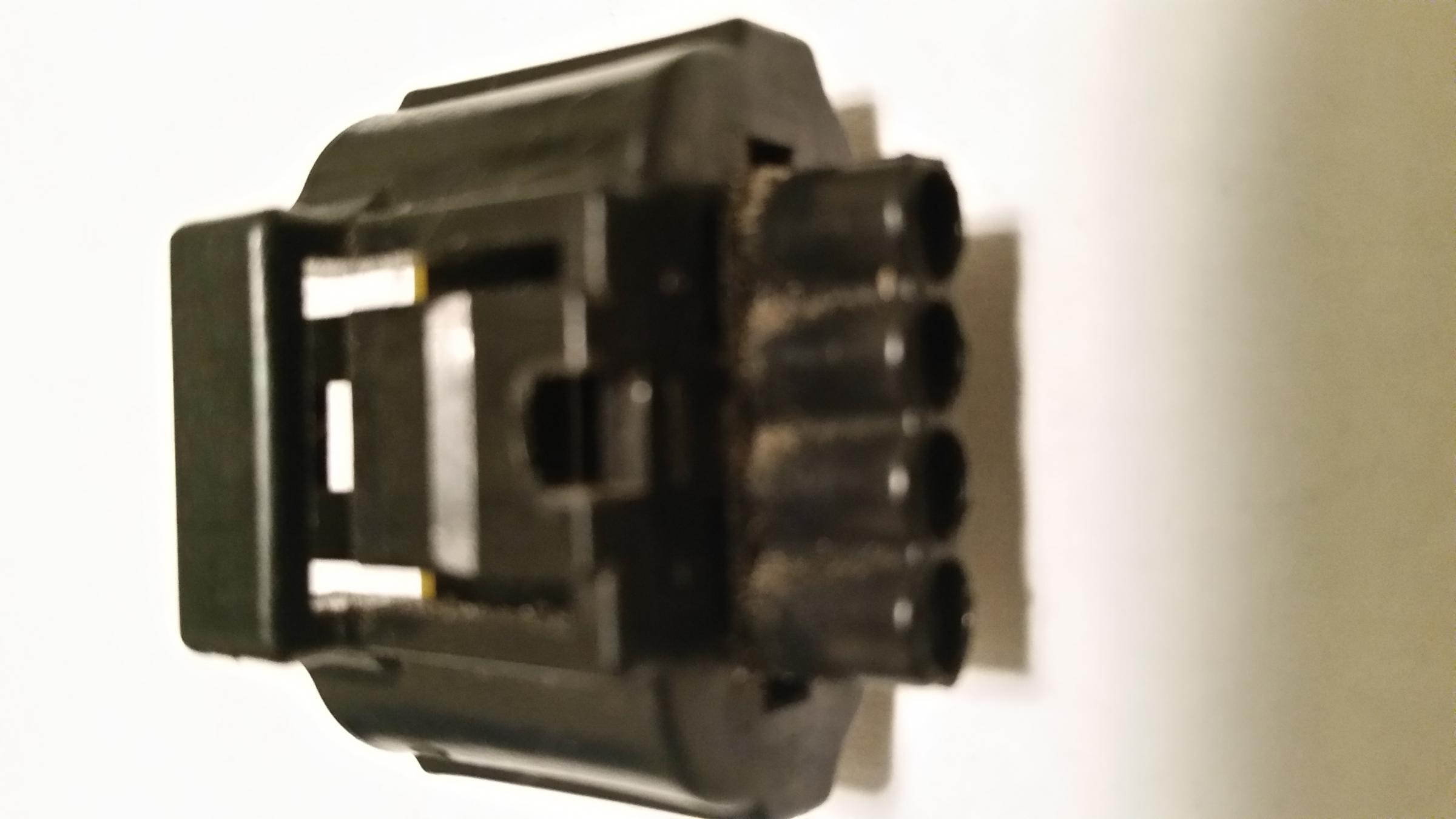

Attached Thumbnails Throttle body wiring plug-20150306_185609.jpg
Reply
0
Old Mar 7, 2015 | 03:34 AM
Share
  #2
GGG's Avatar
GGG
10 Year Member
Liked
Loved
Community Favorite
Joined: Dec 2011
Posts: 120,439
Likes: 17,006
From: Durham, UK
Default
Welcome to the forum wr51,

I've moved this question from your Intro to X-Type forum. Members here with the same model will be able to help.

Graham

Reply
1
Old Mar 7, 2015 | 08:01 AM
Share
  #3
astromorg's Avatar
Veteran Member
10 Year Member
Liked
Loved
Community Favorite
Joined: Feb 2012
Posts: 1,114
Likes: 567
From: Portsmouth, England
Default
You don't say what colour wires you have, but I would suggest you have a Black/Green that should be Pin 1, Yellow Pin 2, Purple Pin 3 and Orange/Yellow Pin 4

Reply
0
Old Mar 7, 2015 | 08:47 AM
Share
  #4
Dr dome's Avatar
Senior Member
Joined: Mar 2013
Posts: 636
Likes: 126
From: Hellertown,pa
Default
if you cant get them back in I have a pig tail plug I will be happy to sell you and ship out.Pm me and we can talk


Good luck,
The Dr!

Reply
1
Old Mar 7, 2015 | 03:45 PM
Share
  #5
wr51's Avatar
Thread Starter
|
Junior Member
Joined: Mar 2015
Posts: 7
Likes: 0
From: Canada
Default
Hi Dr dome, glad you have one. Where abouts do you live and how much do you want for it?
Thanks, Bill

Reply
0
