Instructions for installing luggage compartment side net FAQ
#1
Instructions for installing luggage compartment side net FAQ
These instructions will help you install the XF luggage compartment side net accessory (part no. C2Z21494), which is available through Jaguar dealers for under $30 and fits all XF’s through at least 2012. The accessory comes with no instructions, so you’re on your own to figure it out. Taking my time, the installation took me about an hour.
First, I didn’t think this was even meant for my car because the metal frame didn’t quite match the contours of the side of the trunk – but it is. You might need to bend one or both sides a bit. The side that is more angled is the front. Once I bent the metal frame by hand a bit, I could see that it would fit.
Installation involves making two holes for the bottom plastic clips, and two holes for the plastic grommets into which you slip the ends of the frame. But figuring out where to make the holes go is the tricky part.
1. Remove the net from the frame. This will prevent the net from pulling the frame inward and fighting with you as you position the frame. Look at the photo below to see how the frame needs to be installed. The bottom is pretty easy as all you need to do is to get it straight. Using a tailor’s marker (or white chalk), mark two spots on the bottom for the clips. These two should be the same distance to the edge of the carpeted trunk liner side panel.
2. At this point, you should remove the plastic trunk edge finisher by turning the three plastic faux screws counterclockwise while lifting them. They’re not real screws, so you can’t simply unscrew them.

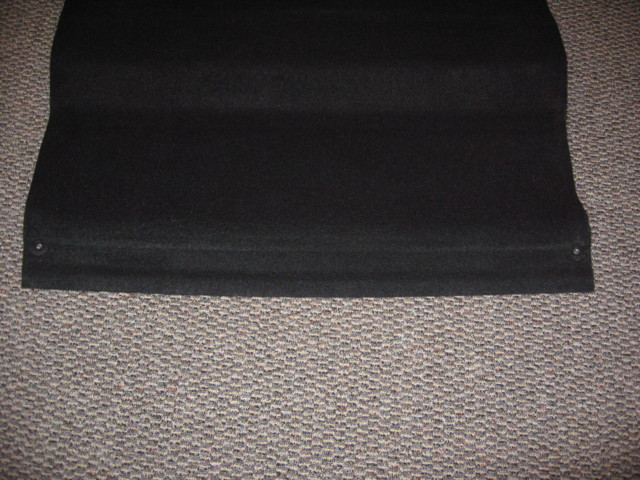

3. Next, remove the trunk floor mat. This will require fold down the rear seat backrests to access the plastic plugs that hold the mat in place at its front edge (see the photo of the trunk mat out of the car – the holes are where the plastic plugs are inserted). Removing the plastic plugs is best done using a small crow bar that has a tip that you would use to remove nails. See the photo of the plugs and both a medium and small crow bar that I used. I did this the first time I vacuumed my trunk so that I could remove the trunk mat, and never reinstalled the plastic plugs. That way, I can just slip the mat out and clean it outside of the car.
4. Remove the two plastic plugs at the top edges of the carpeted trunk liner, and unhook the liner from under the rubber weather stripping. Lift up on the bottom of the liner and poke holes using an awl where you made marks.

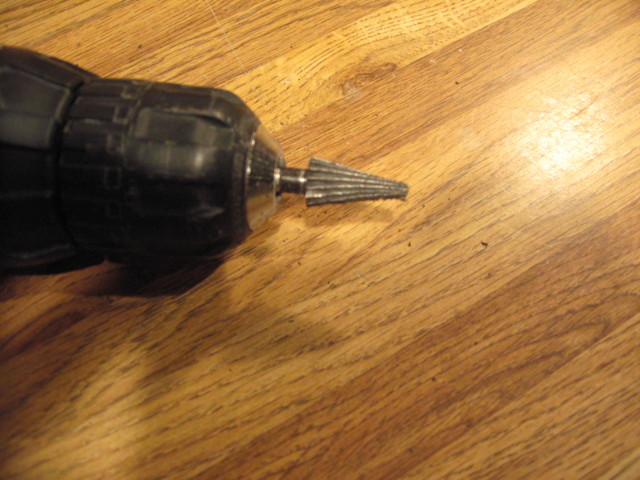

5. Make the bottom holes bigger by poking them with a Phillips screw driver while lifting the liner with one hand. Then, use a rotary hasp (as shown in the photo) to make the holes even bigger. Be careful to lift up the liner so you don’t hit anything on the other side. You might want to use a piece of wood to lift up the liner from the trunk bottom. Use the hasp from both the outside and the backside of the liner to get a nice smooth hole. Install the clips by getting the edge of the clip into the hole then turning clockwise (this requires strong fingers). Pop the frame into the clips and push the liner back into its normal position. Using my photos as your guide, mark the location for the two grommets with the tailor’s marker.
6. At this point, you need to decide whether you want to make the holes for the grommets with the liner still in the car, or on your workbench. Remember, the grommets require a smooth hole that is about 3/8” in diameter. I chose to remove the liner and work on my workbench. To do this, you need to remove two more plastic plugs from behind the right rear seatback. You can then remove the entire liner and work on it on your workbench.

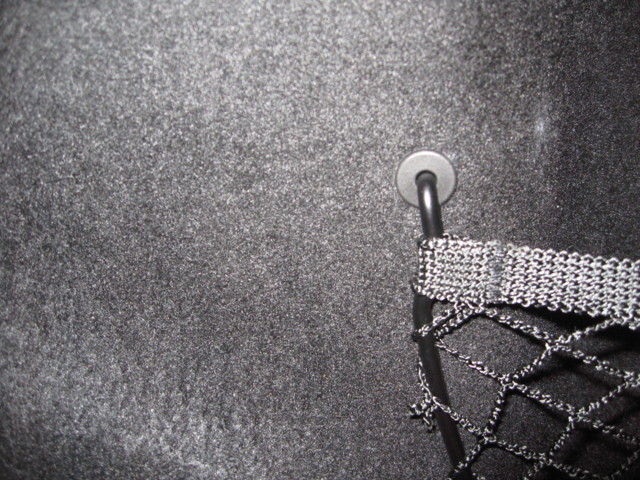

7. Once you have the grommets in place, reinstall the net onto the frame, and then install the frame into the grommets. The rear part goes in first, then the front, then you clip the bottom onto the bottom clips.
8. Now put everything back. The best way to reinsert the large plastic plugs that you removed is to use a rubber mallet.
I also took a photo of the wires and electronics that hide behind the trunk liner.
First, I didn’t think this was even meant for my car because the metal frame didn’t quite match the contours of the side of the trunk – but it is. You might need to bend one or both sides a bit. The side that is more angled is the front. Once I bent the metal frame by hand a bit, I could see that it would fit.
Installation involves making two holes for the bottom plastic clips, and two holes for the plastic grommets into which you slip the ends of the frame. But figuring out where to make the holes go is the tricky part.
1. Remove the net from the frame. This will prevent the net from pulling the frame inward and fighting with you as you position the frame. Look at the photo below to see how the frame needs to be installed. The bottom is pretty easy as all you need to do is to get it straight. Using a tailor’s marker (or white chalk), mark two spots on the bottom for the clips. These two should be the same distance to the edge of the carpeted trunk liner side panel.
2. At this point, you should remove the plastic trunk edge finisher by turning the three plastic faux screws counterclockwise while lifting them. They’re not real screws, so you can’t simply unscrew them.
3. Next, remove the trunk floor mat. This will require fold down the rear seat backrests to access the plastic plugs that hold the mat in place at its front edge (see the photo of the trunk mat out of the car – the holes are where the plastic plugs are inserted). Removing the plastic plugs is best done using a small crow bar that has a tip that you would use to remove nails. See the photo of the plugs and both a medium and small crow bar that I used. I did this the first time I vacuumed my trunk so that I could remove the trunk mat, and never reinstalled the plastic plugs. That way, I can just slip the mat out and clean it outside of the car.
4. Remove the two plastic plugs at the top edges of the carpeted trunk liner, and unhook the liner from under the rubber weather stripping. Lift up on the bottom of the liner and poke holes using an awl where you made marks.
5. Make the bottom holes bigger by poking them with a Phillips screw driver while lifting the liner with one hand. Then, use a rotary hasp (as shown in the photo) to make the holes even bigger. Be careful to lift up the liner so you don’t hit anything on the other side. You might want to use a piece of wood to lift up the liner from the trunk bottom. Use the hasp from both the outside and the backside of the liner to get a nice smooth hole. Install the clips by getting the edge of the clip into the hole then turning clockwise (this requires strong fingers). Pop the frame into the clips and push the liner back into its normal position. Using my photos as your guide, mark the location for the two grommets with the tailor’s marker.
6. At this point, you need to decide whether you want to make the holes for the grommets with the liner still in the car, or on your workbench. Remember, the grommets require a smooth hole that is about 3/8” in diameter. I chose to remove the liner and work on my workbench. To do this, you need to remove two more plastic plugs from behind the right rear seatback. You can then remove the entire liner and work on it on your workbench.
7. Once you have the grommets in place, reinstall the net onto the frame, and then install the frame into the grommets. The rear part goes in first, then the front, then you clip the bottom onto the bottom clips.
8. Now put everything back. The best way to reinsert the large plastic plugs that you removed is to use a rubber mallet.
I also took a photo of the wires and electronics that hide behind the trunk liner.
