I have a 2015 XJL Supercharged

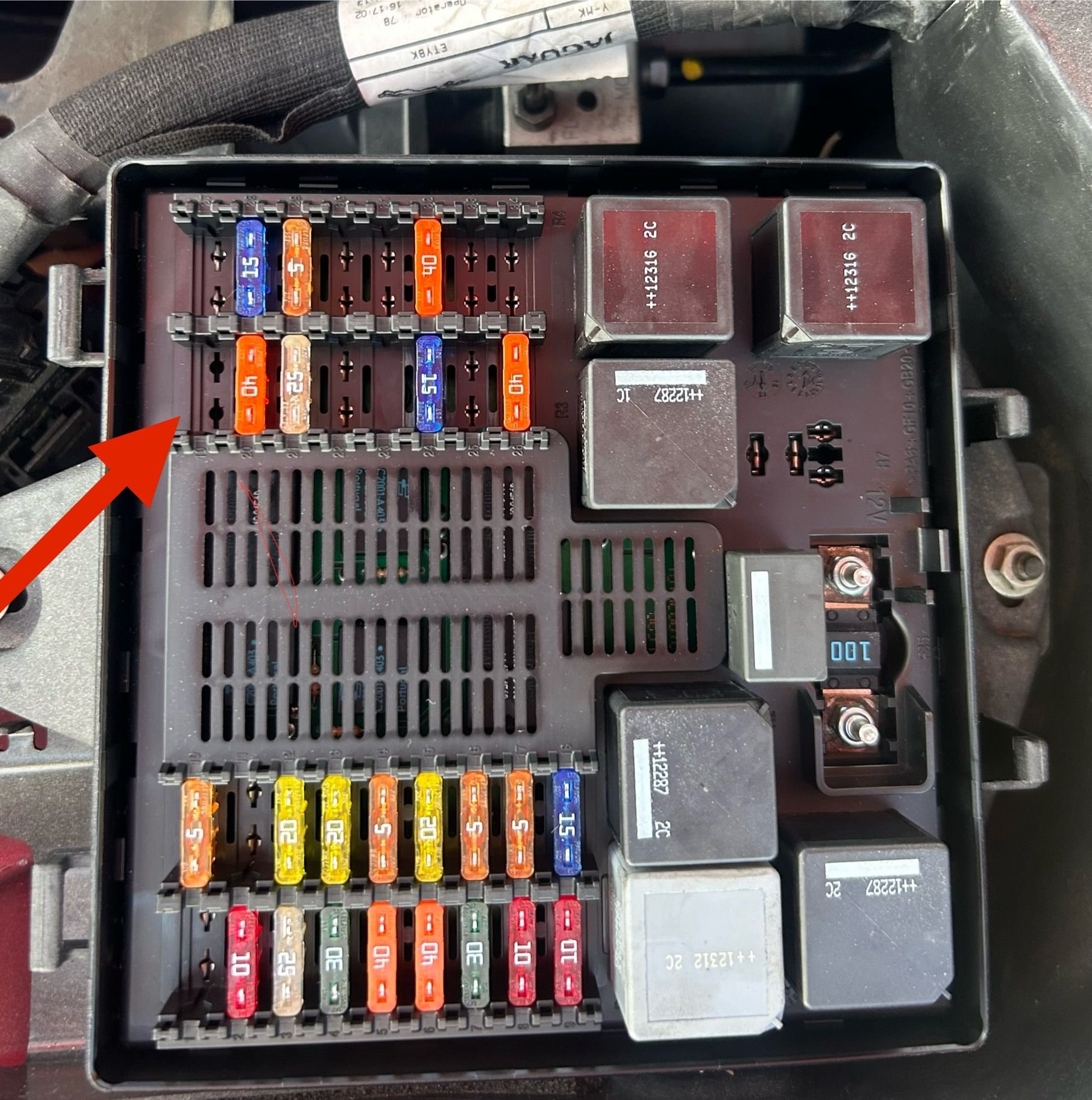

I found a diagram for the fuse box under the hood but it seems to be different from mine. I’ve seen pics from the 2011 and there’s a fuse where the starter is supposed to be. However on my 2015 there’s not a fuse and also no pin.

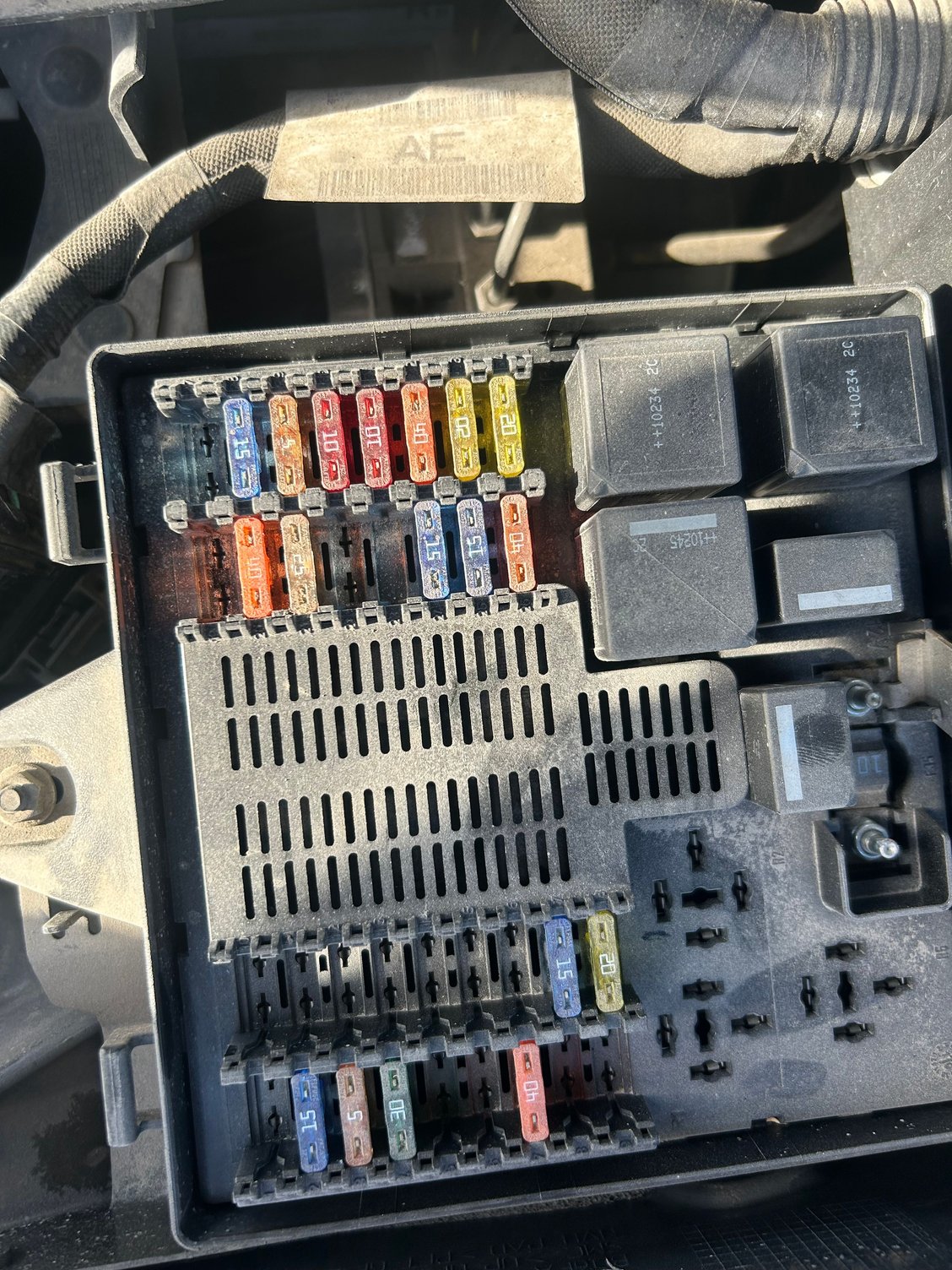

Is the layout different on the 2015? Please see the photo as an example of what I’m talking about.



The 2011 and 2015 do have a different layout. Wiring diagrams for each are in the stickies section of this forum.



I created an account for mediafire but all those links are dead.



Yes it's just too bad that Graham (GGG) has apparently left the forum and took all those documents down.
I have a manual that "supposedly" contains wiring diagrams. Now we need to be careful as I have a 2014 XJR and found my car was also different?
My tuner took pity on me and downloaded the correct section of the manual for my car from Topix. What I had was WAY off!
So you "might" need to sign up and pay for Topix until you find the correct wiring diagram for your VIN.

I will upload what I have with the caution I mentioned above? It looks like Jaguar made changes continuously thru the years so some confusion to be sure!
This is about 100MB in size and should be good for several days. See if it helps?

2014 XJ Manual with Wiring Diagrams
.
.
.
