12.935 @ 107.21mph - my XJR

Reply




  #1
Old 06-01-2013, 04:44 PM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default 12.935 @ 107.21mph - my XJR

Updated 19th April 2017 - go to post #31 for latest

That was my best (recorded) run today at Santa Pod.

60ft : 2.0218 sec
1/8 mile ET : 8.6073 sec
1/8 mi mph : 83.65mph
1/4 ET : 13.2541 sec
1/4 mi mph : 105.44

I say recorded because the timing system went down & one of my runs (which of course, felt like the best one) was lost by the system...

BUT i'm pretty happy with this result!!!

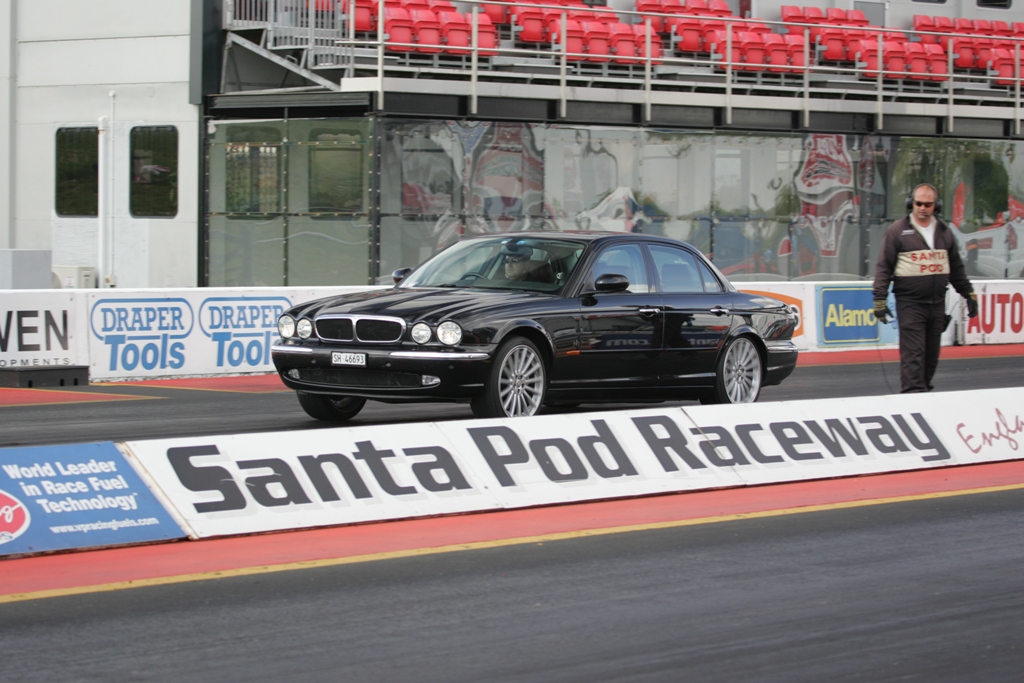

Attached Thumbnails 12.935 @ 107.21mph - my XJR-jl4c1374.jpg

Last edited by Cambo; 04-19-2017 at 06:12 AM.
Reply With Quote
The Following User Says Thank You to Cambo For This Useful Post:
WaterDragon (06-09-2013)
  #2
Old 06-01-2013, 09:25 PM
psg's Avatar
psg
psg is offline
Senior Member
Join Date: Dec 2012
Location: Calgary,AB,Canada
Posts: 198
Thanked 25 Times in 20 Posts
Default

That's pretty darn quick! What's the altitude at Santa Pod?

Stu

Reply With Quote
The Following User Says Thank You to psg For This Useful Post:
Cambo (06-04-2013)
  #3
Old 06-02-2013, 12:30 AM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

I'd have to look it up, it's in the Midlands so can't be too high up.

Got a video of that run;


EDIT

Oh and by the way, I had this car on a dyno last friday, will make a separate thread later, but it made 340.7HP at the wheels.


Last edited by Cambo; 06-04-2013 at 11:51 AM.
Reply With Quote
  #4
Old 06-02-2013, 01:32 AM
Veteran Member
Join Date: Jan 2012
Location: Sunshine Coast QLD
Posts: 1,167
Thanked 697 Times in 451 Posts
Default

Was that with the TC on or Off?


Cheers
34by151

Reply With Quote
  #5
Old 06-02-2013, 01:42 AM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

DSC off, Sport Mode off, e-brake holding me at the line & just floor it.

Had to warm the tyres up (actually ended up pulling rubber off the track & onto the tyres) and obviously the Quaife LSD did it's job.

Was really worried about traction but it wasn't too bad in the end. Could maybe get another tenth or two of the 60ft time with better rubber.


Last edited by Cambo; 06-02-2013 at 10:16 AM. Reason: tenth or two, not half-second!
Reply With Quote
  #6
Old 06-02-2013, 02:21 AM
Veteran Member
Join Date: Jan 2012
Location: Sunshine Coast QLD
Posts: 1,167
Thanked 697 Times in 451 Posts
Default

I would have thought Sport On, DSC off was best.
Have you tried that?

I would have held the footbrake till the converter engaged

Its good to work out what is the best off the line for the track

How do you keep the Ebrake on?
When you hit the gas it turns off the Ebrake, Do you keep the button depressed to do that?

Cheers
34by151

Reply With Quote
  #7
Old 06-02-2013, 03:06 AM
steveinfrance's Avatar
Veteran Member
Join Date: Dec 2011
Location: Limousin, France
Posts: 6,282
Thanked 679 Times in 587 Posts
Default

Originally Posted by psg View Post
That's pretty darn quick! What's the altitude at Santa Pod?

Stu
92 metres - 300`-most Brits need oxygen over 100M (said smugly from 500M)

Reply With Quote
  #8
Old 06-02-2013, 10:14 AM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

Originally Posted by 34by151 View Post
I would have thought Sport On, DSC off was best.
Have you tried that?

I would have held the footbrake till the converter engaged

Its good to work out what is the best off the line for the track

How do you keep the Ebrake on?
When you hit the gas it turns off the Ebrake, Do you keep the button depressed to do that?

Cheers
34by151
I tried in Sport mode later in the day, one run was bad 13.7 or so because of a bad launch (2.5s 60ft time) and the other was similar 13.28, and mph was the same in the afternoon, so heat-soak didn't seem to be much of a problem. I could not see any advantage to sport mode in this case.

I could probably get a 13.1 out of the car as-is with some more practise.

The e-brake is simple. Pull it up to activate & it holds the car on the line at idle, foot off the brake pedal, & just get on the gas when you see the yellow light on the tree. You launch from idle. See the video it hooked up pretty well, didn't bog down badly or anything.

I tried left foot braking & loading up some revs, just resulted in massive wheelspin. My tyres were pretty bad, I think with some good, soft, wide rubber (thinking 285/40/18 on some late 2010 onwards X150 rear alloys) the load up with left foot braking could be more effective.

The e-brake slows down the reaction time (one of the other guys yesterday did 3 runs using e-brake, 3 using foot brake, & foot brake was a bit quicker on the RT) but just going for an ET on paper, the RT doesn't matter too much.

You have to heat up the tyres though....

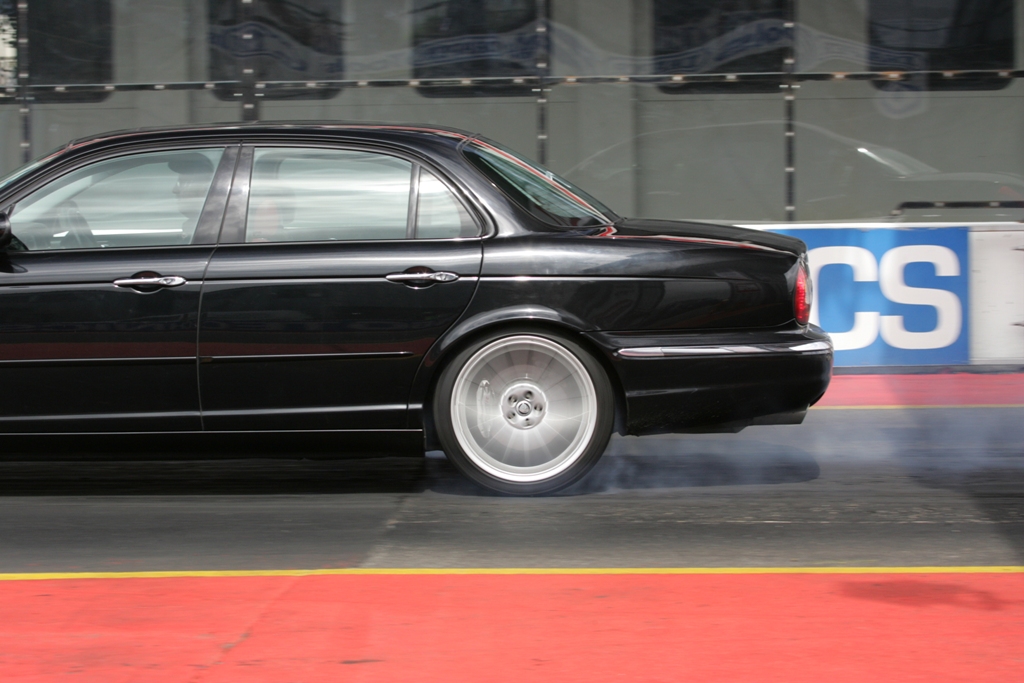

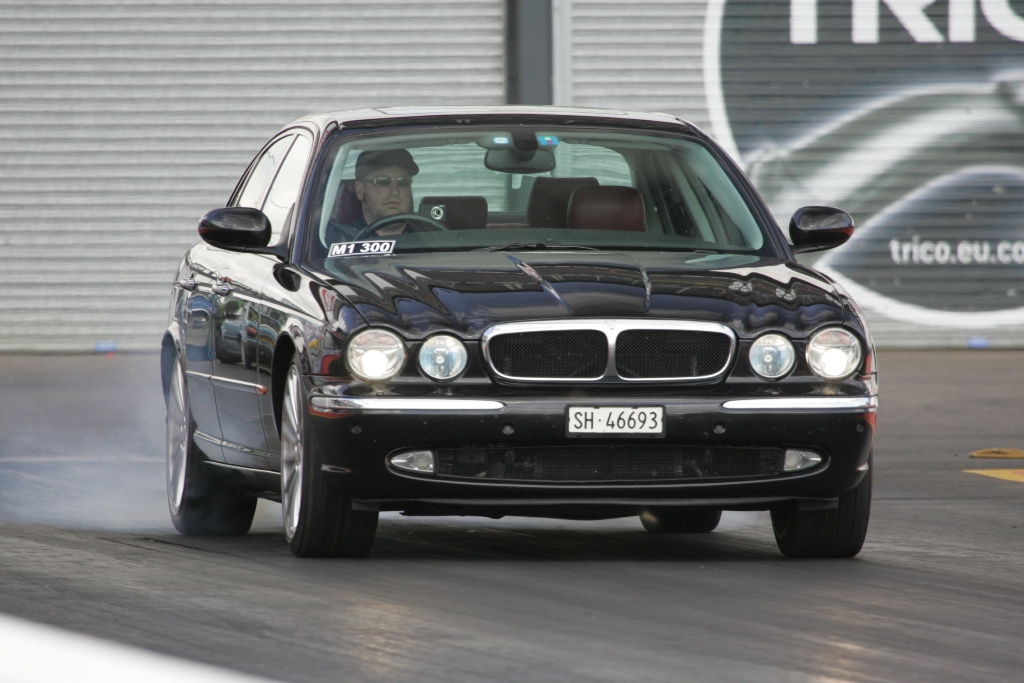

Attached Thumbnails 12.935 @ 107.21mph - my XJR-jl4c1114.jpg   12.935 @ 107.21mph - my XJR-jl4c0201.jpg

Last edited by Cambo; 06-02-2013 at 10:29 AM.
Reply With Quote
  #9
Old 06-02-2013, 11:53 PM
Sarc's Avatar
Veteran Member
Join Date: Oct 2008
Location: San Jose, CA, USA
Posts: 1,919
Thanked 504 Times in 326 Posts
Default

I love it ! The supercharger sounds fabulous on the video.

As you say, not a lot of fuss, just a lot of speed.

Reply With Quote
The Following User Says Thank You to Sarc For This Useful Post:
Cambo (06-04-2013)
  #10
Old 06-03-2013, 05:06 PM
Member
Join Date: Jan 2012
Location: Winnipeg
Posts: 37
Thanked 4 Times in 4 Posts
Default

Mmmm that supercharger whine is glorious.

Reply With Quote
The Following User Says Thank You to 04XJwpg For This Useful Post:
Cambo (06-04-2013)
  #11
Old 06-04-2013, 06:43 PM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

Thanks guys.

So I was going to make another thread about the dyno run, but I may as well put it here too...

Was dyno'd in the UK, on a (proudly) Australian-made Dyno Dynamics rig.

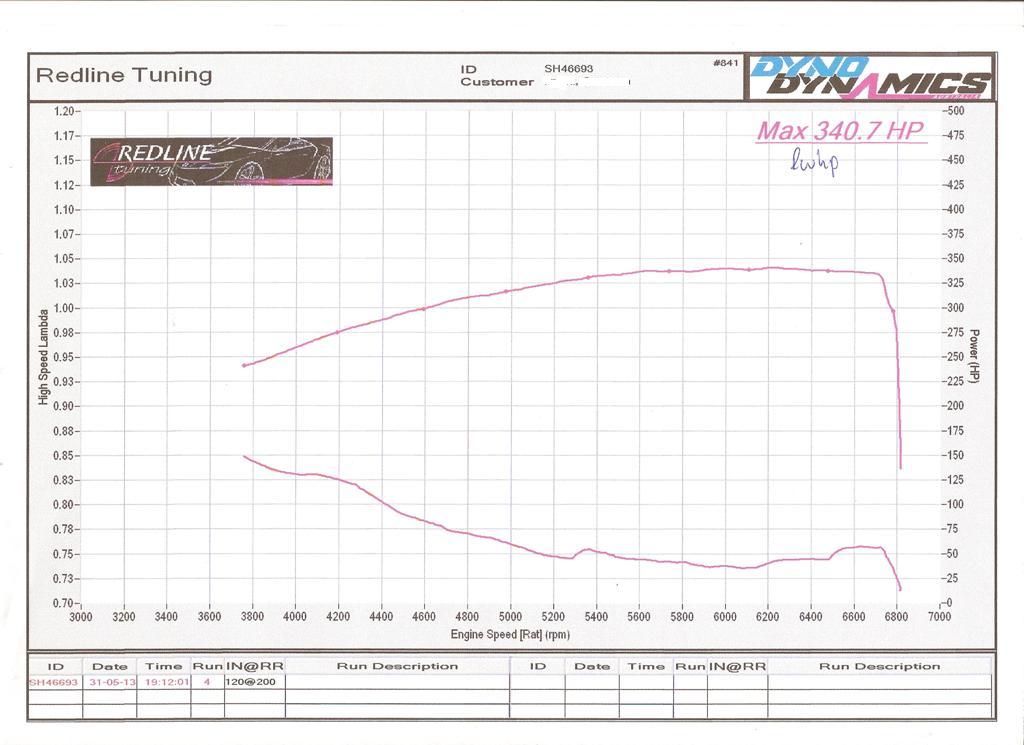

Here is the sheet from the best run. A couple of things to point out though...

- The rpm indication is ~300rpm too high, since the Jags have coil-on-plug ignition, it's not possible to get a precise rpm measurement, the dyno calcuates it.
- Altitude is approx 50m above sea level
- Ambient temp 21C, humidity ~60%
- The HP figure is at the wheels
- The 2nd curve was the measured Lambda, for air-fuel-ratio at tailpipe.



The dyno actually came up with a figure at the flywheel of 420.1HP, however I questioned the operator about the drivetrain losses because I saw another X350 XJR have measured losses of 21%. The operator said 22-23% is common. If we take 21% then that makes ~432HP at the flywheel. The 420HP figure suggests losses of around 19.25%, which is lower than previously seen, as well as what the operator suggested.

In any case, somewhere around 432HP at the flywheel is as good a guess as possible...

The first couple of runs were done with the bonnet open, and the engine cover removed, not ideal but I really wanted to hear the supercharger

As it turns out, the engine made 20HP less at the wheels like that. With the engine cover replaced & the bonnet closed, it did that last run as per the sheet above.


We could not get a measurement out of the left side exhaust above ~3000rpm, the exhaust gas flow was there at idle, & low revs, but dropped away at full throttle. The back box is damaged & choking the engine I did actually smash the left back box by driving over a kerb in a petrol station not long after I bought the car (one of the dangers of driving RHD car in a LHD country) but I thought it was OK, apparently not...gas flow out the right side tailpipe was fine...

Sooo...to sum up the car

98'500 miles on the engine (at the time)
New Denso Iridium plugs only 2500miles old
3lb upper pulley, Bosch 010 intercooler pump
Qwiketz intake elbow, K&N filter, WOT flap removed from airbox
Original cats, original exhaust, with a collapsed back box

Regarding the AFR's, the operator described them as "rich as F#&%!" and that another 15-20HP could be had from a tune.

As for the exhaust, well the damaged back box must be costing me something, and the original cats...well who knows for sure? There's still a bit to be had from the old girl yet!

Looking at globlue90's charts as a benchmark https://www.jaguarforums.com/forum/s...-thread-79842/ it seems that my power curve flattens out whereas his just keeps on going up, spinning the Eaton too fast? Exhaust/cats holding it back?

Whatever the case, i'm happy with the numbers so far, especially with those miles. Just look at the 1/4 mile results!

Attached Thumbnails 12.935 @ 107.21mph - my XJR-dyno%252031%252005%25202013.jpeg
Reply With Quote
  #12
Old 06-04-2013, 11:06 PM
psg's Avatar
psg
psg is offline
Senior Member
Join Date: Dec 2012
Location: Calgary,AB,Canada
Posts: 198
Thanked 25 Times in 20 Posts
Default

Also impressive to me is how flat the power curve is, very impressive, 300hp at 4600! Well done.

Stu

Reply With Quote
The Following User Says Thank You to psg For This Useful Post:
Cambo (06-05-2013)
  #13
Old 06-05-2013, 03:35 AM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

Actually it was lower revs than that, the rpm scale is out 300-500rpm (not sure exactly) cause there is no way it runs to 6700rpm like the chart shows.

Reply With Quote
  #14
Old 06-05-2013, 07:22 AM
Michael Star's Avatar
Veteran member
Join Date: Sep 2010
Location: Bowling Green, KY
Posts: 2,327
Thanked 244 Times in 215 Posts
Default

Very nice! What tires do you currently have? Some good DRs would make a world of difference. I wouldn't go wider, just something more sticky

Reply With Quote
  #15
Old 06-05-2013, 10:10 AM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

Tyres are 5-year old Falken FK452's, 255/35R20, they are pretty hopeless on the street if i'm honest. Trying a launch like that at a traffic light will only result in wheelspin & very little forward motion.

I burned them up pretty hard for the first run, & moved well out of the box, this pulled a lot of rubber off the track & onto the tyres (the starter actually came over & told me off for doing it) but it got them fairly sticky. After that I only did small short burnouts like in the video.

Wider & stickier is the way to go for me!

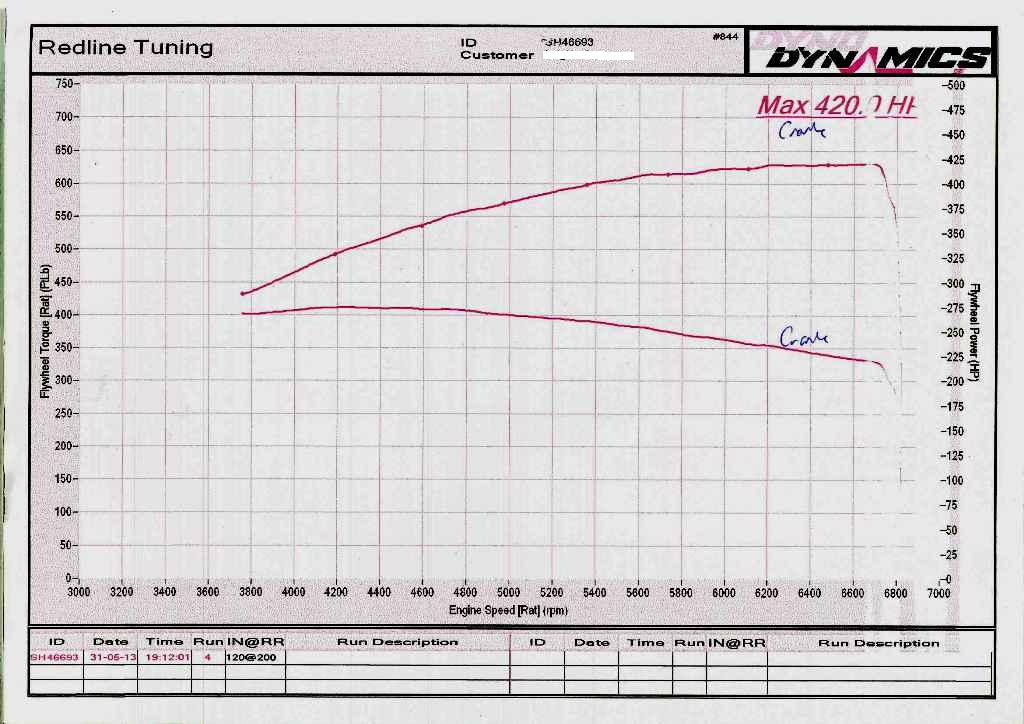

GT42R wanted a dyno printout showing the torque, here it is;



Don't forget the rpm scale is out by a few hundred revs, i'd probably take 500rpm off.

Attached Thumbnails 12.935 @ 107.21mph - my XJR-xjr%2520dyno%2520flywheel.jpg
Reply With Quote
  #16
Old 06-05-2013, 11:24 AM
Senior Member
Join Date: Jun 2012
Location: newcastle
Posts: 291
Thanked 134 Times in 81 Posts
Default

The wider tyres on the back of mine have definately helped with grip, alot less intervention from the traction and car tries to break out less going around corners.

I would say wider would definately help on launches at the strip.

Reply With Quote
  #17
Old 06-06-2013, 04:14 AM
Veteran Member
Join Date: Jan 2012
Location: Sunshine Coast QLD
Posts: 1,167
Thanked 697 Times in 451 Posts
Default

Cambo,

It will be interesting to see what my xjr does after the new cats are in as both of our cars are so similar in mods

I will get reports after the cats are done (2 weeks) as this weekend is a long weekend and im going flying rather than work on cars!!!

The 101 pump, belts and pulley will go on after that

Do you really thing the flap removal has a benefit?

Cheers
34by151

Reply With Quote
  #18
Old 06-06-2013, 04:46 AM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

Originally Posted by 34by151 View Post
Do you really thing the flap removal has a benefit?
Gives more blower whine!

Reply With Quote
  #19
Old 06-06-2013, 05:49 PM
Senior Member
Join Date: Apr 2013
Location: Versailles, Ky.
Posts: 104
Thanked 15 Times in 15 Posts
Default

Very impressive drag strip times for a big car!! What modifications do you plan next? Are you going to attempt to get into the 12 second range?

Reply With Quote
  #20
Old 06-07-2013, 01:45 AM
Cambo's Avatar
Thread Starter
Join Date: Jan 2011
Location: Sydney, Australia
Posts: 8,028
Thanked 3,398 Times in 2,054 Posts
Default

Sure it's big, but it's not exactly heavy, which helps a lot.

I'm as it's damaged, i'm going to have to do something about the exhaust.
New cats & a free-flowing system are on the cards once it gets down to Oz.

I also have a set of new 255/35R20 Mickey Thompson Street Comps waiting down under, which will also help i'm sure.

12's would be nice, and it looks to be within reach

Reply With Quote
