Default Engine sensor/ Does anyone know what this controls.

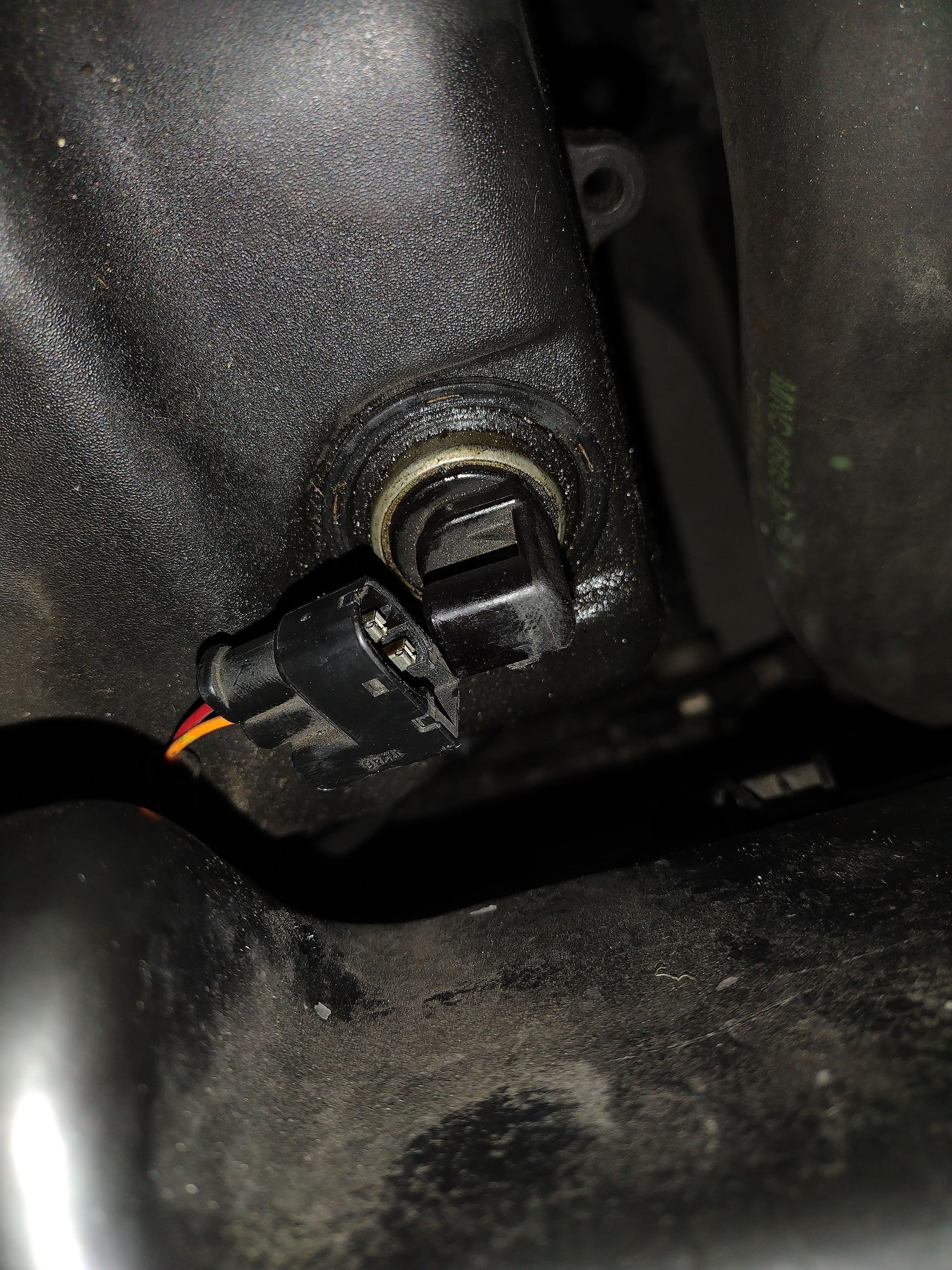

Left side of engine. Sensor desinegrated upon dislocation.
Left side of engine. Sensor desinegrated upon dislocation.
What does this sensor affect? Right side of engine.
What does this sensor affect? Right side of engine.

Reply
Old Dec 15, 2024 | 06:38 PM
  #2
h2o2steam's Avatar
Veteran Member
Community Builder
Liked
Loved
Community Favorite
Joined: Feb 2021
Posts: 6,394
Likes: 2,241
From: Christchurch
Default

Looks like your cam position sensors if these are at the rear end of your cam covers.
Red and Yellow wires are to the right bank, whereas Brown and Green wires are to the left bank according to my schematic (2006 N/A model).
You haven't stated year or engine type, so I don't know which exact schematic to reference for wiring colour codes.

Any of these plugs in the engine bay are getting brittle now......not uncommon to have the locking tab snap when you try to release the connector.
Sometimes some heat on the connector will make it supple enough to release without failing.


Last edited by h2o2steam; Dec 15, 2024 at 06:41 PM.
Reply
Old Dec 15, 2024 | 07:16 PM
  #3
motorcarman's Avatar
Joined: Dec 2009
Posts: 13,699
Likes: 9,645
From: Wise County,TX
Default

The VVT ACTUATORS are not sensors, they are ACTUATORS.
They control the oil flow to the Variable Valve Timing components on the camshaft.

The SENSORS are located on the back (rear) of the cylinder head.

Reply
Old Dec 16, 2024 | 07:27 AM
  #4
EsRay's Avatar
Veteran Member
Joined: Oct 2017
Posts: 1,302
Likes: 218
From: Dubai
Default

+1 on Motorcarman if these are at the front of your Cam Covers...VVT Actuators.

Reply
Old Dec 16, 2024 | 09:13 AM
  #5
Wingrider's Avatar
Veteran Member
5 Year Member
Liked
Loved
Community Favorite
Joined: Sep 2016
Posts: 3,481
Likes: 879
From: Stow Ohio
Default

Same as me, always thought this was the fromt of the engine.

Reply
Old Dec 16, 2024 | 02:13 PM
  #6
h2o2steam's Avatar
Veteran Member
Community Builder
Liked
Loved
Community Favorite
Joined: Feb 2021
Posts: 6,394
Likes: 2,241
From: Christchurch
Default

Thanks for the correction Motorcarman, the wiring colours don't seem to match VVT, but we don't know which engine nor year from OP, so that might be a red herring.

Reply
