Hello.
I've been working on off style couple of days now with the 2004 xj8. Car worked correctly until owner tried to replace instrument cluster from miles to kilometer -one. That did not work of course without coding. He did not knew this and tried another mile cluster. This time car went totally haywire. When I stepped in he had tried somekind of coding and message center in the IP now displayed CONFIG D R and some other letter. After four completely full day of coding in somewhat correct order all of the car modules back to work I have now in state where only IP, DDM and ECM has config error fault code. And AUD, but that is not snifigant in this matter. Abs unit was shorted and that gave nice difficulty level increase to diagnose why voltages goes down two times every time when key was turned to RUN position. ABS module is now replaced and coded in to the car and it is sorted.
Code in DDM is config error. Propably just because it has keyfobs coded, but no transponders.
Instrument Pack has U1262 SCP bus error. I used oscilloscope with VMM to look it and bus is allright what comes to voltage levels in high and low states. So this tells me that this is consequence fault code what comes when some other device in bus is not working propely(has errors in its own area and yells to bus wrong bits). Car has now propely coded KMH instrument pack and that too shows same U1262 fault code.
ECM has security input P1262 code. That is general pats code. And most likely it is now cause transponder coding does not pass.

The amount of reading about x350 control module coding in tsb and teaching materials is vast. Still ids/sdd gaves me error every time transponders are about to code.

What happends is ids deletes current transponder codes and asks first key to code. I insert it and turn it to RUN position as instruction says. After first key it asks second one and so on. Next it shows result that is Key not programmed. Next screen says that 2/2 keys are programmed. That is clearly wrong

I have measured with an oscilloscope that there is data signal between transponder ring and IP when key is inserted and turnet to RUN position. Verified too with the keyfob tester that has test to this. Replaced the lock, ring and keys with another one and that did now make any difference. Ring is wired straight to the IP. IP reads the key and communicates with the ECM.
We have IDS 118.5, SDD v160, Mongoose, WDS v43, VCM and VMM. Plus other measuring devices ofcourse.
There is a TSB etc where it says something about key not progrmmed because bad connector pin in a footwell connector. I can not find it.

Where to go next ?

Car is 2004 Standard wheelbase 4.2 V8 sold to USA, imported to Finland. Wds finds it as 2003.5 and sdd as 2004.



VID block cars are sensitive about modules being replaced, especially USED modules.(corrupted VID block?)



I've done the coding by the vid block pdf. From that I got the coding order information. ETN mode in IP is new to me. Have to try that. Poor pin connection tsb is read but "skipped" as bus is okay and no bus related codes anywhere. Yep it is known that used parts may be difficult to get work. VID Block can be faulty easily. But how it is can be straighen up ? As civilian I bet that I can not sent vid block dump to Jaguar. And hypotetically if that is possible and they sent original back. How I can upload it to ECM ? Wds Engineering mode ?



I added the definitions for the INSTPK PECUS letters



Thanks. Glad that phase is behind us now and none of those letters are shown anymore. Gosh that took hours and hours to figure out.



As a reference here are VID Block Manager related PDF's I have found. Unfor I have not ever got my hands to install floppy. Nor these tell how VID Block is actually sent to car :-( But ... The document "1-186 VID block.pdf" above, Issue 1 - Resolution 2 says constructed VID Block should be possible to be uploaded to car with WDS.


It is also goot to notice about WDS needs newer DLC (OBD2) Cable A-280 (5 meters) or A-259 (3 meters) when VID Block enabled cars are worked with.



There are two different applications of VID Block Manager.

I have the Windows 98 (VBM98 for WDS) and Windows XP (VBMXP for IDS) application tools if you need to install on the computer.



Yes please.



The guide file is too large to upload here.
Gus has it on his site.

Please read

688-JAG: Advanced Electrical Systems and Diagnostics

Pages 3-6 to 3-11 for VID block info.



That was ton of useful information. Some I've gathered already. Thanks.



In co-operation @Vauxi we "found" those manager installers and tested them. In short they create folder "Session" and sub-folder with car VIN last 6 digits eg to USB stick "E:"

​​​​​​E:\Sessions\016988

VID Block Manager for WDS PDF says you do this process _after_ you have received modified VID Block from Jaguar.

And same PDF says programming vague "done with diagnostic tool and published procedures". Would be nice to see those publications!

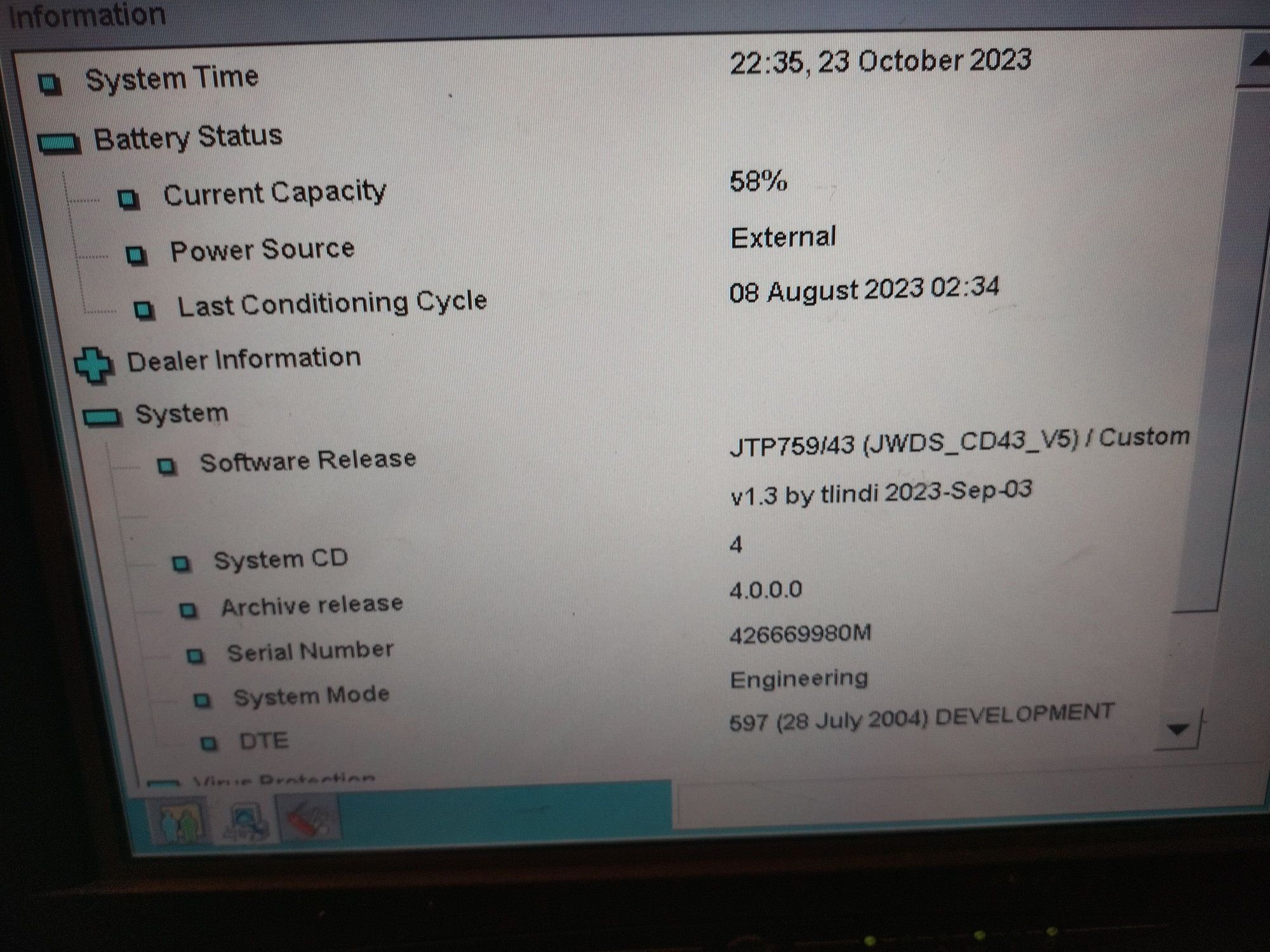

I have a screenshot from WDS on Enrineering mode, which I guess is one of those "procedures".



I only ever called Jaguar Tech Line about the VID block one time and did the download to send to Jaguar engineers for repair.(don't remember how it got 'corrupted')

Jaguar sent the repaired VID block back and got it uploaded to the car.

This was almost 2 decades ago and I don't remember exactly how I did it but Tech Line guided me through.

I think the VID block is hexadecimal and SUPPOSEDLY you can modify/change the VID block with a simple word editor. (Notepad/Wordpad?)
I did not modify, just download/upload.
Been a long time ago since I went through all this.



Okay. I'll write here next time I'll be with the car. It may take weeks.



Just a quick note, the VID-block can be edited with WDS on it’s Engineering mode.



I have a question.
I would like to replace the cluster, currently I have damaged fuel gauge. I bought second cluster from the aftermarket and would like to install it.
I understand that I will have to program it as a new module after installation in the car.
Can I expect any surprises? I don't know if I should do it myself
I have the latest offline version of JSD, 9-digit number from the trunk and two key fob.

Thank you,



You need:

1. Full car battery
2. Battery maintainer with supply mode where it keeps battery voltage over 12.7V without exeptions. It must have more than 20A as minimum continuous amperage.
3. Two key fobs
4. Depending the xj age, you NEED ids 118.5 or later or sdd v130 or later.
5. Genuine VCM, Mongoose or WDS
6. Two ignition keys
7. Neither previuous keys or fobs must not be cloned ones
8. Keyfobs has to have working battery in them and of course working buttons.
9. Confiqure instrument pack as new
10. Odometer may or will be off.
11. Be absolutely sure that you have selected correct equipment when you entered the vin at the session start in the SDD.
12. Be patient, do not horry and do not skip any of the instructions that SDD gives you.
13. Follow the instructions throughly. If it says to turn off the key and leave it in the barrel. You must do so etc.

There you have some.



thanks!

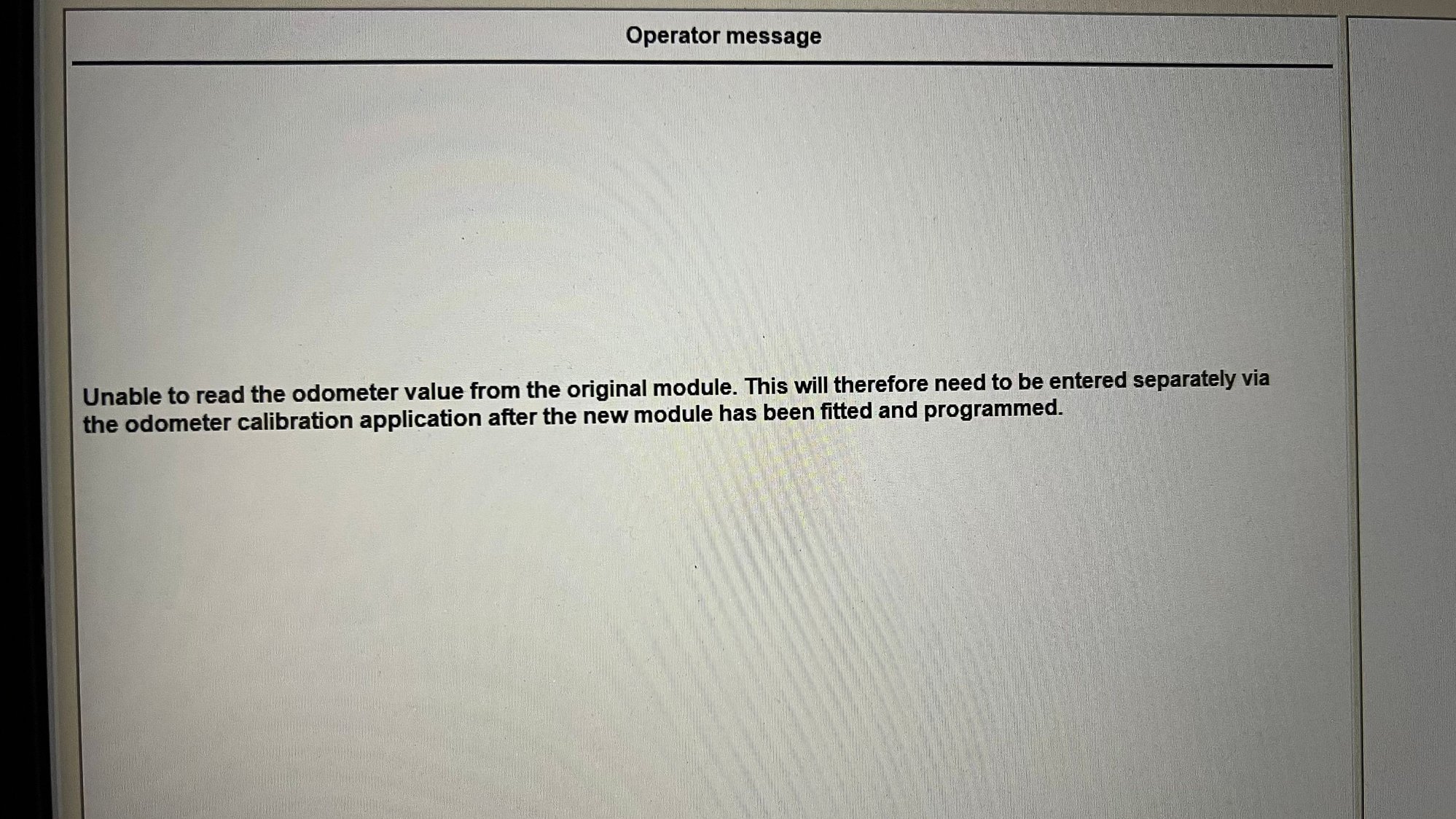

Today I started programming the cluster. Unfortunately it didn't work, I get this information from the SDD
Does anyone have an idea how to proceed with this?

XJ x350



That says to me that ip config went allright except odo count. Odo calib is in engineering mode behind a password.



Please tell me where in engineering mode I can find this option to set the odo on the new cluster.
Will this be in the CCF editor?

Thank you
