O2 Sensor replacement
#1
O2 Sensor replacement
So a while back I took my '96 XJ6 LHD to the dealer after replacing the TPS and IACV for an orientation. They told me they could not complete it because one of my O2 sensors, specifically the sensor in Bank D, needed to be replaced. Does anyone know which of the 4 is bank d? And what is the best o2 sensor to replace it with? Thanks guys!
#2
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
I've not heard of "D Bank"
Cylinders 1-3 would be "Bank 1" or perhaps "A Bank". Cylinders 4-6 would be "Bank 2" or perhaps "B Bank"
The upstream sensor for each bank is "Sensor 1". The downstream sensor is "Sensor 2". So, in the nomenclature I'm accustomed to, you might have (for example) a "Bank 1, sensor 2" problem.
Cheers
DD
Cylinders 1-3 would be "Bank 1" or perhaps "A Bank". Cylinders 4-6 would be "Bank 2" or perhaps "B Bank"
The upstream sensor for each bank is "Sensor 1". The downstream sensor is "Sensor 2". So, in the nomenclature I'm accustomed to, you might have (for example) a "Bank 1, sensor 2" problem.
Cheers
DD
#3
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
#4
Ok thanks for the info DOug! I will be purchasing that o2 sensor on amazon.
Amazon.com: Bosch 13789 Oxygen Sensor, OE Type Fitment: Automotive
Amazon.com: Bosch 13789 Oxygen Sensor, OE Type Fitment: Automotive
#5
I just replaced one of the down stream sensors with that exact one from amazon, i can confirm it is the correct one also you may want to take this time to relocate the O2 sensor connectors that are on the rear of the engine THEY ARE A PAIN TO GET TO.
Here is a basic procedure for that O2 sensor connector move
O2 SENSOR MOVE
Here is a basic procedure for that O2 sensor connector move
O2 SENSOR MOVE
The following 2 users liked this post by prestone08:
ajoseandres (10-10-2017),
etaent (06-10-2013)
#6
I am replacing the sensor in bank d and thought Id share this image which shows where the o2 sensors are and their identification
1997 Jaguar XJ-page-001 | Flickr - Photo Sharing!
1997 Jaguar XJ-page-001 | Flickr - Photo Sharing!
The following 2 users liked this post by etaent:
ajoseandres (10-10-2017),
hailcesarz (08-11-2014)
#7
wondering if anyone has any special tips or trick tools they use to remove the bank 2 downstream sensor... everything is so tight from under the car it impossible to get an open ended wrench on the sensor... I do agree the wires routed along the back side of the engine are a bit of pain - routing the wiring is not bad but undoing and redoing the connectors on the drivers side rear is an ugly procedure..
Trending Topics
#8
#11
#12
With the trouble you are going through I would the ask the mechanic specifically why the sensor needs to be changed . Could be he just threw something at you like a kanuter valve . The wires get easily crossed and it could if there is an issue with the sensors be as simple as reconnecting to the correct position . I'll look it up later .
Is the issue as you try to remove them a mater of leverage or can't get an open end on it ? With leverage you can take a second open end and hook it into the box end of the first . Be carefull as you do this as if you are a small angle off a flat plane of the 2 it will decouple and rip the skin off you're knuckles . Ware a glove .
I used a crescent wrench inside a short pipe I beat into an oval shape .
My sensors are off so I'll get you the size .
Soak with some penetrating oil overnight or heat it up around it with a propane torch . The little ones are cheap and handy other then the traditional large bottle ones .
If the threads are galled ( common as mine are and advice from a muffler shop ) as you get it out I would be hesitant to put a new sensor in a bad hole hense returning to the reason for removal and correct connector location .
Antiseize
On the AJ16 engine the #1 cylinder is the forward most position ( opposite of the AJ6 ? ) . So the B1S1 ( bank 1 sensor 1 ) is on that pipe forward of the forward Cat . On the ECU side of the connectors they have the same wire colors with exception of the one important return signal wire to the ECU . B1S1 Green , B2S1 Brown , B1S2 Blue , B2S2 Red . Best to follow with hands and eyes to the installed pipe position . Look for some corrosion of the B1S2 and B2S2 connectors behind the back of the valve cover .
The crush washers can be sourced from a 12 mm spark plug . I have a cheap Motorcraft plug # but will have to find it
Torque Adaptor is another tool you can use .They come in different lengths of 3 and 6 inch and open end is available but are not safe as they slip off the item as you lose track of the force applied angle . Recommend 6 point before the points are damaged .
https://store.snapon.com/Torque-Adaptors-C796465.aspx

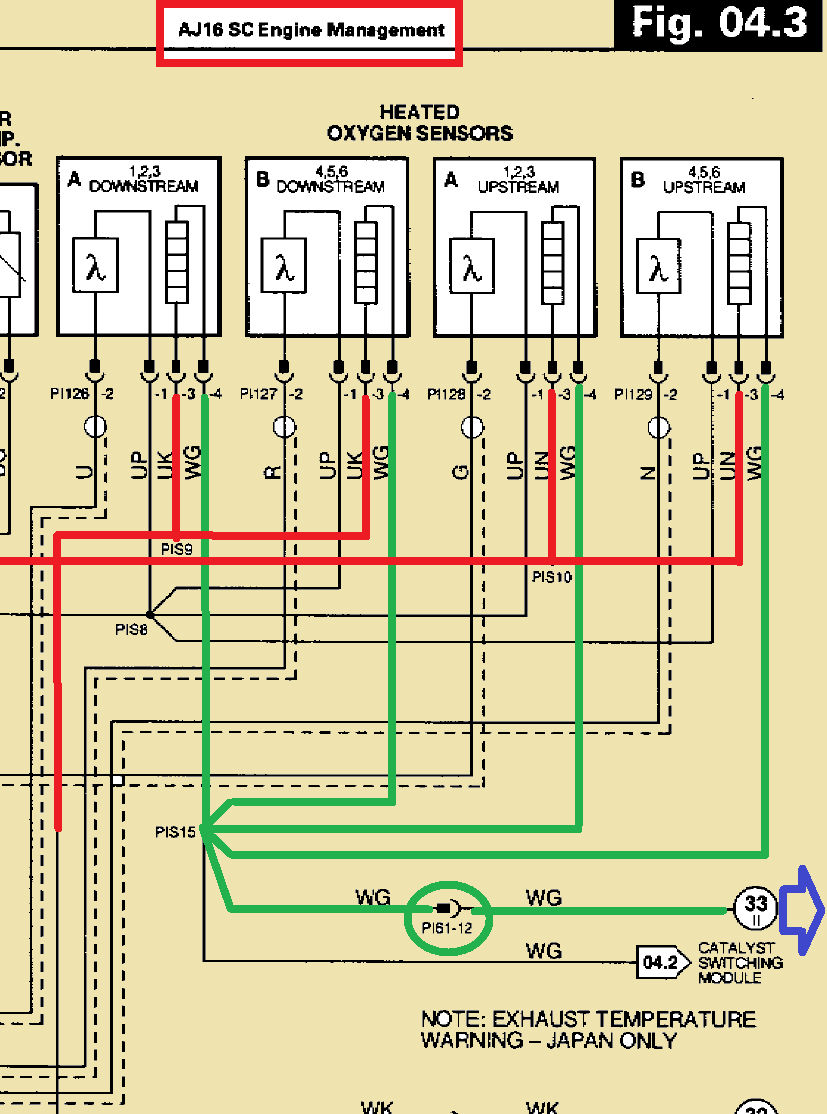

Ref wire diagram .
