What’s this brown wire for in the trunk?

Thread Tools

Search this Thread

Old Oct 23, 2021 | 11:04 AM
  #1
95x300's Avatar
Thread Starter
|
Junior Member
Joined: Oct 2021
Posts: 15
Likes: 1
Default What’s this brown wire for in the trunk?

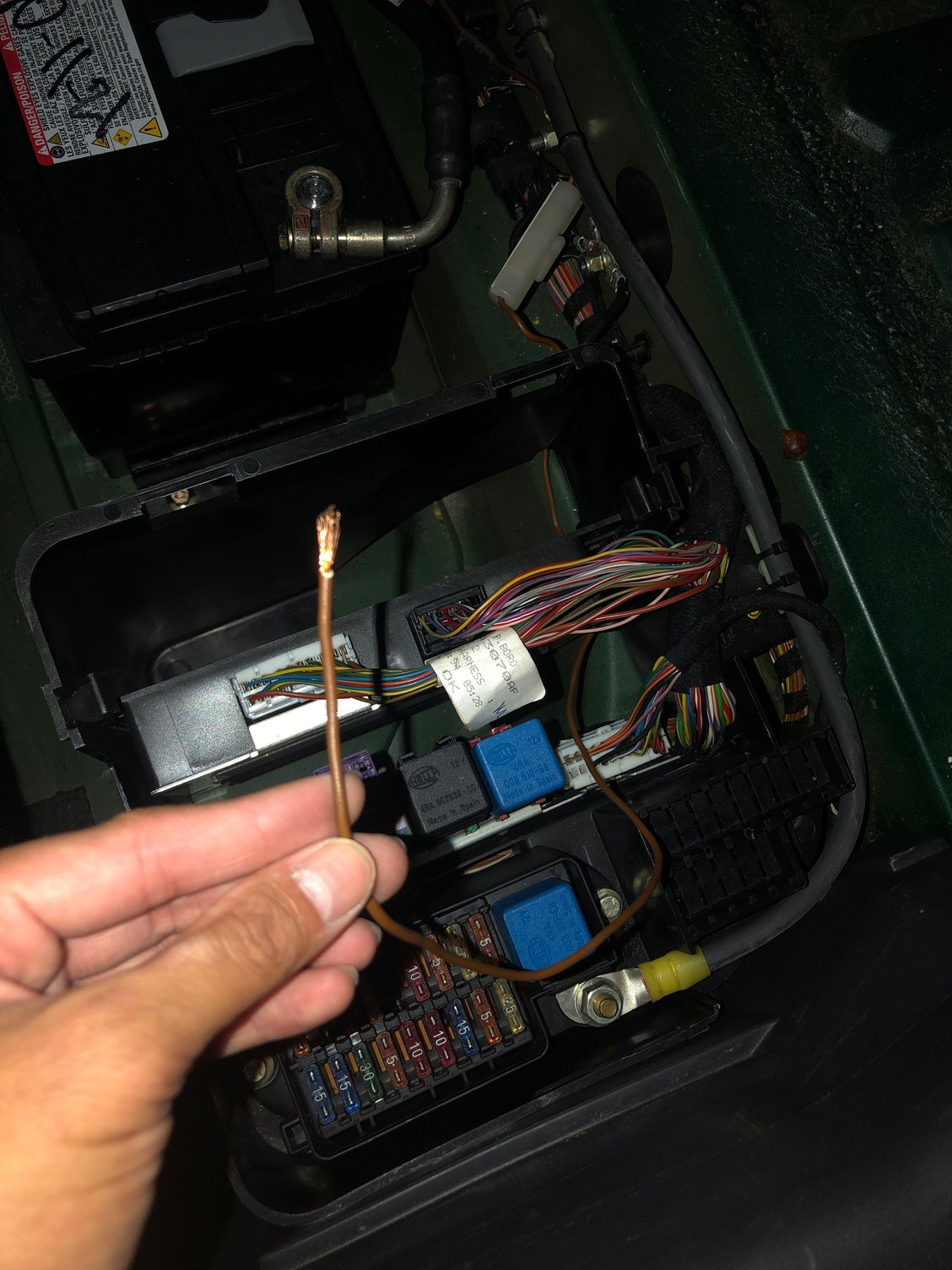

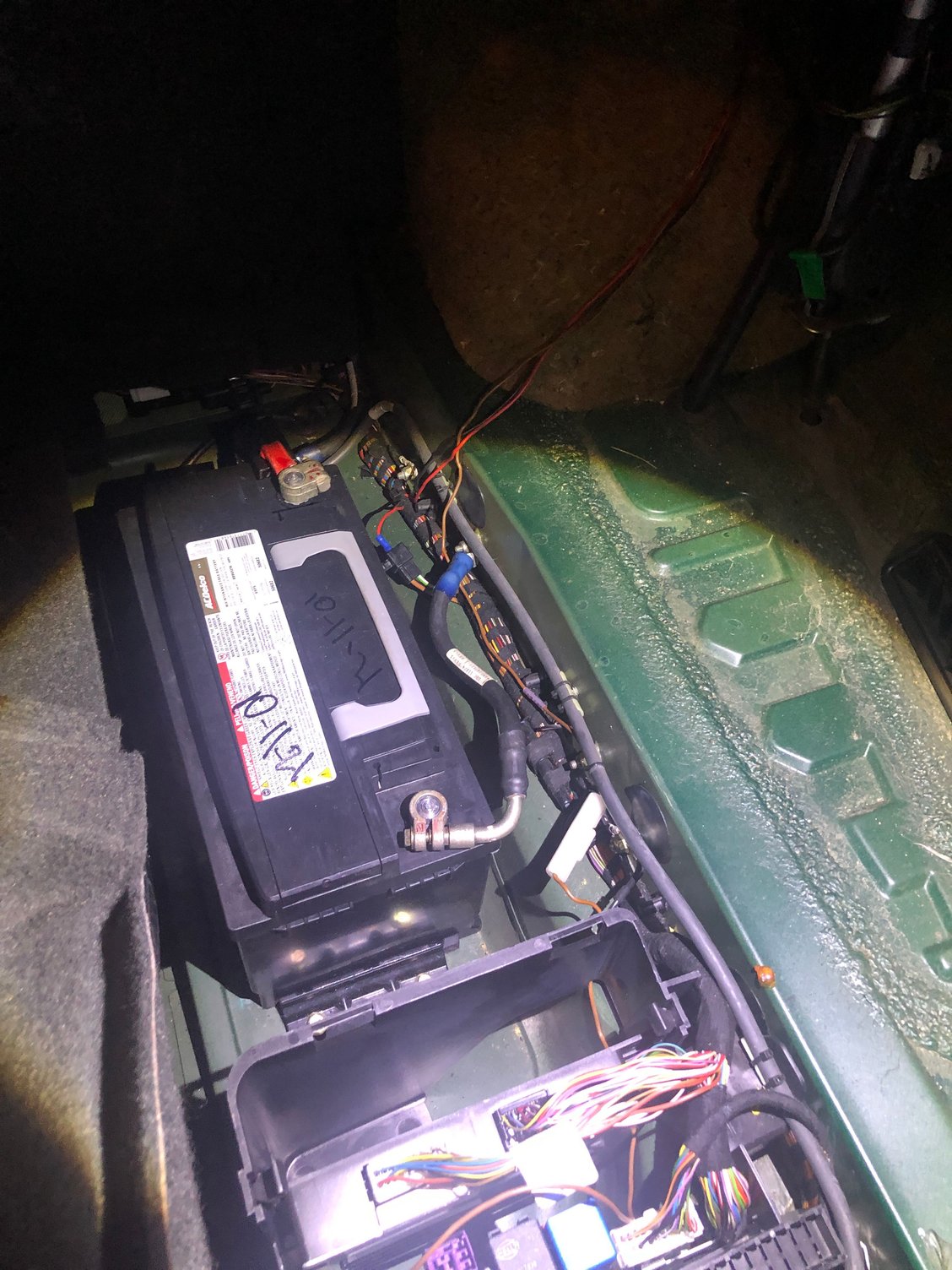

It’s just hanging out there in the luggage compartment fuse box



Reply
Old Oct 23, 2021 | 11:06 AM
  #2
Parker 7's Avatar
Veteran Member
Liked
Loved
Community Favorite
Joined: Aug 2021
Posts: 4,649
Likes: 1,317
From: Kansas City
Default

There was some sort of diode for shipping the car and was removed by the dealer

I can be wrong

I saw it somewhere in a document

I think a diode was attached to the battery positive post

Can you tell the other attach point ?


Last edited by Parker 7; Oct 23, 2021 at 11:33 AM.
Reply
Old Oct 23, 2021 | 08:37 PM
  #3
95x300's Avatar
Thread Starter
|
Junior Member
Joined: Oct 2021
Posts: 15
Likes: 1
Default

Originally Posted by Parker 7
There was some sort of diode for shipping the car and was removed by the dealer

I can be wrong

I saw it somewhere in a document

I think a diode was attached to the battery positive post

Can you tell the other attach point ?


It goes all the way to the passage side ?

Reply
Old Oct 23, 2021 | 08:38 PM
  #4
95x300's Avatar
Thread Starter
|
Junior Member
Joined: Oct 2021
Posts: 15
Likes: 1
Default

My truck release button is not working..not sure if that’s the reason?

Reply
Old Oct 29, 2021 | 01:27 AM
  #5
Parker 7's Avatar
Veteran Member
Liked
Loved
Community Favorite
Joined: Aug 2021
Posts: 4,649
Likes: 1,317
From: Kansas City
Default

See page 32 lower left corner of page

Any hint that it is brown / black stripe wire ?

The wire in question may not be a accurate color code as this wire is a by the way , put this in there

Motorcarman ( Bob ) would know more about this

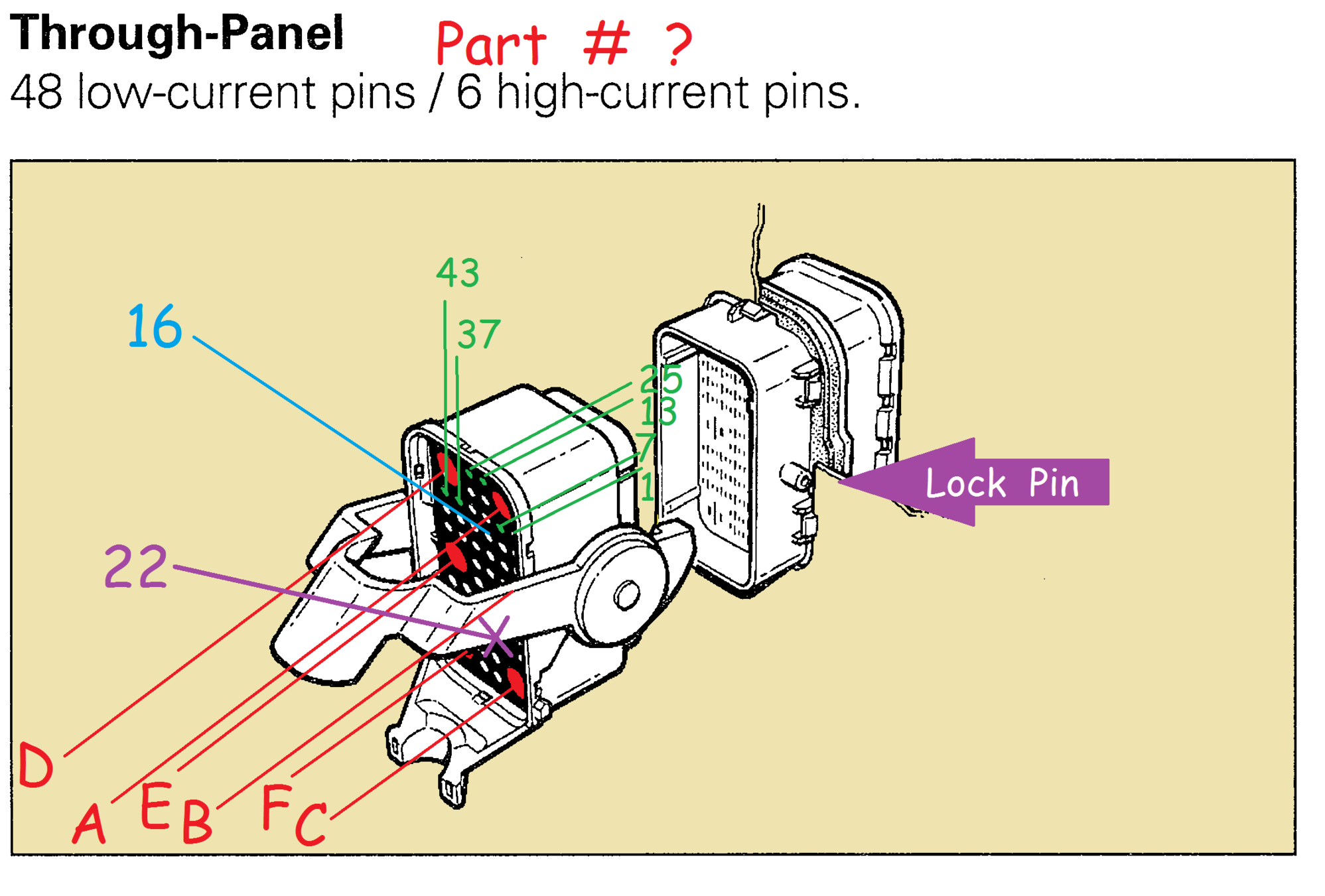

The BT4 connector pin 22 is above the fuel tank behind the large baggage compartment panel

Avoid disconnecting this connector as there are problems getting it back together

jagxj1996.pdf (jagrepair.com)



Last edited by Parker 7; Oct 29, 2021 at 02:18 PM.
Reply
