Howdy All,
I'm noticing the heater isn't getting too warm ('02 XJ8), and after doing some searches here, see that the heater pump brushes wearing out is a strong candidate for the cause. I would like to have new ones handy before I start working on and disable the car...Does anyone know the heater pump brush dimensions and/or a source for them here in the US (e-bay seller maybe?) ?
Also, are there any tips,tricks, or cautions when backflushing the heater core (matrix) and associated valves and hoses that I should take care to not screw up?
Thanks a Bunch for any guidance!
I'm noticing the heater isn't getting too warm ('02 XJ8), and after doing some searches here, see that the heater pump brushes wearing out is a strong candidate for the cause. I would like to have new ones handy before I start working on and disable the car...Does anyone know the heater pump brush dimensions and/or a source for them here in the US (e-bay seller maybe?) ?
Also, are there any tips,tricks, or cautions when backflushing the heater core (matrix) and associated valves and hoses that I should take care to not screw up?
Thanks a Bunch for any guidance!
The following users liked this post:
tompullizzi (01-08-2023)
#2
Some pics for you Dave -

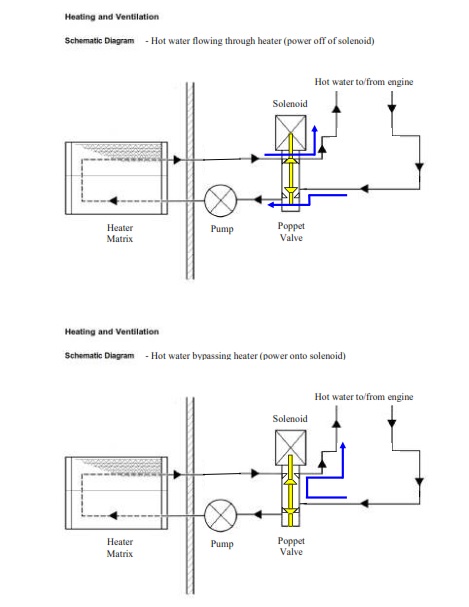

The pic shows the system looking through the firewall. The plumbing works as follows -
If you do rebuild the pump you won't find the correct brushes. They are 12mm x 5mm x 5mm with braided tails. You might find near equivalents but you'll have to file them down.
However, the tails aren't needed. The current draw is so small that you can cut the braid off of the existing brushes and solder it to the brushholder. Power will get to the brush via the casing and spring.
The armature won't come out completely because of the bearing. If you take it off measure EXACTLY where it is on the shaft as it doesn't fit against a shoulder. Get it wrong and the pump will be seized on re-assembly. To fit the brushes prise open the 'flaps' on the end of the brushholder and slide the new brush in followed by the spring. Then fold the flaps back. If you test the motor prior to refitting make sure you get the polarity right. The little diode between the brushes melts to a dead short if you get it wrong!
The pic shows the system looking through the firewall. The plumbing works as follows -
If you do rebuild the pump you won't find the correct brushes. They are 12mm x 5mm x 5mm with braided tails. You might find near equivalents but you'll have to file them down.
However, the tails aren't needed. The current draw is so small that you can cut the braid off of the existing brushes and solder it to the brushholder. Power will get to the brush via the casing and spring.
The armature won't come out completely because of the bearing. If you take it off measure EXACTLY where it is on the shaft as it doesn't fit against a shoulder. Get it wrong and the pump will be seized on re-assembly. To fit the brushes prise open the 'flaps' on the end of the brushholder and slide the new brush in followed by the spring. Then fold the flaps back. If you test the motor prior to refitting make sure you get the polarity right. The little diode between the brushes melts to a dead short if you get it wrong!
The following 2 users liked this post by jimforrest (uk):
DaveO (11-06-2015),
tompullizzi (01-08-2023)
