CONVERTING SIDE REFLECTORS TO EXTRA INDICATORS
Most of us are probably aware that in the North American market (and possibly others) the oval reflectors on the front and rear bumpers of our cars serve also as 'side markers' - red to the rear and amber at front. I think I'm correct in saying that they are illuminated together with the side lights (?). There are differing opinions in the USA as to whether they serve any useful purpose. However, I am a great believer that if one driver sees the presence of your car due to additional lights, its got to be a good thing. In the UK the hole for the bulb holder isn't present (see attached picture) its just flat plastic. Also shown is the USA front side marker/bulb holder.

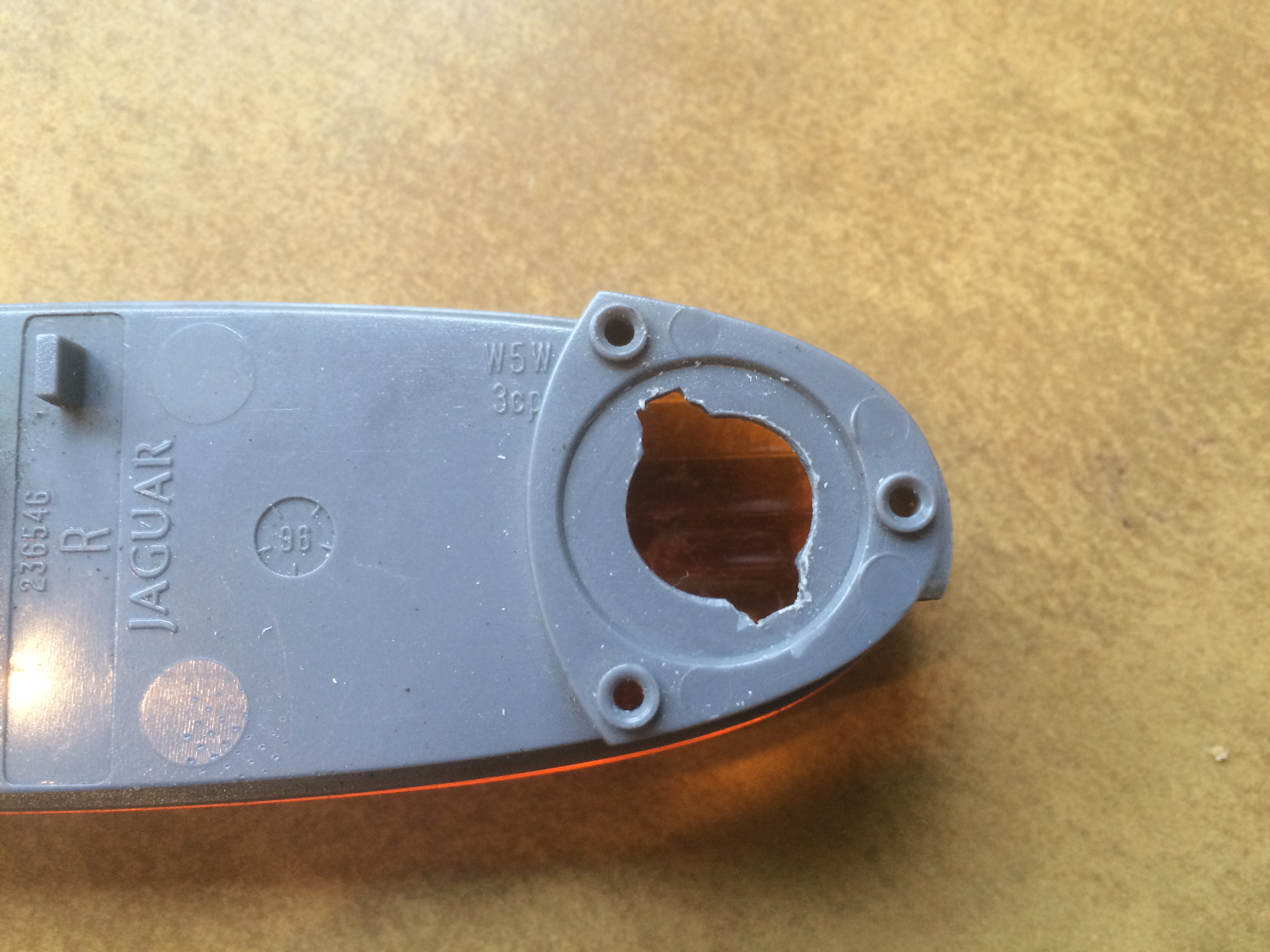

I'm uncertain as to the legalities of side markers in the UK but I know that its quite legal to add repeater indicators, so decided to convert the oval reflectors into reflectors/indicators. I could've bought a pair of USA spec front refelctors/side markers (LNC5030/31AB) but as these are £17 each plus VAT I decided to investigate converting my current reflectors. I purchased four T10 bulb holders off Ebay (£4 total with free postage) and carefully marked and drilled a hole in the raised section (see photo attached). Using a small needle file I then made two 'ears' so that the bulb holder would push in and twist. The bulbs required are normal 5W T10 which push into the holder (same as the USA side marker ones). I've yet to connect and extend the wiring to mate up with the front/rear indicators, but don't envisage and problems (once the weathers better !!). I know our cars already have front repeaters on the front wings but it's the rear side ones which will improve safety. For once, a simple, quick job which may prevent someone side-swiping your car. Good luck if you decide to do the same !
Most of us are probably aware that in the North American market (and possibly others) the oval reflectors on the front and rear bumpers of our cars serve also as 'side markers' - red to the rear and amber at front. I think I'm correct in saying that they are illuminated together with the side lights (?). There are differing opinions in the USA as to whether they serve any useful purpose. However, I am a great believer that if one driver sees the presence of your car due to additional lights, its got to be a good thing. In the UK the hole for the bulb holder isn't present (see attached picture) its just flat plastic. Also shown is the USA front side marker/bulb holder.
I'm uncertain as to the legalities of side markers in the UK but I know that its quite legal to add repeater indicators, so decided to convert the oval reflectors into reflectors/indicators. I could've bought a pair of USA spec front refelctors/side markers (LNC5030/31AB) but as these are £17 each plus VAT I decided to investigate converting my current reflectors. I purchased four T10 bulb holders off Ebay (£4 total with free postage) and carefully marked and drilled a hole in the raised section (see photo attached). Using a small needle file I then made two 'ears' so that the bulb holder would push in and twist. The bulbs required are normal 5W T10 which push into the holder (same as the USA side marker ones). I've yet to connect and extend the wiring to mate up with the front/rear indicators, but don't envisage and problems (once the weathers better !!). I know our cars already have front repeaters on the front wings but it's the rear side ones which will improve safety. For once, a simple, quick job which may prevent someone side-swiping your car. Good luck if you decide to do the same !
#2
Join Date: Feb 2013
Location: Trying to escape Central Florida
Posts: 4,714
Received 1,813 Likes
on
1,328 Posts
#4
#5
#6
The 5W's are not really visible in clear daylight.
Perhaps some LED's will do.
#7
Good point 'ericjansen'. I think I'll try the 5W first (same as existing side indicator repeaters) - I take your point though about brightness - I know you can get 21W versions of these T10 bulbs so that option is always there. At some point I may invest in the brighter led bulbs all round anyway - as I said in my original post, I'm all for being seen if it avoids a collision. Thank you for your interest.
Trending Topics
#8
Good point 'ericjansen'. I think I'll try the 5W first (same as existing side indicator repeaters) - I take your point though about brightness - I know you can get 21W versions of these T10 bulbs so that option is always there. At some point I may invest in the brighter led bulbs all round anyway - as I said in my original post, I'm all for being seen if it avoids a collision. Thank you for your interest.
Be careful about how bright you go, there are laws about how bright lights can be on different areas of motor vehicles in the UK!
Don't know for sure, but, why are side repeater lights, even down the sides of lorries only 5w? when front or rear indicators are 21w?
Maybe do some research so you do not fall foul of the law.
#9
The bumper ovals are side marker lights -- they go on with the "parking lights" ... although we don't use lights for parking in the USA.
The USA originally did not require them to light up. European cars exported to the USA starting around 1968 would have reflectors installed -- this changed around 1970 to require them to light up.
I like the fender turn signal lights of the X300 -- Jaguar should have continued them on the X308. I loved my Saabs for the center markers and cornering lights.
The USA originally did not require them to light up. European cars exported to the USA starting around 1968 would have reflectors installed -- this changed around 1970 to require them to light up.
I like the fender turn signal lights of the X300 -- Jaguar should have continued them on the X308. I loved my Saabs for the center markers and cornering lights.
#10
#11
Further to Andrew's comment regarding 21W bulbs front/rear and 5W at sides - I suppose its to do with the size of the lense and the light dispersal over a larger area - side repeaters are only a relatively small area. I think the 5W will be sufficient for my conversion.
#12
The bumper ovals are side marker lights -- they go on with the "parking lights" ... although we don't use lights for parking in the USA.
The USA originally did not require them to light up. European cars exported to the USA starting around 1968 would have reflectors installed -- this changed around 1970 to require them to light up.
I like the fender turn signal lights of the X300 -- Jaguar should have continued them on the X308. I loved my Saabs for the center markers and cornering lights.
The USA originally did not require them to light up. European cars exported to the USA starting around 1968 would have reflectors installed -- this changed around 1970 to require them to light up.
I like the fender turn signal lights of the X300 -- Jaguar should have continued them on the X308. I loved my Saabs for the center markers and cornering lights.
#13
#14
#15
The following users liked this post:
deancantrell (06-17-2017)
#16
I don't know why they dropped it in the USA -- we do have all the mirrors lights.
Now some cars are going to come without mirrors -- cameras and screens.
#17
CaptainQ,
1. It would help if you put your year and model in your profiie.
2. You have the same as me, a 1998 XJR?
3. If you remove the side linings of you boot, on the right hand side there is the wiring with the connector to the side marker light, with the correct rubber grommet to pass through the boot floor already fitted, just pull the blank grommet out , shove in the wires and seat the grommet in the hole!
On the left hand side you have the same! BUT if you have the factory CD player fitted, the wires,plug, grommet are tucked behind the CD player and taped to the loom at the plug end, just pull the wires over the top of the CD unit (no need to be brutal, or stretch the wires,) and the same. Prefitted grommet, just pull out the blank, and stuff the wires down the hole and fit the grommet in he hole, attatch wires to bulb holder, and Robert is your mothers brother!
All factory wiring and grommets, whats not to like ?
1. It would help if you put your year and model in your profiie.
2. You have the same as me, a 1998 XJR?
3. If you remove the side linings of you boot, on the right hand side there is the wiring with the connector to the side marker light, with the correct rubber grommet to pass through the boot floor already fitted, just pull the blank grommet out , shove in the wires and seat the grommet in the hole!
On the left hand side you have the same! BUT if you have the factory CD player fitted, the wires,plug, grommet are tucked behind the CD player and taped to the loom at the plug end, just pull the wires over the top of the CD unit (no need to be brutal, or stretch the wires,) and the same. Prefitted grommet, just pull out the blank, and stuff the wires down the hole and fit the grommet in he hole, attatch wires to bulb holder, and Robert is your mothers brother!
All factory wiring and grommets, whats not to like ?
The following users liked this post:
magin846 (06-13-2017)
#18
Hello Andrew. Thanks for the info regarding wiring etc. My XJR is the same age & colour as yours, although it has the Ivory leather - I bought it about 3 years ago from an elderly chap from West London (he was a WW2 Polish Air Force pilot and only agreed to buy the car, new, if they removed the speed limiter - he made regular visits to Poland and wanted to make full use of the power on the Autobhans !). Its only recorded 31K which means I don't like to use it too much - much to my wifes annoyance - lol !!
#19
3. If you remove the side linings of you boot, on the right hand side there is the wiring with the connector to the side marker light, with the correct rubber grommet to pass through the boot floor already fitted, just pull the blank grommet out , shove in the wires and seat the grommet in the hole!
On the left hand side you have the same! BUT if you have the factory CD player fitted, the wires,plug, grommet are tucked behind the CD player and taped to the loom at the plug end, just pull the wires over the top of the CD unit (no need to be brutal, or stretch the wires,) and the same. Prefitted grommet, just pull out the blank, and stuff the wires down the hole and fit the grommet in he hole, attatch wires to bulb holder, and Robert is your mothers brother!
On the left hand side you have the same! BUT if you have the factory CD player fitted, the wires,plug, grommet are tucked behind the CD player and taped to the loom at the plug end, just pull the wires over the top of the CD unit (no need to be brutal, or stretch the wires,) and the same. Prefitted grommet, just pull out the blank, and stuff the wires down the hole and fit the grommet in he hole, attatch wires to bulb holder, and Robert is your mothers brother!
Now I know what it's for.
Cheers.
#20
Andrew,
First of all: Thank you for the useful information! Now to my question: I have a 2001 X308 XJR.
Would you be able to tell me where to find the wiring for the side markers in the front of the car? Is it pre-wired like in the back, and if so where do I find the wires? If it is not pre-wired, what is the best way to go about wiring up the front side markers?
Regards
Magnus
First of all: Thank you for the useful information! Now to my question: I have a 2001 X308 XJR.
Would you be able to tell me where to find the wiring for the side markers in the front of the car? Is it pre-wired like in the back, and if so where do I find the wires? If it is not pre-wired, what is the best way to go about wiring up the front side markers?
Regards
Magnus
