Hello all.
I am a forum member on the Series 3 section of the forum.
I recently purchased a 1990 Jaguar Sovereign (XJ40) with the intention of using the wheels and outboard setup for on of my Series 3 cars. I decided to see how the car works and by just putting some fresh premium fuel and a bottle of Octane booster (because the car was sitting for about 18 months with a 1/4 tank of fuel), the car started right up. Pushing the envelope I checked all of the fluids and decided to drive the car as far as I could go with my other vehicle and trailer following. Result drove 80 nervous miles to my home. During the trip I noticed a few minor issues, nothing to brag about.
Yesterday, I washed the very grimy engine bay and air dried all of my connections, with the sun beating down on the engine. When all was said and done, I cranked up the engine and it started right up.

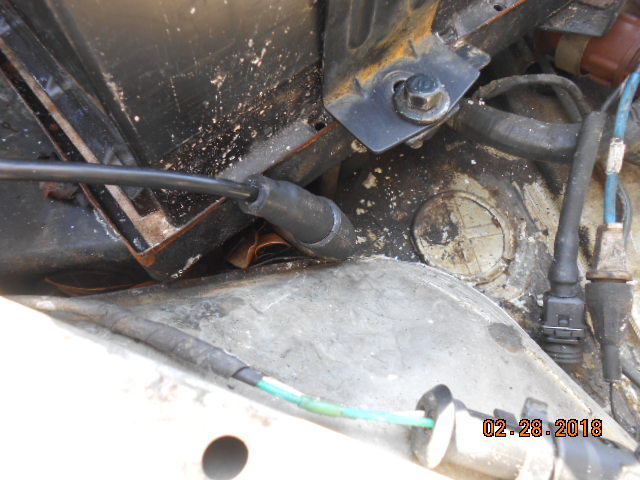

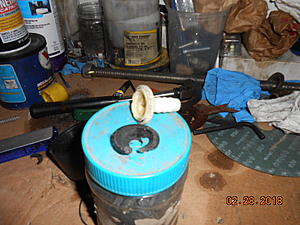

While doing the cleanup I found a broken valve that connects a large host that goes under the battery tray and connected to a small vacuum line that runs to the intake manifold (pic1) I did a temporary connection (pic 2) since there was vacuum at the small line.

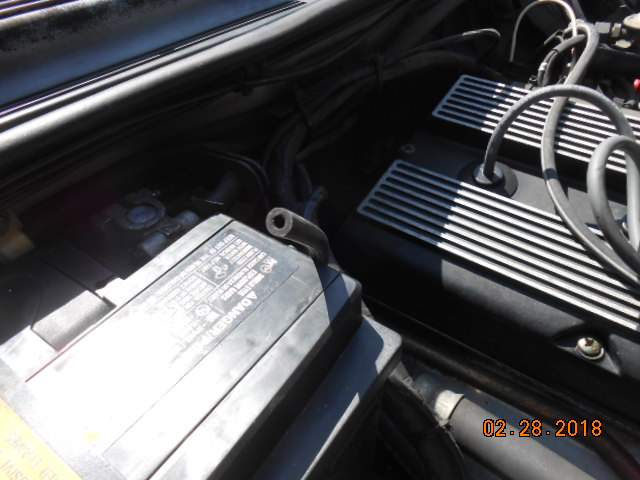

I also found a vacuum line that is disconnected on both ends. It clips on to the battery tray (pic 3)

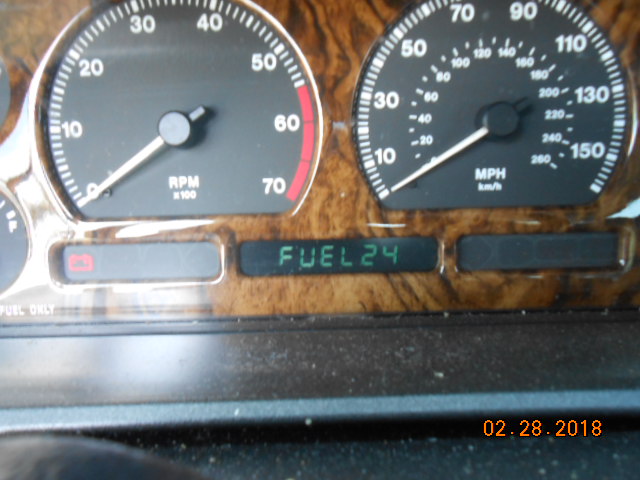

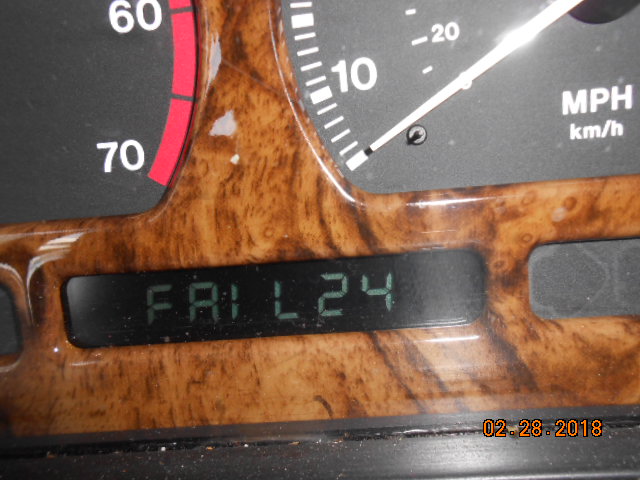

Lastly, I now have a check engine light on. VCM display Fuel 24. Failure 24.
I cleared the code and the CEL comes back on with the same code.
What does code 24 mean?
On the drive, there was no CEL. This only happened after I cleaned the engine bay.
Thank you all for your help.
