Hi all, is the heater core(matrix) on my S1 XJ6 directional or doe's it not matter which way the coolant flows through it?
I am about connect up the heater to see why it has been bypassed. I have run the garden hose through the core and it doesn't seem to leak anywhere inside the car(aircon and radio out at the moment so I can see under the dash clearly).
All vacuum seems to work ok, air flap opens and closes with modulator. Heater tap opens and closes when changing the heat control modulator. As far as I can tell there is no reason to bypass the core(maybe it will leak under pressure) ,only one way to find out.

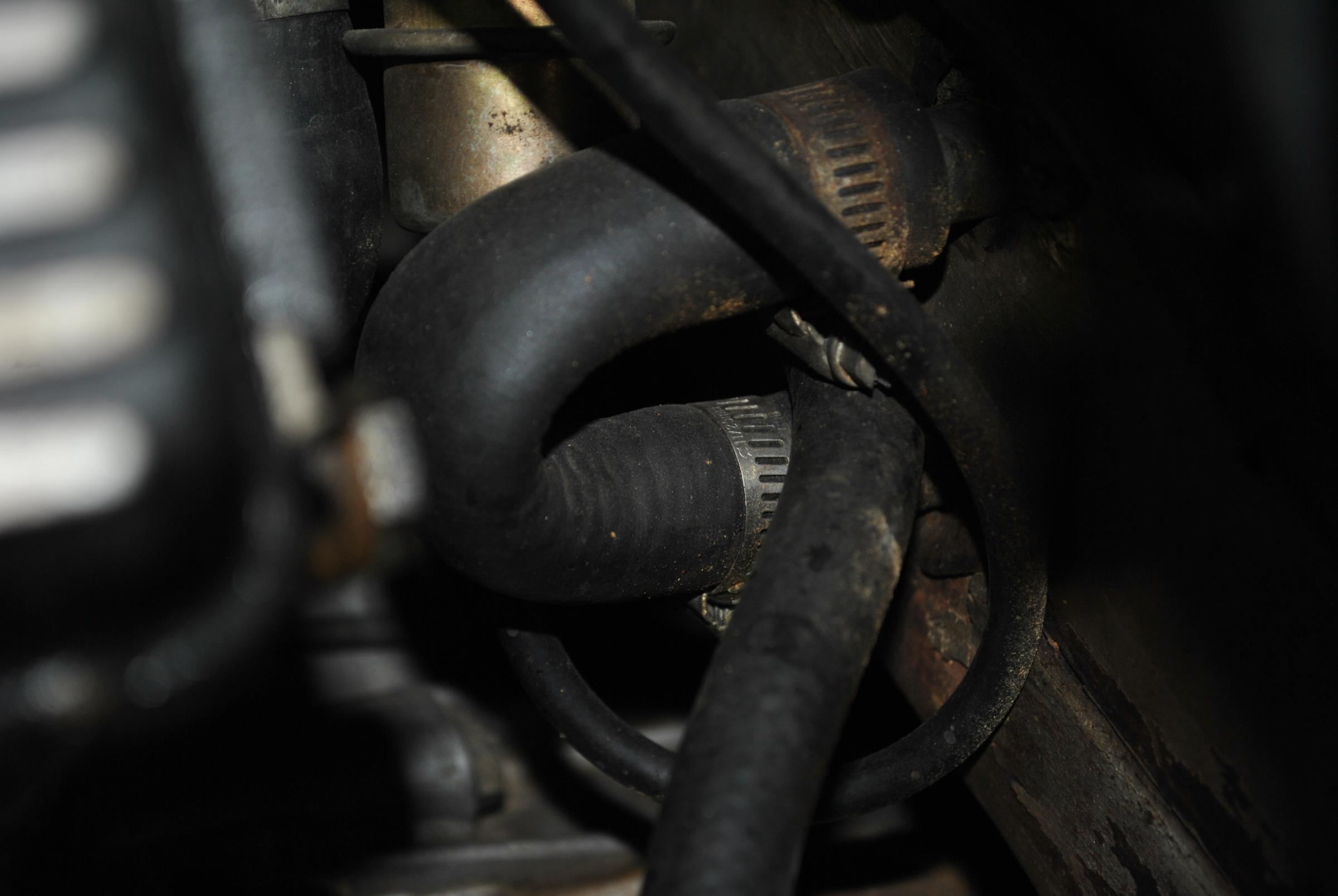

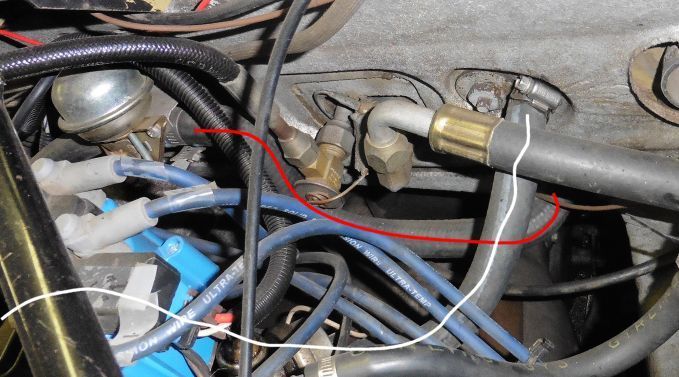

The heater tap has a flow direction arrow on it, I have drawn a diagram to show what I have at the moment,I just need to know if the tap is in the right place and flowing the right direction and which is the inlet and outlet on the firewall. From all my books nothing shows the hoses connected to the core, they just refitting is the reverse of removing. That is ok if you removed the hoses yourself.
Maybe someone has their car handy and pop their head under the bonnet for a quick check?
Thanks in advance.
Thanks Elinor, I have connected the hose from the thermostat that passes through the heater tap to the top inlet and connected the hose that goes to the water pump to the lower outlet.
All seems to work fine,not sure why the heater was bypassed in the first place. Just got to flush the coolant now as it has turned from green to brown after operating the heater and flushing all the crap out of the core/matrix.
The only thing I can see that may have been the problem was the two hose clamps connecting the hoses to the Core were NFG so maybe they were not tight and under pressure coolant was leaking into the cabin.
Replaced the coolant and drove for about an hour turning heater on and off and changing from cabin to demist etc, all worked as it should.
We will never use the heater in Queensland winter, maybe only for demisting in the wet season. Probably another job I didn't really need to do.
What size are the hoses internally?? I want to bypass my heater tap in the engine bay for now as it leaks when it fully open(?) I want it to act as if the heater is always on, as at the moment I don't get any real warmth at all inside. I only use the aircon to demist the windscreen right now as it is stuffed otherwise. It needs a new part (the name escapes me right now, it controls the vac hoses etc. Not the amplifier or relay, the other thing buried way in the back). As it getting into winter here and my screen mists up very fast I need it to work.
Hi Richard,
I am just guessing here but i would think ID to be 5/8 , I could just get a vernier caliper on to the outlets on the firewall with a hot engine. Pretty sure they are approx 16mm give or take a mm each way for the angle I had to go in at.

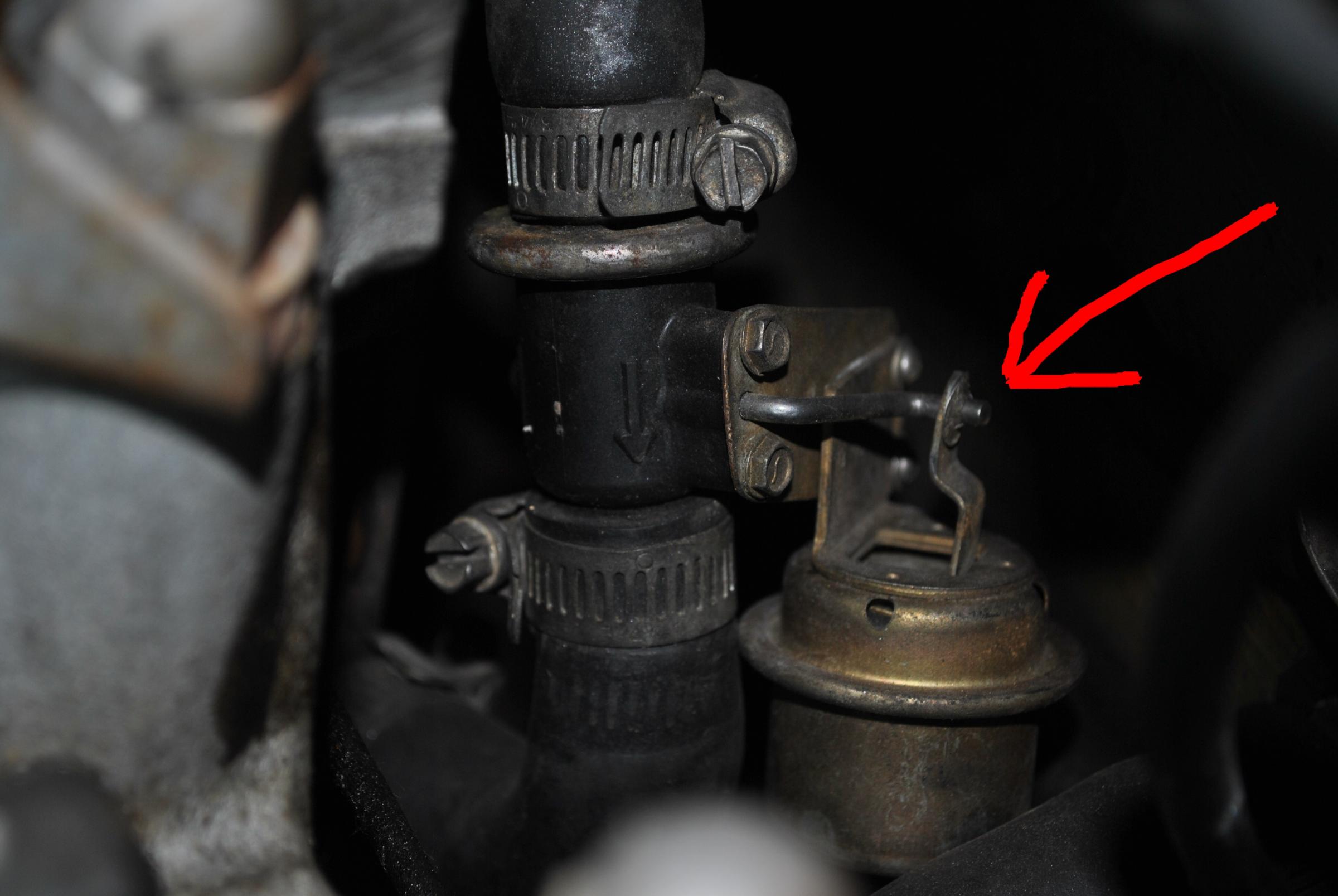

You could possibly just cable tie the tap open,that is what I did while I was checking for leaks. Just press the lever down to open the tap(if yours is the same) and cable tie it around the vacuum canister.
The pic is of the series 1 heater system,maybe you can name the part from it.
