Heating and Ventilation vacuum diagram

  #1
Old 03-25-2018, 04:22 AM
Junior Member
Thread Starter
Join Date: Jan 2015
Location: Sunderland
Posts: 4
Thanked 0 Times in 0 Posts
Default Heating and Ventilation vacuum diagram

Good morning, hope someone can point me in the direction of a line diagram for my XJ6C heater vacuum piping. The tubing connectors have perished and dropped off. I have replaced a most and tested the main flaps etc with a small vacuum pump but when operating I am still losing vac somewhere.
A diagram will help, I'm sure, or, I just muddle along testing until I find the problem. Just so awkward to get to everything!
Thank you
John

  #2
Old 03-25-2018, 09:33 AM
alynmurray's Avatar
Senior Member
Join Date: Jan 2014
Location: Seattle
Posts: 577
Thanked 227 Times in 139 Posts
Default

Here is what I have,.. may be what you are looking for.

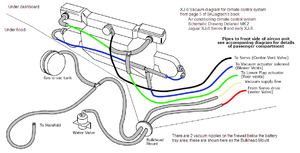

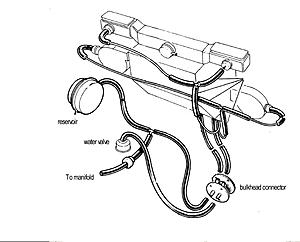

Attached Thumbnails Heating and Ventilation vacuum diagram-jaguar-climate-control-vacuum.png   Heating and Ventilation vacuum diagram-jag-vac-3.jpg
The Following 2 Users Say Thank You to alynmurray For This Useful Post:
John Keith (03-25-2018), Nanonevol (03-25-2018)
  #3
Old 03-25-2018, 10:21 AM
Veteran Member
Join Date: Jul 2012
Location: Walnut Creek, California
Posts: 5,518
Thanked 1,882 Times in 1,517 Posts
Default

Alyn:


Thanks from here as well. As clear a diagram that I've ever seen. I saved it for adding to my Jag lore.


It's been on the cold side around here. 50's F. I was going to use my Jeep for errands as I fancied it's strong warm air production.


But, the Jaguar beckoned. It must've been challenged!! It fired right up and purred/ After just a bit I set the temp on 85 and the fans to Defrost. I was greeted with a pleasant flow of warmth. Actually 1/2 way to the first stop, I backed the temp way down. The cat asserted itself.


Carl
