XJ6 1978 S2 ride heigh problem

Reply




  #1
Old 06-16-2018, 03:41 AM
Junior Member
Thread Starter
Join Date: Jun 2018
Location: Essex
Posts: 5
Thanks: 0
Thanked 1 Time in 1 Post
Default XJ6 1978 S2 ride heigh problem


Hi Iíve rebuilt the suspensions on the car, new springs, shocks, rubbers etc front and back
With the axles off the car.
Now that they are back on the ride height is way out, the front is over 2Ē higher than it should be but I canít see what I have done wrong?

hopefully the pictures show the problem and someone can tell me what Iíve done wrong.
thanks

Graham





Reply With Quote
  #2
Old 06-16-2018, 06:07 AM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 17,622
Thanked 5,116 Times in 3,697 Posts
Default

Jaguar used packers under the front springs to "adjust" the ride height.

Messy, hell yes, and time consuming.

Add to that equation, that "new" springs are usually bit exactly the same as the OE of the 1970's.

ALL the blah, blah, blah about them made to OE spec etc is not always fact.

I have nothing but issues with "new" springs over the years, and usually ended up at a wreckers (breakers) and hunted down a pair from another car, and fitted, and the whole thing simply fell into spec.

We dont have much issues with springs down here, but clearly, from what I have read over the years, you guys do, salt etc I suppose?

If you have fitted the packers, some need to come out, and I have long forgotten the formula that applies to packer thickness versus ride height variation.

Reply With Quote
The Following User Says Thank You to Grant Francis For This Useful Post:
Doug (06-16-2018)
  #3
Old 06-16-2018, 06:36 AM
The Mekon's Avatar
Member
Join Date: Dec 2016
Location: Bowral NSW
Posts: 35
Thanked 5 Times in 5 Posts
Default

Some years ago my series 1 was really sagged at the front, so much so that the car only looked right with both tanks full and another 100lbs in the boot. So I bought some springs from a suspension place that were supposed to restore to the correct height. They also had on offer stiffer springs that would increase height 25mm. Put the standard springs in and ride height was 585mm at the lights. Took them off, returned them for the stiffer springs. Car rides at 622mm (R) and 626mm (L), still a bit high but better than scraping on the kerbs. So I assume your springs are way too stiff.
Grant - can you just confirm that adding a shim (they are 3mm plastic) will INCREASE the ride height (I think it is 8mm) and vice versa?

Reply With Quote
  #4
Old 06-16-2018, 07:25 AM
Veteran Member
Join Date: Apr 2012
Location: New York City
Posts: 1,543
Thanked 755 Times in 491 Posts
Default

Drive it for a few days. Give it a chance to settle. Then if the springs feel ok and they arent v12 springs add spacers and longer bolts to the lower spring plates to achive the ride height you need.
.

Reply With Quote
The Following User Says Thank You to icsamerica For This Useful Post:
Doug (06-16-2018)
  #5
Old 06-16-2018, 07:27 AM
Veteran Member
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 18,535
Thanked 5,706 Times in 4,304 Posts
Default

Originally Posted by Grant Francis View Post


ALL the blah, blah, blah about them made to OE spec etc is not always fact.
Yeah, when you see a listing showing a single part part number for a spring that Jaguar used 5 or 6 different variations of, you know something ain't right !

Over the years I've determined that getting correct ride height with new springs is maybe a 50-50 proposition at best.


I have nothing but issues with "new" springs over the years, and usually ended up at a wreckers (breakers) and hunted down a pair from another car, and fitted, and the whole thing simply fell into spec.

I did the same on my latest project


If you have fitted the packers, some need to come out, and I have long forgotten the formula that applies to packer thickness versus ride height variation.
It's roughly a 3:1 ratio. One .125" spacer yields a .375" difference in ride height.

I'm not sure spacers/packers will account for a full 2" height problem. They're designed for 'trim'/adjustment, not compensating for gross deviations.

Cheers
DD

Reply With Quote
The Following User Says Thank You to Doug For This Useful Post:
Grant Francis (06-16-2018)
  #6
Old 06-16-2018, 07:31 AM
Veteran Member
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 18,535
Thanked 5,706 Times in 4,304 Posts
Default

Originally Posted by icsamerica View Post
Drive it for a few days. Give it a chance to settle. Then if the springs feel ok and they arent v12 springs add spacers and longer bolts to the lower spring plates to achive the ride height you need.
.

Yeah, sometimes they do settle a bit.

I also wonder if the springs are fully seated at both ends....although the way the seats are designed they really should sort of guide themselves properly home.

Cheers
DD

Reply With Quote
  #7
Old 06-16-2018, 07:46 AM
Join Date: Feb 2010
Location: Adelaide Stralia
Posts: 17,622
Thanked 5,116 Times in 3,697 Posts
Default

I agree Doug, and not a 5 minute task to R & R springs as a trial and error thing.

That spring makers "one size fits most" is getting way too common.

Probably V12 springs at a pinch.

Doug has answered the formula and its sound sort of familiar, its been a very long time since I messed with them.


Last edited by Grant Francis; 06-16-2018 at 08:16 PM.
Reply With Quote
  #8
Old 06-16-2018, 09:00 AM
Veteran Member
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 18,535
Thanked 5,706 Times in 4,304 Posts
Default

Originally Posted by Grant Francis View Post

That spring makers "one size fits most" is getting way too common.

Probably V12 springs at a pinch.

Yeah, I agree.

When there's a problem the complaint always seems to be "too high" rather than "too low". So I'd guess that the spring makers, in their one-size-fits-most approach, are making the springs taller and stiffer to accommodate V12s.

Cheers
DD

Reply With Quote
The Following User Says Thank You to Doug For This Useful Post:
Grant Francis (06-16-2018)
  #9
Old 06-16-2018, 01:52 PM
Fraser Mitchell's Avatar
Veteran Member
Join Date: Dec 2009
Location: Crewe, England
Posts: 6,992
Thanked 1,471 Times in 1,225 Posts
Default

Wrong springs or badly made ones ! I had to replace a set way back in the early 90s because they have a tendency to break about an inch off the bottom end and this is a failure on our UK roadworthiness test (MOT Test). My car did ride a bit higher afterwards, but eventually settled down a bit,but a 2" difference is obviously wrong, way out wrong.

Reply With Quote
The Following User Says Thank You to Fraser Mitchell For This Useful Post:
Grant Francis (06-16-2018)
  #10
Old 06-16-2018, 02:06 PM
Junior Member
Thread Starter
Join Date: Jun 2018
Location: Essex
Posts: 5
Thanks: 0
Thanked 1 Time in 1 Post
Default Ride height

thanks guys, itís good to know I havenít done anything obviously stupid, I put the shims under the new springs exactly as they came out so the set up was the same but I guess I could have allowed for the new springs being stiffer, either way 1/8 th inch or so wouldnít make that much difference.

going to see if it passes an MOT soon for the first time since 2004 and then onto stripping the interior out and getting it ready for a respray.




Reply With Quote
  #11
Old 06-16-2018, 03:32 PM
Roger Mabry's Avatar
Veteran Member
Join Date: Jun 2012
Location: Glendora, CA USA
Posts: 1,189
Thanked 290 Times in 232 Posts
Default

Just lowered my S1 about two inches with 1/2 inch spacers between the pan. Headlights will be WAY out of useful height!

Reply With Quote
  #12
Old 06-16-2018, 03:50 PM
Senior Member
Join Date: Aug 2015
Location: new mexico
Posts: 182
Thanked 10 Times in 9 Posts
Default Suspension

Originally Posted by Fingers13 View Post

Hi Iíve rebuilt the suspensions on the car, new springs, shocks, rubbers etc front and back
With the axles off the car.
Now that they are back on the ride height is way out, the front is over 2Ē higher than it should be but I canít see what I have done wrong?

hopefully the pictures show the problem and someone can tell me what Iíve done wrong.
thanks

Graham




Graham
Measured mine today, never did any changes to my car since 78.
The front is 27 3/4, the rear is 24 1/2 .

I think my rear could use a boost, I have a set for the rear to be put in.

Walter

Reply With Quote
  #13
Old 06-17-2018, 02:56 AM
Junior Member
Thread Starter
Join Date: Jun 2018
Location: Essex
Posts: 5
Thanks: 0
Thanked 1 Time in 1 Post
Default Ride height

Thanks Walter, I take it the 27 3/4 inches was the wing measurement not the light measurement which would be about where I need to get too.

Roger what did you remove to lower you S1 by 2Ē I have 1 shim top and bottom from memory which is the only adjustment I can see.

The springs came from either British Parts or Barratts so IĎll dig out the receipt and follow up with them.

I took it out yesterday for itís first run and it does fee very stiff.

Graham

Reply With Quote
  #14
Old 06-17-2018, 05:09 AM
Junior Member
Join Date: May 2018
Location: West Wyalong NSW
Posts: 18
Thanked 2 Times in 2 Posts
Default

I put the original V12 springs back in and with a lighter 350 Chev it still is not as high as yours. There was a 50mm diff in height in the 2 different sets of springs and that 50mm turned into a 110mm difference on the car.

Reply With Quote
  #15
Old 06-17-2018, 06:44 AM
Senior Member
Join Date: Aug 2017
Location: Cincinnati Ohio
Posts: 127
Thanks: 0
Thanked 53 Times in 26 Posts
Default

Gentlemen, I have been following your discussion with great interest as my 1979 S3 sits too high. But a more basic question is what is the correct height and how do you measure it? I have seen comments about measuring to the center of the headlights but the bumper sticks out so far the measuring tape is a long way from the headlight. Is there a definitive target measurement to the top of the front wing (fender) wheel arch? Are S1, S2, and S3 all the same? Sorry to hold up your discussion with such a basic question but I think a lot of us are looking for help on this. Thanks

Reply With Quote
  #16
Old 06-17-2018, 08:09 AM
Junior Member
Thread Starter
Join Date: Jun 2018
Location: Essex
Posts: 5
Thanks: 0
Thanked 1 Time in 1 Post
Default


Although both front springs were broken they were exactly the same height as the new ones I put in.

let me see what the supplier had to say, they are both reptutable companies in the UK

my book says 611mm minimum to the centre of the lights.

Reply With Quote
The Following User Says Thank You to Fingers13 For This Useful Post:
Doug (06-17-2018)
  #17
Old 06-17-2018, 09:54 AM
Senior Member
Join Date: Aug 2017
Location: Cincinnati Ohio
Posts: 127
Thanks: 0
Thanked 53 Times in 26 Posts
Default

Perfect. Thank you very much for posting this page. I am going to print it out and put it in my Jaguar book. Thanks again!

Reply With Quote
  #18
Old 06-17-2018, 10:17 AM
Veteran Member
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 18,535
Thanked 5,706 Times in 4,304 Posts
Default

I'll add that my Series III ROM shows the same spec....611mm

Cheers
DD

Reply With Quote
  #19
Old 06-18-2018, 07:29 AM
Roger Mabry's Avatar
Veteran Member
Join Date: Jun 2012
Location: Glendora, CA USA
Posts: 1,189
Thanked 290 Times in 232 Posts
Default

I had no packing rings in my S1, did not want to try replacing the springs.. too many others had higher than normal results by changing them out.. King springs seem to be made out of spec?

So I added (tried 1/4" spacers first) 1/2 steel spacers and used 1/2 longer Grade 8 bolts, washers and nuts. There are two sizes, longer ones in the front that hold the shock mounts and the shorter ones on the sides. I just loosened the front ones and the ones on one side, then removed a side one to gain the needed room for the spacer.. replaced that bolt and then did the rest on that side.. repeated for the other side.

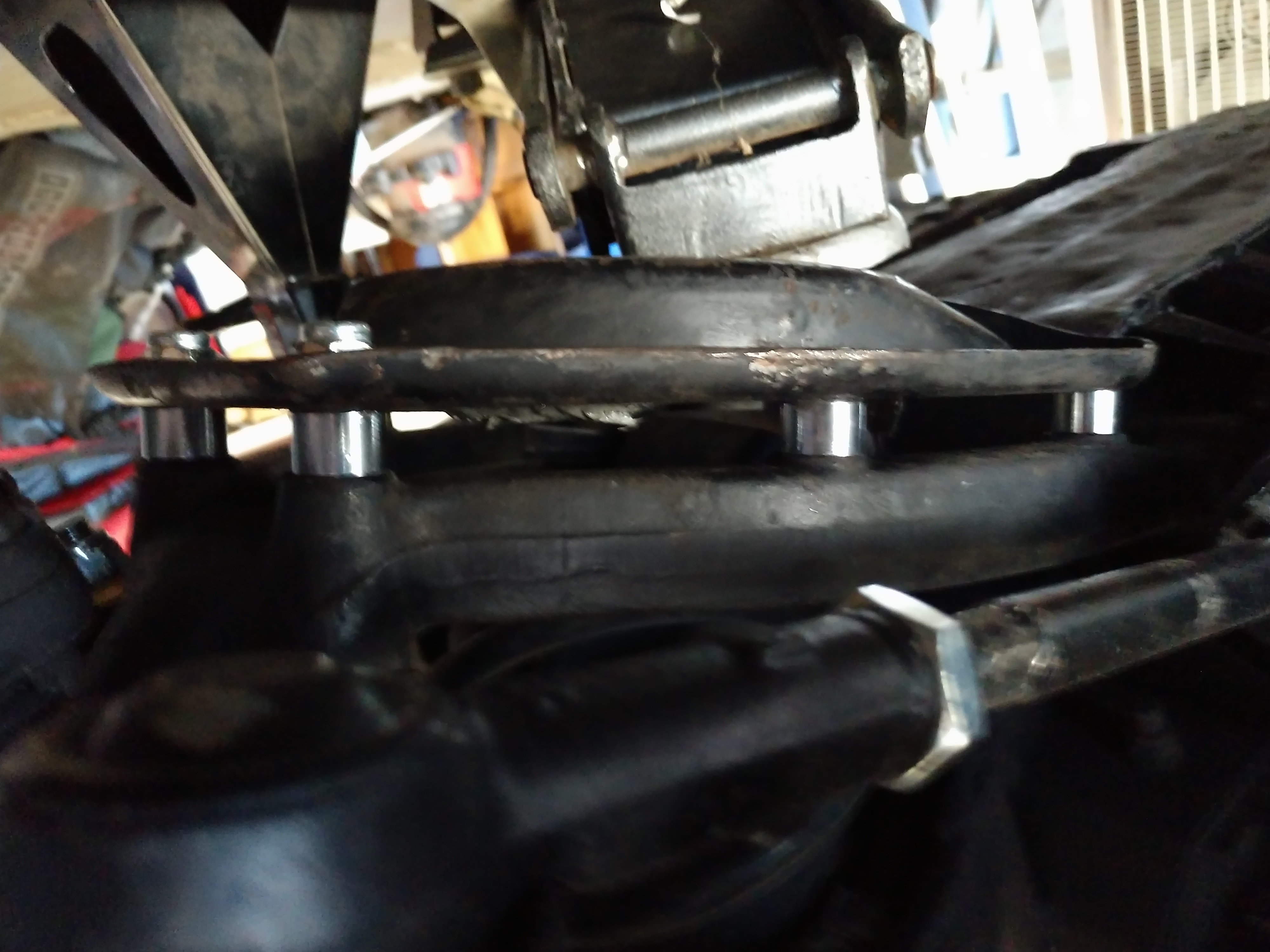

One photo shows the half inch spacers installed. the other the results with only 1/4 inch spacers. Car is now at correct height and I then adjusted the headlights to aim properly!!!

Attached Thumbnails XJ6 1978 S2 ride heigh problem-quarter-inch-spacers.jpg   XJ6 1978 S2 ride heigh problem-half-inch-spacers.jpg
Reply With Quote
