Default AJ16 95/96 pigtails/wiring harness connectors
From the 2014 Motorcraft witing pigtail catalog:

For the Ignition coil: WPT-1210

Name: 3B1A7CF9-6A7D-4135-9F91-C81A49C8B065.png_zpsit2u7yxh.jpeg Views: 504 Size: 50.7 KB

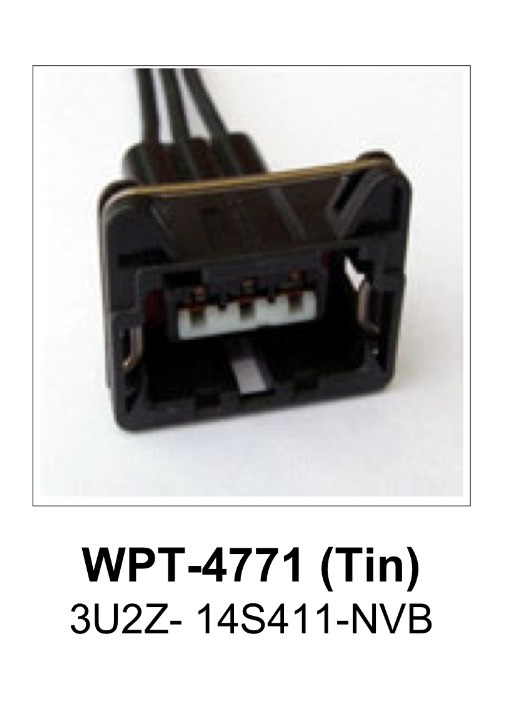

For the Mass Airflow Sensor (MAF): WPT-4771

Name: 70D855FD-210A-4B31-AC4F-2A8362E02E88.png_zpsaamm0npw.jpeg Views: 341 Size: 40.2 KB

For the Inertia Switch (fuel pump cut of switch): WPT-414

Name: A4A08BE9-5227-4D66-ADBB-C3725AAE1766.png_zpsq6uv9pex.jpeg Views: 229 Size: 48.4 KB

Reply Like
The following 3 users liked this post by Spikepaga:
Don B (03-05-2019), Doug (12-04-2014), Vee (12-05-2016)
