XJS ( X27 ) 1975 - 1996 3.6 4.0 5.3 6.0

DAC6534 Wiper Logic Module

Thread Tools

Search this Thread

Old Feb 11, 2026 | 08:10 AM
  #1
RGK20m3's Avatar
Thread Starter
|
Senior Member
Liked
Loved
Community Favorite
Joined: Jul 2023
Posts: 247
Likes: 161
From: Clarkston, MI
Default DAC6534 Wiper Logic Module

Looking for which pin is which on the module itself; I have the factory wiring diagram with the wire colors and cavity number, but the relay itself has no numbering…

Alternatively, a good photo that shows where each wire color goes in the backside of the two plugs would work. I believe that this part applies to pre-facelift on vehicles with a driver side airbag (Ford switches).

Reply
Old Feb 18, 2026 | 07:58 PM
  #2
RGK20m3's Avatar
Thread Starter
|
Senior Member
Liked
Loved
Community Favorite
Joined: Jul 2023
Posts: 247
Likes: 161
From: Clarkston, MI
Default

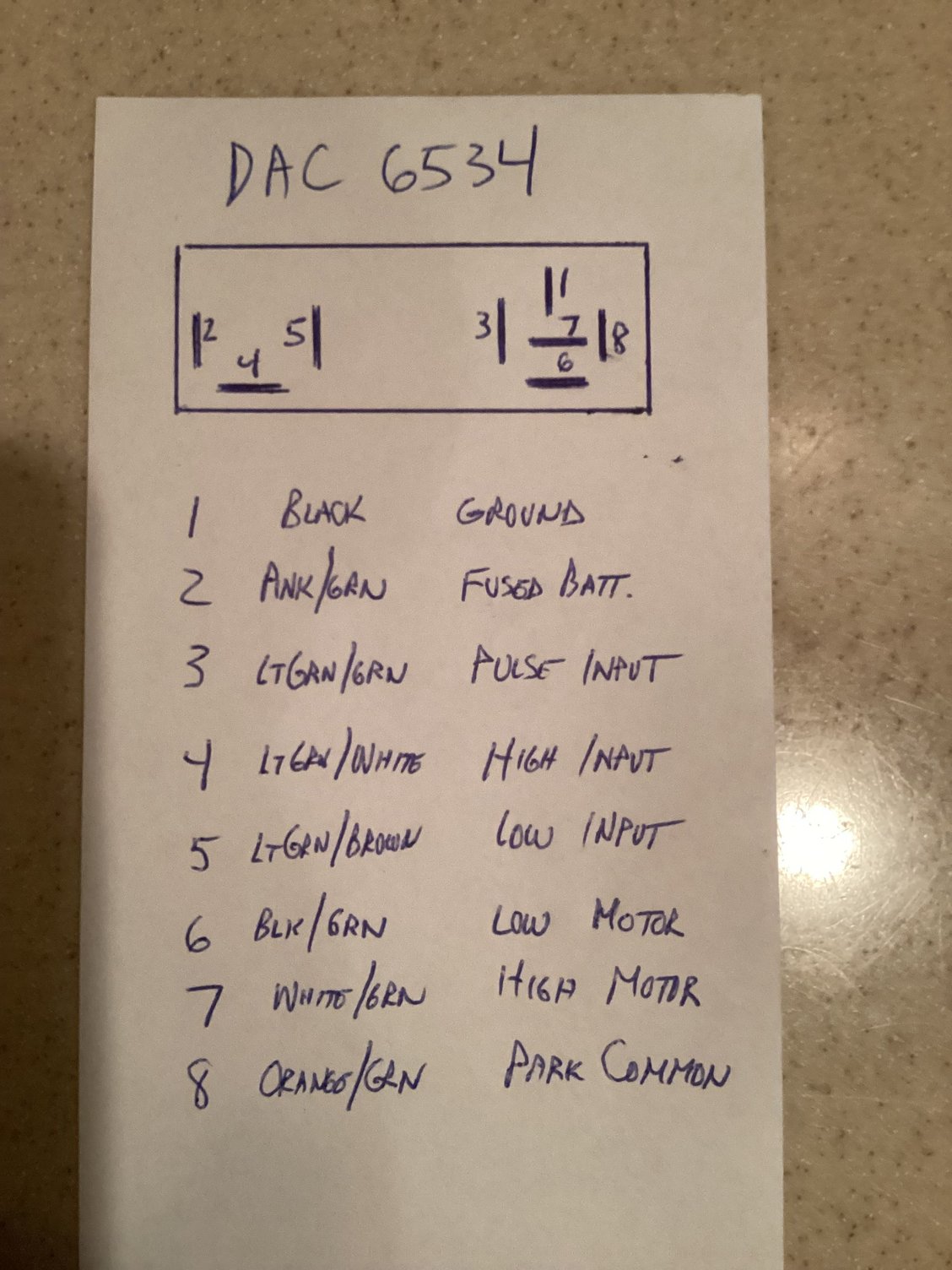

From terminal end.
From terminal end.
