How do I Test this Relay?
#1
How do I Test this Relay?
Hi Guys
I know absolutely nothing about Auto Electronics but as some of you may know, I am in the process of trying to Start 'Carmen' my 1995 XJS 4.0L Convertible with AJ16 6 cylinder engine
Having already changed the CPS and put in 6 New Injectors, I then checked every single fuse I could find which turned out to all be OK and even removed the ECU to clean all the Pins
But Still no go
Though something has been bugging me, when 'Paddy' one of our Forum Members had a similar 'No Start Problem' on his Car, where someone suggested that he Changed the 'Blue Relay' in the Footwell
Where once having done so his Car Started straight away, after which I started looking in the Footwell of my own Car to find it, except I couldn't see it in the Footwell anywhere
But after hunting high and low for something unrelated, as if by some miracle I found my Owners Manual for this Car, where that Relay I've been looking for is 'Sort of' in the Footwell although its much more higher up, where the Fuses are
And as such in the only place that I wasn't looking, although I've found it now!
Where according to the Owners Manual, this is the RELAY FOR THE ECU! OMG! I'm thinking, how good could that be!
Where while having so many false hopes dashed into the ground, I'm daring to dream that maybe this is the Missing Link, that might just get her running after trying everything else
And so what I would like to do is Test it and hopefully find that it's 'Toast'

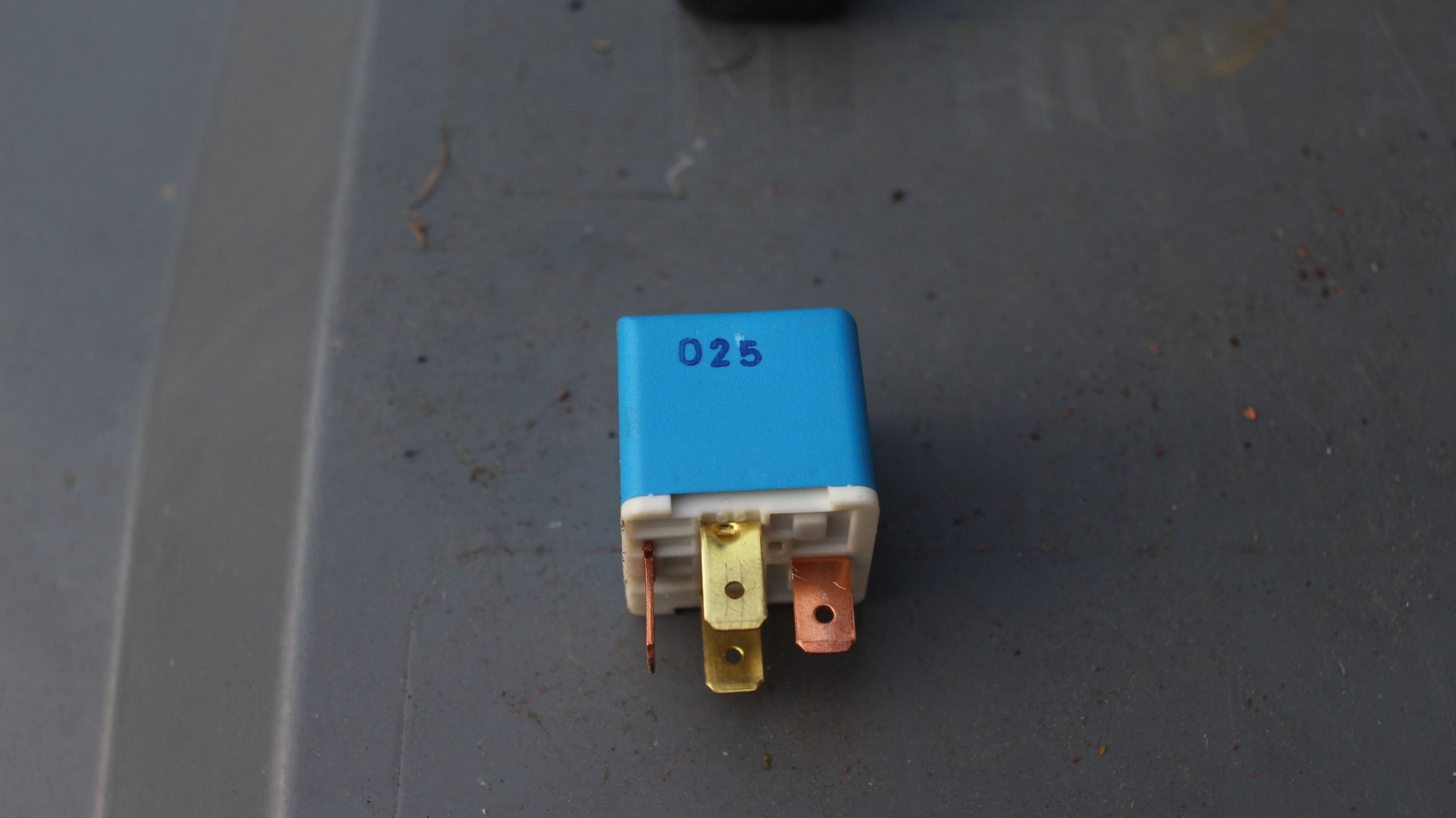

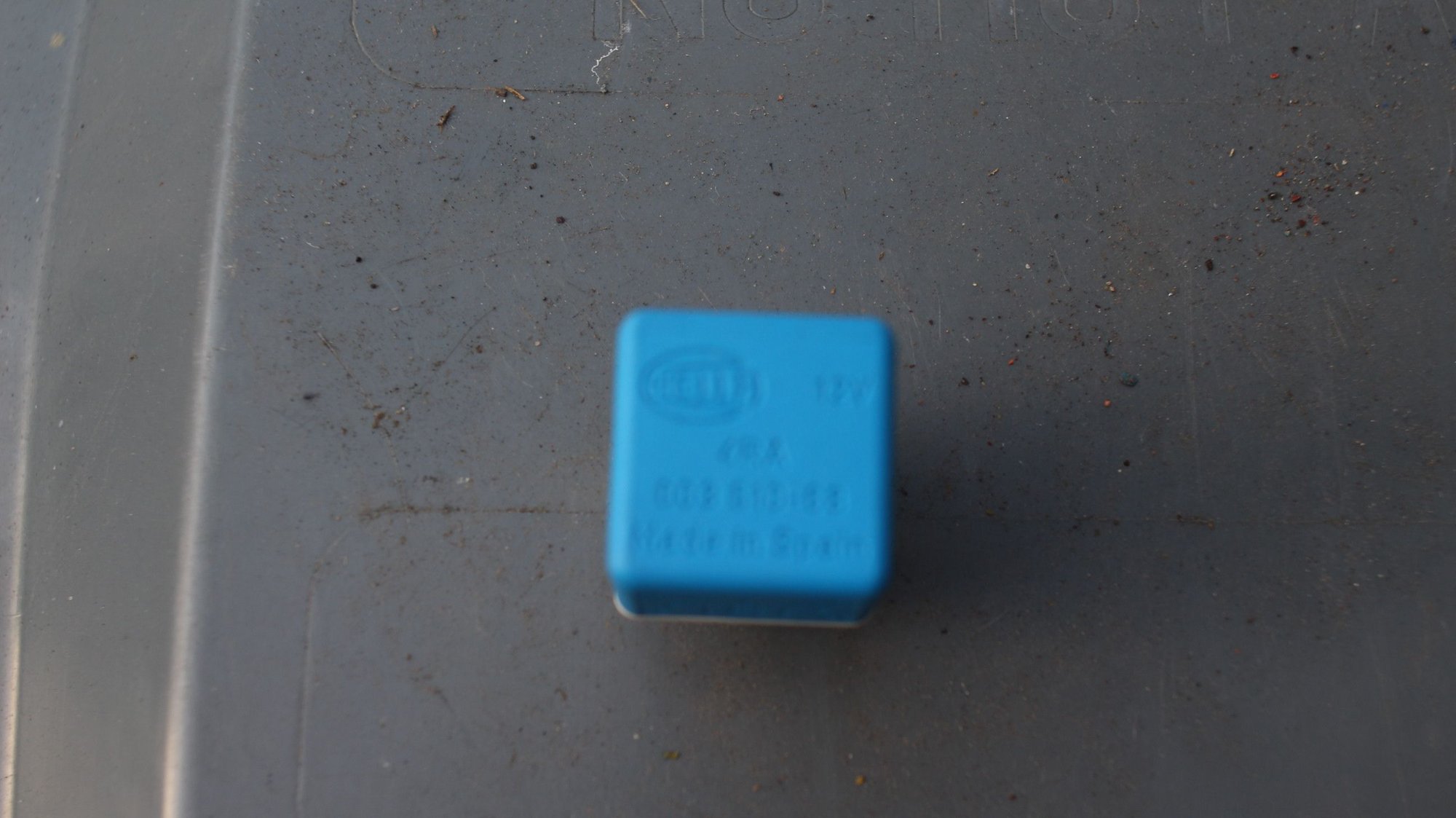

So here are some Pics of that Relay in the hope that someone will be able to show me how to Test it
If someone could give me the Pin Numbers of what I should connect my Meter to, then I can give it a Test and see what comes out
It doesn't say what Value it is, except that the Part Number on it is DAC7686
Would I be able to Swap it for one of those Black ones that I took from my Parts Car which has the same Pin Layout but no other numbers that I am able to read
According to the Handbook the Blue Relay on the Left is the ECU Relay although it doesn't seem to say what the Blue Relay on the White Base to the Right of it is for, so if they are part of the same thing Swapping them over might not do any good
Many Thanks if you can help
I know absolutely nothing about Auto Electronics but as some of you may know, I am in the process of trying to Start 'Carmen' my 1995 XJS 4.0L Convertible with AJ16 6 cylinder engine
Having already changed the CPS and put in 6 New Injectors, I then checked every single fuse I could find which turned out to all be OK and even removed the ECU to clean all the Pins
But Still no go
Though something has been bugging me, when 'Paddy' one of our Forum Members had a similar 'No Start Problem' on his Car, where someone suggested that he Changed the 'Blue Relay' in the Footwell
Where once having done so his Car Started straight away, after which I started looking in the Footwell of my own Car to find it, except I couldn't see it in the Footwell anywhere
But after hunting high and low for something unrelated, as if by some miracle I found my Owners Manual for this Car, where that Relay I've been looking for is 'Sort of' in the Footwell although its much more higher up, where the Fuses are
And as such in the only place that I wasn't looking, although I've found it now!
Where according to the Owners Manual, this is the RELAY FOR THE ECU! OMG! I'm thinking, how good could that be!
Where while having so many false hopes dashed into the ground, I'm daring to dream that maybe this is the Missing Link, that might just get her running after trying everything else
And so what I would like to do is Test it and hopefully find that it's 'Toast'
So here are some Pics of that Relay in the hope that someone will be able to show me how to Test it
If someone could give me the Pin Numbers of what I should connect my Meter to, then I can give it a Test and see what comes out
It doesn't say what Value it is, except that the Part Number on it is DAC7686
Would I be able to Swap it for one of those Black ones that I took from my Parts Car which has the same Pin Layout but no other numbers that I am able to read
According to the Handbook the Blue Relay on the Left is the ECU Relay although it doesn't seem to say what the Blue Relay on the White Base to the Right of it is for, so if they are part of the same thing Swapping them over might not do any good
Many Thanks if you can help
