G'Day Friends
I was actually going to carry on from an old thread on this discussion, but decided to start afresh with my spin on the conversion. The link to the original is here and well worth a read and a good read at that.
https://www.jaguarforums.com/forum/x...s-70896/page1/

I bought not only the US style Mustang TPS but also an Australian equivalent Ford EB Falcon TPS, I will post the links to both at the end. The first thing that I found the mustang TPS does not go high enough in resistance to achieve the voltage required at idle which should be between 0.32v to 0.36v. The Mustang TPS or depending on brand will give a reading of around 0.5v to 0.6v, this can be easily be fixed by simply removing the the cover of TPS and finding the half moon start and stop position and simply removing 2-3mm from the start side (at rest side). Now at rest you will have a much higher resistance giving you a voltage right down near 0.1v that’s perfect. I actually found that the TPS for a EB Ford Falcon goes down that far so I used it instead of the Mustang one.

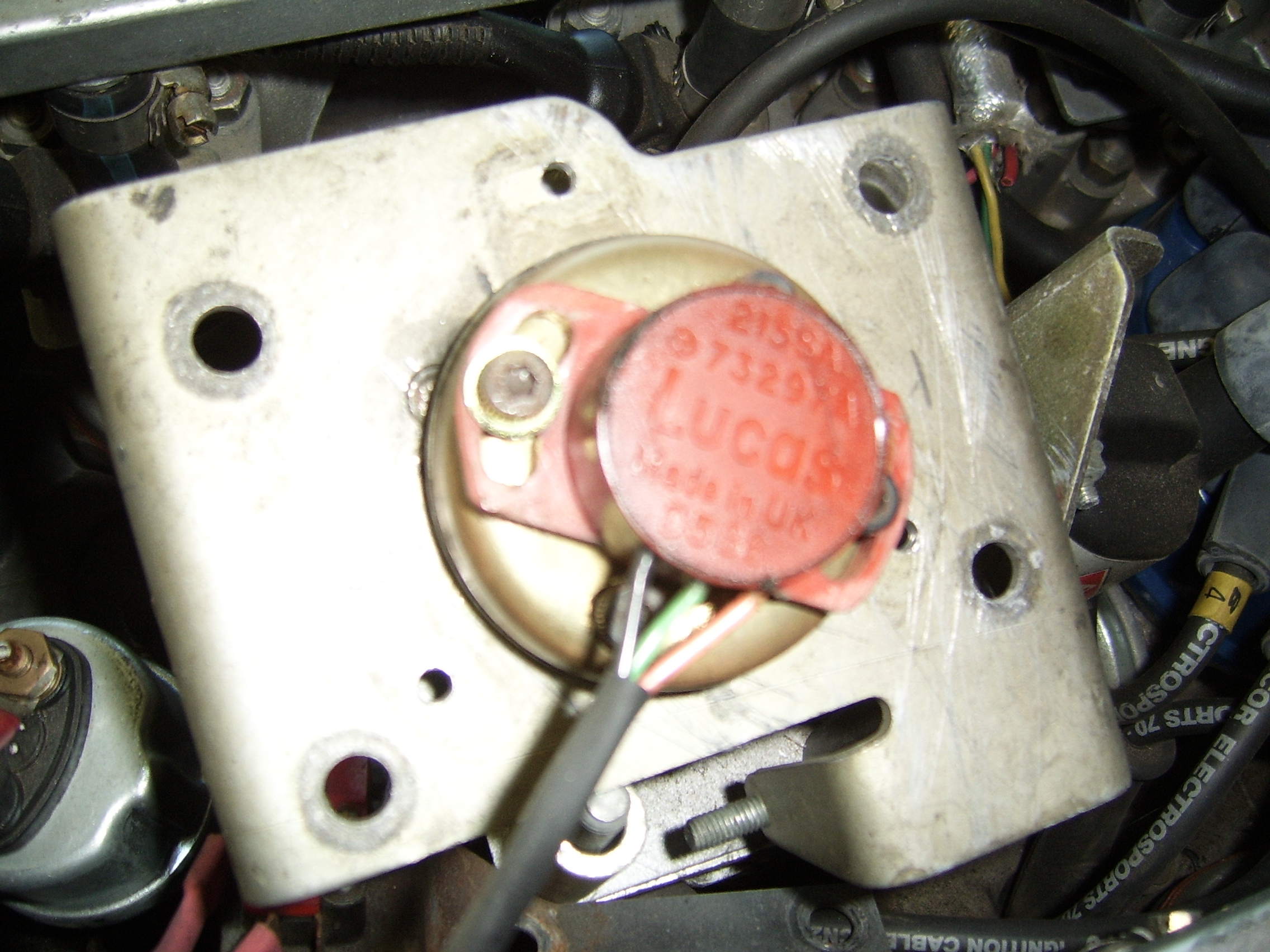

My method I machined a a little brass adapter that goes from the Jag throttle to the Ford TPS, then I machined a piece of scrap Aluminium plate to mount the Ford TPS to the Jag Capstan housing, This is where it works better, I slotted the housing so you can adjust it, I set mine at rest to give 0.344v and that has to be on the money. All these bits where made on a trail and error basis but still cost me nothing but a little time, its just a another way at looking at things and a making a good workaround that does the job.

You will notice two holes in Aluminium plate that don’t seem to belong these where holes already in the scrap piece and have absolutely nothing to do with the conversion. Early next year I should a little more time (I hope fingers crossed) and if others are interested I can run a few of these through my machines, if members need one I can supply at a minimal cost. If not I’m happy for others to use design and make their own.






Links to the TPS units are.

Mustang US Throttle Position Sensor Advantech 7J2 | eBay

EB Falcon Ford Falcon TPS Throttle Position Sensor EB ED EF EL AUI 4 0L 6 Cylinder | eBay



Very bloody good.

I used a Mazda V6 one on mine for years, until it started to get hissy, and reminded me it was only a temp repair way back a while.

I then found an XJ40 3.6 TPS, and adapted that to the capstan, and it is still there many years down the track.



That was a s/hand one also.

I then foud it is the same TPS as the X300, coz I had that one off for cleaning out a long time ago.



Grant
Its funny how we adapt things that shouldn’t be there but they seem to work and work well at that, what you described I have have done many times and you just simply forget about it while its still working but when it comes to holt you look at it and think who the hell did this s**t then remember it was you, Bugger, just hope that the fix was better than the original and out lasts us coming back to it. HaHa



i use a simple potentiometer/reostat, volume control, from Radio shack 20yrs ago, still works great.
something about old American hot rodders, we do things never knowing it wont work(so im told), but still works fine!

cost around $3.00 dollars back then, have no idea what it may cost today,cant be much!



I agree.

As I have said too many times, Jags are NOT complicated, the owners are, or make them so.

Not much on a Jag, or any other car for that matter, is SPECIFIC to that car. Stuff is being used by someone, somewhere, and it is deemed suitable for other makes, Jags included. Maybe a bit of tweeking here and there, but the same.

Ok, some stuff is specfic, V12 dist cap etc.

The CTS, is a Bosch unit, used on Merc, Volvo, SAAB, Ford, Holden, etc etc. Different coloured plastic top, WHO CARES, it works. Etc etc etc.



I couldn't agree more with what all of you have said, the thing I like now if my TPS ever goes crook, its simply a $20 and a two minute fix.

Now that’s some good info! might have to the replace mine just for the hell of it!



Bosch number for it is: 0-280-130-026.

That number is from 1995, and Bosch may have superceded that by now, maybe not??.

Also the same as the one in the X300 6 cylinder engines.



Hi Fellow Jag Enthusiasts,

I own the following JAG:

Year Make Model Trim Engine
1995 Jaguar XJR Base Sedan 4-Door 4.0L 3980CC l6 GAS DOHC Supercharged

My TPS "Throttle Position Sensor" no longer operates properly. I purchased 3 different types but to my surprise, the TPS on my JAG does not resemble anything of what Ebay offers.

My reason for my post is, who else has encountered this issue and what was the work around? I hope there is a workaround because I cannot locate anymore TPS sensors that look like the one I removed from my jag.

Here are some images:

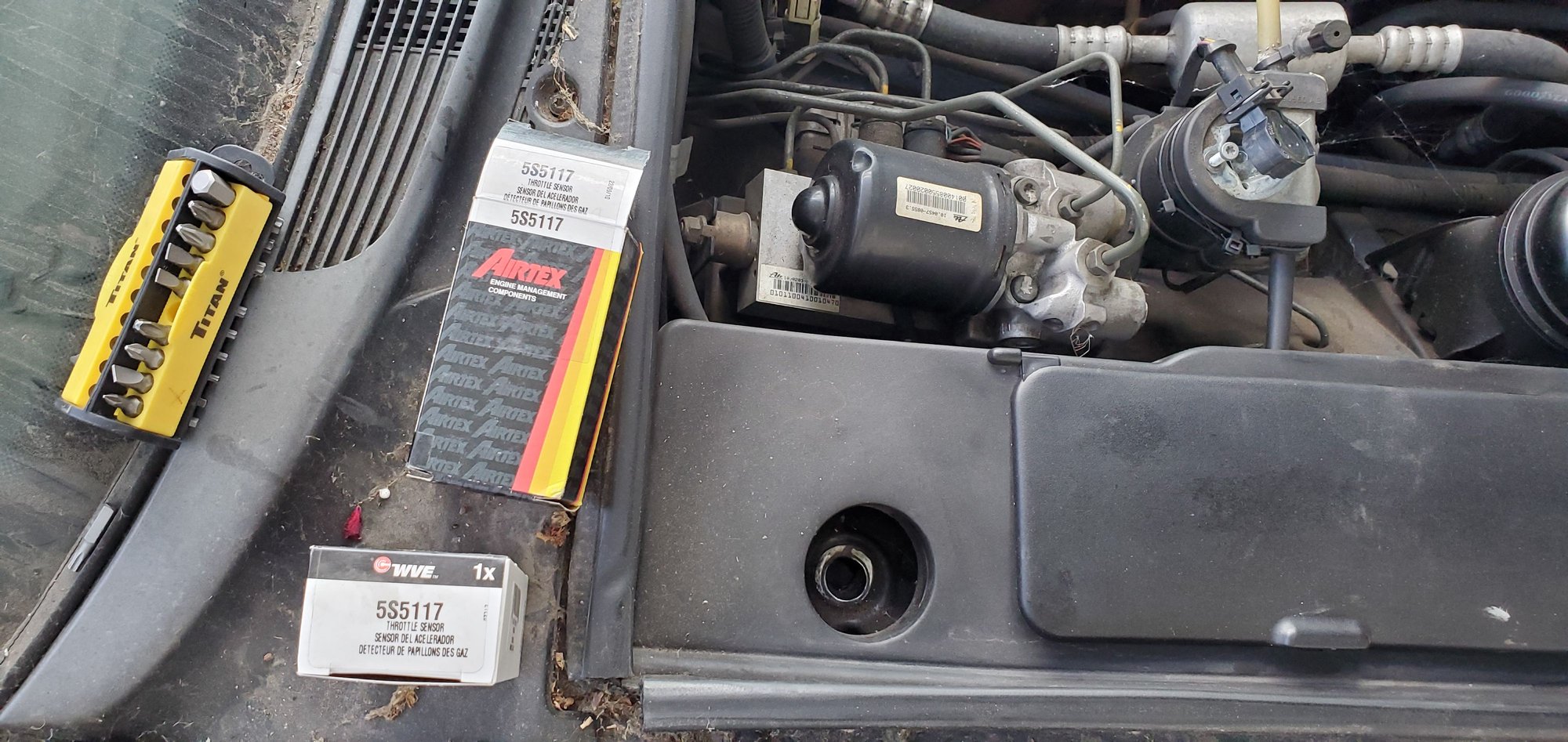

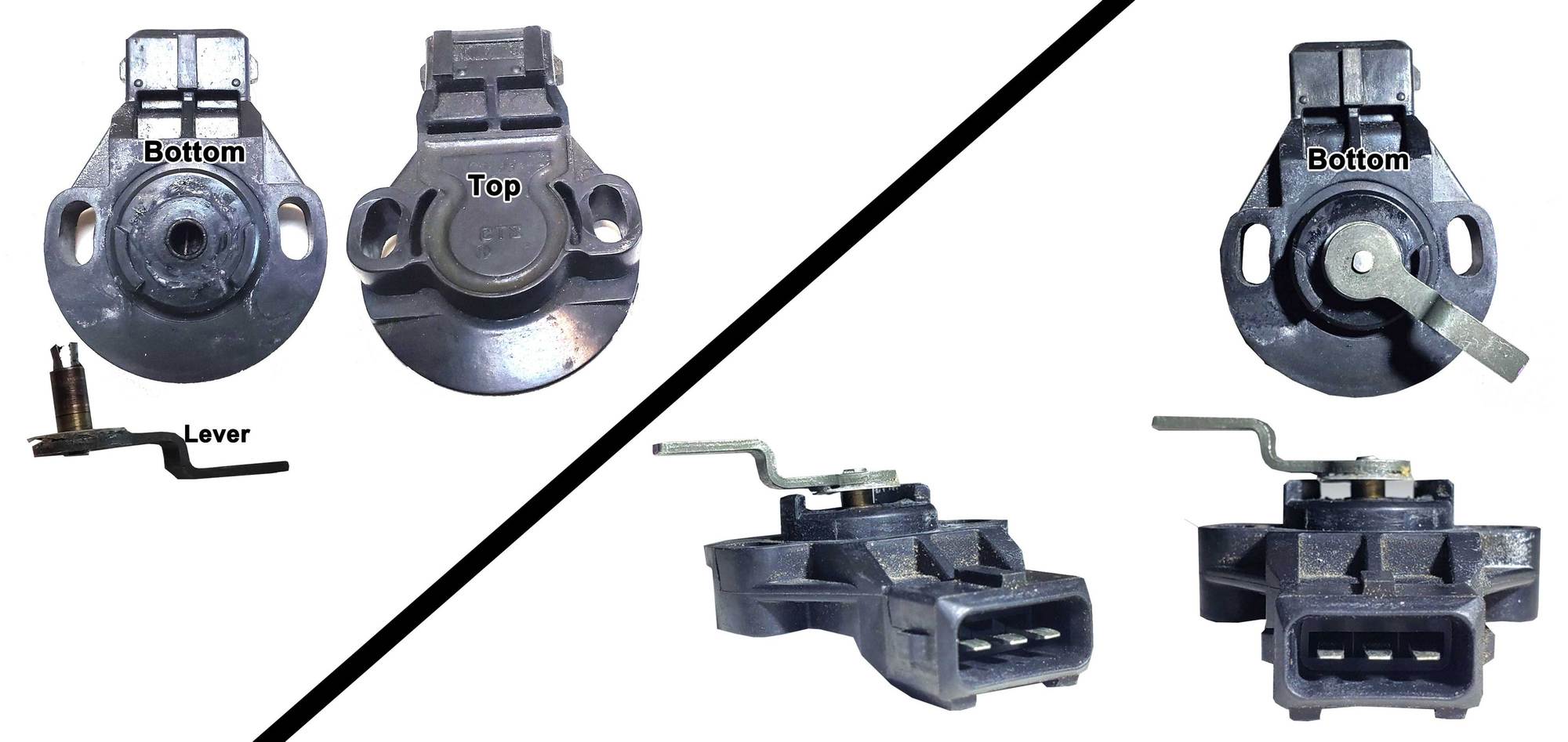

Here are the TPS sensors from Ebay stating they would fit my jab but it does not.

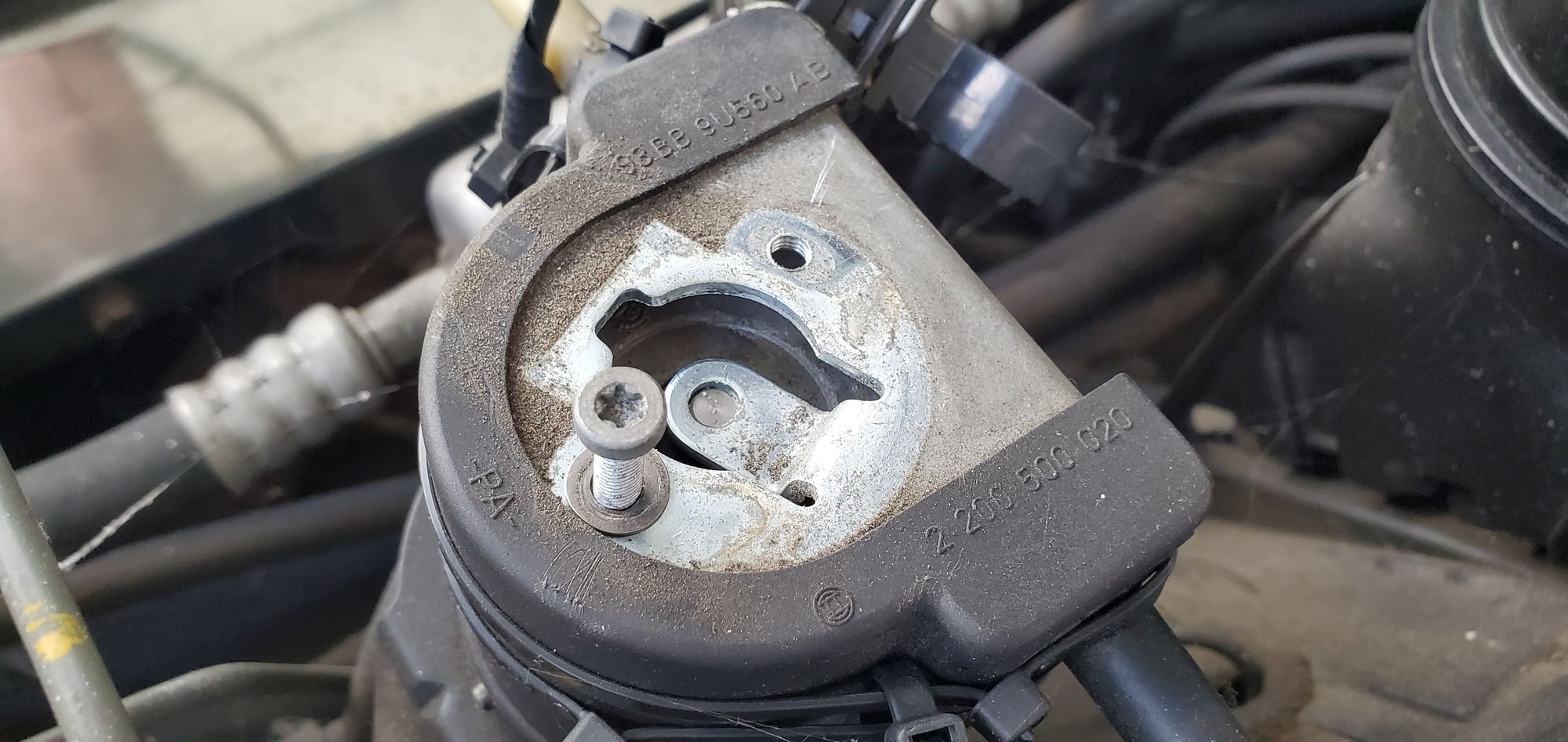

Here is what it looks like after removal of my TPS

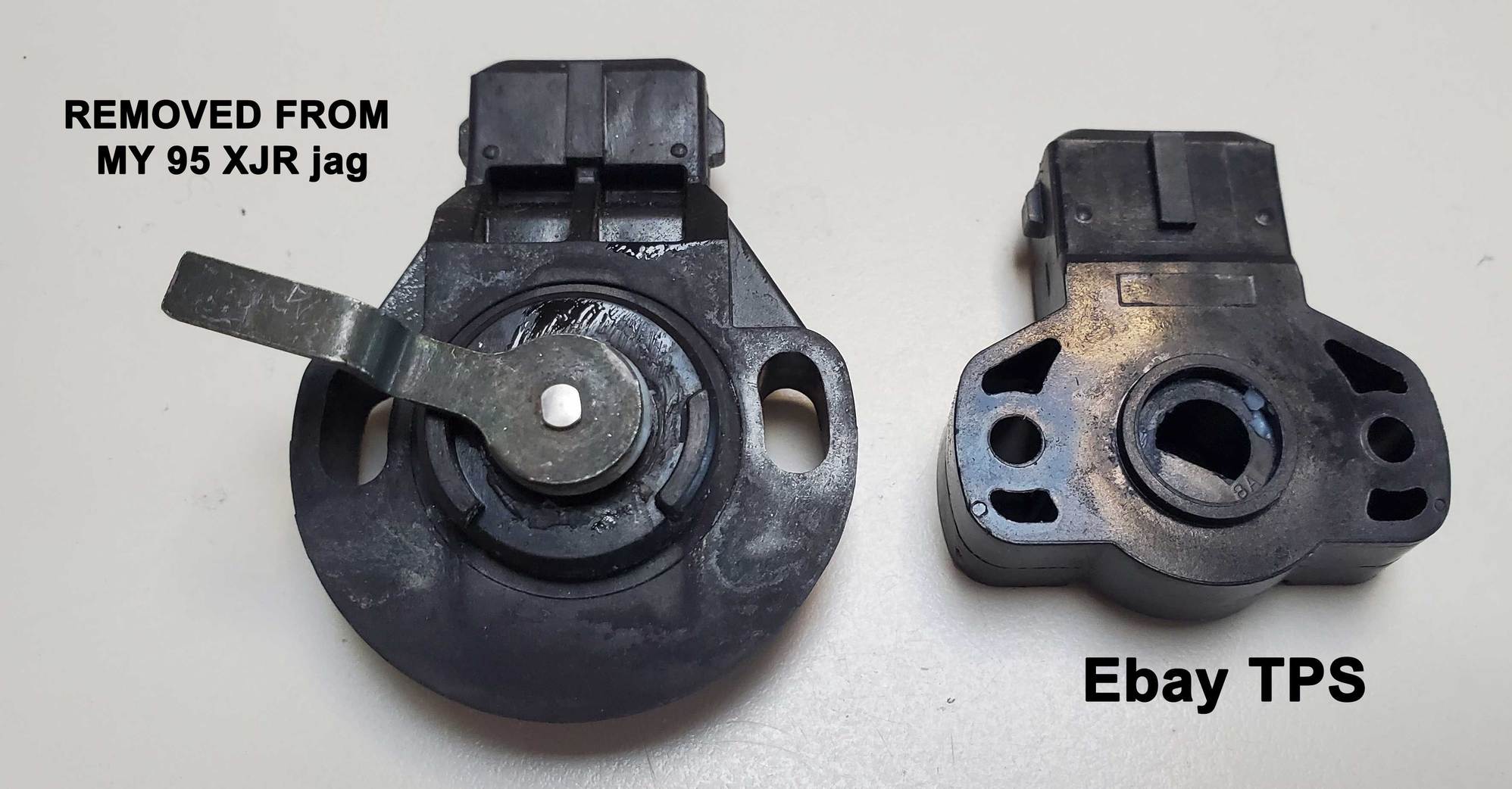

What Ebay offers and what I need are no where comparable. Not sure what 95 JAG they are talking about.



You're on the wrong side of the engine. You're working on the traction control actuator.

The TPS is mounted on the throttle body.

See #2 in this illustration

https://parts.jaguarlandroverclassic...3MTk3NzA2NA../


Cheers
DD



Thank you for clarification on my ignorance. I damaged my top sensor on what I perceived to be my Throttle Position Sensor. I found a part on Ebay and will purchase to repair what I damaged. Thank you for the illustration and where to purchase parts for my jag.
