Hi guys,

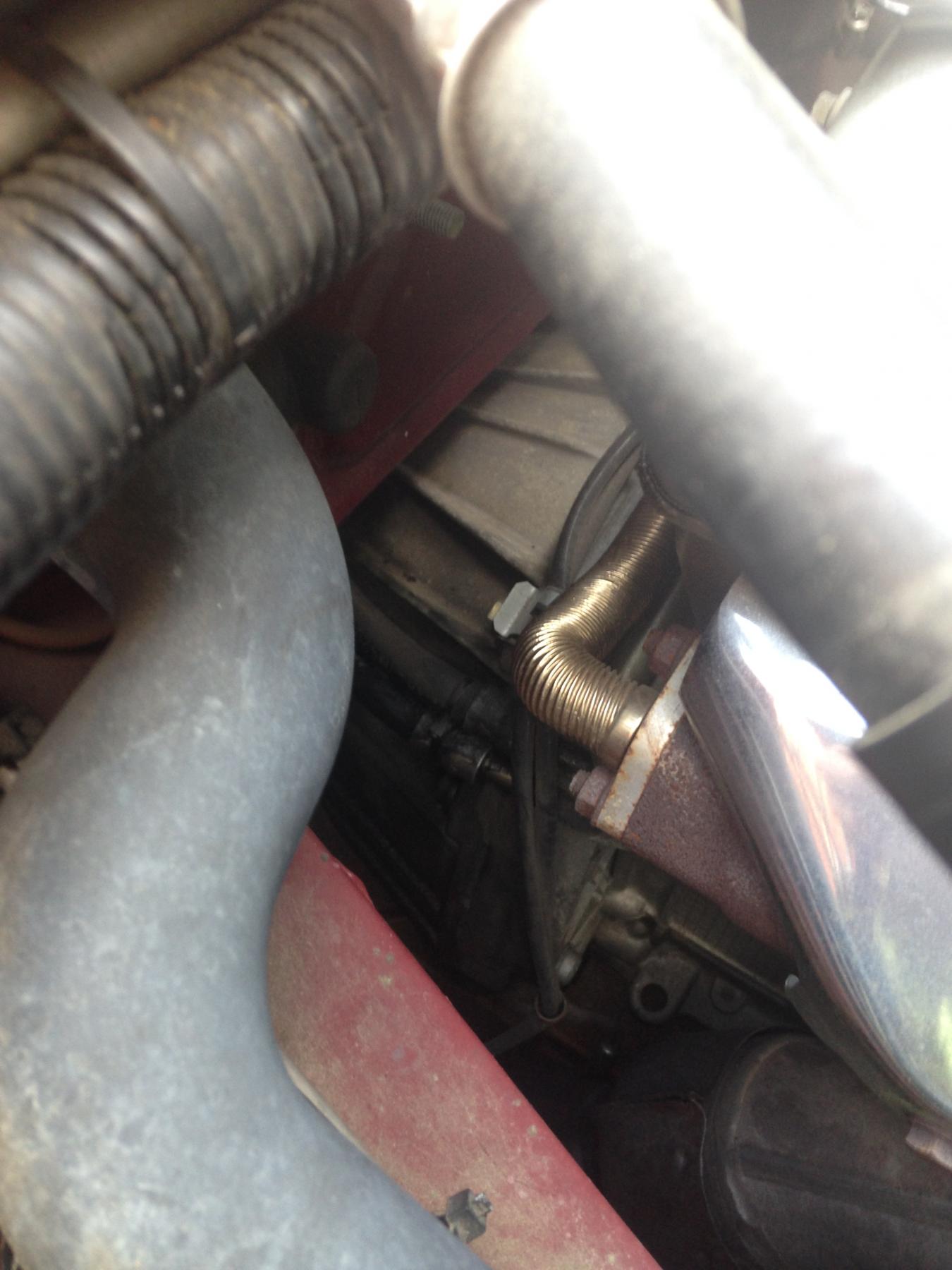

I'm experiencing an oil leak in my 1995 XJS convertible. I've traced the leak to these two hoses/pipes that are ziptied together that run right above the transmission on the passenger's side. I can't find an engine diagram that would help me in identifying these hoses, but after reading a bit I've come to the conclusion that they are either the oil cooler pipes or transmission cooler pipes. Would anyone be able to help?
Thanks,
Taso
I'm experiencing an oil leak in my 1995 XJS convertible. I've traced the leak to these two hoses/pipes that are ziptied together that run right above the transmission on the passenger's side. I can't find an engine diagram that would help me in identifying these hoses, but after reading a bit I've come to the conclusion that they are either the oil cooler pipes or transmission cooler pipes. Would anyone be able to help?
Thanks,
Taso
#2
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,743
Received 10,757 Likes
on
7,101 Posts
From your description it sounds like transmission oilpipes, not engine oil pipes
Maybe this will help?
Dipstick and Oil Cooler Pipes-4.0 Litre - Parts For XJS from (V)179737 to (V)226645 | Jaguar Classic Parts UK
Oil Cooler and Pipes-4.0 Litre-From (V)188145 - Parts For XJS from (V)179737 to (V)226645 | Jaguar Classic Parts UK
Cheers
DD
Maybe this will help?
Dipstick and Oil Cooler Pipes-4.0 Litre - Parts For XJS from (V)179737 to (V)226645 | Jaguar Classic Parts UK
Oil Cooler and Pipes-4.0 Litre-From (V)188145 - Parts For XJS from (V)179737 to (V)226645 | Jaguar Classic Parts UK
Cheers
DD
#3
good luck finding those transmission oil cooler lines. Ive found the intake line a couple of places, but not the output line. And Ive looked everywhere. What I ended up doing was taking them both into an hydraulic hose shop. They fixed them both for $59. The intake hose alone was $139 if I was going to buy it new. So I highly recommend just finding a place that fixes hydraulic lines local to you.
The following 3 users liked this post by Stillill:
#4
#5
#6
#7
I would say that would certainly be the simple solution. You'll probably have to wait a day or two for the lines to be fabbed (some places do it while you wait, but I never find those places). They just lop off the end crimp on a new piece.
In the meantime, if there's an o-ring involved, you should pass the time sourcing a Viton o-ring replacement, which could be an upgrade on the OEM. McMaster Carr has all sizes, you just need to figure out what size they are...were.
Hopefully you'll report back so that everyone else can skip the measuring and go right to the sourcing.
In the meantime, if there's an o-ring involved, you should pass the time sourcing a Viton o-ring replacement, which could be an upgrade on the OEM. McMaster Carr has all sizes, you just need to figure out what size they are...were.
Hopefully you'll report back so that everyone else can skip the measuring and go right to the sourcing.
Trending Topics
#9
#10
I must be getting links mixed up, new to this pls excuse me .. I am learning loads and hopefully I have helped others with dealing with the 1999 Model S Type, I discovered that those sites that just ask for your plate number to locate the correct part was showing mine to be a 2000, and they are very different, I think it's the very first S Type 3.0L SE ..
#11
My hose that leaked adjuring a drive was the one that starts on the left side of the tranny and wraps up and over the front to the right side where it meets up with the hose on the RH side of the tranny. From there both go to hard lines to the front of the engine to the radiator. Yes, I relive the hose that split was the pressure hose. My solution was to get new hi pressure hose, cut off where the hose meets the hard line and insert the hard line in the hose and clamp with two hose clamps. The hard line actually has a shaped "bead" close to the swaged/crimped portion near the hose and once inserted and clamped, will not slide out. Did the same for the fittings on the tranny end. So far so good.
The following users liked this post:
Simon Pickering (12-18-2019)
#12
The ally had corroded at the bottom of the oil rad, no choice but to replace, even if I soldered it up it would go somewhere else prob ..having a rest and using the spare (don't ask) ..when finished I think I have done everything that has worn out, I should've got the 2000 and above model, I believe mine is the first S Type as they are so different and parts are a problem, I am not paying $70 for a used one as it would be 20 years old, hence a new one at$120,its annoying as I had job done then when bleeding, the oil cooler blew with a half inch crack near the bottom outlet/in. I am getting better at replacing rads now , a talent I didn't need ,, outside in the dark and rain, my hair was covered in oil lol, I will just bung 1 litre in as that looks like that amount on the floor and me(stop laughing) .. "It's a Jag Thing" it's in my blood ..and hair .3 washes and I can still wiff it and as you know it's not the best of odours.. Forever your surf Si
