Speedo erratic then quit working
#1
Speedo erratic then quit working
So my speedometer has given up the ghost. Palm doesn't have a lot to say about it, other than it may be cables drooping on the exhaust.
Looking at Cap. Jag's diagrams, I see an item in plate KO6 labeled "electromagnetic sensor" that bolts to the front left side of the transmission housing. Is this sensor the sensor that feeds the speedometer?
Thanks!
John
1987 XJ-S V12
64,000 miles
Looking at Cap. Jag's diagrams, I see an item in plate KO6 labeled "electromagnetic sensor" that bolts to the front left side of the transmission housing. Is this sensor the sensor that feeds the speedometer?
Thanks!
John
1987 XJ-S V12
64,000 miles
#2
Your model year is about on the cusp of the change to the speedo drive takeoff point. If MAY be on the US driver's side of the trans, towards the back. If so there is a knurled round thing with two wires coming out of it, plugged into a bit of loom that goes up into the tunnel. This is the bit that can foul the exhaust. It is an electronic speedo. I have a vague idea the Great Palm's model had a cable driven one.
OR the signal is taken off the diff like all later models. If so, you will see a protected bit of loom coming off the back of the diff, hard to see but there. others who have this system willl give you pointers to test
It is just as likely that the electrical circuit to the speedo in the instrument cluster has failed somehow. Nothing to be done but test it from back to front, starting with seeing if the drive thingies, wherever they are, produce a signal !
Greg
OR the signal is taken off the diff like all later models. If so, you will see a protected bit of loom coming off the back of the diff, hard to see but there. others who have this system willl give you pointers to test
It is just as likely that the electrical circuit to the speedo in the instrument cluster has failed somehow. Nothing to be done but test it from back to front, starting with seeing if the drive thingies, wherever they are, produce a signal !
Greg
The following users liked this post:
RagJag (11-01-2014)
#3
#4
Classic transducer failure on the old speedo drive on the t400 trans tail shaft, drivers side. Chevy used a cable, Jaguar uses an electric transducer. Cheapest place I found for one when I needed it was the LBCarCo. 88.5 was the change year IIRC to the diff.
FROM LBCarCo Site:
DAC4569
TRANSDUCER,ELEC. SPEEDO
XJS,84 1/2-88 1/2
Retail $149.95 Our Price $127.46
FROM LBCarCo Site:
DAC4569
TRANSDUCER,ELEC. SPEEDO
XJS,84 1/2-88 1/2
Retail $149.95 Our Price $127.46
#5
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,738
Received 10,746 Likes
on
7,099 Posts
#6
#7
Trending Topics
#8
Speedo erratic then quit working

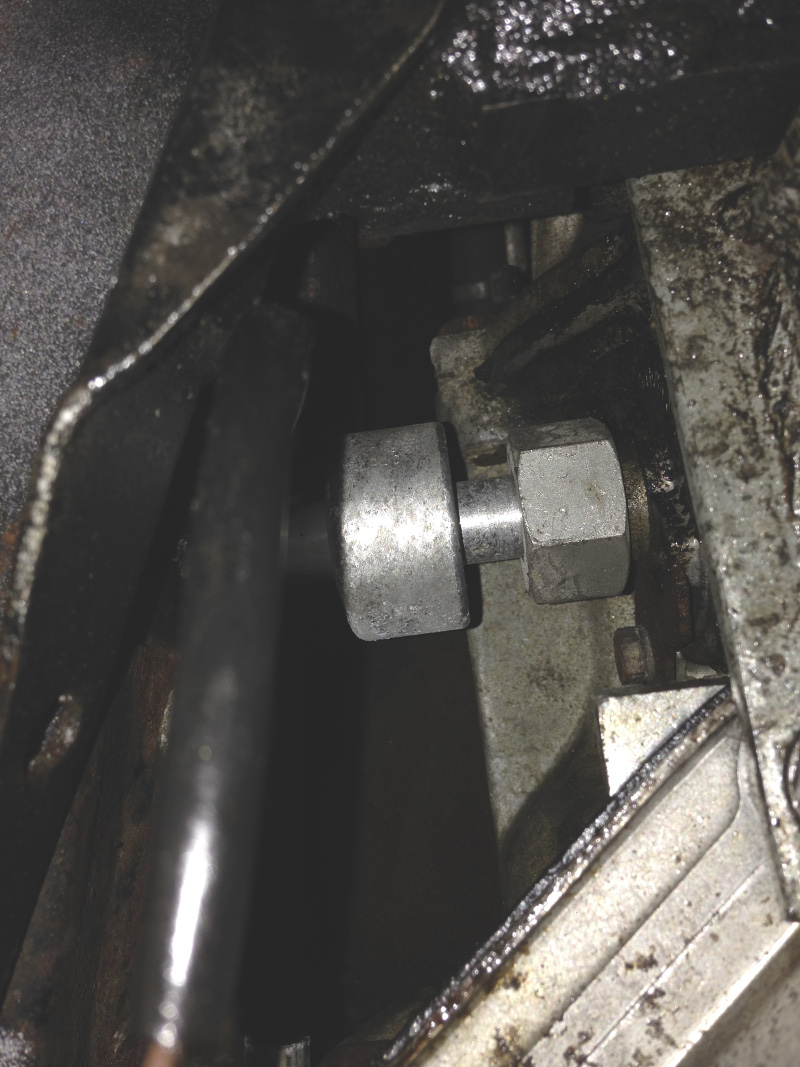

See photo. I take it this is the speedometer transducer. You can't see it in the photo, but there are two wires coming out of the back of it.
If it is the transducer...
1. Do I need to drain tranny fluid before removing it?
2. How can I test it once it's removed?
3. Is it a Hall Effect sensor?
Thanks,
John
1987 XJ-S V12
If it is the transducer...
1. Do I need to drain tranny fluid before removing it?
2. How can I test it once it's removed?
3. Is it a Hall Effect sensor?
Thanks,
John
1987 XJ-S V12
#9
Join Date: Mar 2008
Location: Pacific Northwest USA
Posts: 24,738
Received 10,746 Likes
on
7,099 Posts
#10
It's fixed. I gambled that it was the transducer, so I ordered a replacement and that did the trick.
Strangely enough, the 'bad' unit seems to have the same electrical characteristics as the 'good' one, so I wasn't able to come up with any troubleshooting hints.
John
1987 XJ-S V12
64,000 miles
Strangely enough, the 'bad' unit seems to have the same electrical characteristics as the 'good' one, so I wasn't able to come up with any troubleshooting hints.
John
1987 XJ-S V12
64,000 miles
