Boost Gauge readings
#1
Boost Gauge readings
I've seen a few of you guys with boost gauges mounted, I'm curious as too where you plumbed in the line/sensor.
Has anyone referenced the TMAP sensor voltage wire for a reading?
As I'm planning to possible run form the TMAP Volt into my data acquisition unit and just write a formula to convert back to a pressure reading.
Assuming something like Boost= (slope)(volts)- atmosphere pressure
Additionally, what kind of readings are you seeing at max boost? Specify year model with replies.
Seems:
The AJ26/27 setups see max 11.6 lbs (0.8 Bar) ? Pulled from the training manual
The AJ33 setups see 13 lbs (0.896 Bar)? Is this accurate?
Thank in advance
D. Fricke
Has anyone referenced the TMAP sensor voltage wire for a reading?
As I'm planning to possible run form the TMAP Volt into my data acquisition unit and just write a formula to convert back to a pressure reading.
Assuming something like Boost= (slope)(volts)- atmosphere pressure
Additionally, what kind of readings are you seeing at max boost? Specify year model with replies.
Seems:
The AJ26/27 setups see max 11.6 lbs (0.8 Bar) ? Pulled from the training manual
The AJ33 setups see 13 lbs (0.896 Bar)? Is this accurate?
Thank in advance
D. Fricke
#2
The following users liked this post:
FrickenJag (04-16-2015)
#3
The following 2 users liked this post by Cambo:
FrickenJag (04-16-2015),
Panthro (07-14-2016)
#4
If I can find the the volt/pressure relationship, I'd like to read off the TMAP rather than install an additional sensor if possible. Was curious is any has tried this. I might be able to contact the sensor manufacturer for the conversion if its not in the jag manuals. I located the older MAP sensor chart, but not the TMAP.
Regards,
D. Fricke
#5
#6
2008 XKR has the AJ34S engine, there is no pressure sensor in the boosted part of the engine, only temperature. The MAP is located between the throttle body and the supercharger, so it only reads vacuum.
TMAP is on the 5.0L only. (Temperature-Manifold-Absolute-Pressure) sensor located in the outlet of one of the charge coolers.
TMAP is on the 5.0L only. (Temperature-Manifold-Absolute-Pressure) sensor located in the outlet of one of the charge coolers.
#7
The following 3 users liked this post by Cambo:
Trending Topics
#8
The stock Eaton (at least on my X100) would make 13-15psi depending on ambient temperature and whether I turned on the water/meth injection.
The following 2 users liked this post by ccfulton:
FrickenJag (04-17-2015),
Panthro (07-14-2016)
#10
Good thinking Cameron. That's probably what I'll setup for a manual reading, then see what that coverts to with the volts coming out the TMAP.

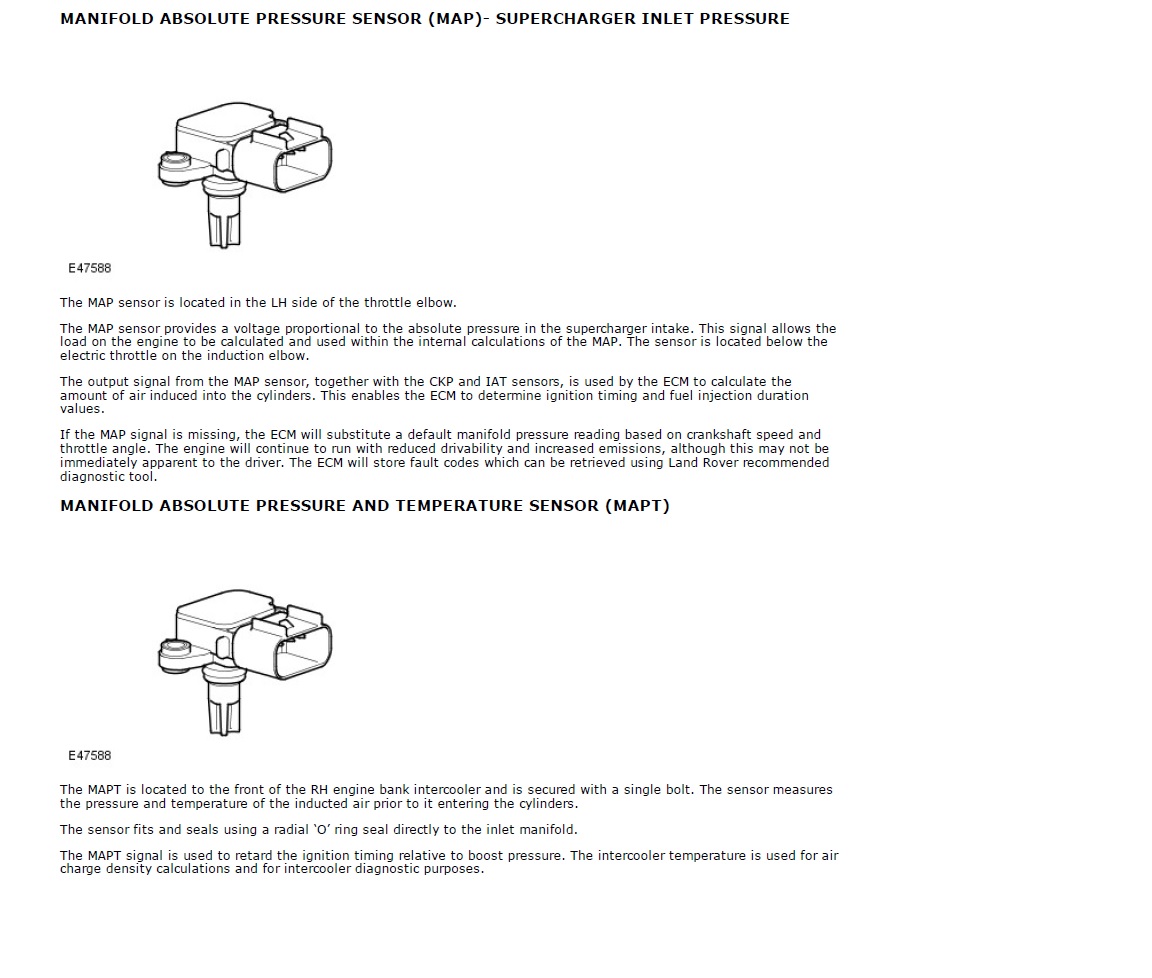

Per the shop manual for 2006-2009 4.2 actually does list a TMAP, or MAPT rather that is plumbed in on the front of the RH engine bank intercooler. (See attached)
Thanks for the help.
Regards,
D. Fricke
Per the shop manual for 2006-2009 4.2 actually does list a TMAP, or MAPT rather that is plumbed in on the front of the RH engine bank intercooler. (See attached)
Thanks for the help.
Regards,
D. Fricke
The following users liked this post:
Panthro (07-14-2016)
#11
#12
The following users liked this post:
FrickenJag (04-20-2015)
#14
The later XJR's and S-Type R's also got VVT, from 2006MY onwards.
My understanding was the AJ33S is with the STR/XJR (and XF SV8) charge cooler & intake setup, and the AJ34S is the XKR charge cooler & intake setup. Could be wrong though...
You have an AJ34S in your X103 XKR right Charlie?
My understanding was the AJ33S is with the STR/XJR (and XF SV8) charge cooler & intake setup, and the AJ34S is the XKR charge cooler & intake setup. Could be wrong though...
You have an AJ34S in your X103 XKR right Charlie?
#15
#16
I have not attempted to view the PID via OBD yet. I will look into it.
Are the Jaguar specific Paramter ID's listed anywhere with the Formula conversions?
Seems MAP and MAPT will be Jaguar specific PID and formulae.
The standard PID's are listed Wiki, anyone know of a creditable source that has standards with formulas published?
Regards,
D. Fricke
Are the Jaguar specific Paramter ID's listed anywhere with the Formula conversions?
Seems MAP and MAPT will be Jaguar specific PID and formulae.
The standard PID's are listed Wiki, anyone know of a creditable source that has standards with formulas published?
Regards,
D. Fricke
#17
Most car makers deliberately choose non-standard PIDs with inconsistent formulae as part of their vendor lock-in strategy so don't expect to find anything published, let alone openly. It's time the authorities put an end to this anti-competitive nonsense but for now about all you can do is snoop the wires or just use IDS/SDD.
#18
The later XJR's and S-Type R's also got VVT, from 2006MY onwards.
My understanding was the AJ33S is with the STR/XJR (and XF SV8) charge cooler & intake setup, and the AJ34S is the XKR charge cooler & intake setup. Could be wrong though...
You have an AJ34S in your X103 XKR right Charlie?
My understanding was the AJ33S is with the STR/XJR (and XF SV8) charge cooler & intake setup, and the AJ34S is the XKR charge cooler & intake setup. Could be wrong though...
You have an AJ34S in your X103 XKR right Charlie?
I don't really know that for sure though, I was just making an assumption (and going by what is listed in Wikipedia).
#19
#20
Alex, I asked a question about this on another thread about 2.5 years ago. The thread is here, my post is #5 and there's a potentially useful (to you) reply from Cambo immediately following - https://www.jaguarforums.com/forum/x...r-boost-62599/
